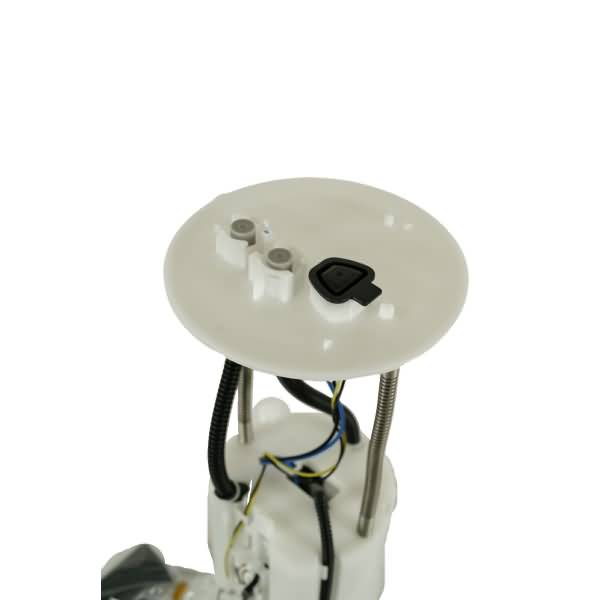

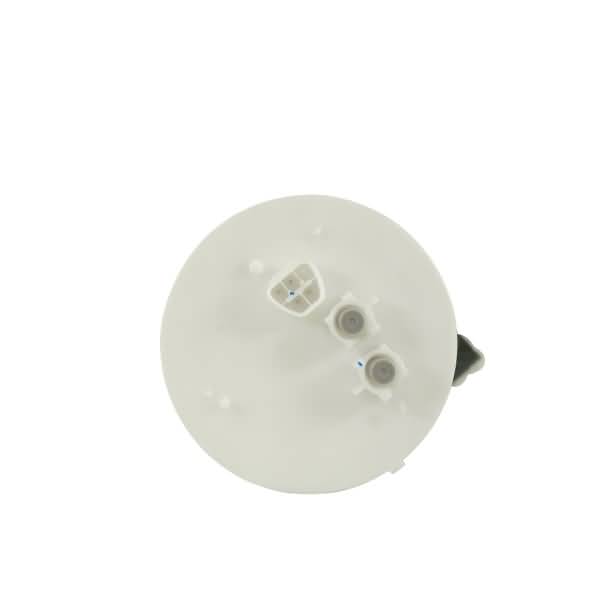

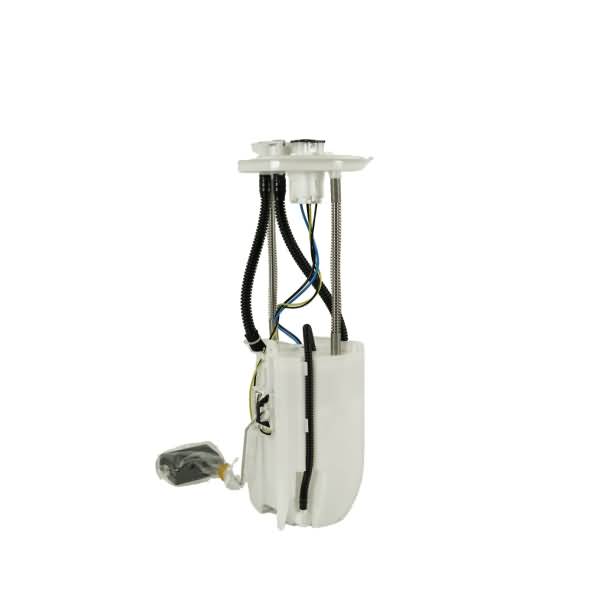

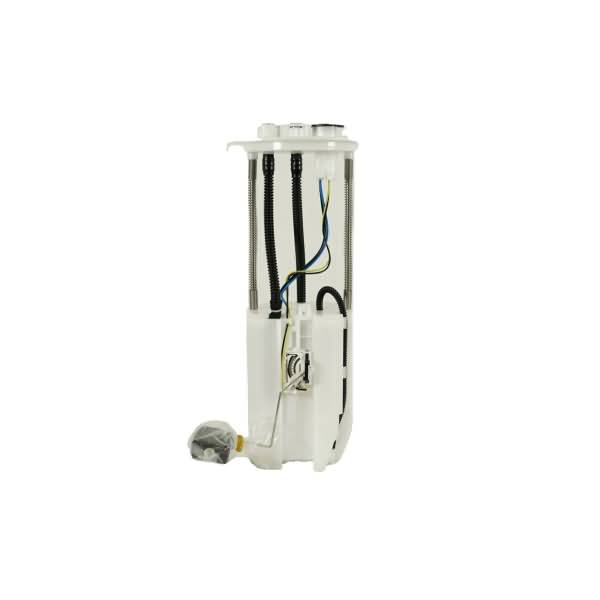

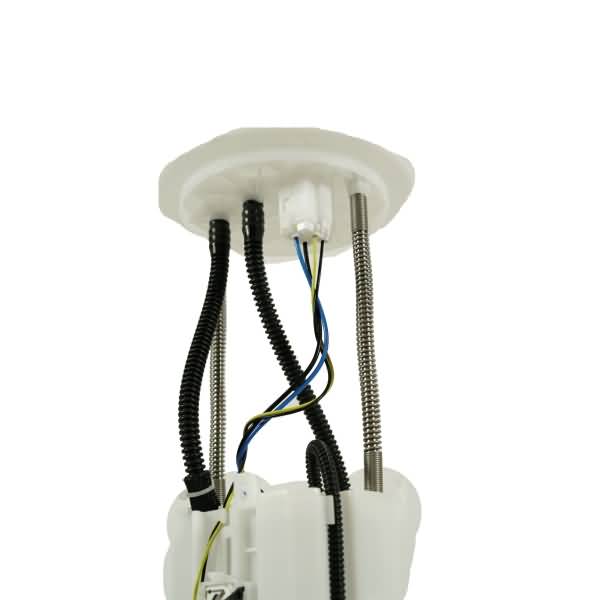

Autobest® Fuel Pump Module Assembly F4889A

Autobest Fuel Pump Module Assembly F4889A

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Warranty
  • Vehicle Fitment
  • Specifications

    BrandAutobest
    Part NumberF4889A
    Part DescriptionFuel Pump Module Assembly
    Average Current Draw(A)7.5
    Average Flow Rating(GPH)38.3
    Connector GenderMale
    Connector Quantity1
    Connector ShapeTrapezoid
    Country of OrignChina
    Fuel Filter IncludedYes
    Fuel Sending Unit IncludedYes
    Fuel Tank Pressure Sensor IncludedNo

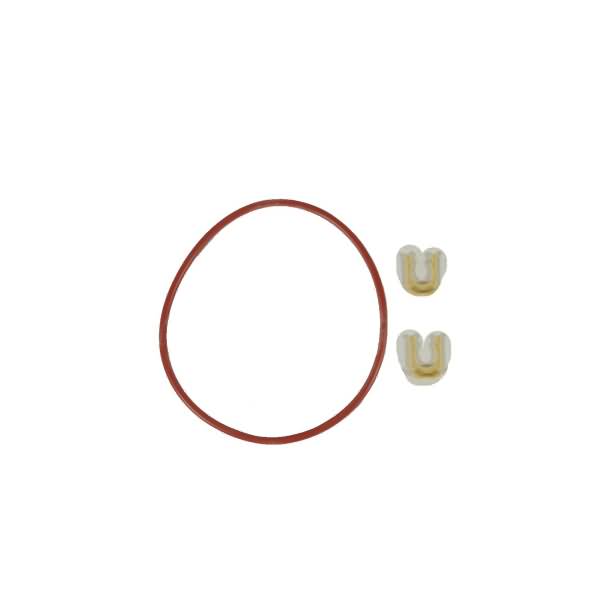

    Gasket or Seal IncludedYes
    Gasket Or Seal MaterialNBR
    Grade TypePerformance
    Housing MaterialPOM
    In Tank or ExternalIn Tank
    Inlet Size0.335
    Inlet TypeStrainer
    Installation WarningsNo
    Internal Or External StrainerInternal
    Lock Ring IncludedNo
    Maximum Pump Pressure (PSI)105
    Minimum Pump Pressure (PSI)95
    Negative GroundYes
    Outlet Quantity1
    Outlet Size5/16
    Outlet TypeFemale Quick Connect
    Product Height (in)6.52
    Product Length (in)13.94
    Product Width (in)7.17
    Pump TypeTurbine
    Regulator IncludedNo
    Resistance Ohms Empty412
    Resistance Ohms Full15
    Strainer IncludedYes
    Terminal GenderMale
    Terminal Quantity4
    Terminal TypePIN
    UPC00072845148896
    Voltage12V
    Weight (lbs)2.79
    Wire Harness IncludedNo
    Warning: California’s Proposition 65
  • Features

    Autobest Fuel Pump Module Assembly are featured as follows:
    • Made with the best quality materials to ensure great product quality.
    • They are tested in many points of the manufacturing process to make sure that it is durable and reliable.
    • Allows fuel flow from the tank to the engine.
    • The production takes place following strict regulations so as meet or surpass those of an original manufacturer.
    • Contains a plastic molded fuel-resistant reservoir for holding fuel under all operational conditions.
    • Fuel pump transports fuel at high pressure through vehicle's fuel system.

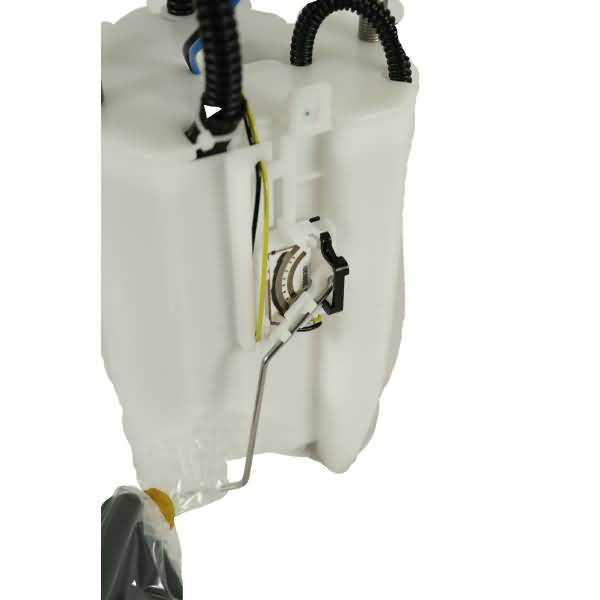

    • The float and sender unit complement each other to measure for measuring amounts of gas inside the tank which is then communicated on the fuel gauge.
    • Has a spring that expands due to temperature change, which maintains the reservoir low in the tank and eliminates chances of starvation.
    The Autobest Fuel Pump Module Assembly F4889A is a durable, high-quality part of a fuel delivery system that ensures fuel is supplied from the tank to the engine. For this reason, the pump unit has been built in compliance with strict guidelines that aim at meeting and exceeding the requirements of an original equipment manufacturer (OEM). The module includes a plastic molded fuel resistant reservoir, a fuel pump, float and sender unit, spring and strainer. It operates by pumping fuel in pressure to the vehicle's fuel system through the spring and strainer. On the other hand, float and sender unit gauge measure the level of fuel in the tank after which it sends them to electronic instrument panel so as to be read by drivers on their dashboard gauges. Last but not least, when temperature rises or falls to certain levels, spring will stretch or shrink respectively so as to keep reservoir at the bottom hence preventing petrol starvation. Strainer performs filtration of gasoline before it enters into fuel systems. During production Autobest Fuel Pump Module Assembly are subjected through all stages for testing purposes so as to ensure they offer unmatched performance as well as last long enough.
    Autobest International Corporation is recognized as a leader in the production of top notch fuel system components. Providing customers with outstanding fuel pumps, fuel pump module assemblies and strainers through the utilization of advanced manufacturing technology and premium materials. All items are subjected to rigorous testing that spans at least 2500 hours for superior performance and quality assurance. Autobest demonstrates its commitment to providing reliable products to customers and clients within the automotive industry.
  • Warranty

    Limited Lifetime Warranty
  • Vehicle Fitment

    Year Make Model Trim Engine
    2007-2009 Toyota FJ CruiserAll Trims6 Cyl 4.0L
