Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4866A |

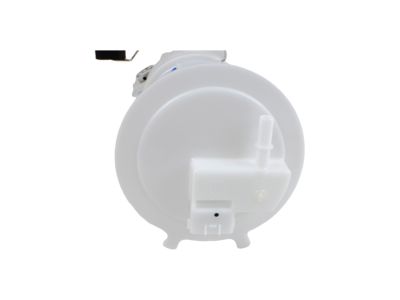

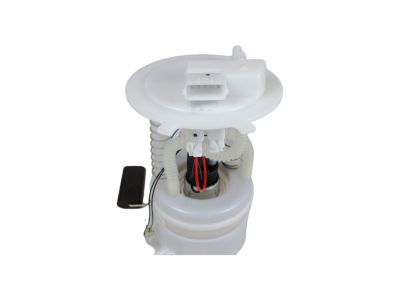

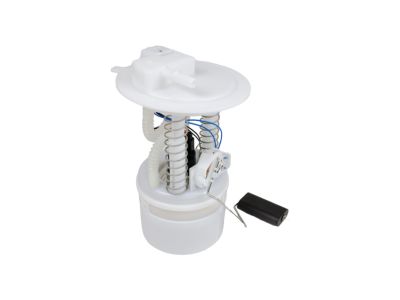

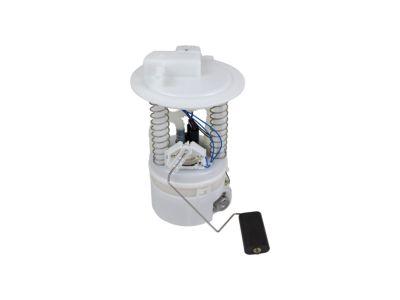

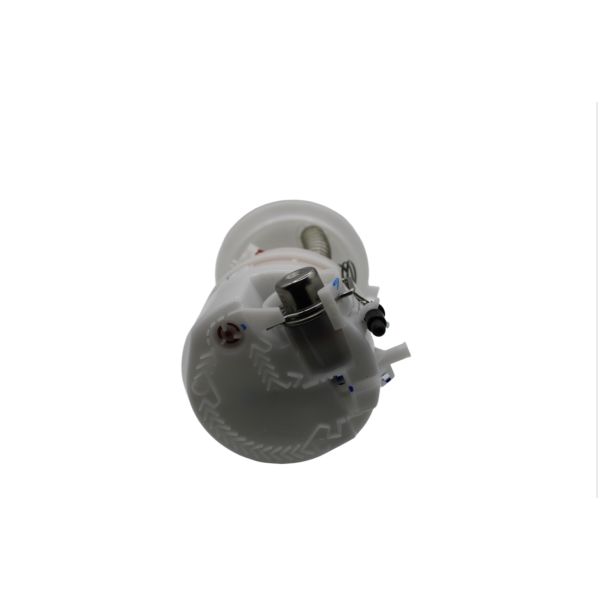

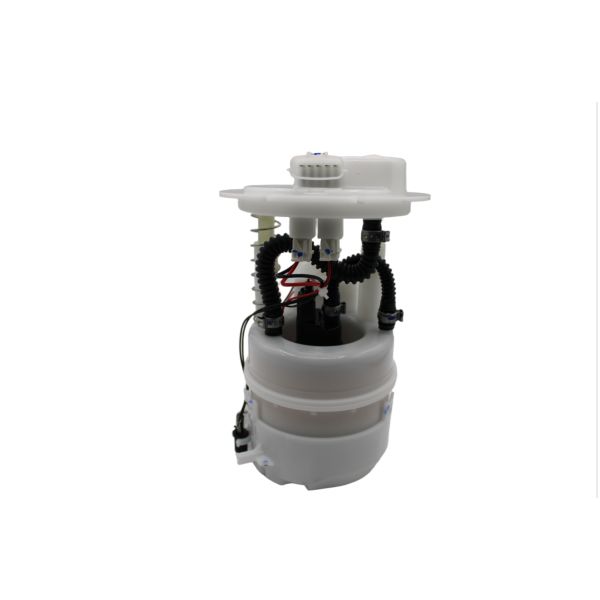

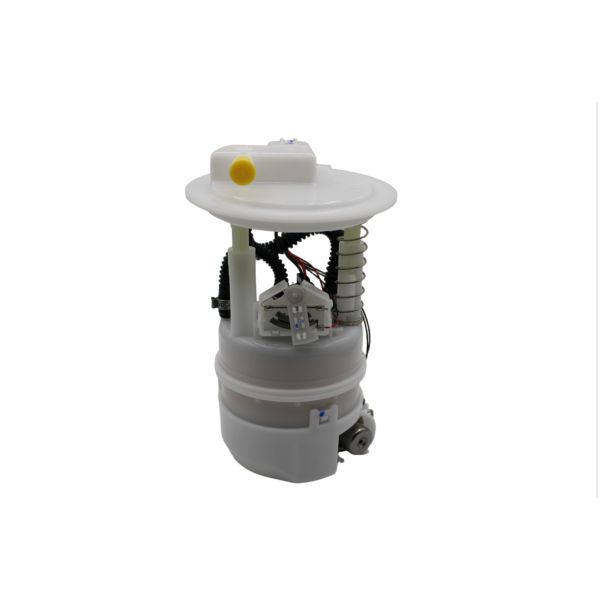

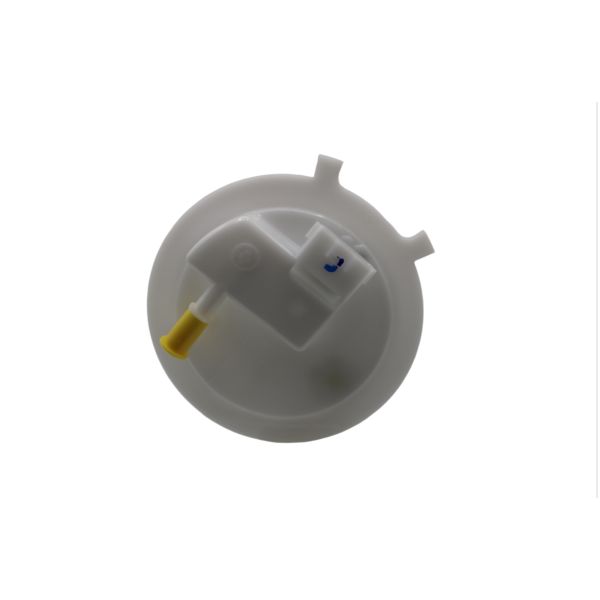

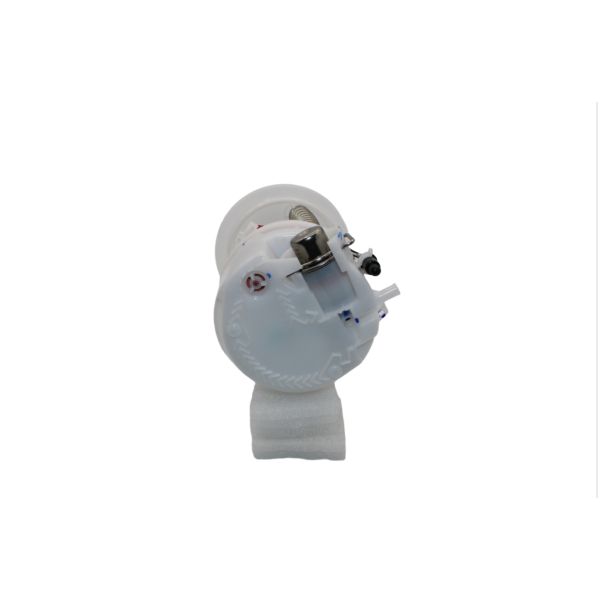

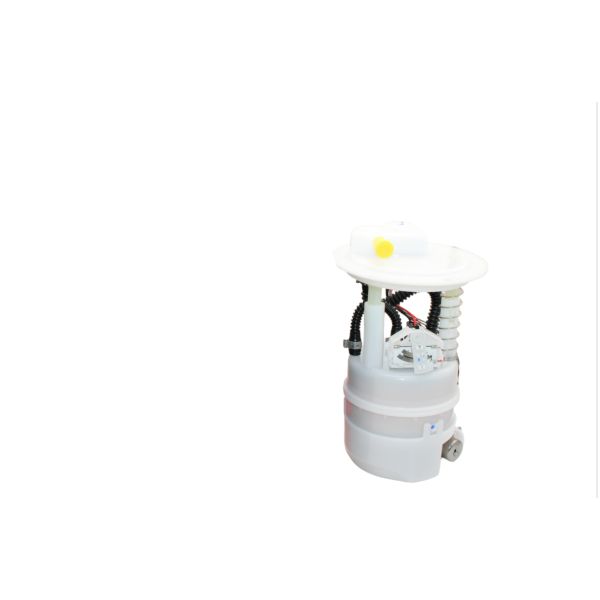

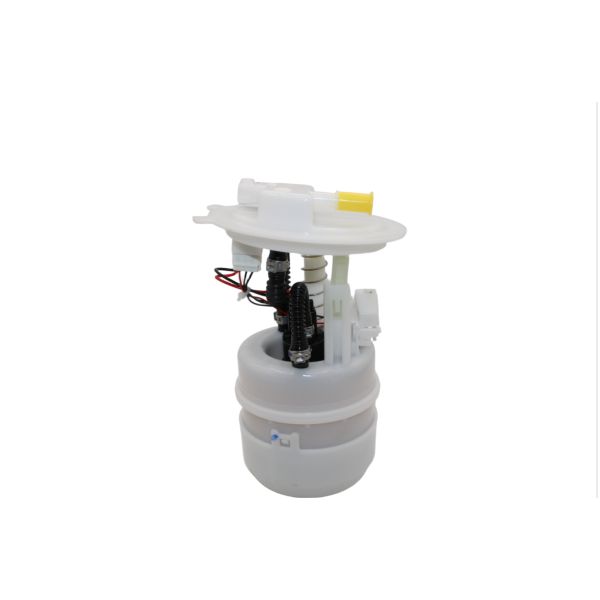

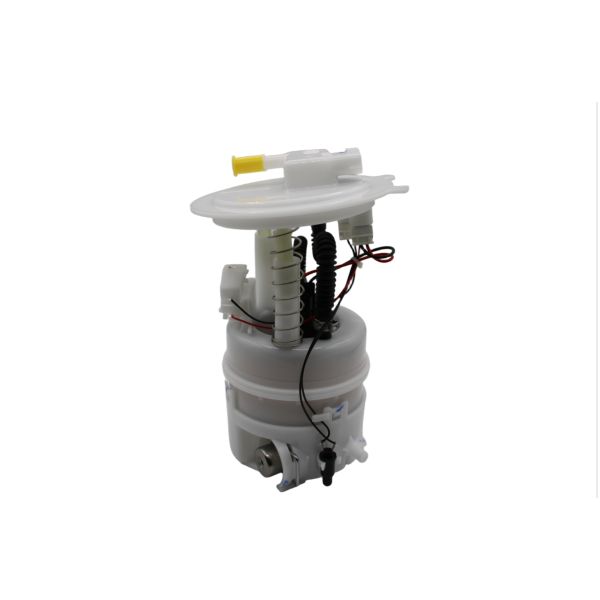

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 5.6 |
Average Flow Rating(GPH) | 22.45 |

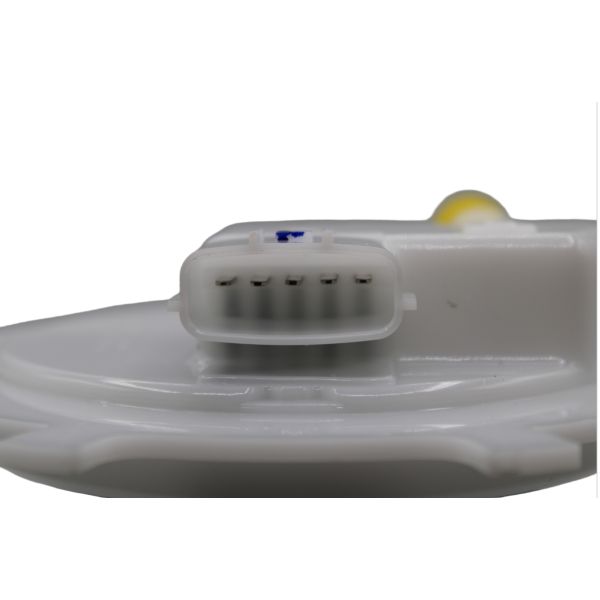

Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

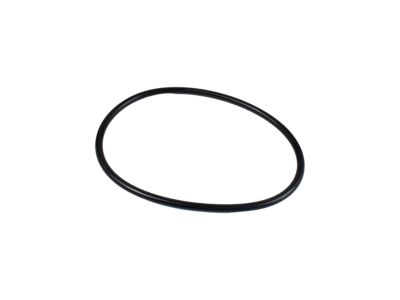

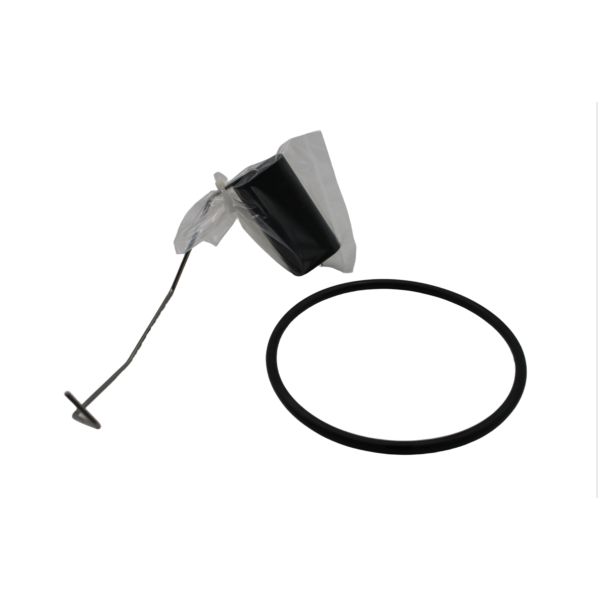

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 10 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Package Contents | Pump & Module |
Product Height (in) | 7.09 |
Product Length (in) | 8.98 |
Product Width (in) | 7.2 |
Regulator Included | Yes |
Resistance Ohms Empty | 81 |
Resistance Ohms Full | 5 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | PIN |
UPC | 00072845148667 |
Voltage | 12V |
Weight (lbs) | 2.23 |
Width (in.) | 9 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2009-2014 Nissan Cube | All Trims | 4 Cyl 1.8L |
2007-2012 Nissan Versa | All Trims | 4 Cyl 1.8L |
2009-2011 Nissan Versa | All Trims | 4 Cyl 1.6L |
