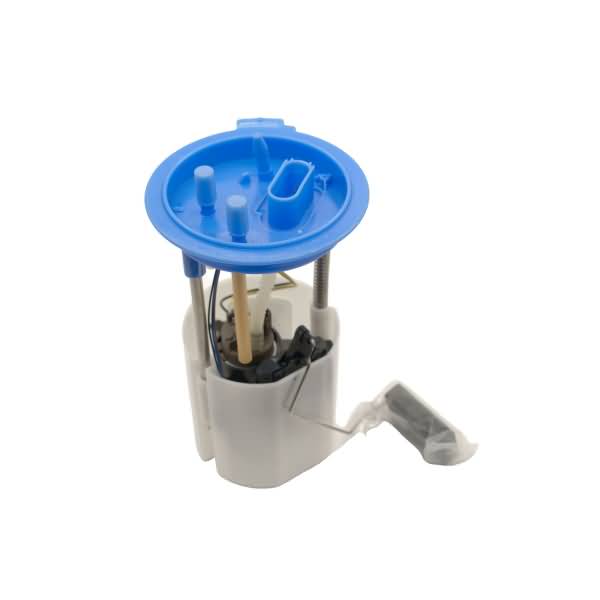

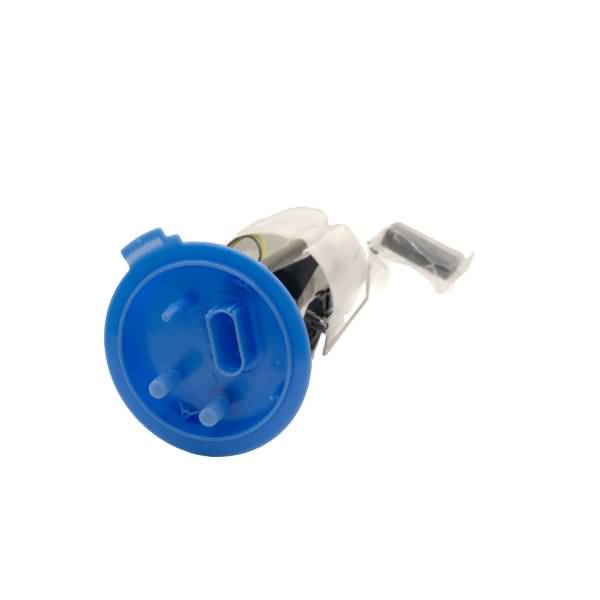

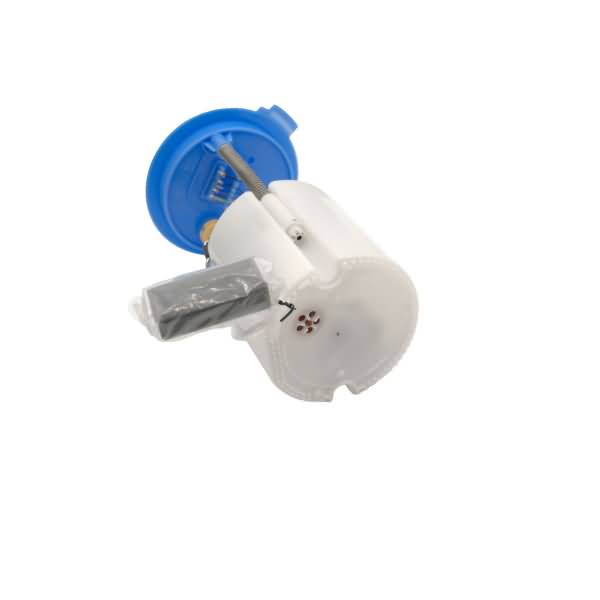

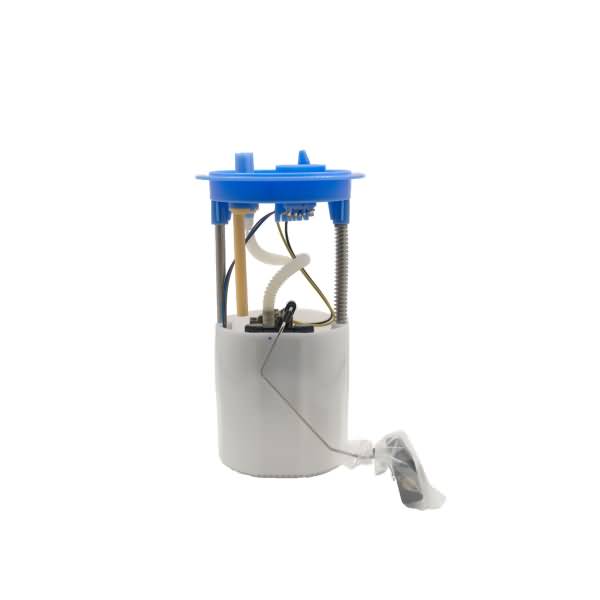

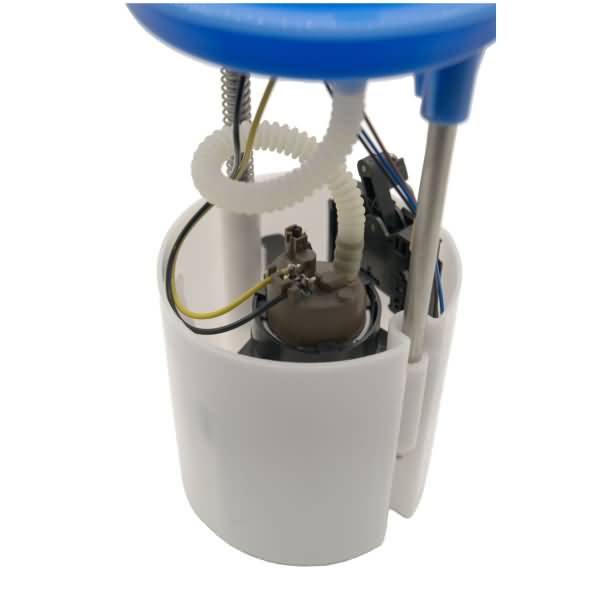

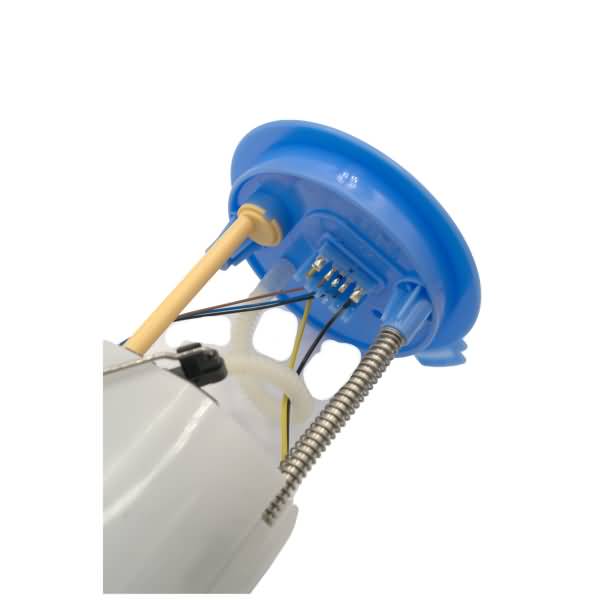

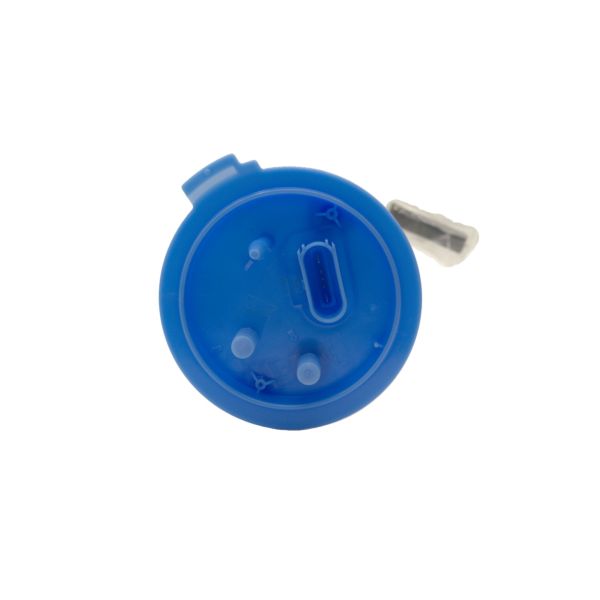

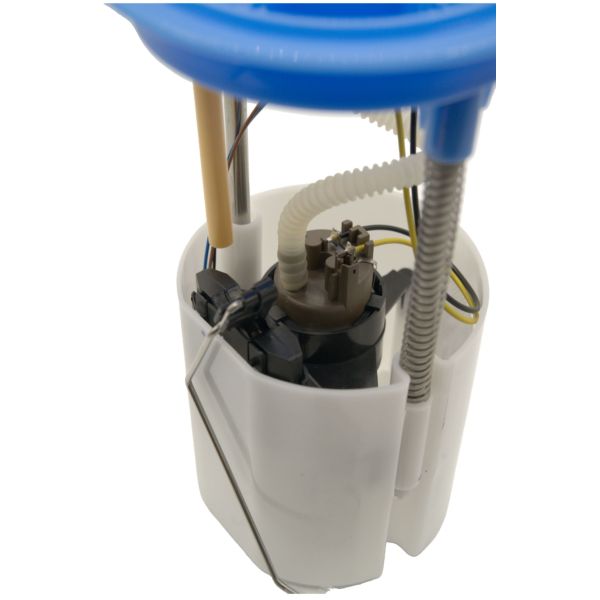

Autobest® Fuel Pump Module Assembly F4844A

Autobest Fuel Pump Module Assembly F4844A
$87.07
In Stock. Ships in 1-3 Business Days

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Includes
  • Features
  • Warranty
  • Vehicle Fitment
  • Specifications

    BrandAutobest
    Part NumberF4844A
    Part DescriptionFuel Pump Module Assembly
    Average Current Draw(A)9
    Average Flow Rating(GPH)38.3
    Connector GenderFemale
    Connector Quantity1
    Connector ShapeRectangle
    Country of OrignChina
    Fuel Filter IncludedNo
    Fuel Sending Unit IncludedYes
    Fuel Tank Pressure Sensor IncludedNo
    Fuel TypeTurbine
    Gasket or Seal IncludedNo
    Grade TypeRegular
    Housing MaterialPOM
    In Tank or ExternalIn Tank
    Inlet Size0.433
    Inlet TypeStrainer
    Installation WarningsNo
    Internal or ExternalInternal
    Internal Or External StrainerInternal
    Lock Ring IncludedNo
    Maximum Free Flow (GPH)58.9
    Minimum Free Flow (GPH)48.9
    Minimum Pump Pressure (PSI)87
    Mounting Hardware IncludedNo
    Negative GroundNo
    Outlet Quantity1
    Outlet Size5/16
    Outlet TypeQuick Connect
    Product Height (in)6.14
    Product Length (in)10.16
    Product Width (in)6.65
    Pump TypeTurbine
    Regulator IncludedNo
    Resistance Ohms Empty50
    Resistance Ohms Full290
    Strainer IncludedYes
    Terminal GenderMale
    Terminal Quantity5
    Terminal TypePIN
    UPC00072845148445
    Voltage12V
    Weight (lbs)2.73
    Wire Harness IncludedNo
    Warning: California’s Proposition 65
  • Includes

    • Fuel Pump
    • Sending Unit
    • Float
    • Fuel Reservoir
    • Fuel Strainer
  • Features

    Autobest Fuel Pump Module Assembly are featured as follows:
    • Made with the best quality materials to ensure great product quality.
    • They are tested in many points of the manufacturing process to make sure that it is durable and reliable.
    • Allows fuel flow from the tank to the engine.
    • The production takes place following strict regulations so as meet or surpass those of an original manufacturer.
    • Contains a plastic molded fuel-resistant reservoir for holding fuel under all operational conditions.
    • Fuel pump transports fuel at high pressure through vehicle's fuel system.
    • The float and sender unit complement each other to measure for measuring amounts of gas inside the tank which is then communicated on the fuel gauge.
    • Has a spring that expands due to temperature change, which maintains the reservoir low in the tank and eliminates chances of starvation.
    The Autobest Fuel Pump Module Assembly F4844A is a durable, high-quality part of a fuel delivery system that ensures fuel is supplied from the tank to the engine. For this reason, the pump unit has been built in compliance with strict guidelines that aim at meeting and exceeding the requirements of an original equipment manufacturer (OEM). The module includes a plastic molded fuel resistant reservoir, a fuel pump, float and sender unit, spring and strainer. It operates by pumping fuel in pressure to the vehicle's fuel system through the spring and strainer. On the other hand, float and sender unit gauge measure the level of fuel in the tank after which it sends them to electronic instrument panel so as to be read by drivers on their dashboard gauges. Last but not least, when temperature rises or falls to certain levels, spring will stretch or shrink respectively so as to keep reservoir at the bottom hence preventing petrol starvation. Strainer performs filtration of gasoline before it enters into fuel systems. During production Autobest Fuel Pump Module Assembly are subjected through all stages for testing purposes so as to ensure they offer unmatched performance as well as last long enough.
    Autobest International Corporation is recognized as a leader in the production of top notch fuel system components. Providing customers with outstanding fuel pumps, fuel pump module assemblies and strainers through the utilization of advanced manufacturing technology and premium materials. All items are subjected to rigorous testing that spans at least 2500 hours for superior performance and quality assurance. Autobest demonstrates its commitment to providing reliable products to customers and clients within the automotive industry.
  • Warranty

    Limited Lifetime Warranty
  • Vehicle Fitment

    Year Make Model Trim Engine
    2006-2013 Audi A3All Trims4 Cyl 2.0L
    2008-2009 Audi TTAll Trims4 Cyl 2.0L
    2012-2013 Volkswagen BeetleAll Trims4 Cyl 2.0L
    2007-2013 Volkswagen EosAll Trims4 Cyl 2.0L
    2006-2013 Volkswagen GTIAll Trims4 Cyl 2.0L
    2006-2010 Volkswagen JettaAll Trims4 Cyl 2.0L
    2012-2013 Volkswagen JettaAll Trims4 Cyl 2.0L
