Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4832A |

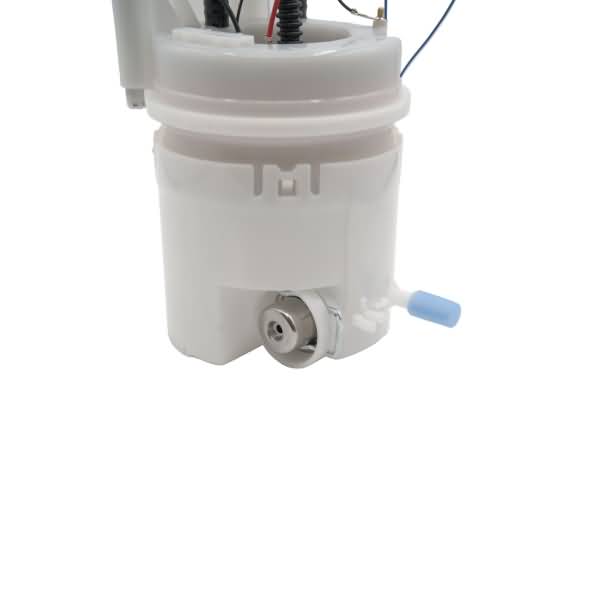

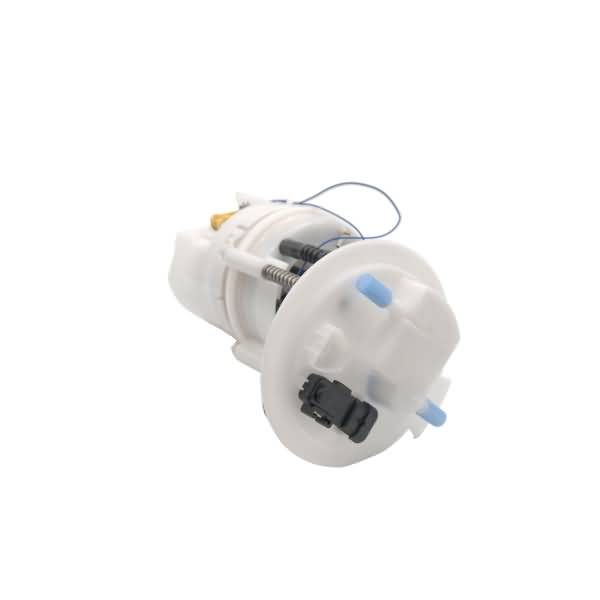

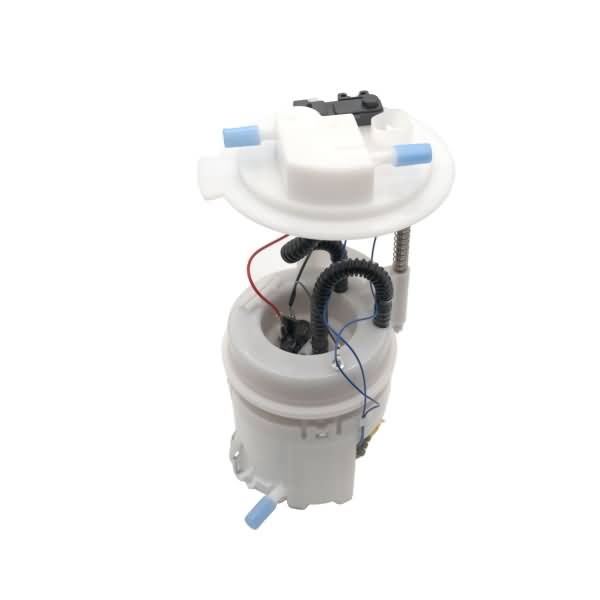

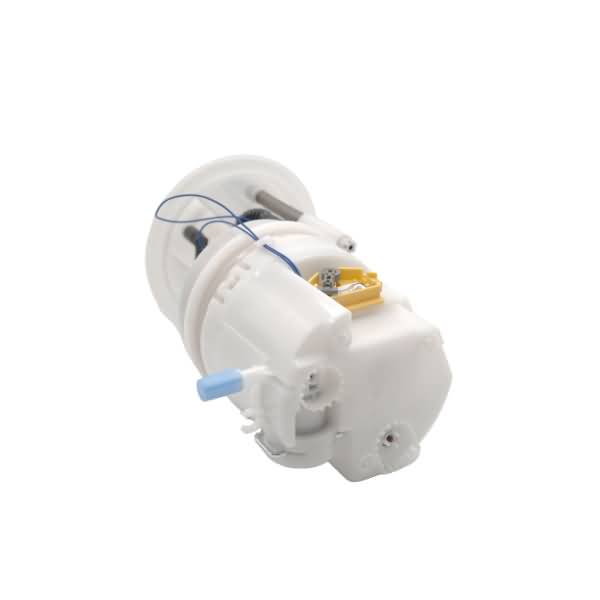

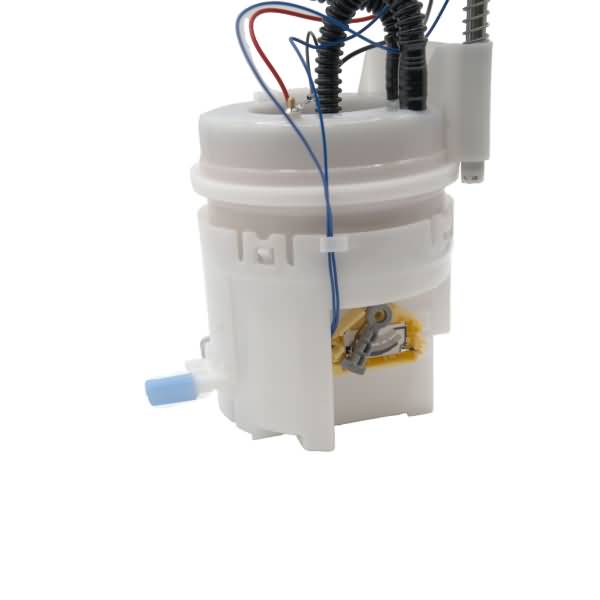

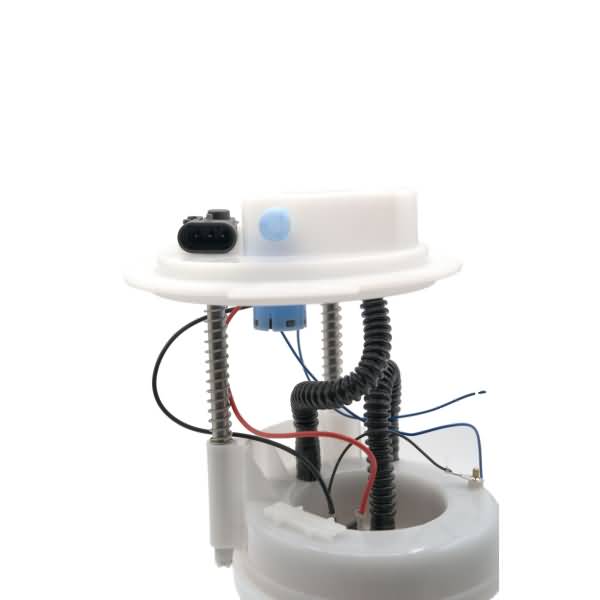

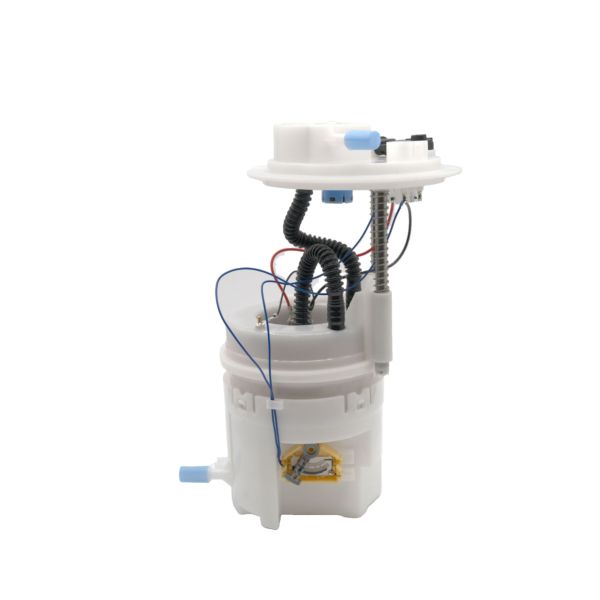

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 6.8 |
Average Flow Rating(GPH) | 38.3 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Trapezoid |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |

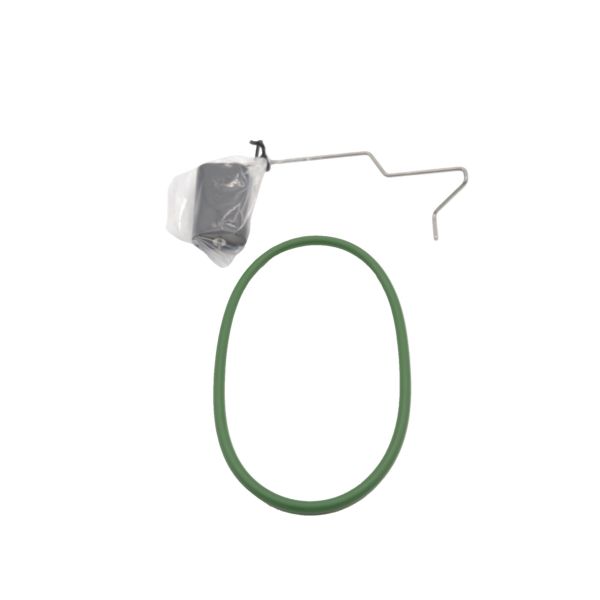

Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 58 |
Minimum Pump Pressure (PSI) | 55.1 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 5/16 |
Outlet Type | Quick Connect |
Product Height (in) | 6.46 |
Product Length (in) | 11.06 |
Product Width (in) | 9.96 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 94 |
Resistance Ohms Full | 6 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | PIN |
UPC | 00072845148322 |
Voltage | 12V |
Weight (lbs) | 2.91 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2009 Hyundai Santa Fe | All Trims | 6 Cyl 2.7L |
2007-2009 Hyundai Santa Fe | All Trims | 6 Cyl 3.3L |
