Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4825A |

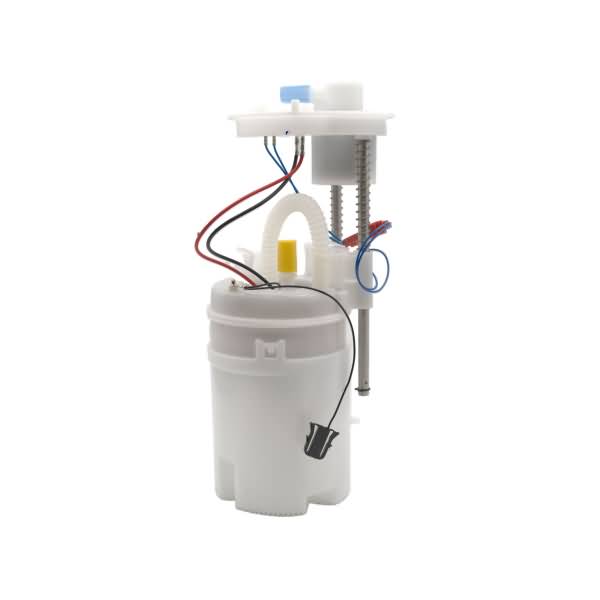

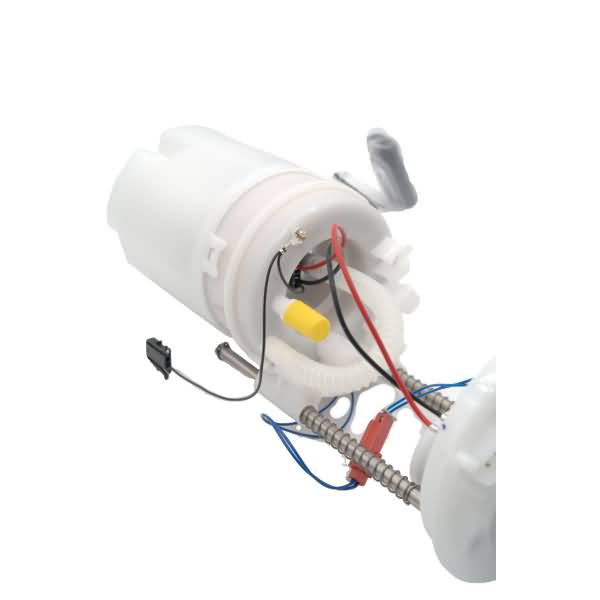

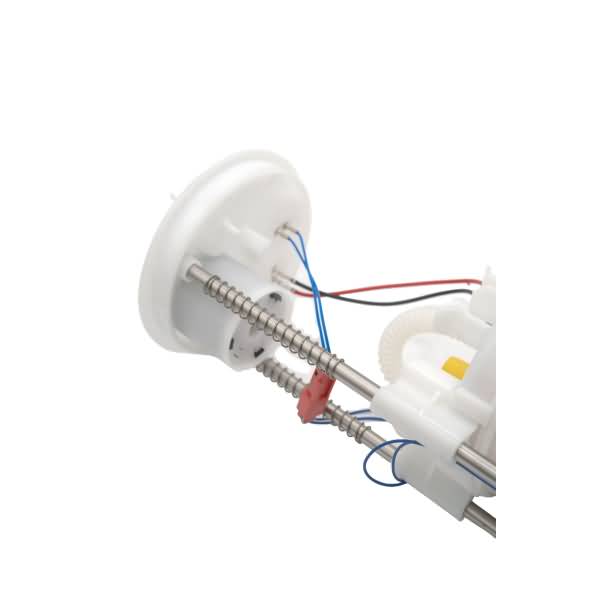

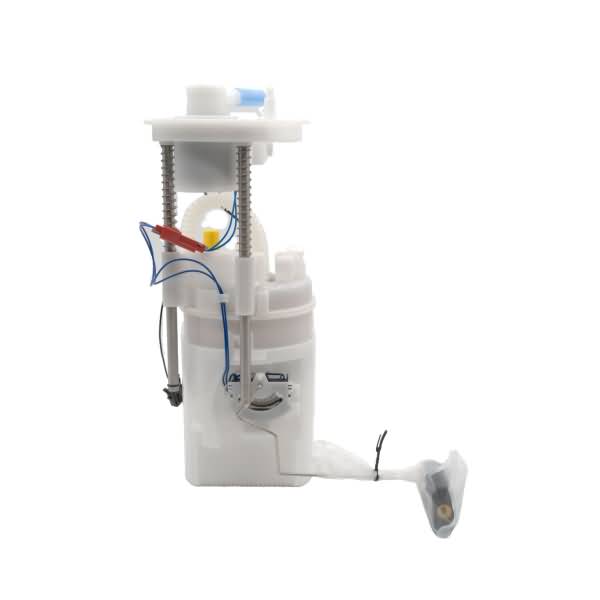

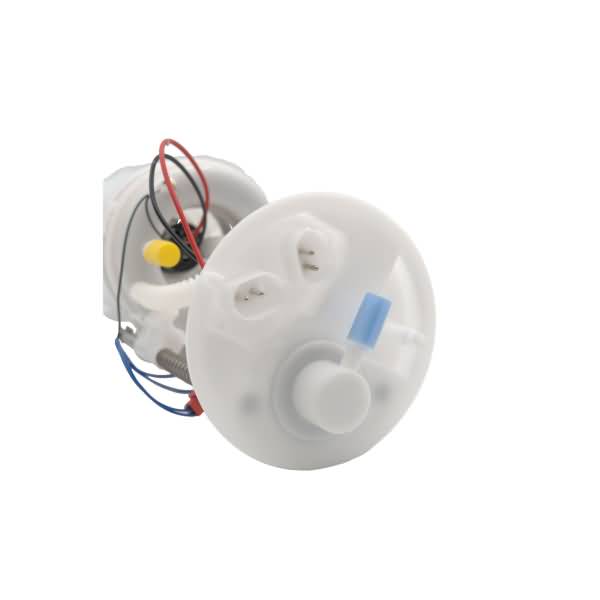

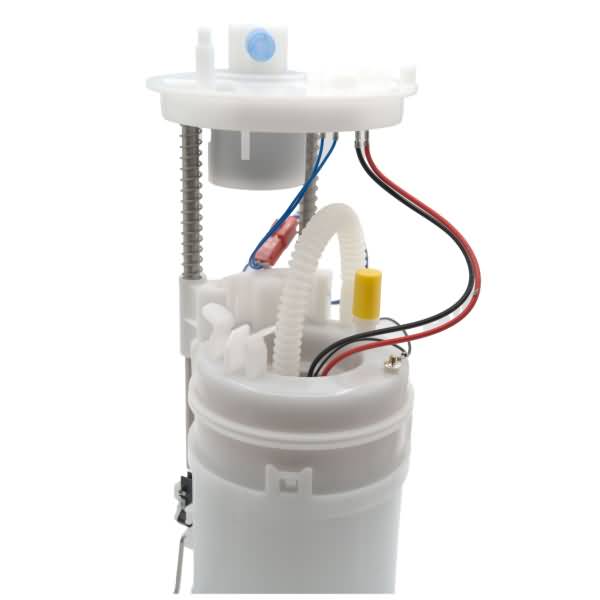

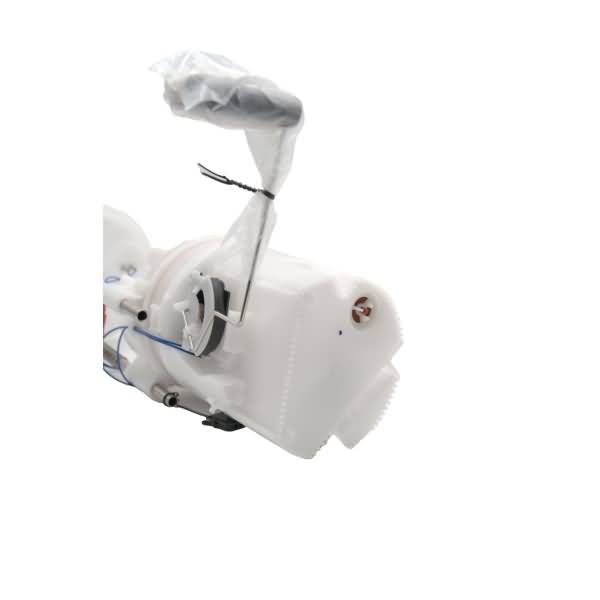

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 11 |
Average Flow Rating(GPH) | 51.5 |
Connector Gender | Male |
Connector Quantity | 2 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | Yes |

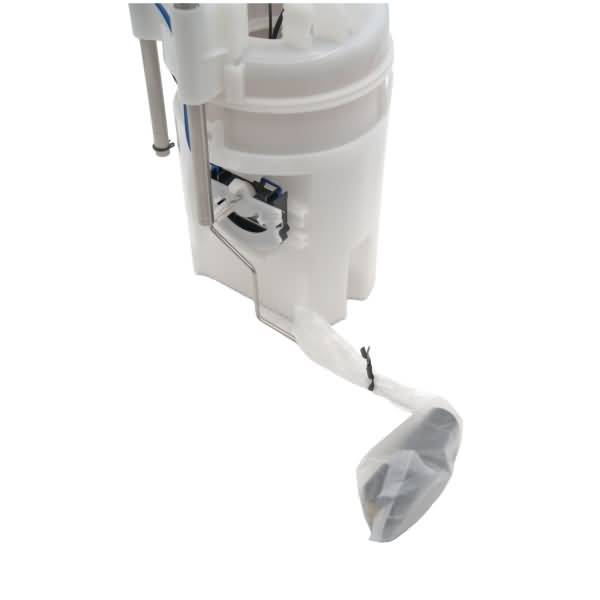

Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |

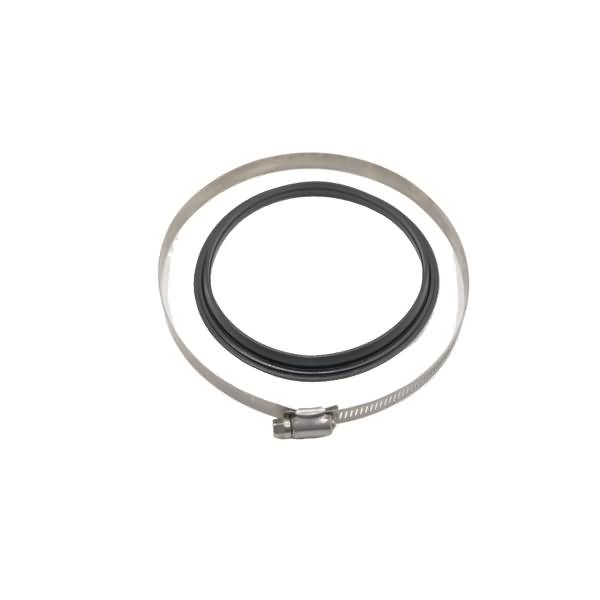

Lock Ring Included | Yes |
Maximum Free Flow (GPH) | 81.3 |
Minimum Free Flow (GPH) | 71.3 |
Minimum Pump Pressure (PSI) | 87 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 7/16 |
Outlet Type | Quick Connect |
Product Height (in) | 6.89 |
Product Length (in) | 12.2 |
Product Width (in) | 8.86 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 992 |
Resistance Ohms Full | 51 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845148254 |
Voltage | 12V |
Weight (lbs) | 2.75 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2007-2010 BMW X5 | All Trims | 6 Cyl 3.0L |
