Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4821A |

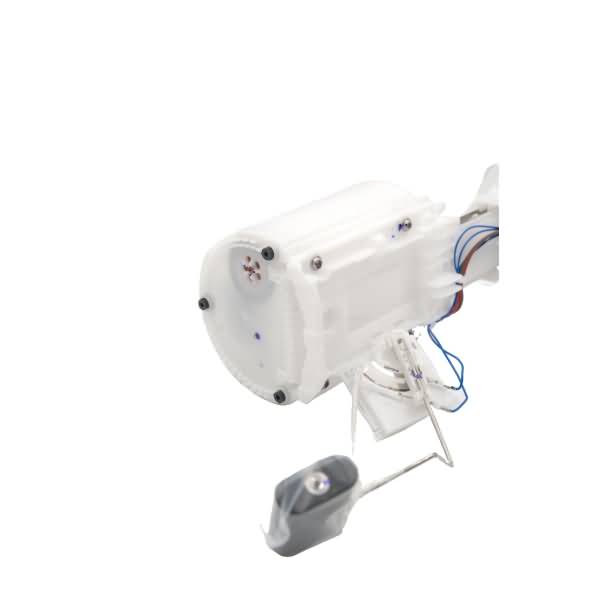

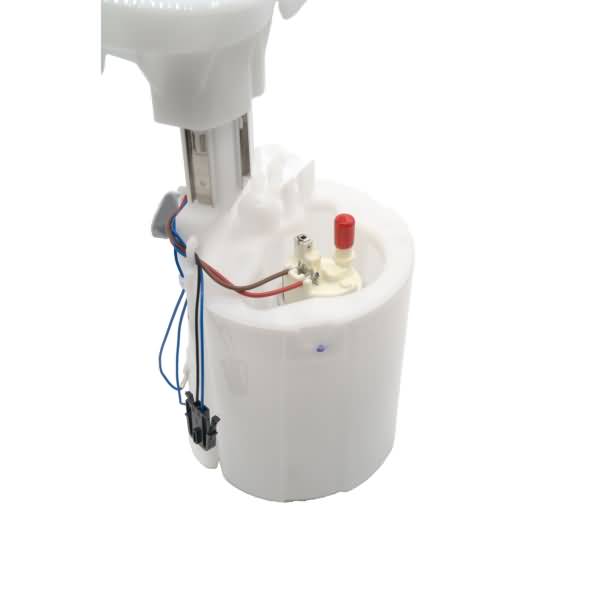

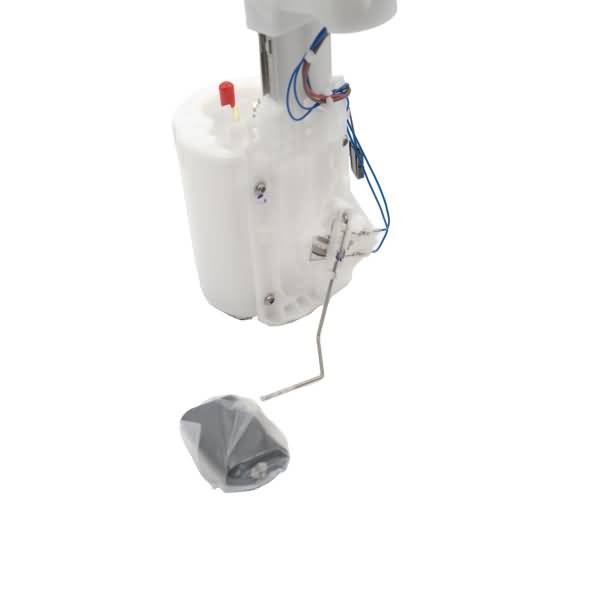

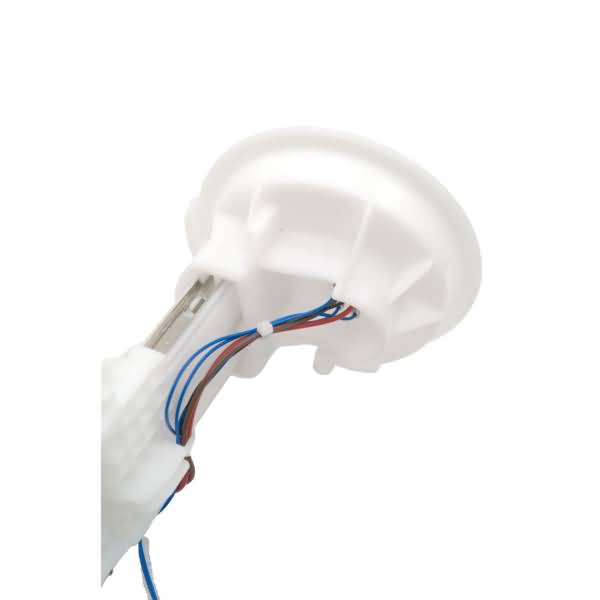

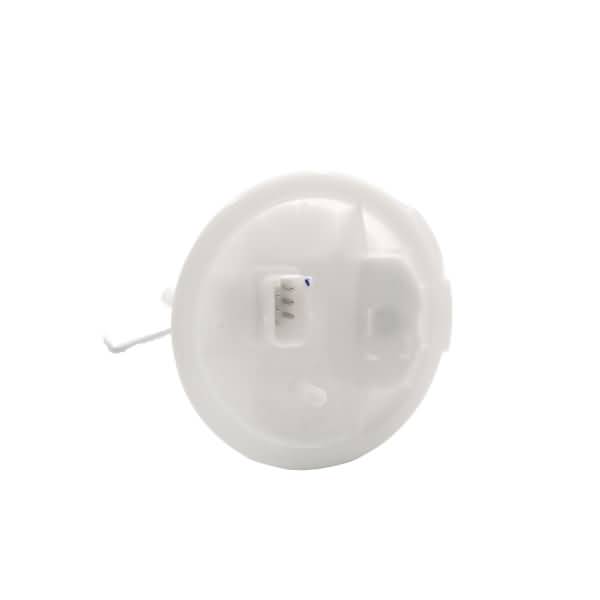

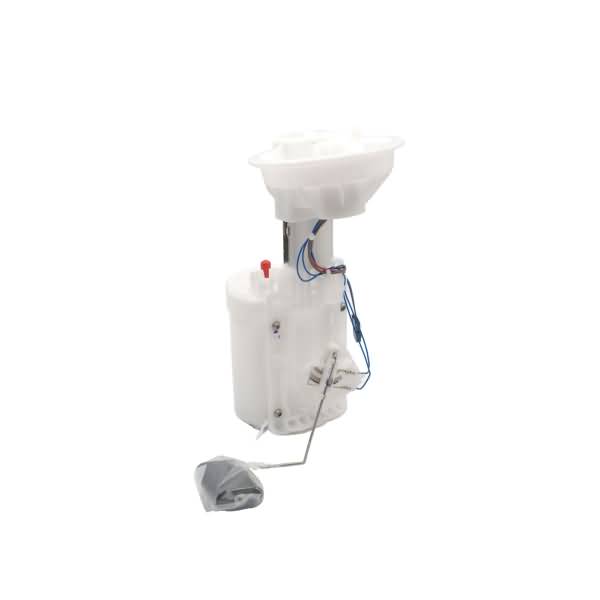

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 8.5 |
Average Flow Rating(GPH) | 43.6 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.314 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 100 |
Minimum Pump Pressure (PSI) | 90 |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 0.311 |
Outlet Type | Quick Connect |
Product Height (in) | 6.85 |
Product Length (in) | 10.71 |
Product Width (in) | 8.31 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 300 |
Resistance Ohms Full | 20 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 6 |
Terminal Type | PIN |
UPC | 00072845148216 |
Voltage | 12V |
Weight (lbs) | 2.47 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2007-2015 Mini Cooper | All Trims | 4 Cyl 1.6L |
