Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4819A |

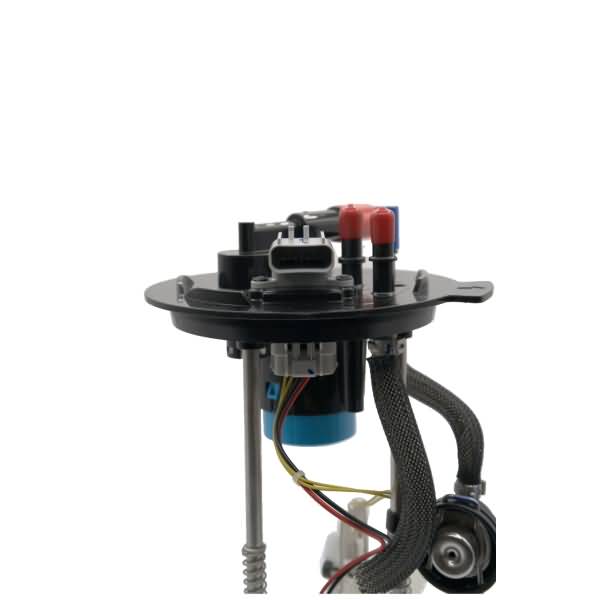

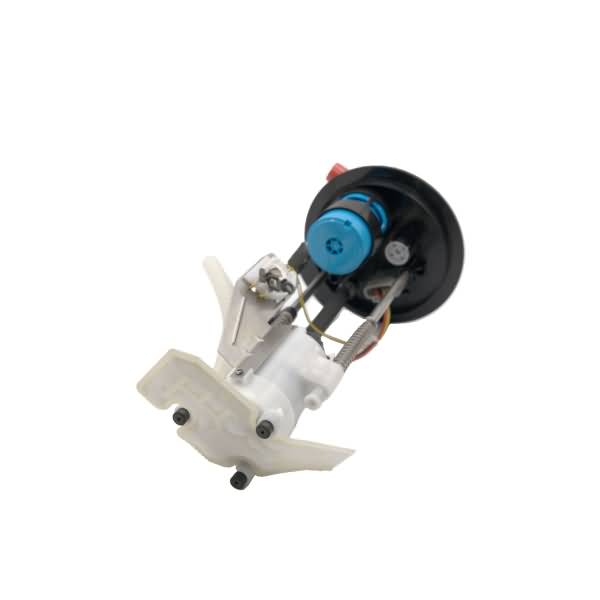

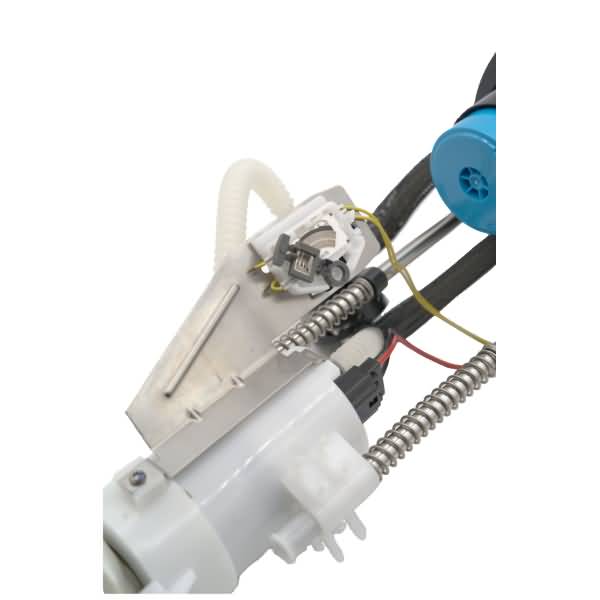

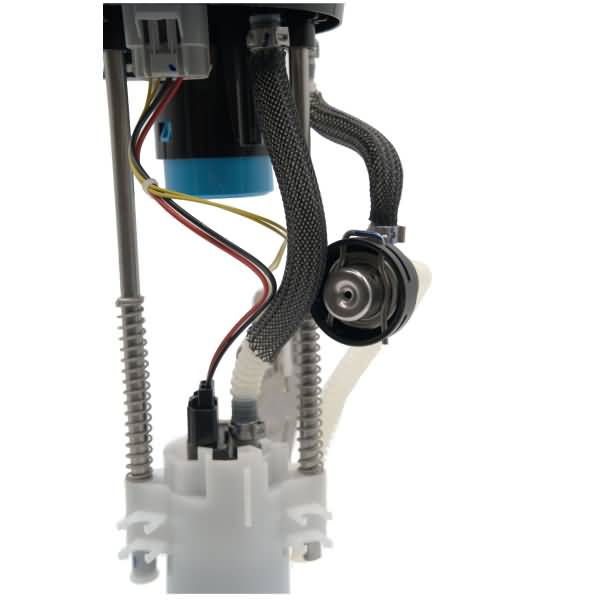

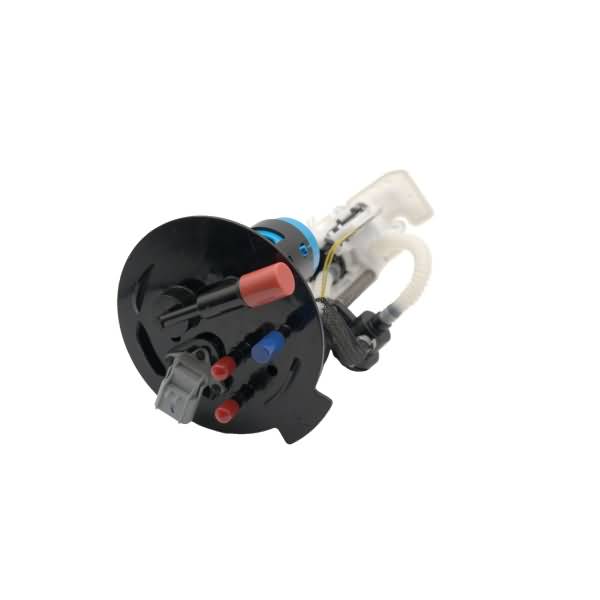

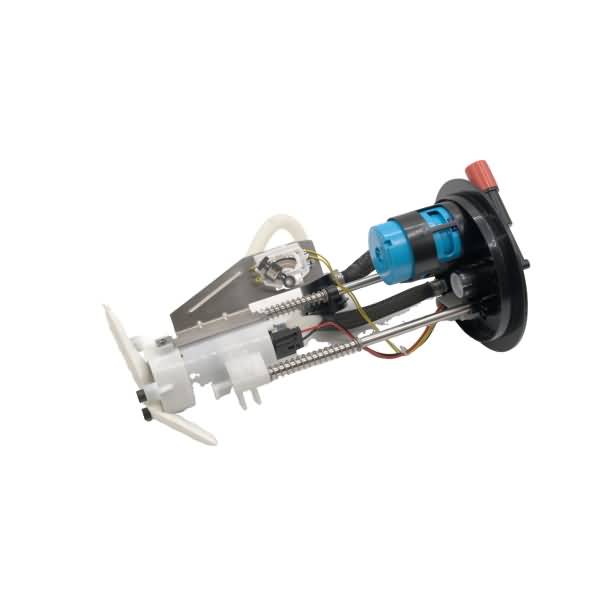

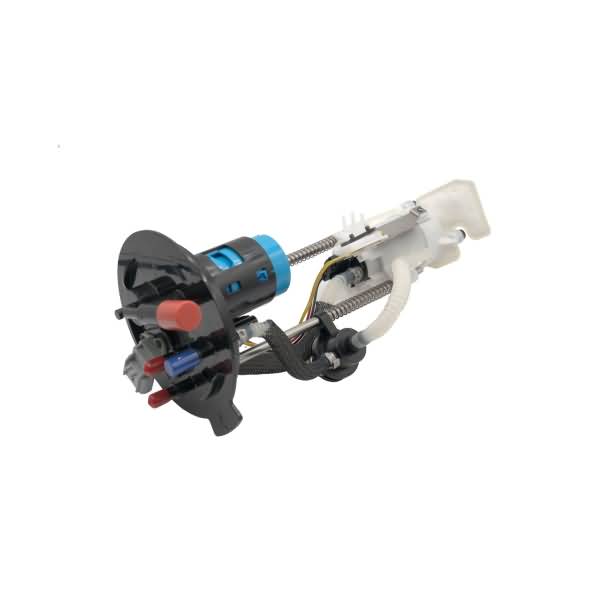

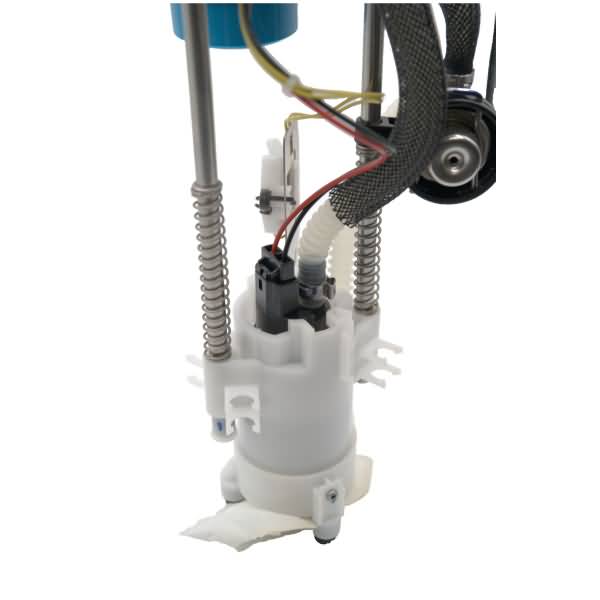

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 39.7 |
Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 15.5 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 55 |
Maximum Pump Pressure (PSI) | 68 |
Minimum Free Flow (GPH) | 45 |
Minimum Pump Pressure (PSI) | 62 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |

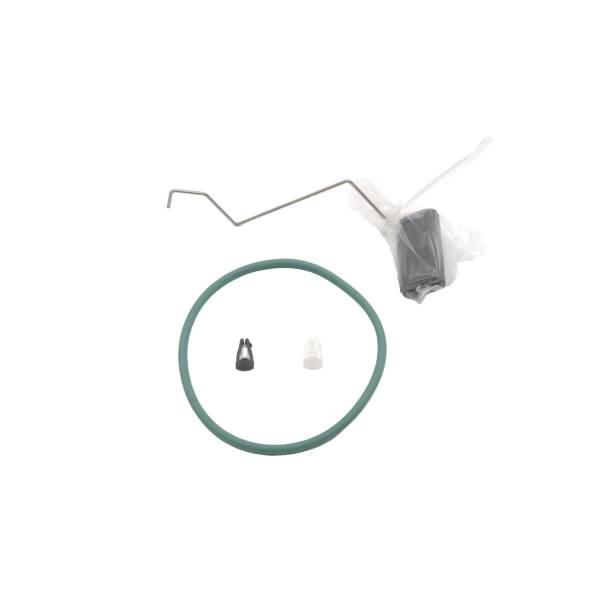

Package Contents | Pump & Kit |
Product Height (in) | 6.69 |
Product Length (in) | 13.19 |
Product Width (in) | 9.8 |
Regulator Included | Yes |
Resistance Ohms Empty | 180 |
Resistance Ohms Full | 10 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845148193 |
Voltage | 12V |
Weight (lbs) | 2.73 |
Weight (lbs.) | 3.18 |
Width (in.) | 10 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2007-2008 Ford Ranger | All Trims | 6 Cyl 3.0L |
2007-2011 Ford Ranger | All Trims | 4 Cyl 2.3L |
2007-2011 Ford Ranger | All Trims | 6 Cyl 4.0L |
2006-2009 Mazda B2300 | All Trims | 4 Cyl 2.3L |
2006-2007 Mazda B3000 | All Trims | 6 Cyl 3.0L |
