Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4732A |

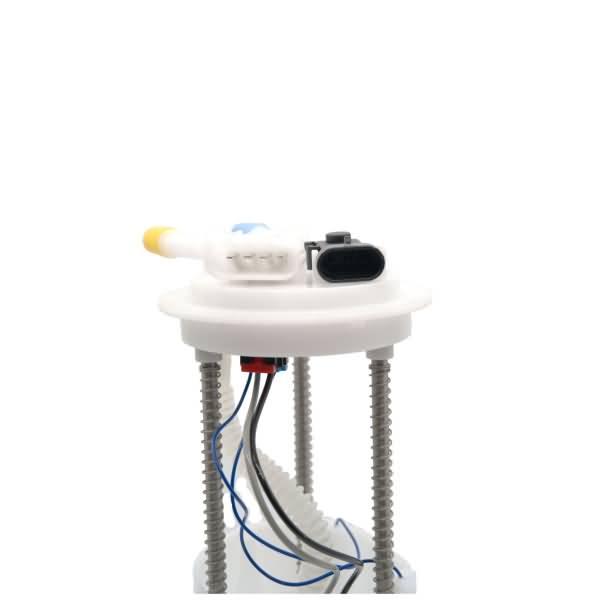

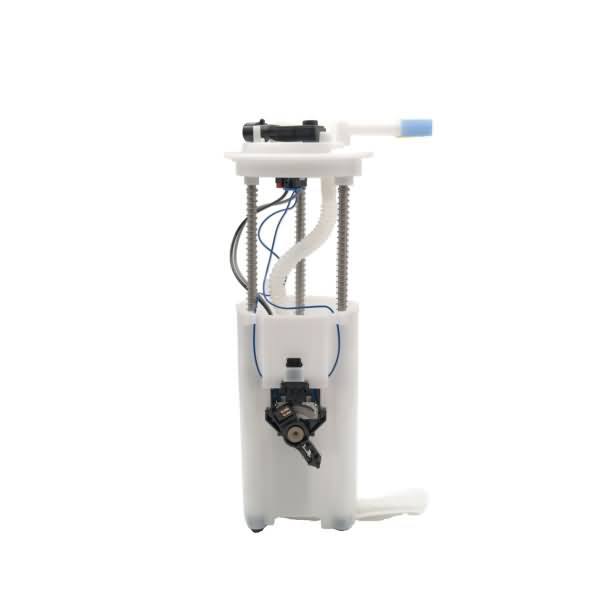

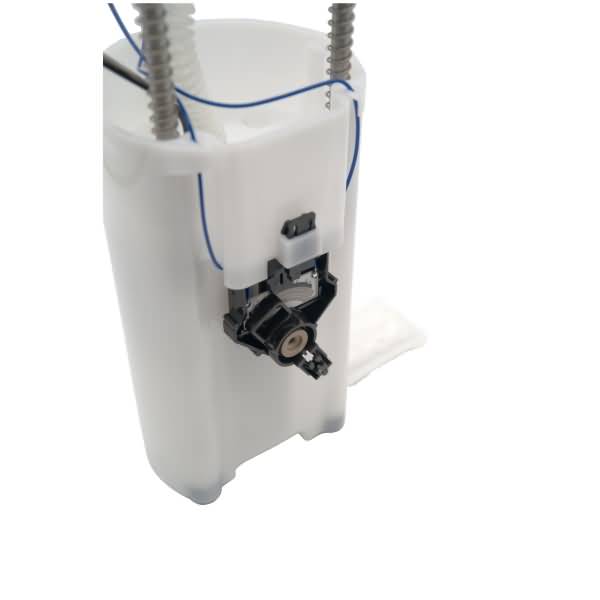

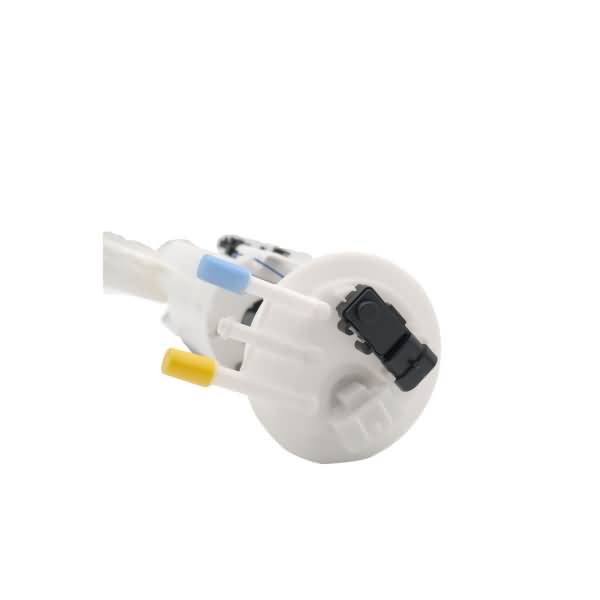

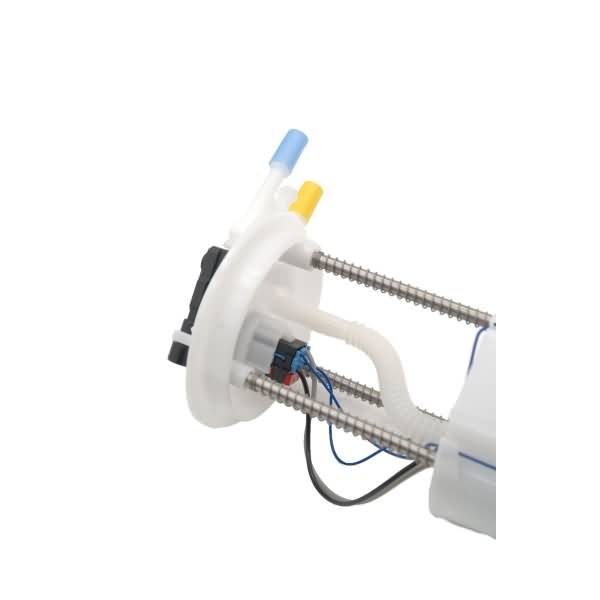

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 33 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 5/16 |
Inlet Type | Quick Connect |
Installation Warnings | No |
Internal or External | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 55.5 |
Maximum Pump Pressure (PSI) | 145 |
Minimum Free Flow (GPH) | 45 |
Minimum Pump Pressure (PSI) | 87 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 6.38 |
Product Length (in) | 12.6 |
Product Width (in) | 7.6 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 40 |
Resistance Ohms Full | 250 |

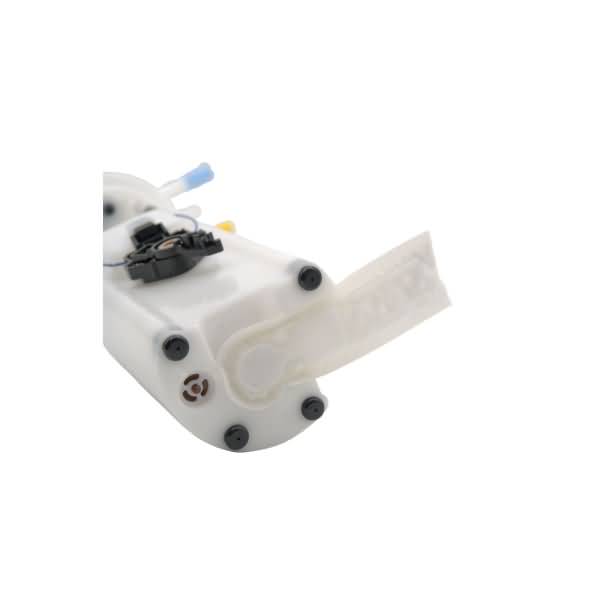

Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845147325 |
Voltage | 12V |
Weight (lbs) | 2.16 |
Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2001 Honda Passport | All Trims | 6 Cyl 3.2L |
2002 Isuzu Axiom | All Trims | 6 Cyl 3.5L |
2001 Isuzu Rodeo | All Trims | 4 Cyl 2.2L |
2001 Isuzu Rodeo | All Trims | 6 Cyl 3.2L |
2001 Isuzu Rodeo Sport | All Trims | 6 Cyl 3.2L |
