Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4678A |

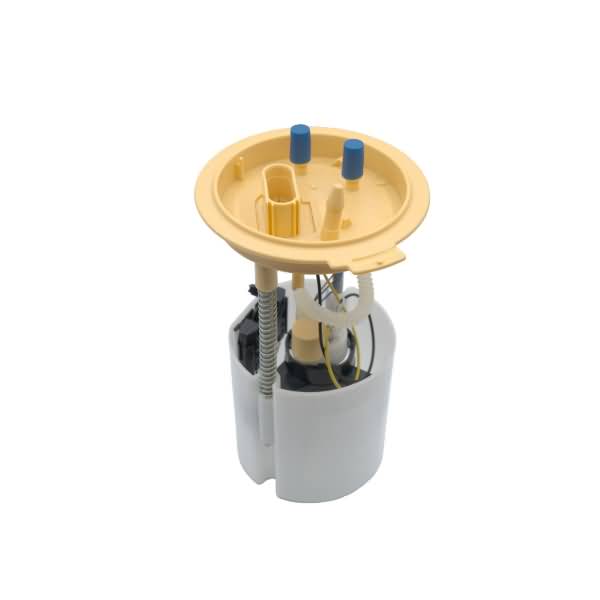

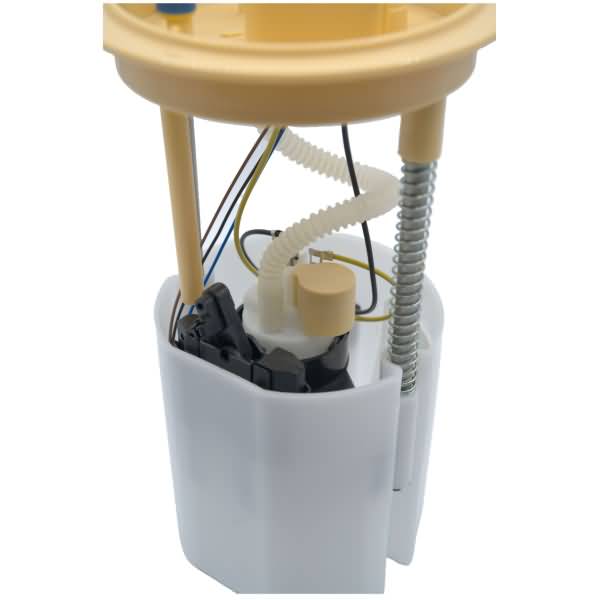

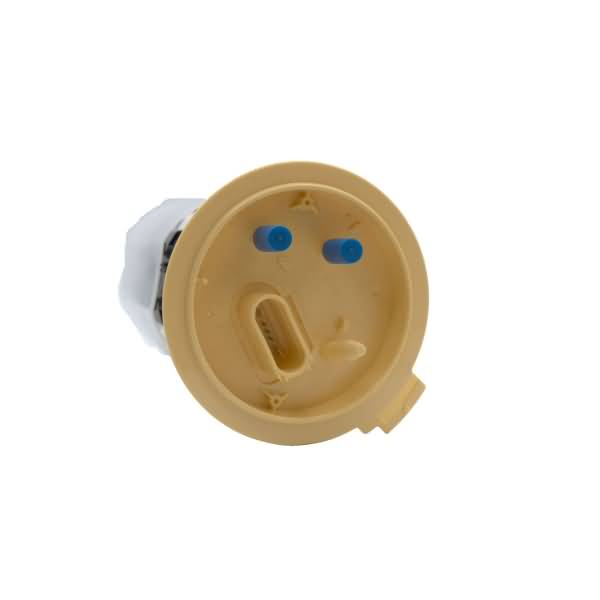

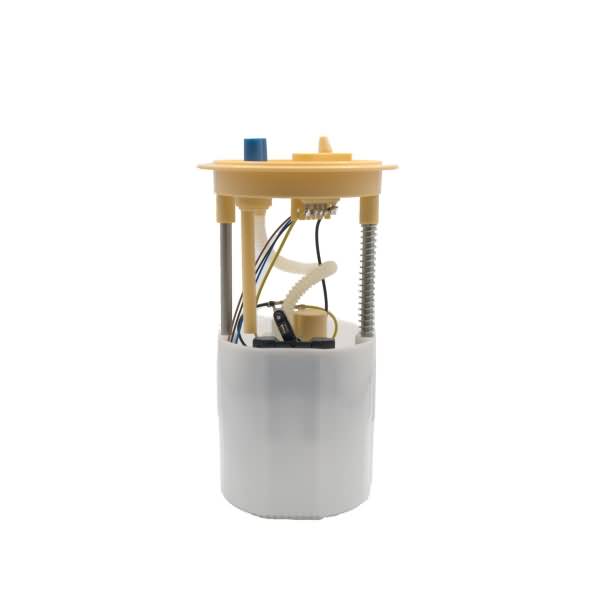

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 6 |
Average Flow Rating(GPH) | 30.4 |
Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |

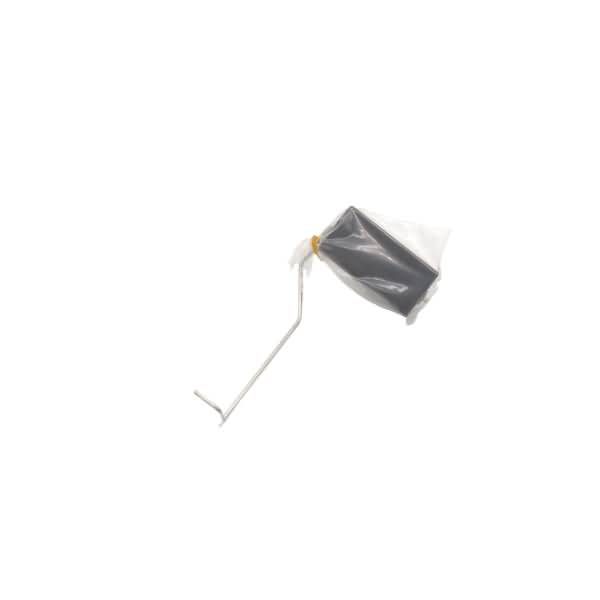

Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |

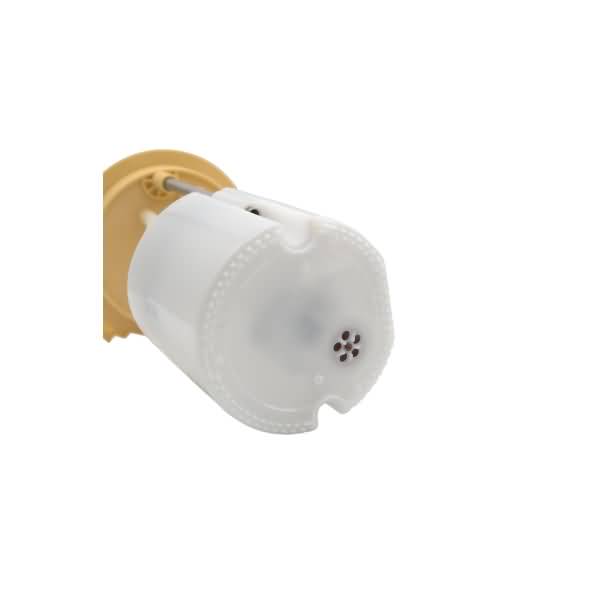

Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 36.4 |
Maximum Pump Pressure (PSI) | 14.5 |
Minimum Free Flow (GPH) | 26.4 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 5/16 |
Outlet Type | Quick Connect |
Product Height (in) | 6.14 |
Product Length (in) | 10.16 |
Product Width (in) | 6.65 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 50 |
Resistance Ohms Full | 290 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | PIN |
UPC | 00072845146786 |
Voltage | 12V |
Weight (lbs) | 2.26 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2010-2013 Audi A3 | All Trims | 4 Cyl 2.0L |
2013-2014 Volkswagen Beetle | All Trims | 4 Cyl 2.0L |
2010-2014 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
2005-2006 Volkswagen Jetta | All Trims | 4 Cyl 1.9L |
2009-2014 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
