Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4648A |

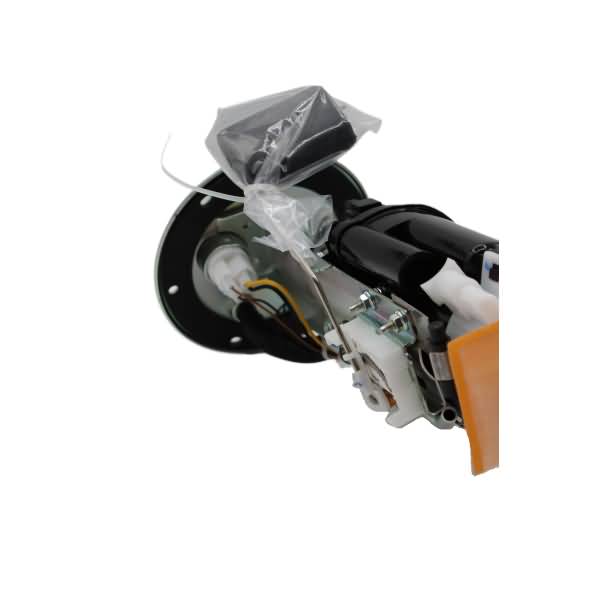

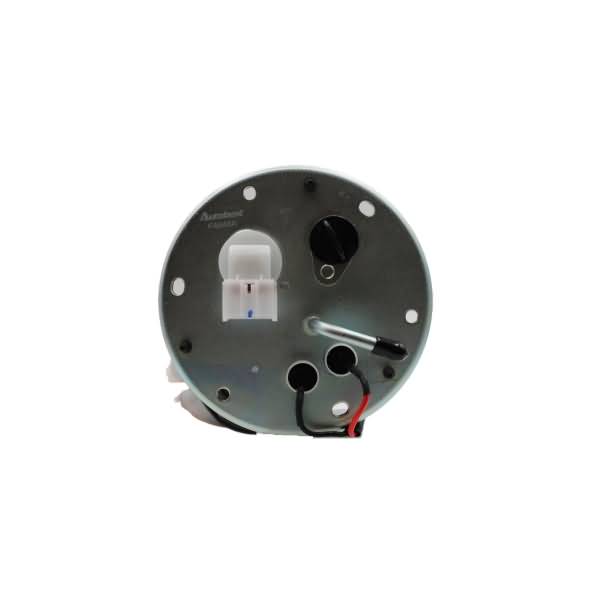

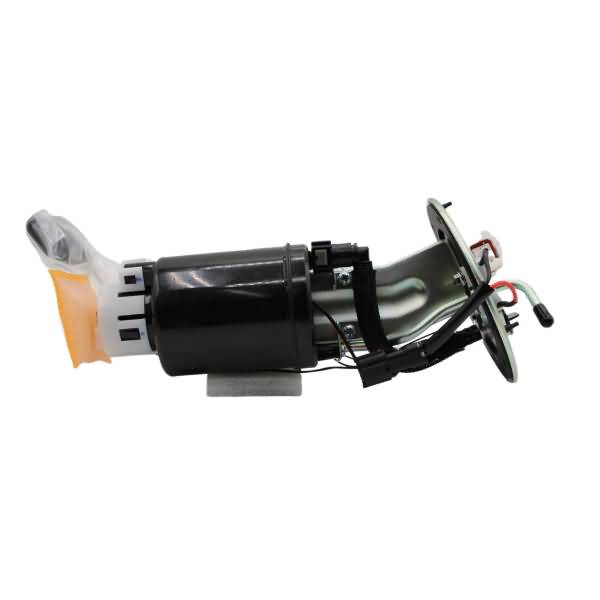

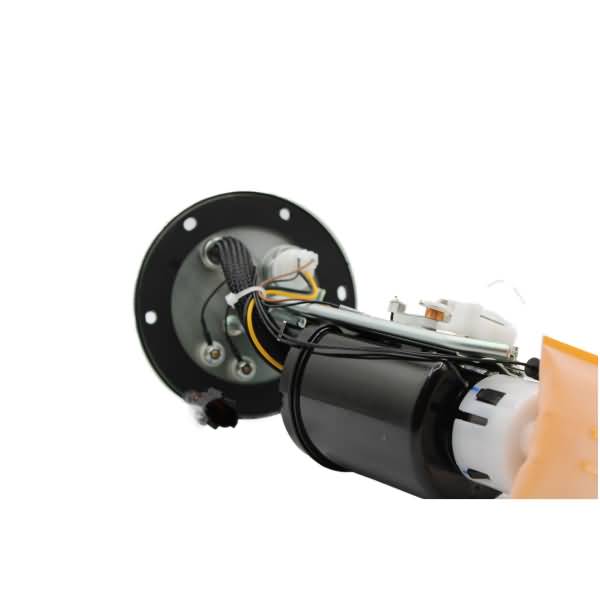

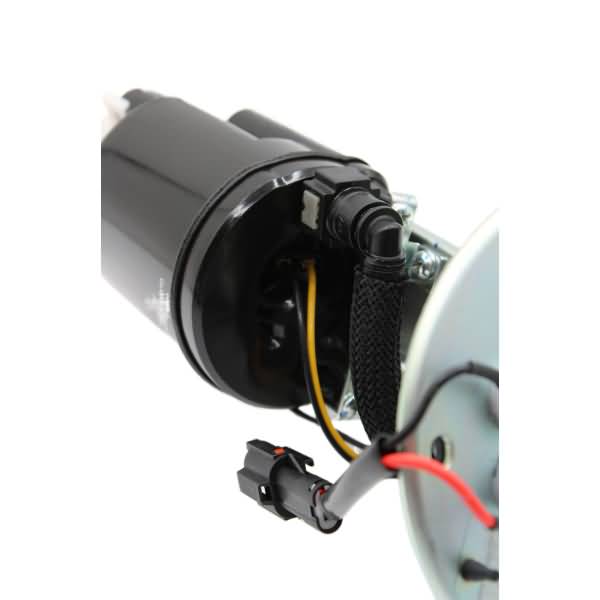

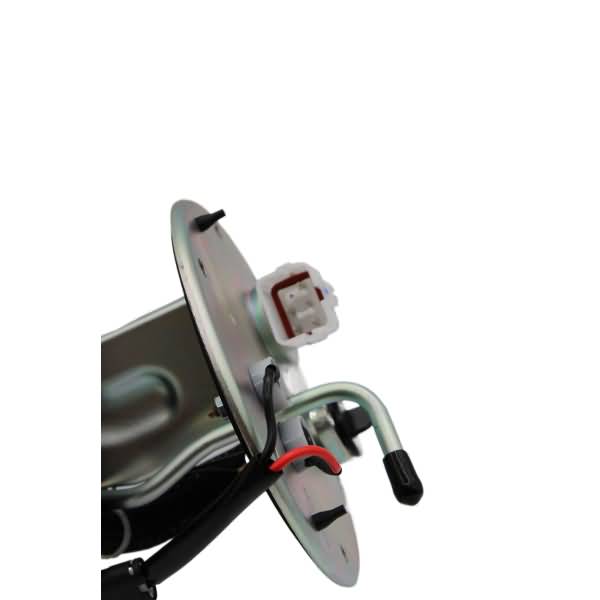

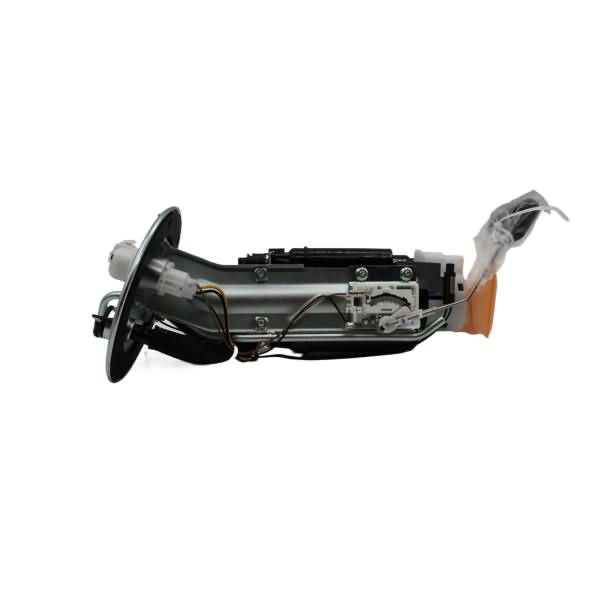

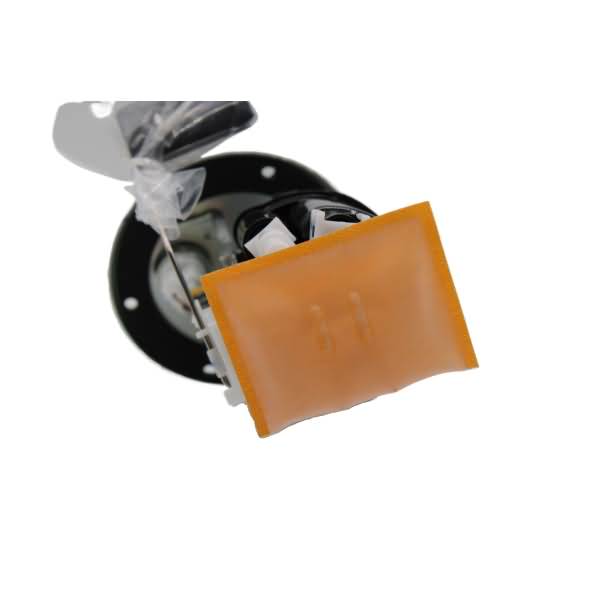

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 6 |
Average Flow Rating(GPH) | 34.4 |
Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 52.2 |
Maximum Pump Pressure (PSI) | 108.8 |
Minimum Free Flow (GPH) | 42.2 |
Minimum Pump Pressure (PSI) | 79.8 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 0.433 |
Outlet Type | Hose Bead |
Product Height (in) | 5.31 |
Product Length (in) | 12.8 |
Product Width (in) | 6.5 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 7 |
Resistance Ohms Full | 202 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845146489 |
Voltage | 13.5V |
Weight (lbs) | 2.9 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2002-2005 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
2002-2004 Kia Optima | All Trims | 4 Cyl 2.4L |
