Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4577A |

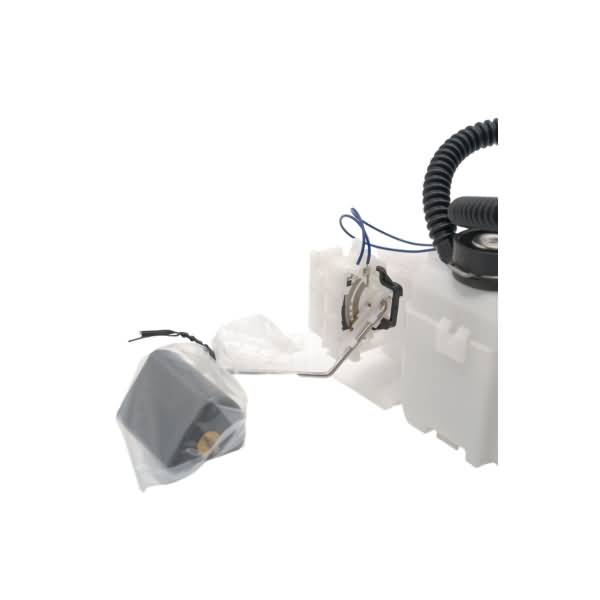

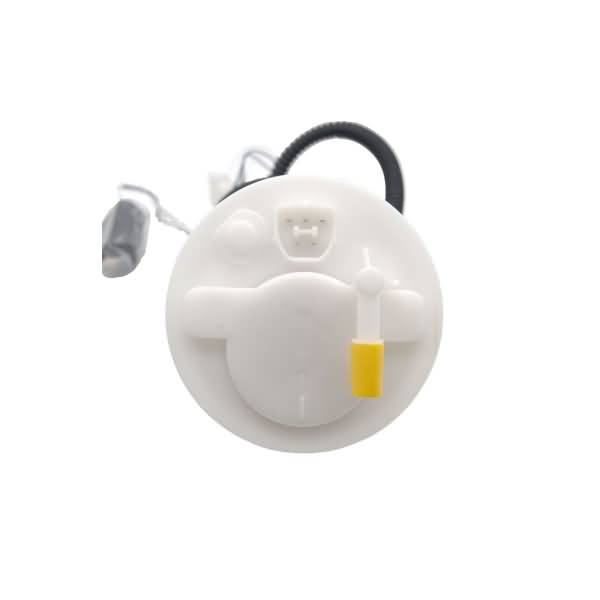

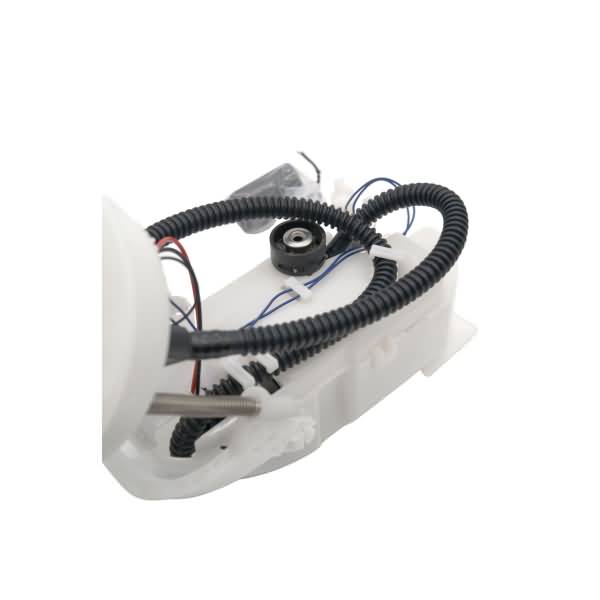

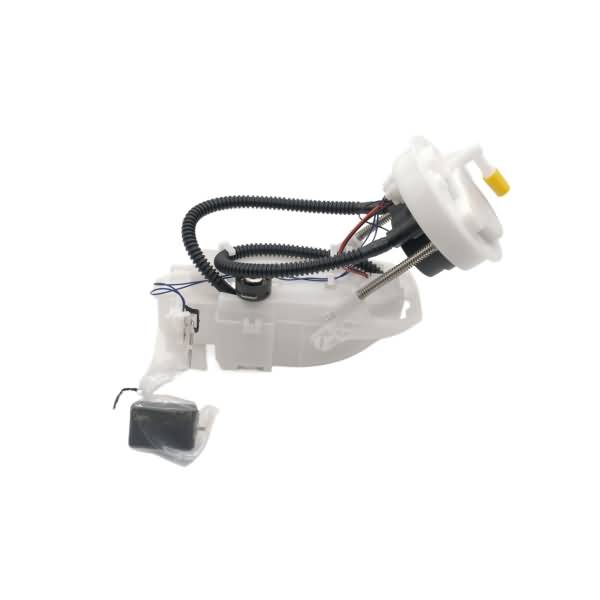

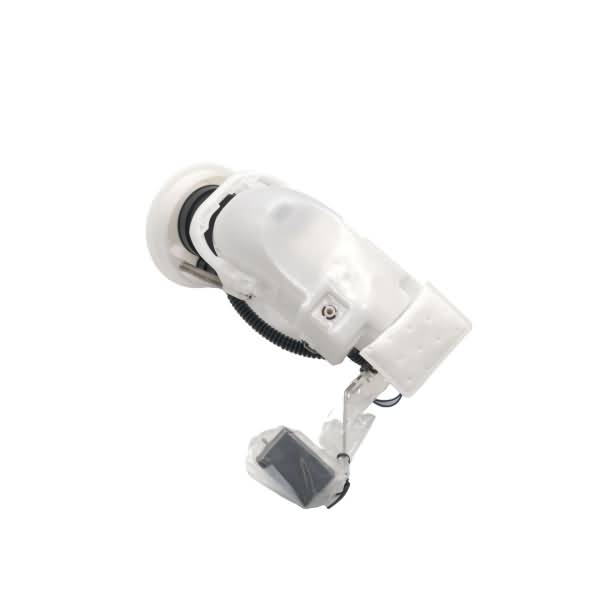

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 5.4 |
Average Flow Rating(GPH) | 19.7 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Trapezoid |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

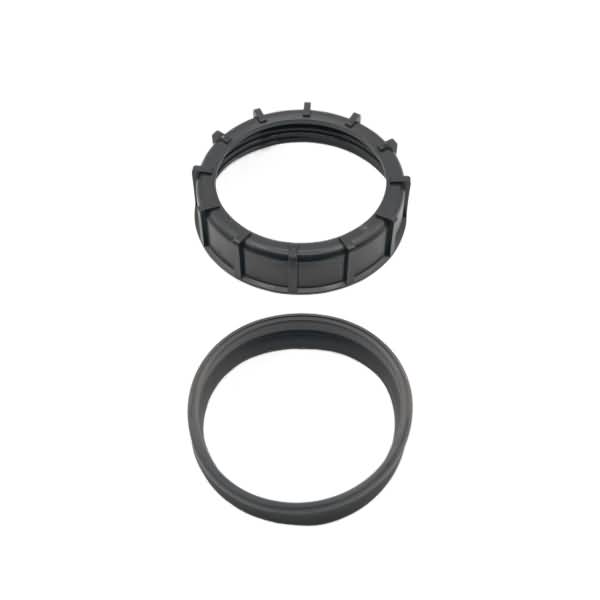

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.314 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 47.5 |
Maximum Pump Pressure (PSI) | 53.65 |
Minimum Free Flow (GPH) | 39.6 |
Minimum Pump Pressure (PSI) | 50.75 |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 0.374 |
Outlet Type | Quick Connect |
Product Height (in) | 8.31 |
Product Length (in) | 9.09 |
Product Width (in) | 8.56 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 132 |
Resistance Ohms Full | 13 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | PIN |
UPC | 00072845145772 |
Voltage | 12V |
Weight (lbs) | 2.45 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2002-2005 Honda Civic | All Trims | 4 Cyl 2.0L |
2003-2005 Honda Civic | All Trims | 4 Cyl 1.3L |
2004-2005 Honda Civic | All Trims | 4 Cyl 1.7L |
