Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4426A |

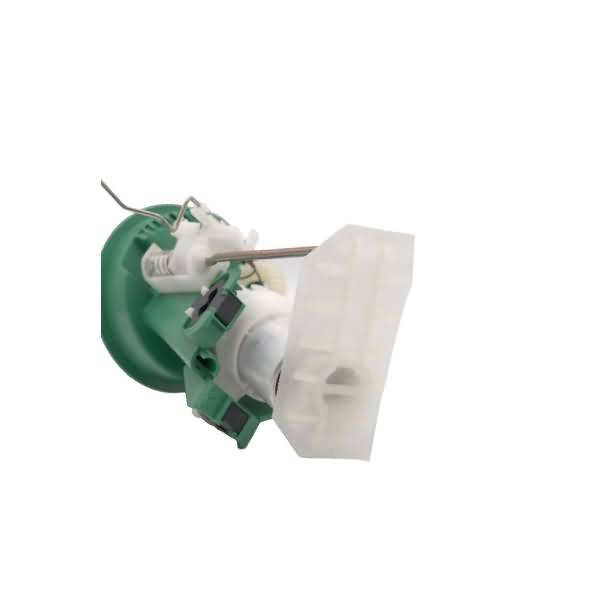

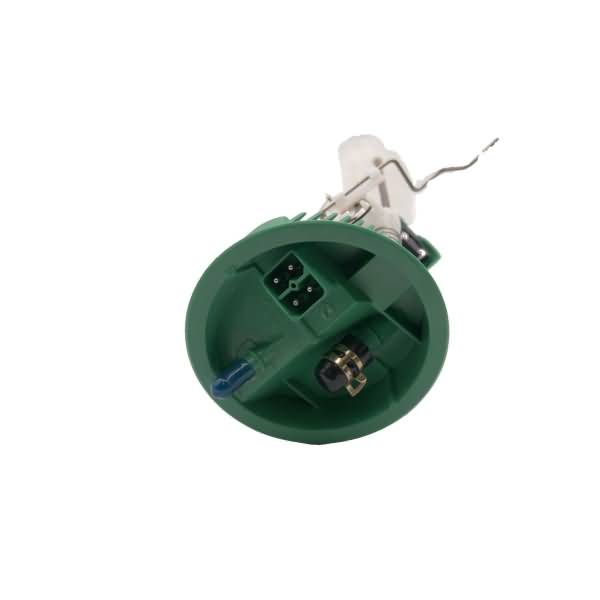

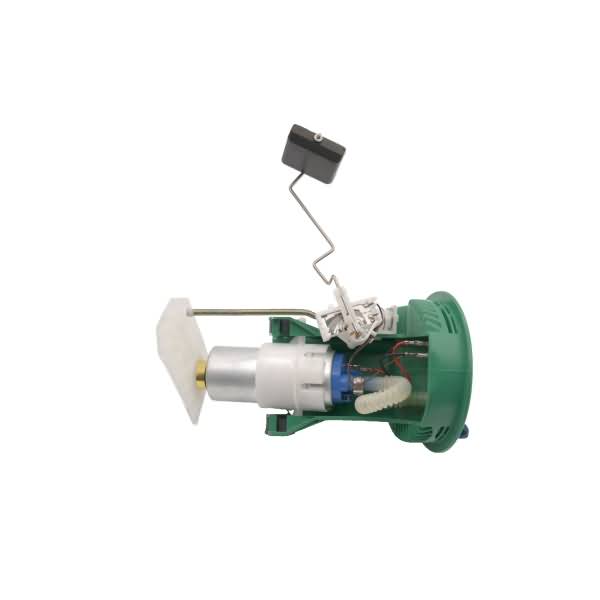

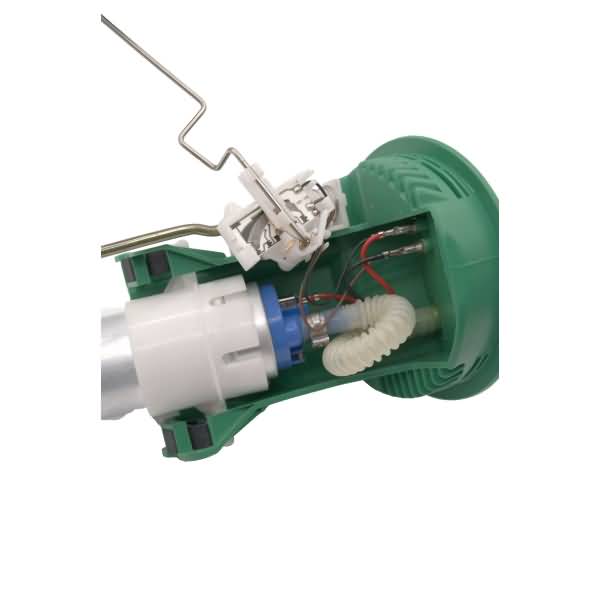

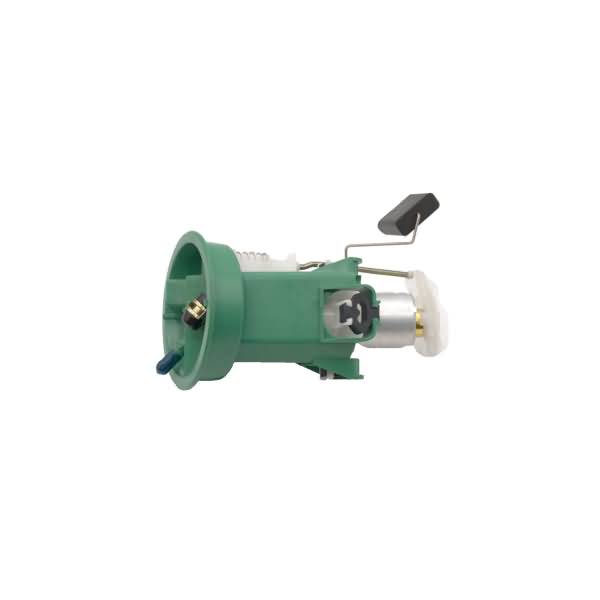

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 35.7 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Gasket or Seal Included | No |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
In Tank or External | In Tank |
Inlet Size | 0.748 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 100 |
Minimum Pump Pressure (PSI) | 85 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 0.334 |
Outlet Type | Tube |
Product Height (in) | 7.13 |
Product Length (in) | 9.13 |
Product Width (in) | 7.24 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 10 |
Resistance Ohms Full | 260 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845144263 |
Voltage | 12V |
Weight (lbs) | 2.01 |
Year Make Model | Trim | Engine |
---|---|---|
1999 BMW 318ti | All Trims | 4 Cyl 1.9L |
