Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4411A |

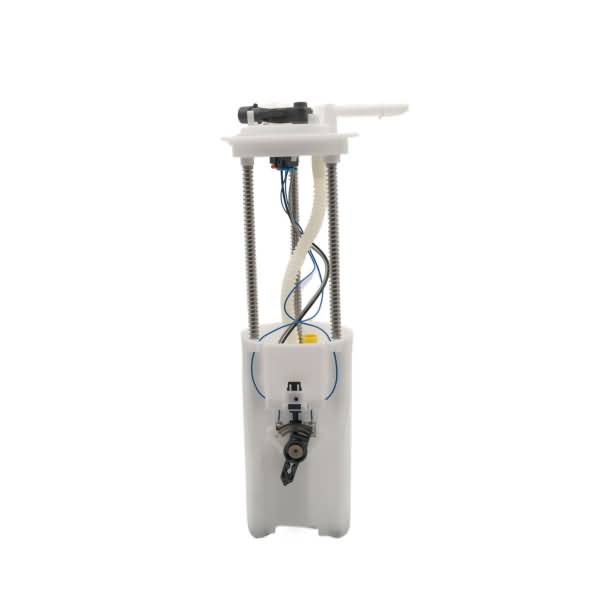

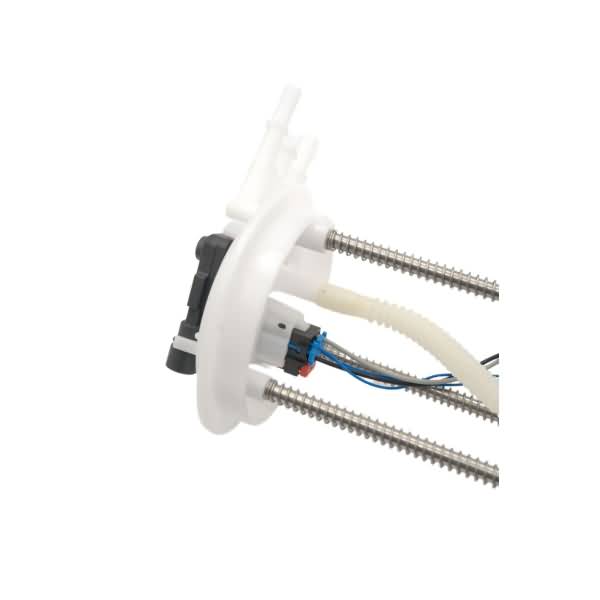

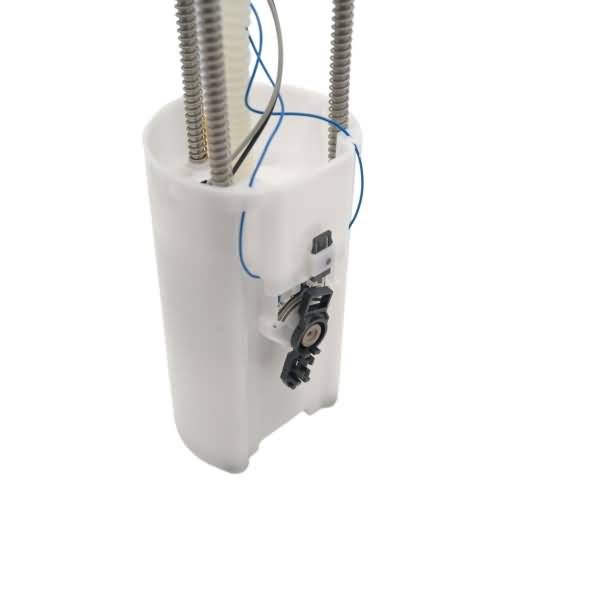

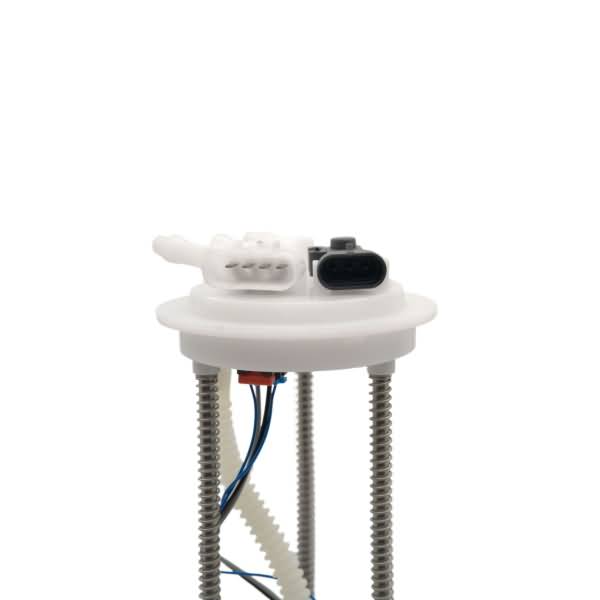

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 8.5 |
Average Flow Rating(GPH) | 41 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 5/16 |
Inlet Type | Quick Connect |
Installation Warnings | No |
Length (in.) | 16 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 55 |
Maximum Pump Pressure (PSI) | 90 |
Minimum Free Flow (GPH) | 45 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |

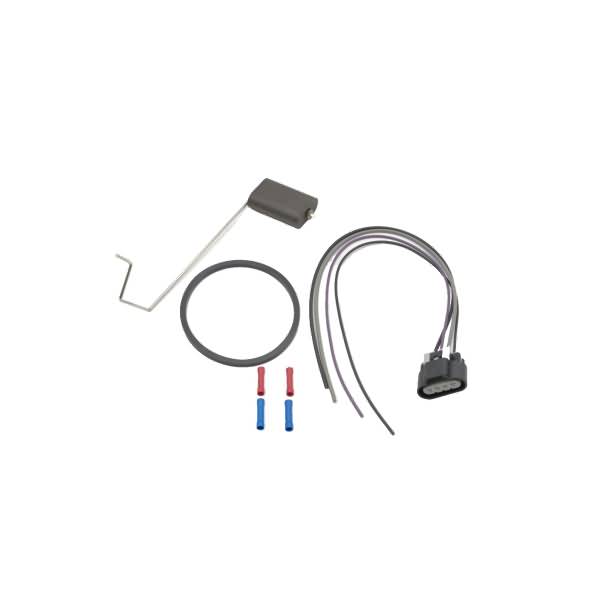

Package Contents | Pump & Kit |
Product Height (in) | 6.38 |
Product Length (in) | 14.37 |
Product Width (in) | 9.65 |
Regulator Included | No |
Resistance Ohms Empty | 290 |
Resistance Ohms Full | 80 |

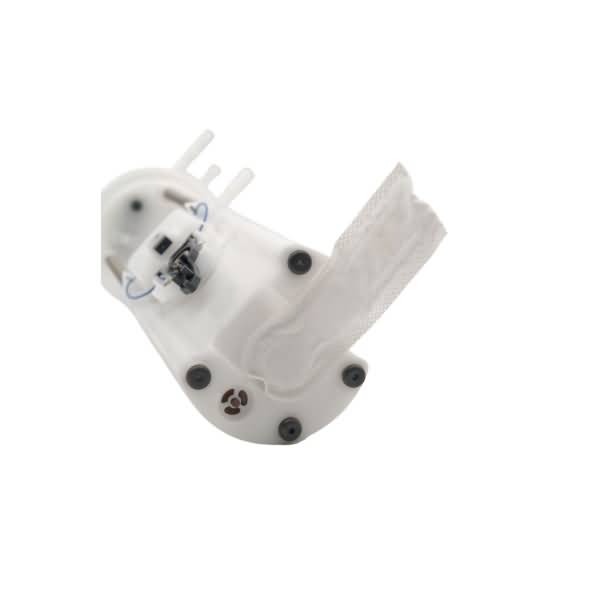

Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845144119 |
Voltage | 12V |
Weight (lbs) | 2.41 |
Weight (lbs.) | 2.7 |
Width (in.) | 7 |
Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1998-2000 Isuzu Amigo | All Trims | 4 Cyl 2.2L |
1998-2000 Isuzu Amigo | All Trims | 6 Cyl 3.2L |
2002-2003 Isuzu Rodeo Sport | All Trims | 4 Cyl 2.2L |
