Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4377A |

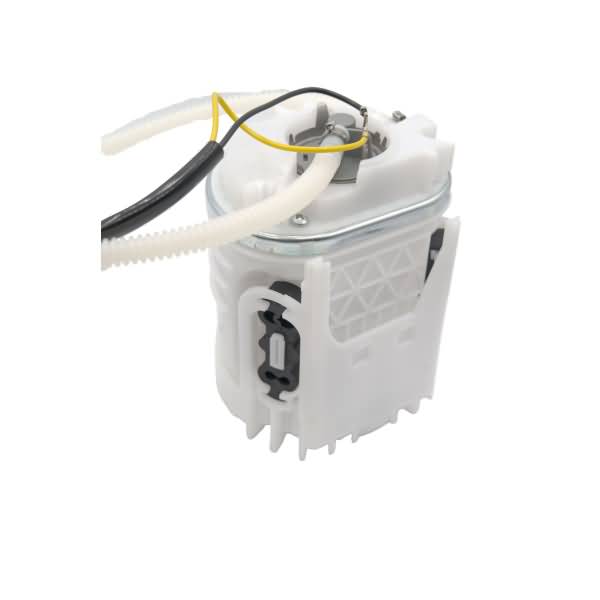

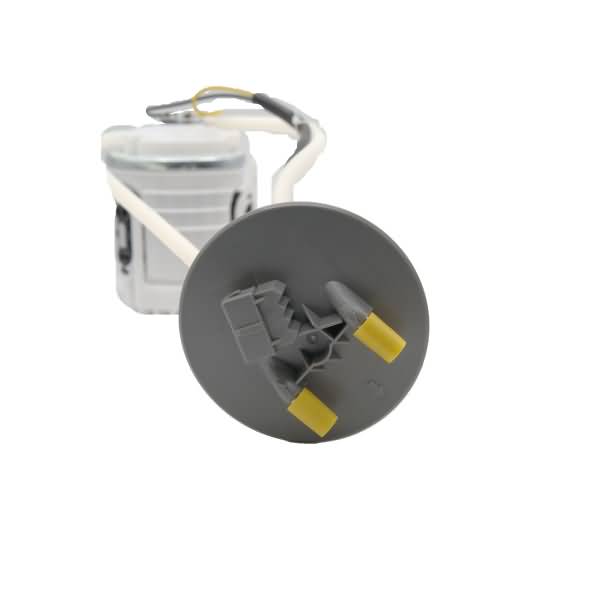

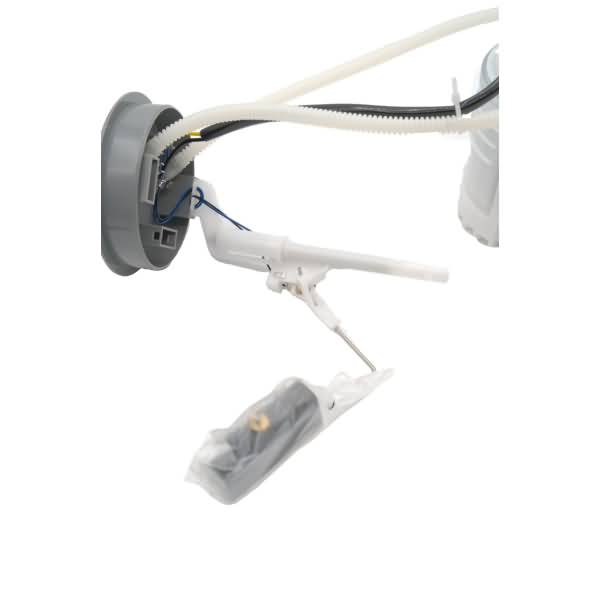

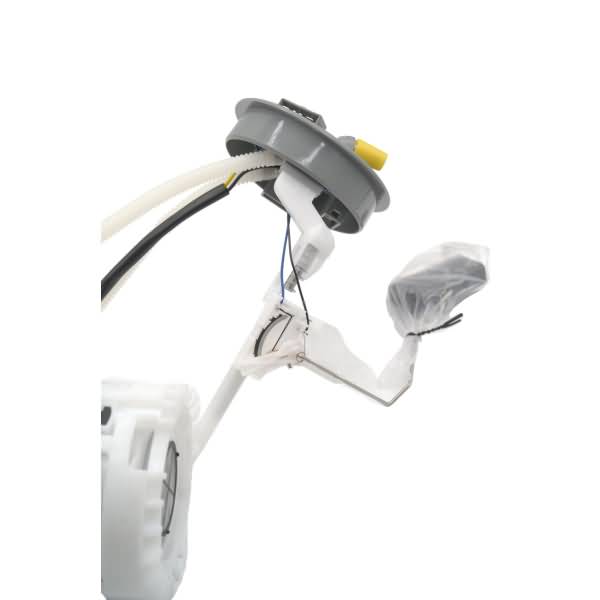

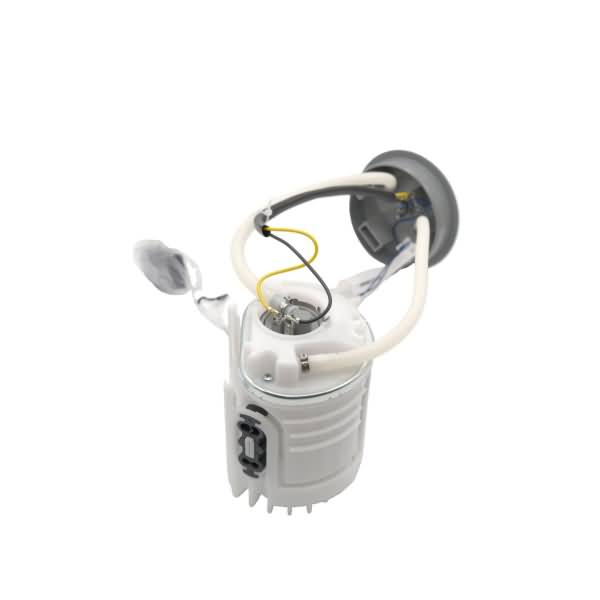

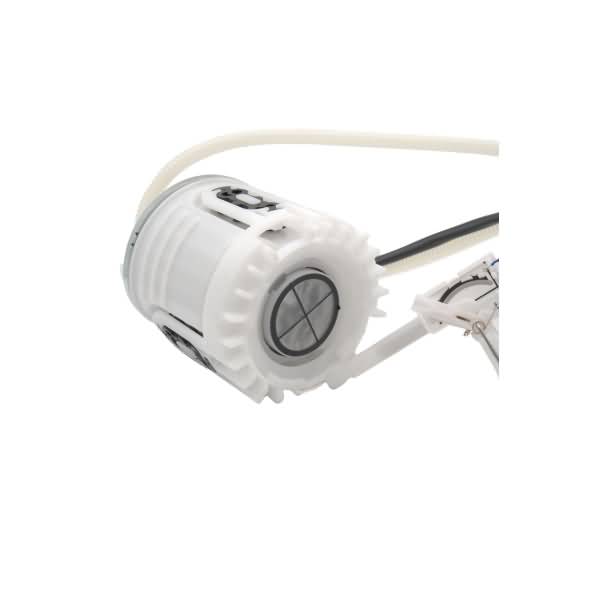

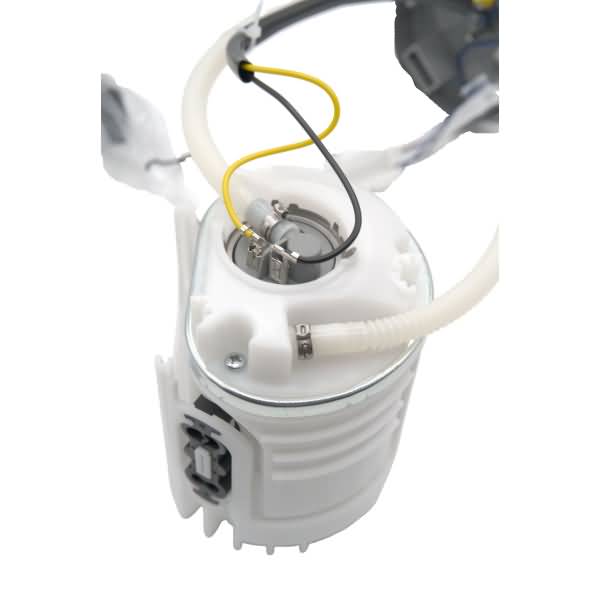

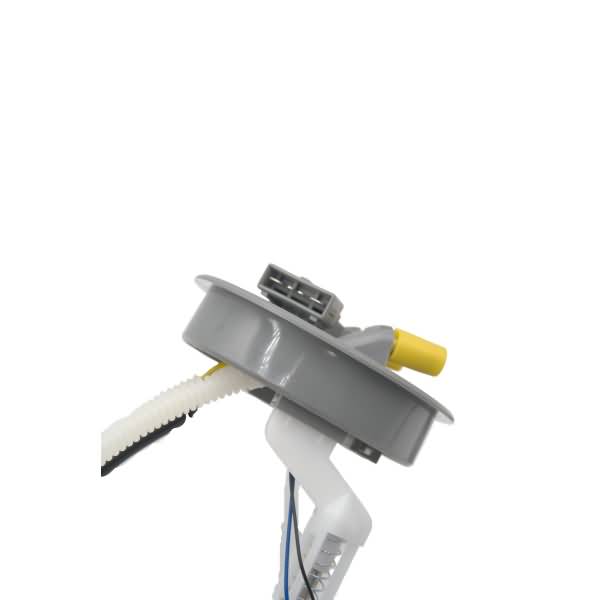

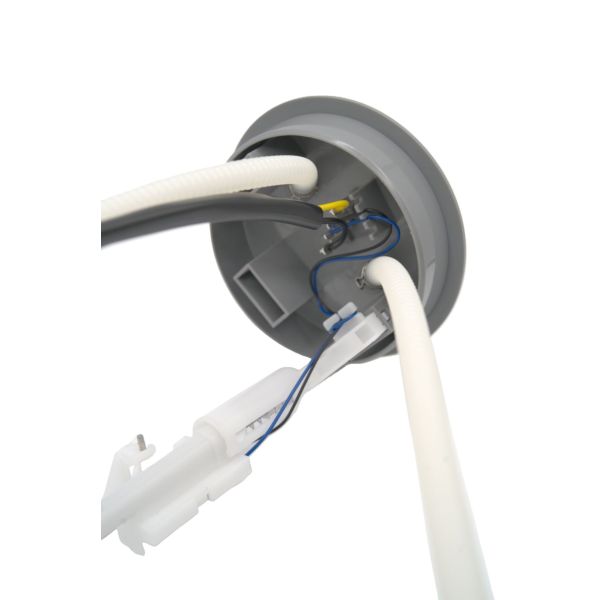

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 6 |
Average Flow Rating(GPH) | 34 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.748 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | External and Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 50 |
Maximum Pump Pressure (PSI) | 100 |
Minimum Free Flow (GPH) | 40 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 5/16 |
Outlet Type | Hose Barb |
Product Height (in) | 5.12 |
Product Length (in) | 16.14 |
Product Width (in) | 9.06 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 36 |
Resistance Ohms Full | 300 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845143778 |
Voltage | 12V |
Weight (lbs) | 2.91 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1997-2002 Volkswagen Cabrio | All Trims | 4 Cyl 2.0L |
1993-1996 Volkswagen EuroVan | All Trims | 5 Cyl 2.5L |
1997 Volkswagen EuroVan | All Trims | 6 Cyl 2.8L |
1999-2003 Volkswagen EuroVan | All Trims | 6 Cyl 2.8L |
1993-1995 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
1995-1998 Volkswagen Golf | All Trims | 6 Cyl 2.8L |
1997-1999 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
1993-1999 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
1994-1999 Volkswagen Jetta | All Trims | 6 Cyl 2.8L |
1991-1993 Volkswagen Passat | All Trims | 4 Cyl 1.8L |
