Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F3107A |

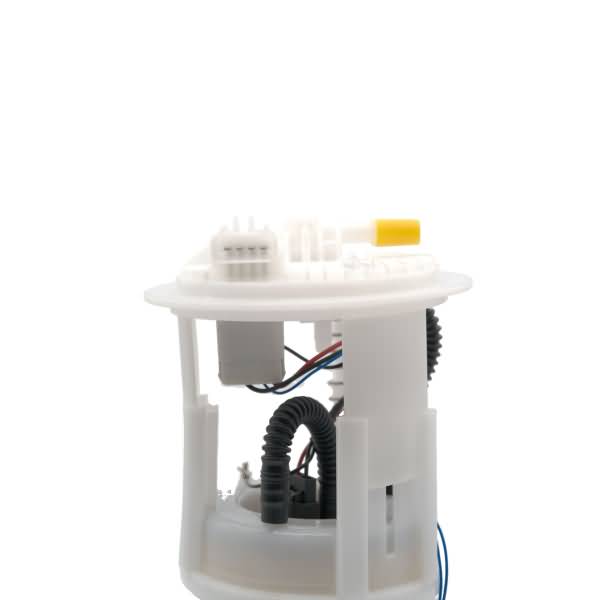

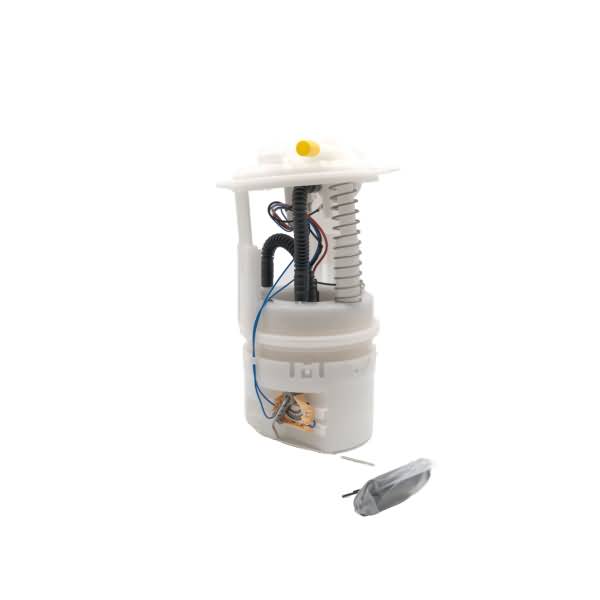

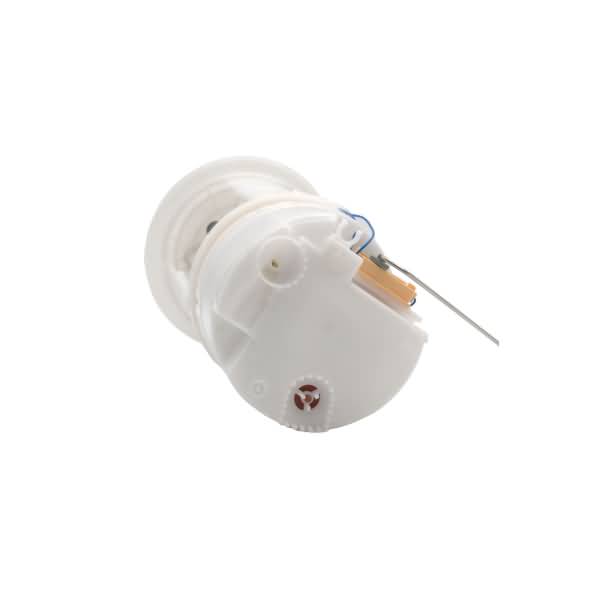

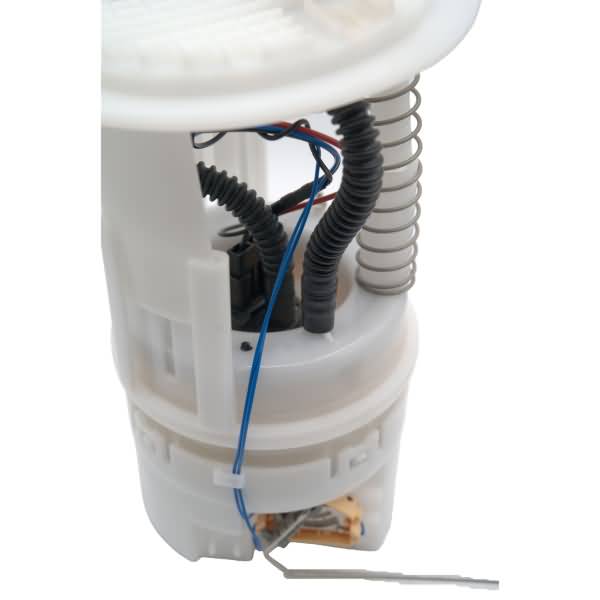

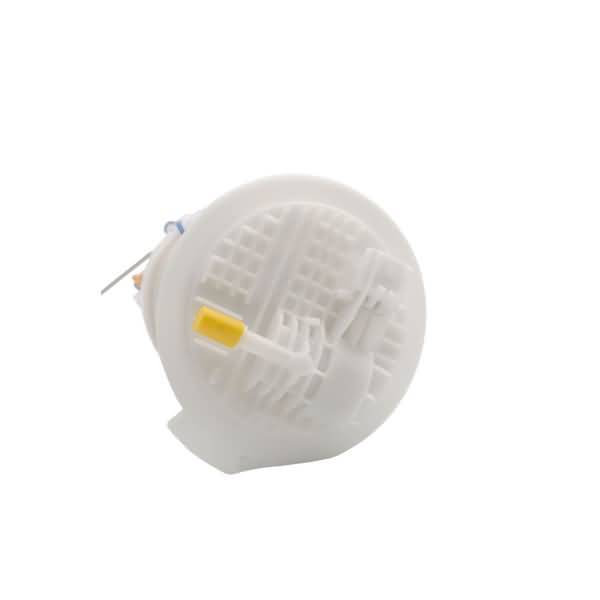

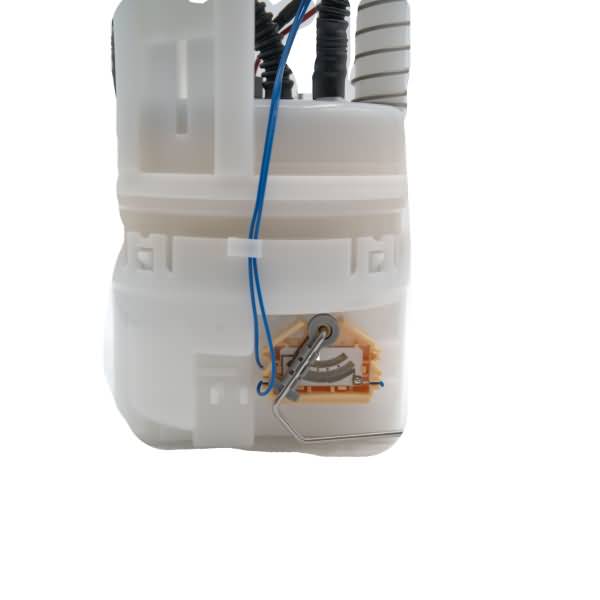

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 7.4 |
Average Flow Rating(GPH) | 26.3 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

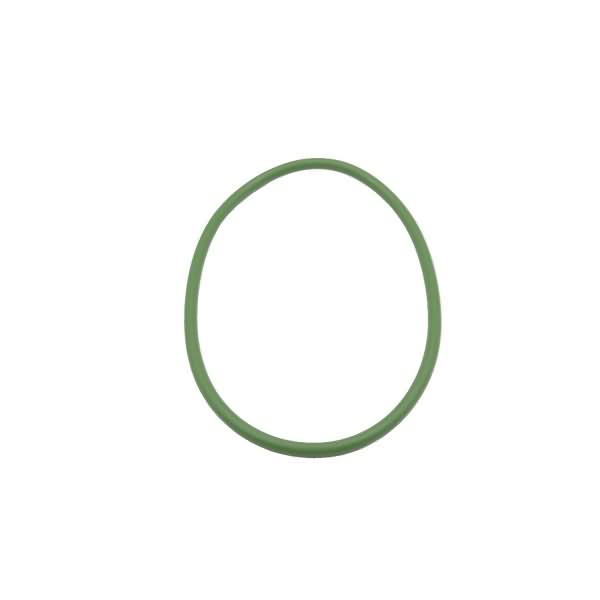

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.314 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 55.4 |
Maximum Pump Pressure (PSI) | 62.35 |
Minimum Free Flow (GPH) | 47.5 |
Minimum Pump Pressure (PSI) | 59.45 |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 0.374 |
Outlet Type | Quick Connect |
Product Height (in) | 7.36 |
Product Length (in) | 10.24 |
Product Width (in) | 9.96 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 1050 |
Resistance Ohms Full | 70 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845131072 |
Voltage | 12V |
Weight (lbs) | 2.87 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2005 Chrysler Town & Country | All Trims | 6 Cyl 3.3L |
2005-2007 Chrysler Town & Country | All Trims | 6 Cyl 3.8L |
2007 Chrysler Town & Country | All Trims | 6 Cyl 3.3L |
2005 Dodge Caravan | All Trims | 6 Cyl 3.3L |
2005-2007 Dodge Grand Caravan | All Trims | 6 Cyl 3.3L |
2005-2007 Dodge Grand Caravan | All Trims | 6 Cyl 3.8L |
