Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2925A |

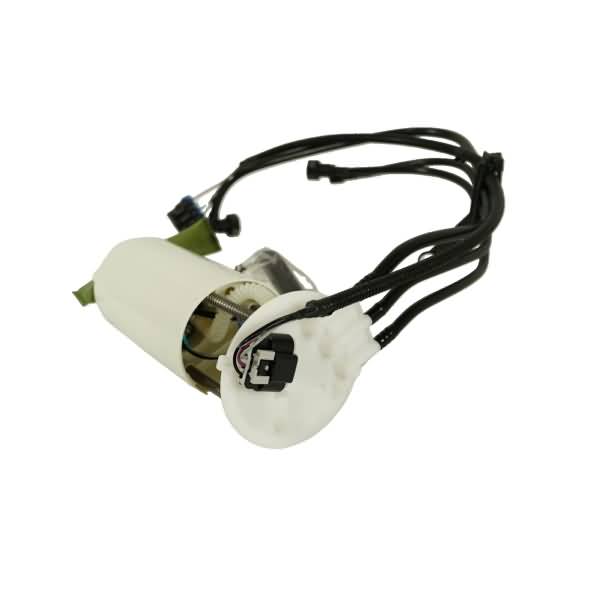

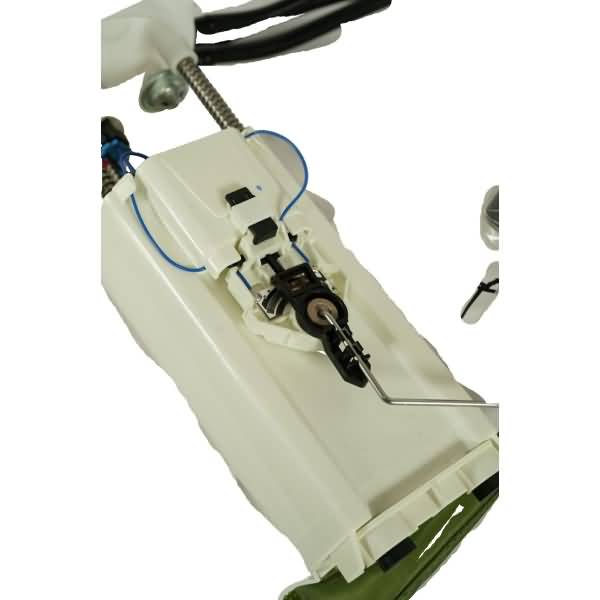

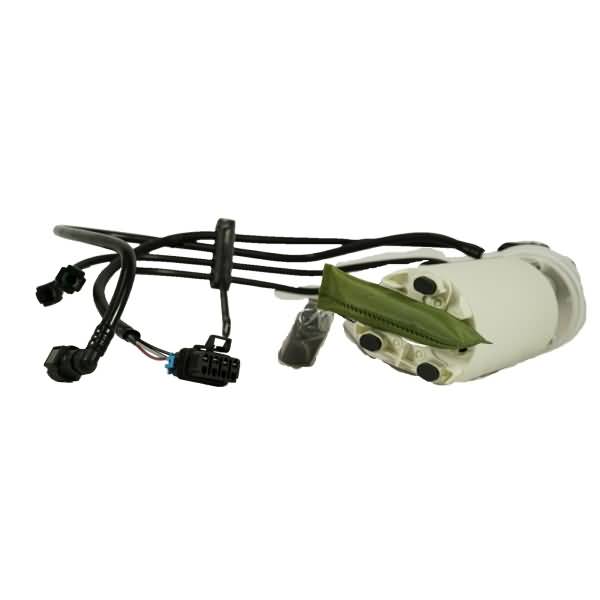

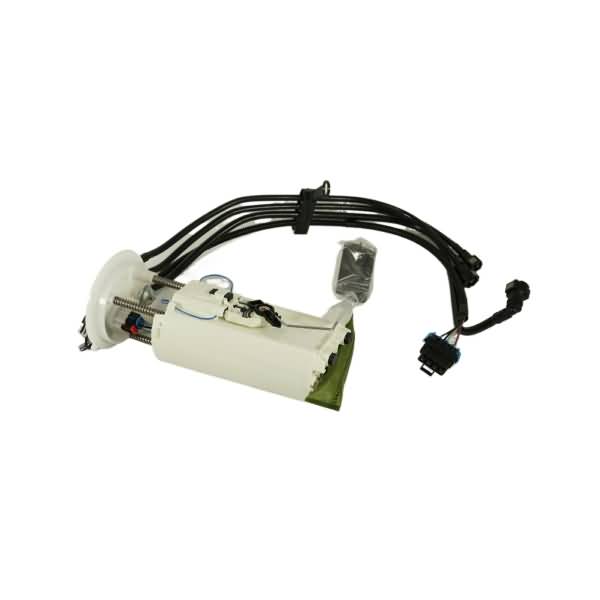

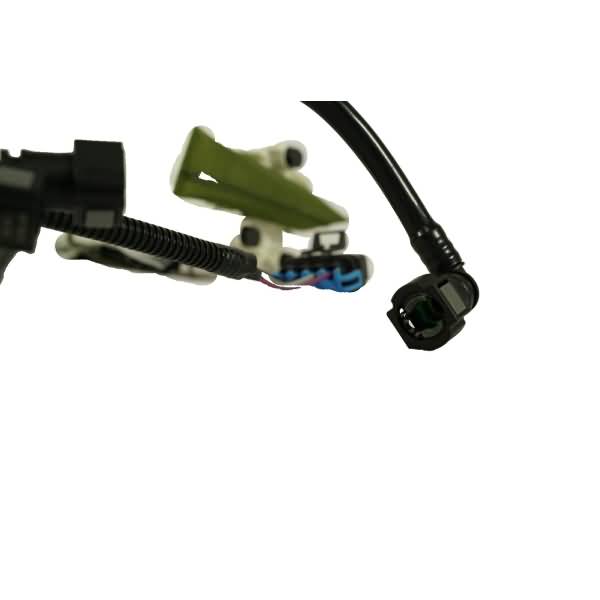

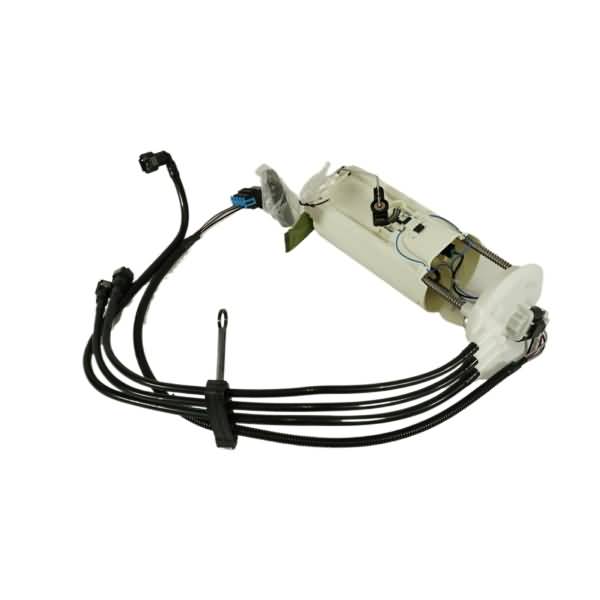

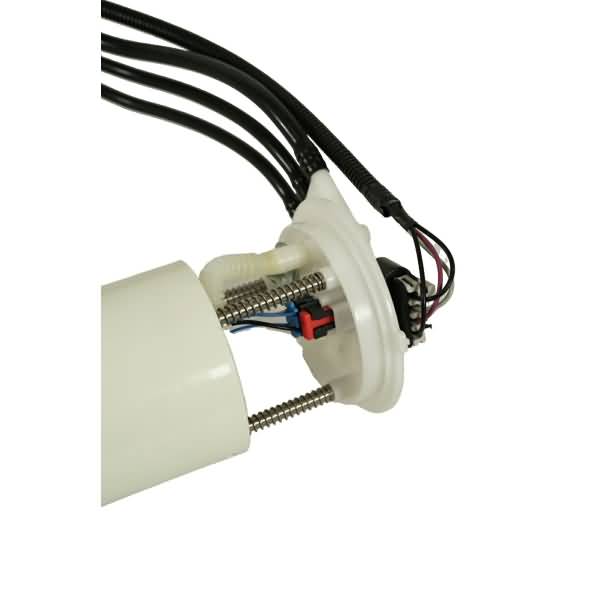

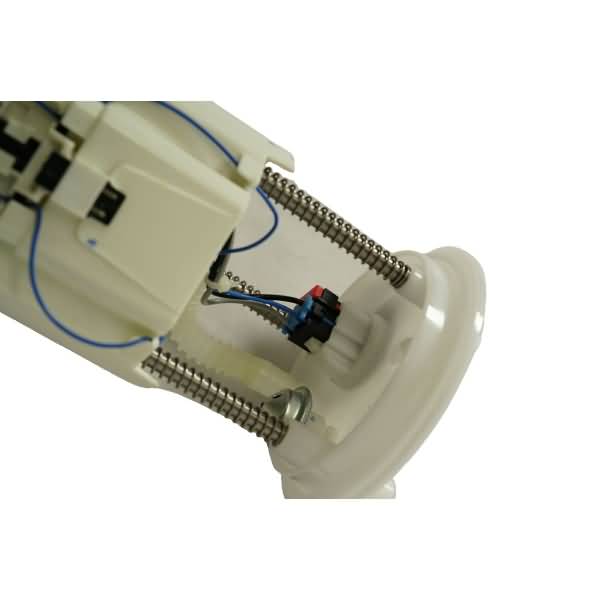

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 9 |
Average Flow Rating(GPH) | 41 |

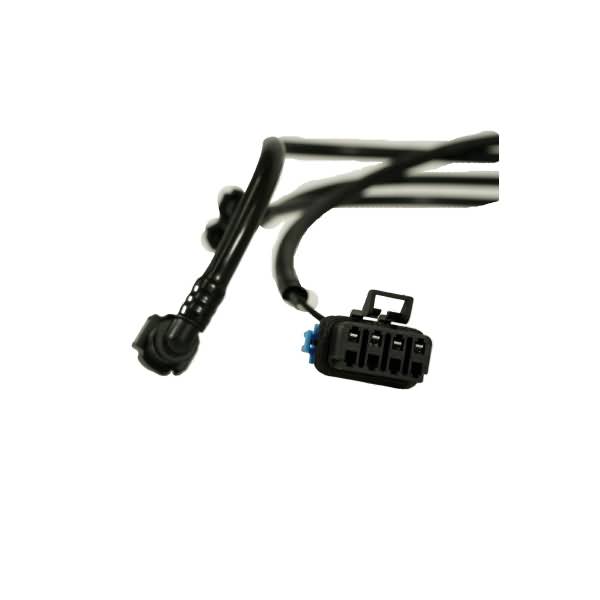

Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

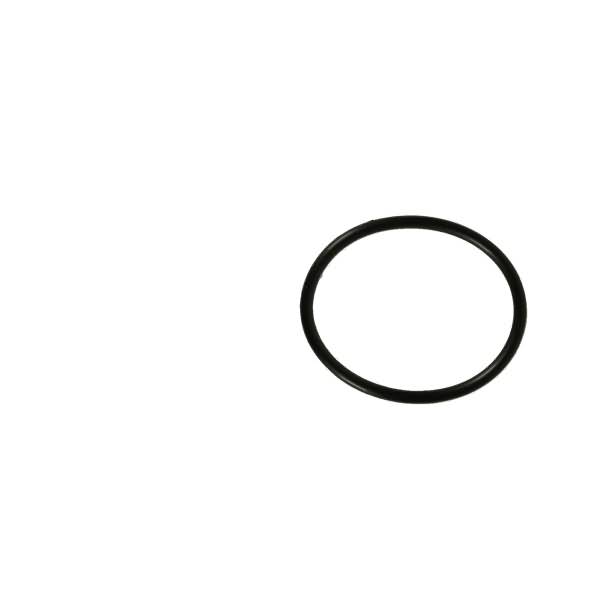

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.37 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 62.8 |
Maximum Pump Pressure (PSI) | 101.5 |
Minimum Free Flow (GPH) | 52.8 |
Minimum Pump Pressure (PSI) | 72.5 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 5.12 |
Product Length (in) | 23.62 |
Product Width (in) | 10.43 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 3 |
Resistance Ohms Full | 95 |
Strainer Included | Yes |
Terminal Gender | Female |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845129253 |
Voltage | 12V |
Weight (lbs) | 3.15 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1995 Chevrolet Cavalier | All Trims | 4 Cyl 2.2L |
1995 Chevrolet Cavalier | All Trims | 4 Cyl 2.3L |
1995 Pontiac Sunfire | All Trims | 4 Cyl 2.2L |
1995 Pontiac Sunfire | All Trims | 4 Cyl 2.3L |
