Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2835A |

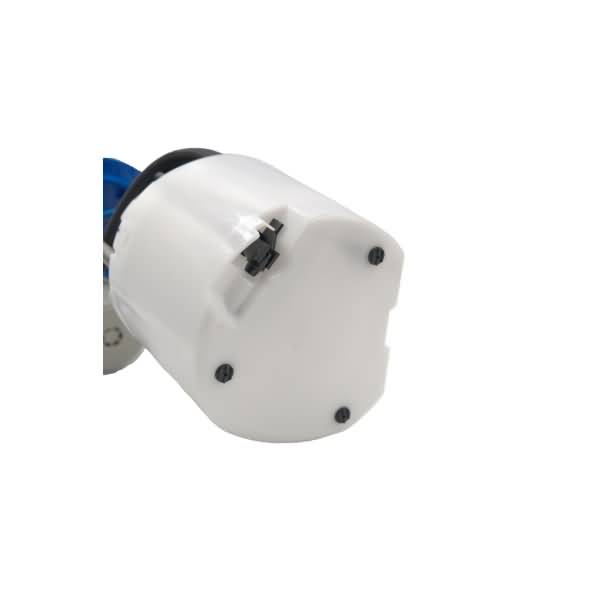

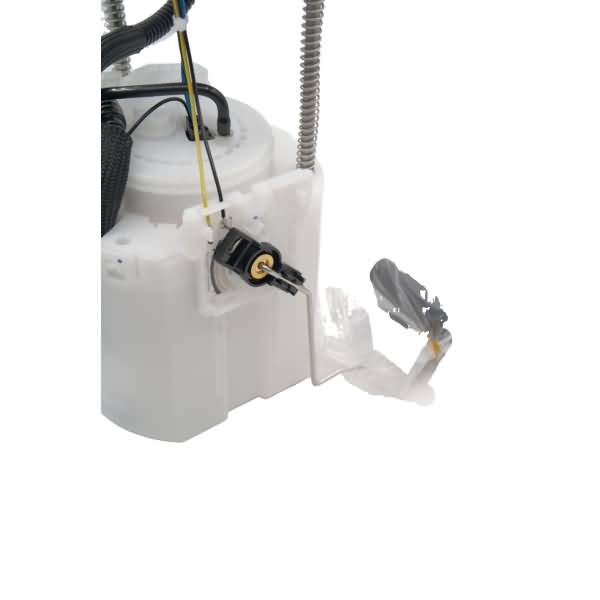

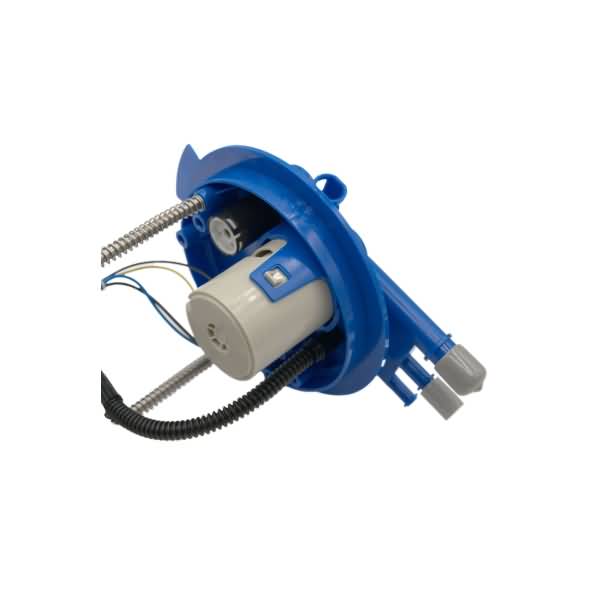

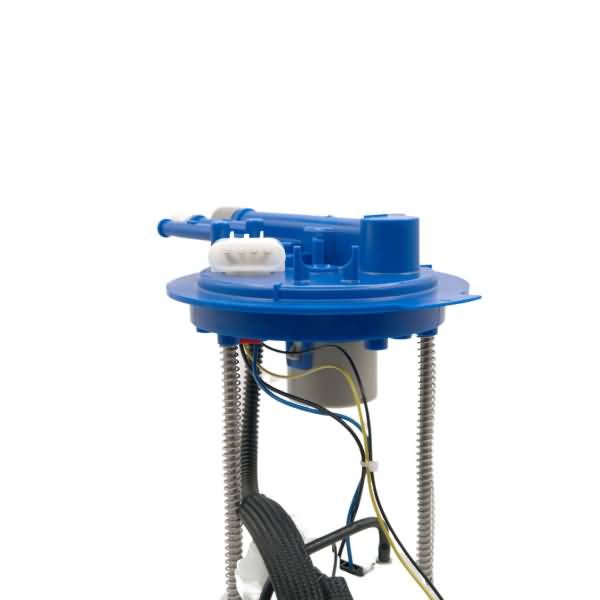

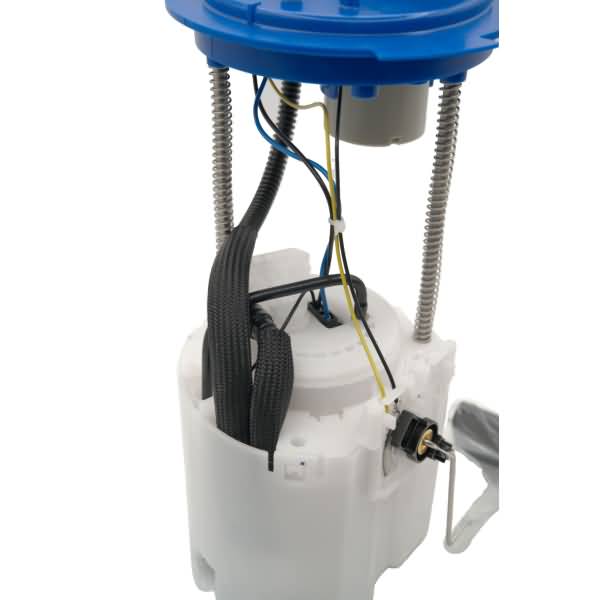

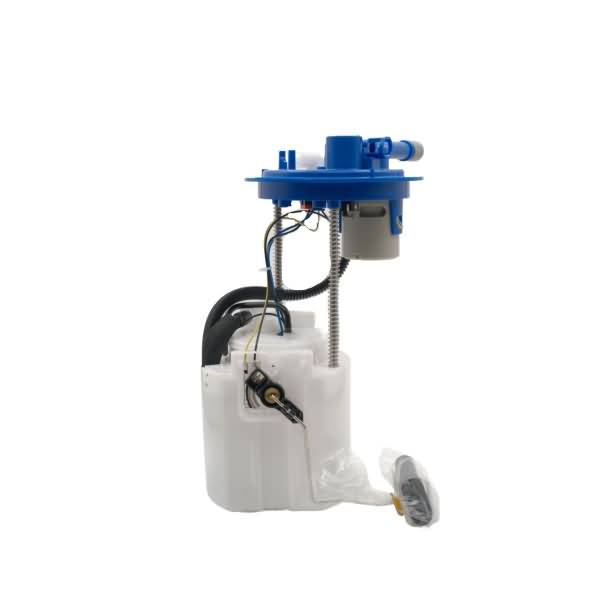

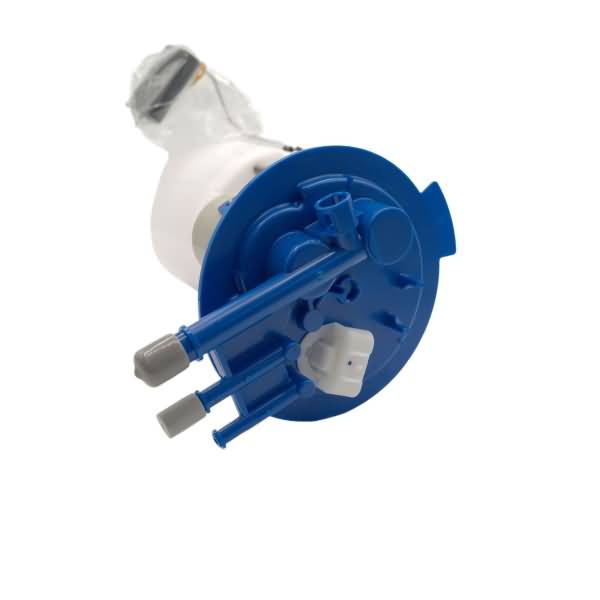

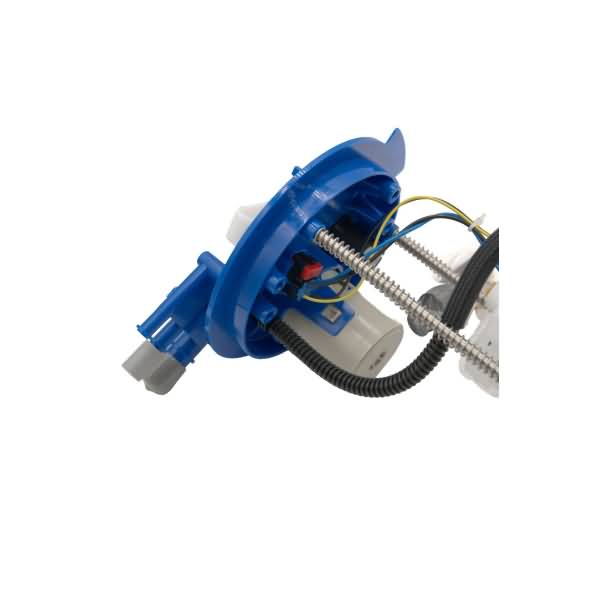

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 28.8 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Grade Type | Performance |
Height (in.) | 11.75 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.314 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 22 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 60 |
Minimum Pump Pressure (PSI) | 54 |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 7.48 |
Product Length (in) | 11.89 |
Product Width (in) | 8.11 |
Regulator Included | Yes |
Resistance Ohms Empty | 42 |
Resistance Ohms Full | 252 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845128355 |
Voltage | 12V |
Weight (lbs) | 3.5 |
Weight (lbs.) | 3.58 |
Width (in.) | 7.5 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2007-2008 Buick Allure | All Trims | 6 Cyl 3.8L |
2007-2008 Buick LaCrosse | All Trims | 6 Cyl 3.8L |
2007-2008 Chevrolet Impala | All Trims | 6 Cyl 3.5L |
2007 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.5L |
2007-2008 Pontiac Grand Prix | All Trims | 6 Cyl 3.8L |
