Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2750A |

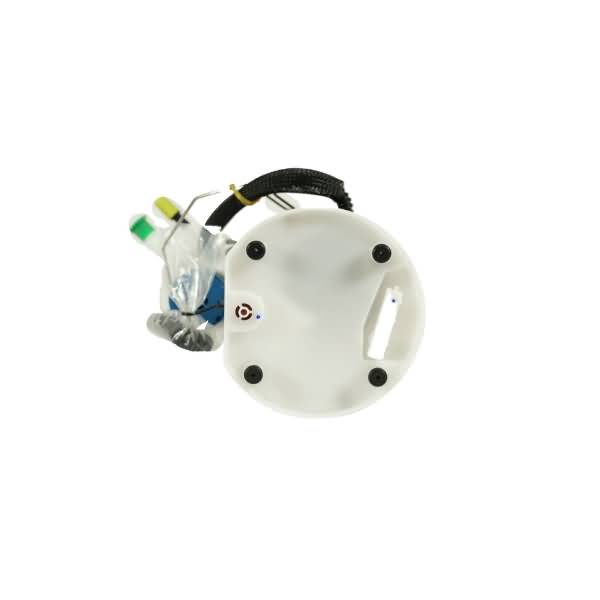

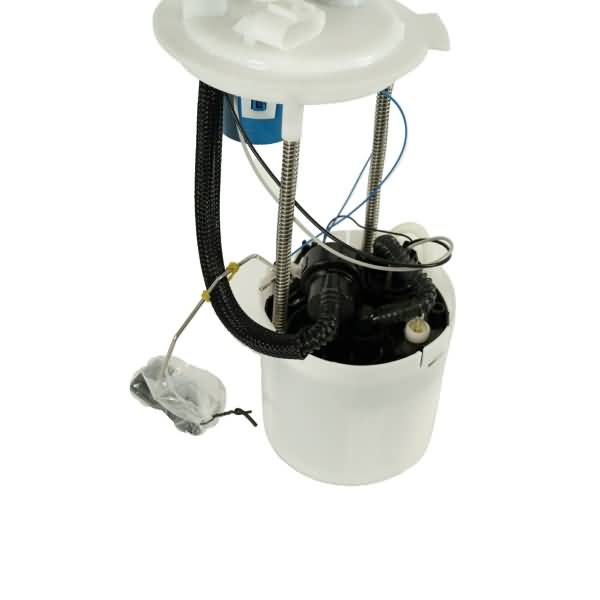

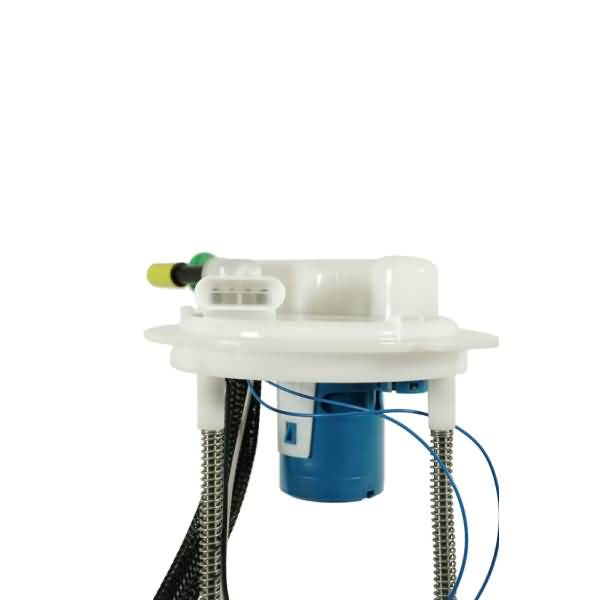

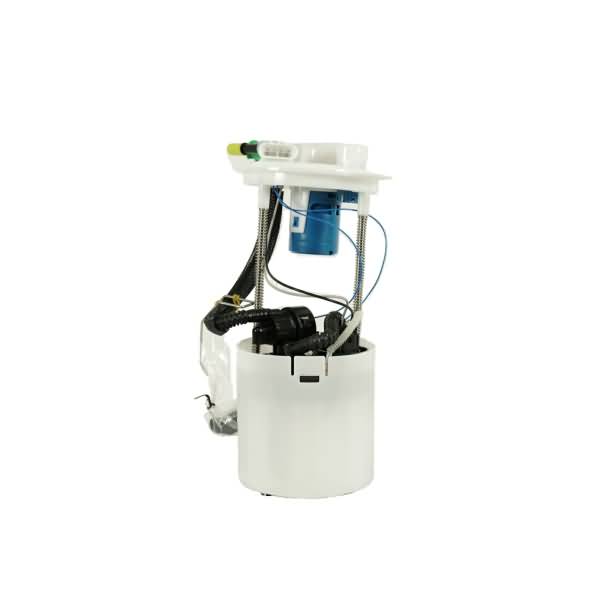

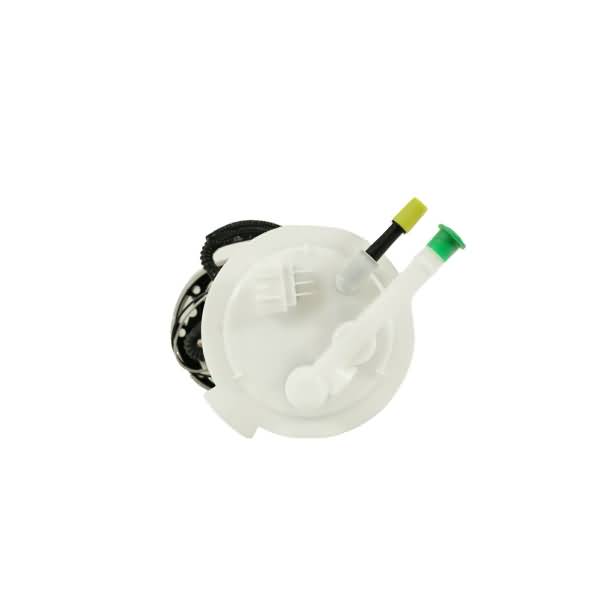

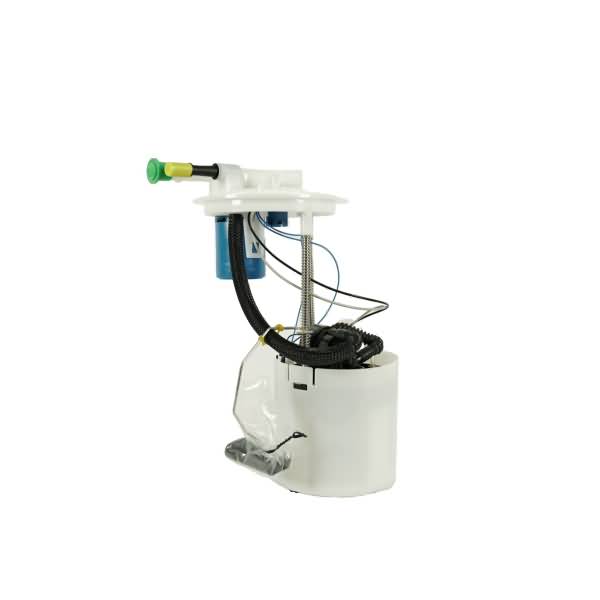

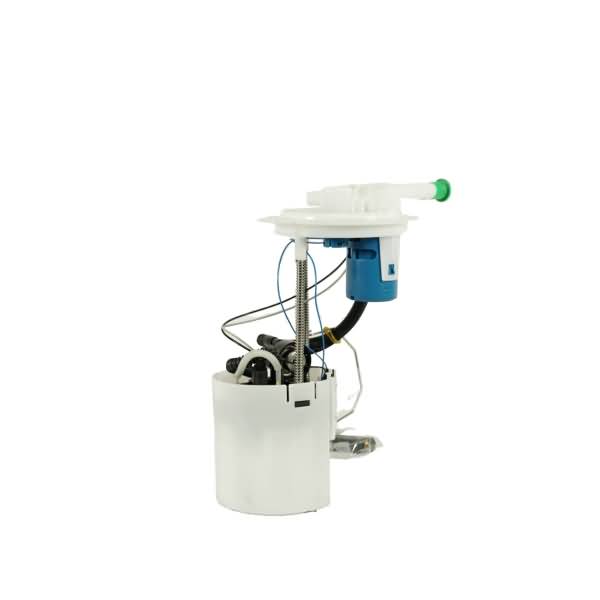

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 12.5 |
Average Flow Rating(GPH) | 42.2 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 64.2 |
Maximum Pump Pressure (PSI) | 58.6 |
Minimum Free Flow (GPH) | 54.2 |
Minimum Pump Pressure (PSI) | 54.5 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 6.89 |
Product Length (in) | 12.4 |
Product Width (in) | 9.25 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 250 |
Resistance Ohms Full | 40 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845127501 |
Voltage | 12V |
Weight (lbs) | 3.3 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Buick Allure | All Trims | 6 Cyl 3.8L |
2008-2009 Buick LaCrosse | All Trims | 6 Cyl 3.8L |
2008-2010 Chevrolet Impala | All Trims | 6 Cyl 3.5L |
2008 Pontiac Grand Prix | All Trims | 6 Cyl 3.8L |
