Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2741A |

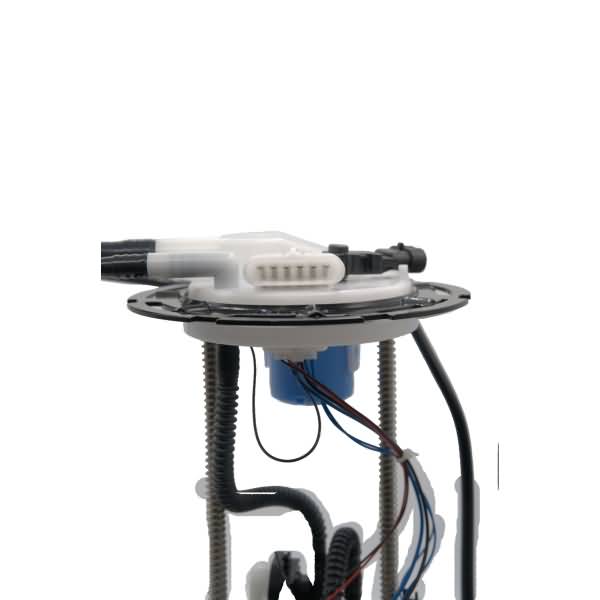

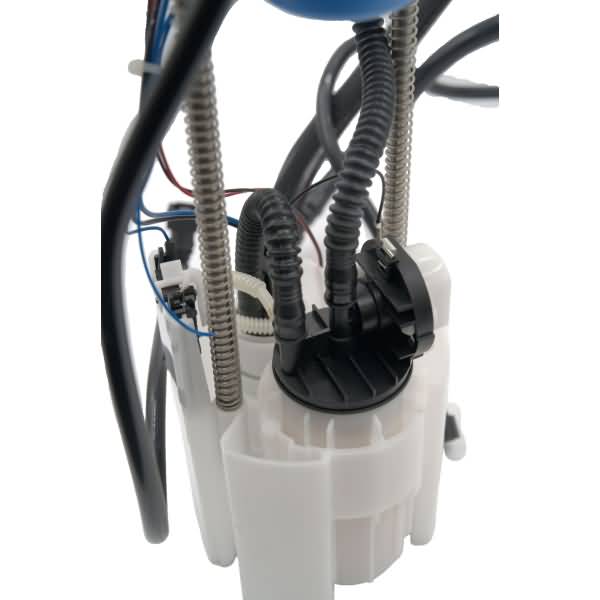

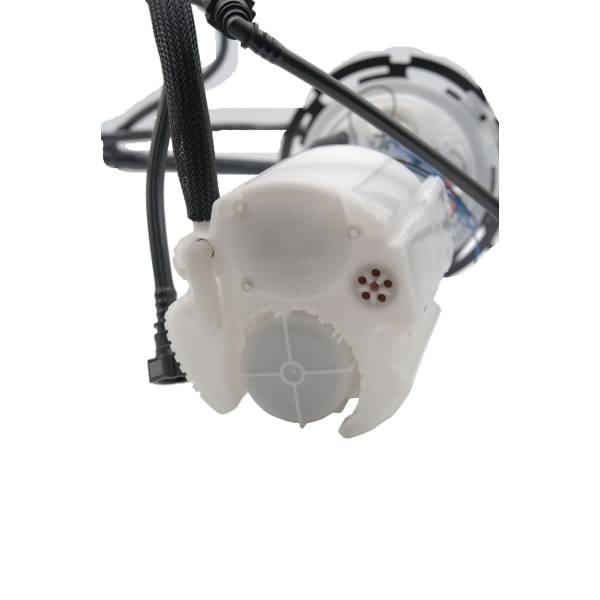

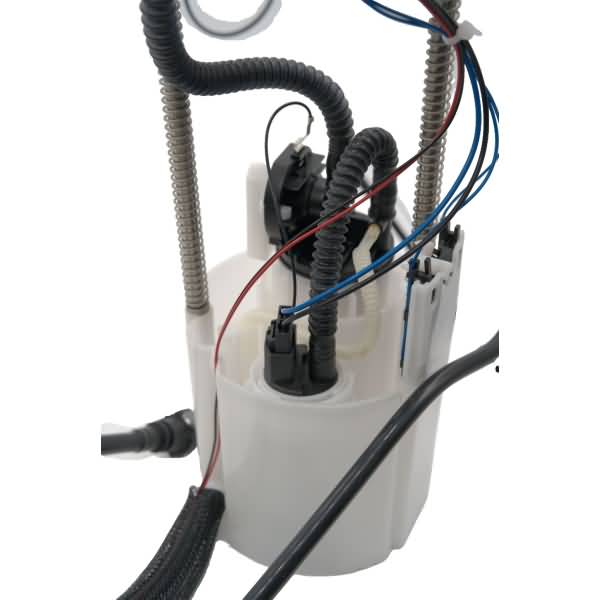

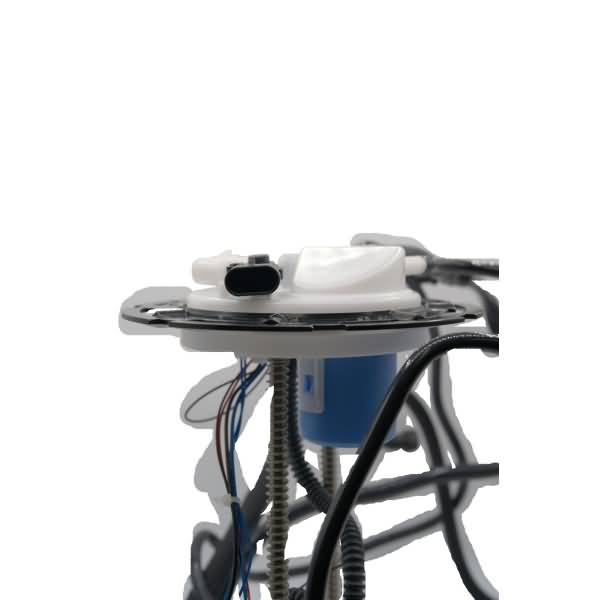

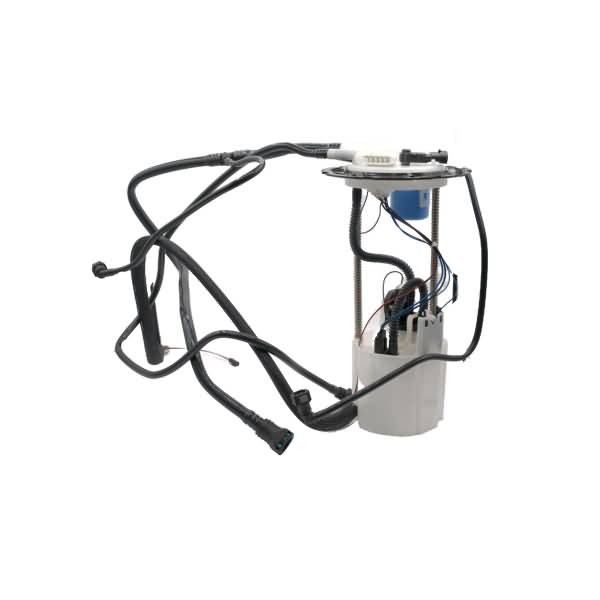

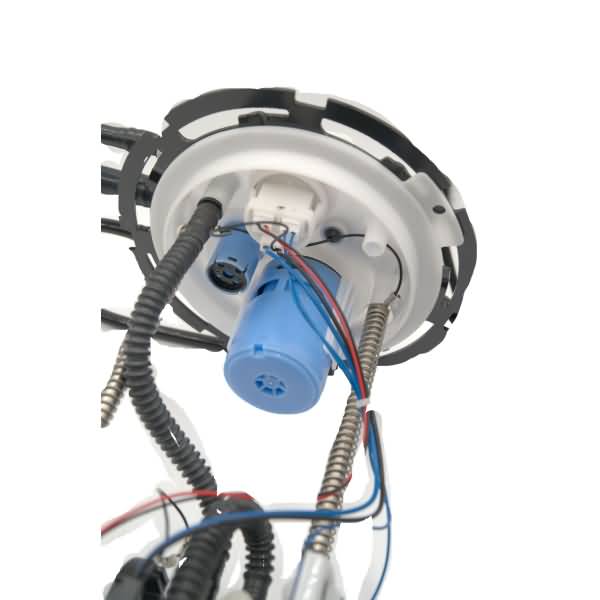

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 9.4 |
Average Flow Rating(GPH) | 28.8 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | Yes |

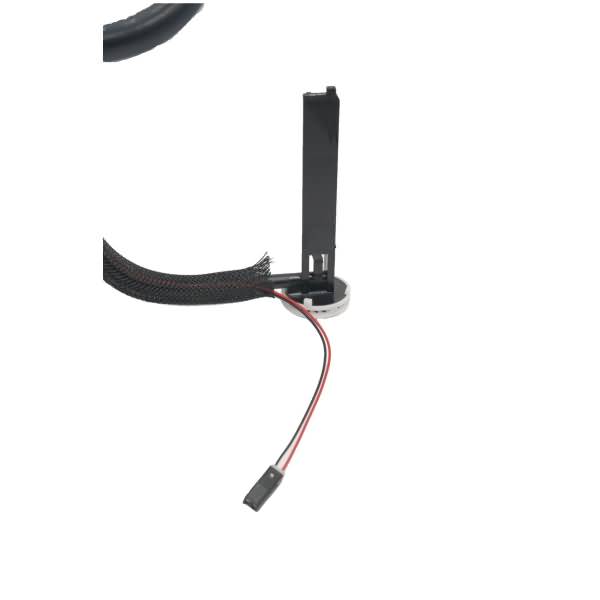

Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |

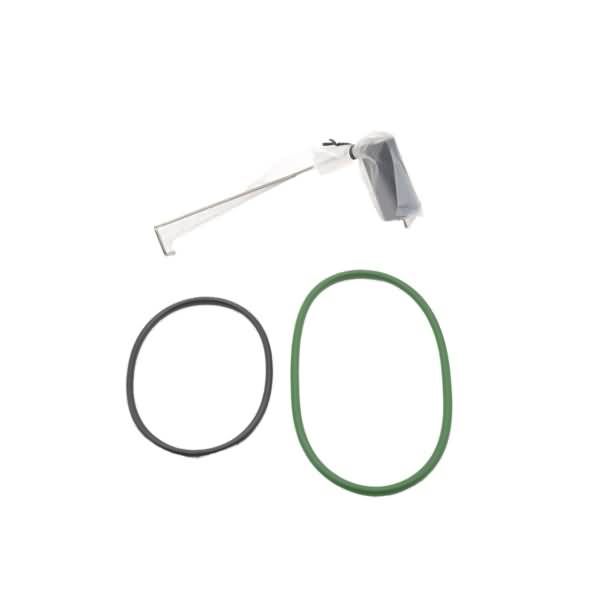

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Height (in.) | 17 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 5/16 |
Inlet Type | Quick Connect |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 22 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 60 |
Maximum Pump Pressure (PSI) | 59 |
Minimum Free Flow (GPH) | 50 |
Minimum Pump Pressure (PSI) | 59 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Package Contents | Pump & Kit |
Product Height (in) | 9 |
Product Length (in) | 22 |
Product Width (in) | 17 |
Regulator Included | Yes |
Resistance Ohms Empty | 33 |
Resistance Ohms Full | 20 |
Short Description | Electric Fuel Pump |
Strainer Included | No |
Terminal Gender | Male |
Terminal Quantity | 6 |
Terminal Type | PIN |
UPC | 00072845127419 |
Voltage | 12V |
Weight (lbs) | 4.58 |
Weight (lbs.) | 6.82 |
Width (in.) | 9 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2007 Saturn Vue | All Trims | 4 Cyl 2.2L |
2007 Saturn Vue | All Trims | 4 Cyl 2.4L |
2007 Saturn Vue | All Trims | 6 Cyl 3.5L |
