Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2737A |

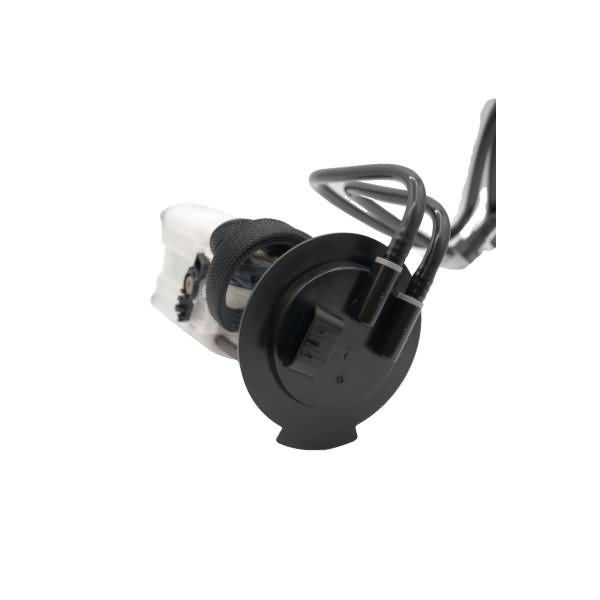

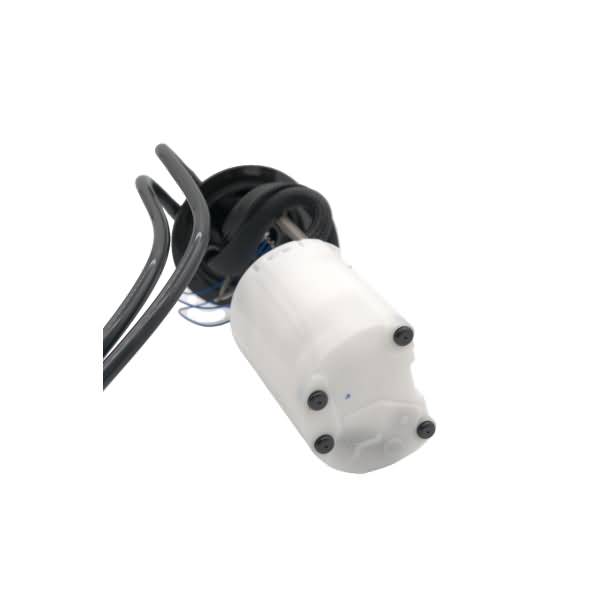

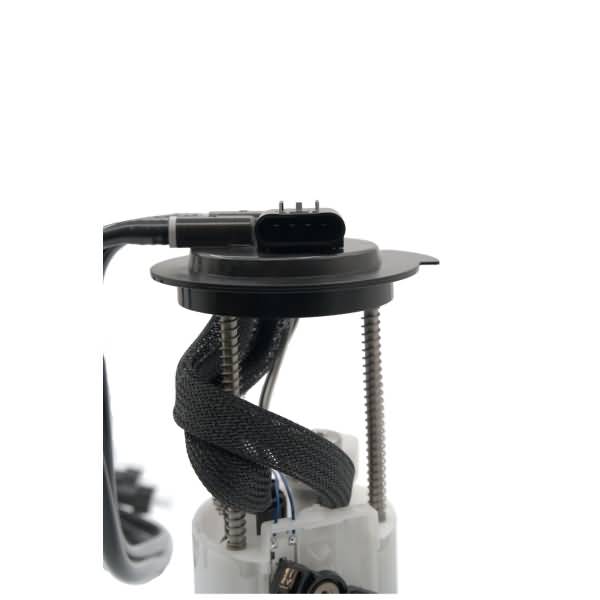

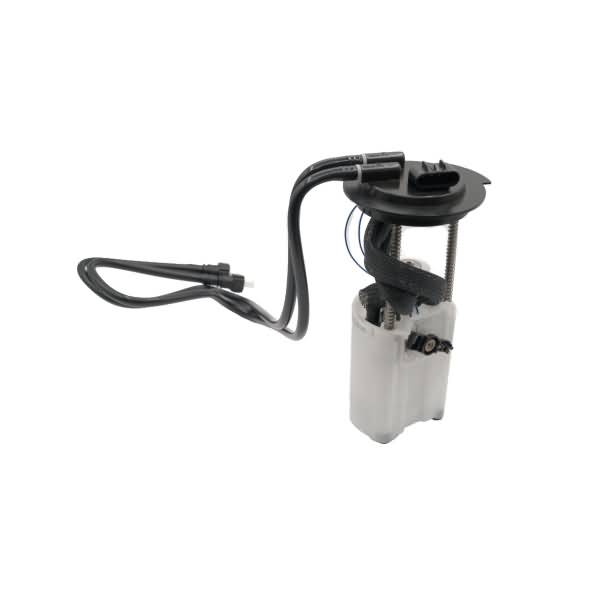

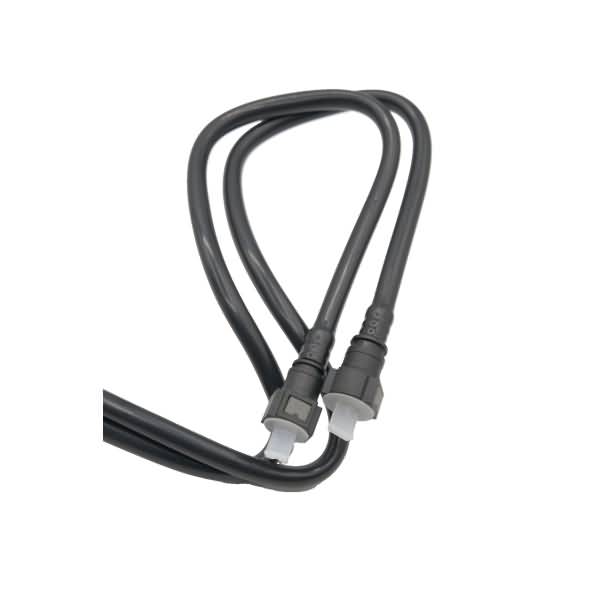

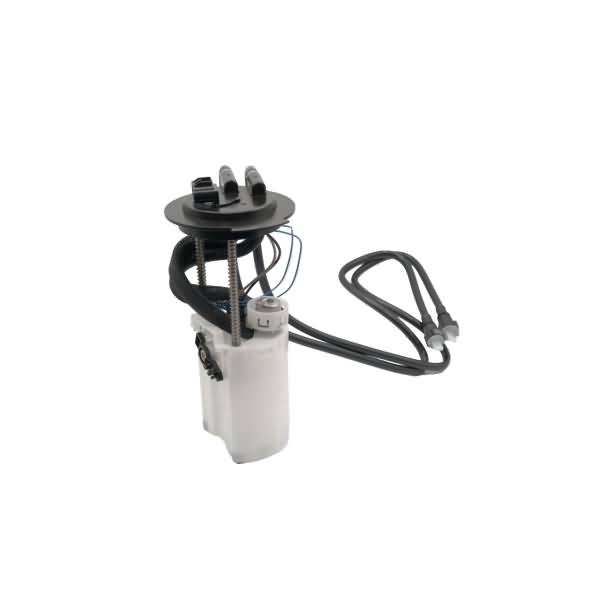

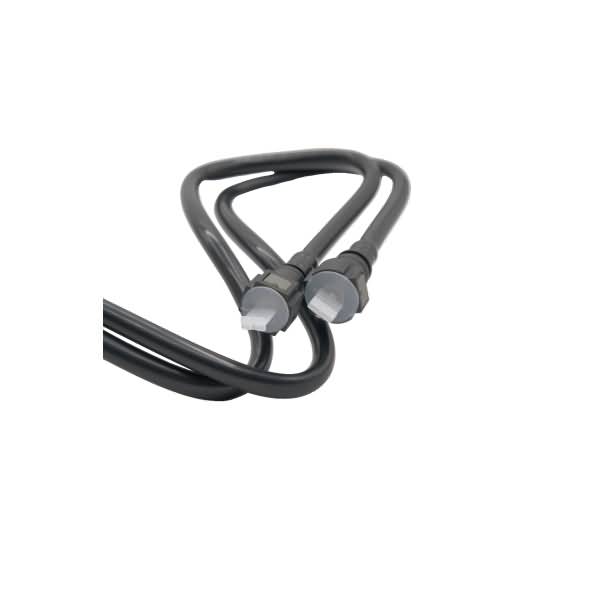

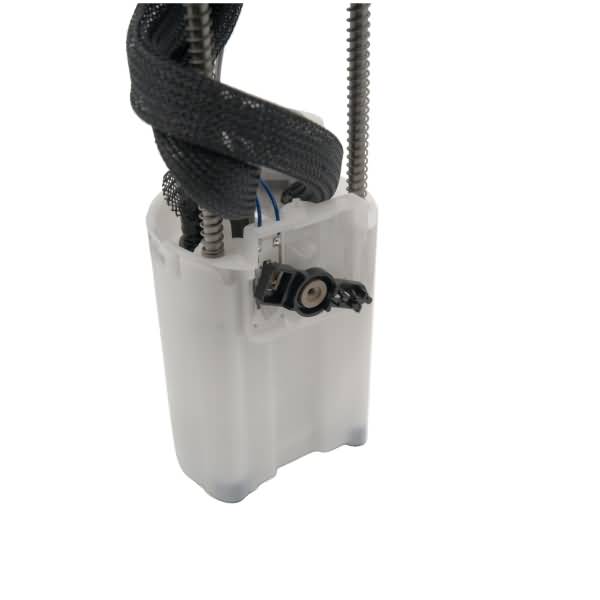

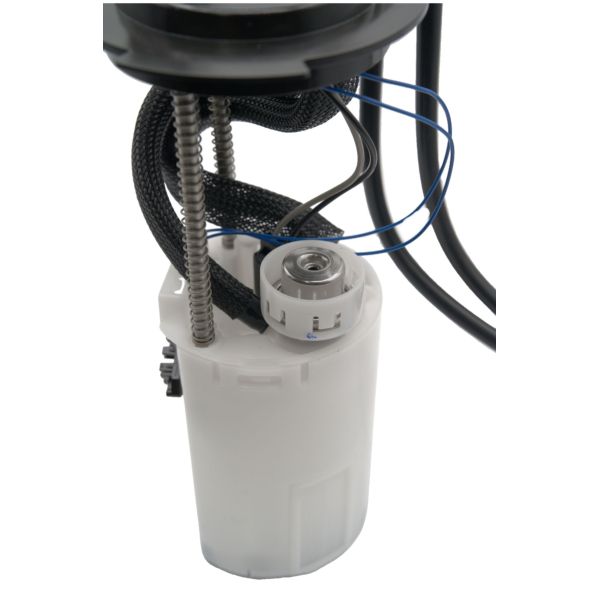

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 33 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |

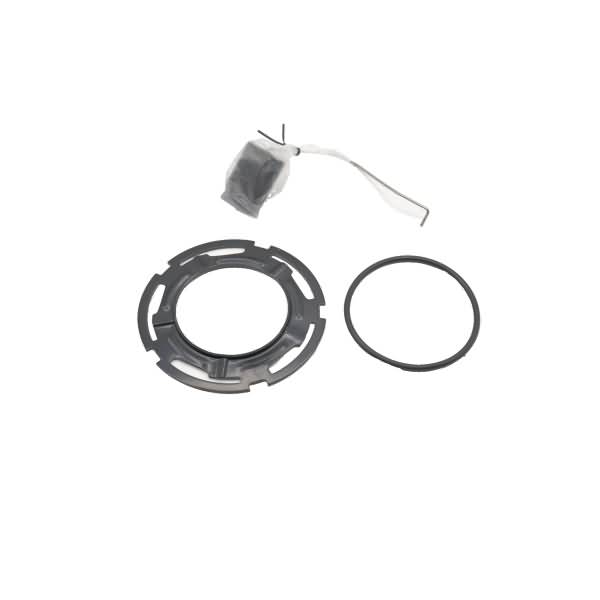

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 5/16 |
Inlet Type | Quick Connect |
Installation Warnings | No |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 145 |
Minimum Pump Pressure (PSI) | 87 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 7 |
Product Length (in) | 17 |
Product Width (in) | 10.5 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 250 |
Resistance Ohms Full | 40 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845127372 |
Voltage | 12V |
Weight (lbs) | 2.6 |
Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2006-2007 Chevrolet Cobalt | SS | 4 Cyl 2.0L |
2006-2007 Chevrolet Cobalt | SS | 4 Cyl 2.4L |
2006-2008 Chevrolet Cobalt | All Trims | 4 Cyl 2.2L |
2008 Chevrolet Cobalt | Sport | 4 Cyl 2.4L |
2007-2008 Pontiac G5 | All Trims | 4 Cyl 2.2L |
2007-2008 Pontiac G5 | All Trims | 4 Cyl 2.4L |
2006 Pontiac Pursuit | All Trims | 4 Cyl 2.2L |
2006 Pontiac Pursuit | All Trims | 4 Cyl 2.4L |
2006-2007 Saturn Ion | All Trims | 4 Cyl 2.0L |
2006-2007 Saturn Ion | All Trims | 4 Cyl 2.2L |
