Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2735A |

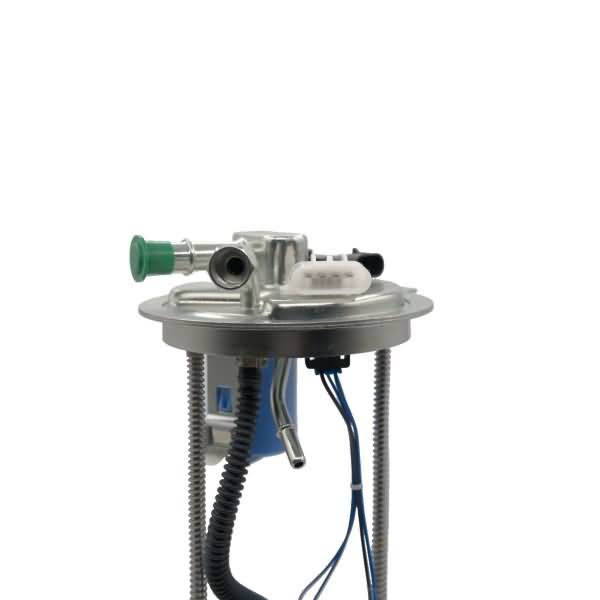

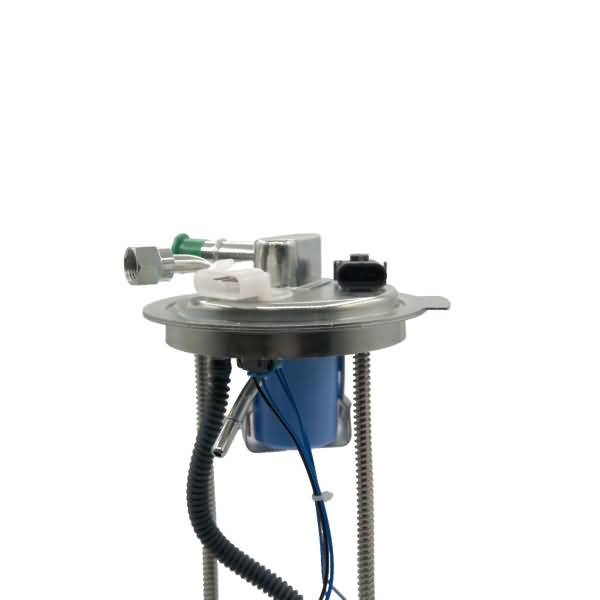

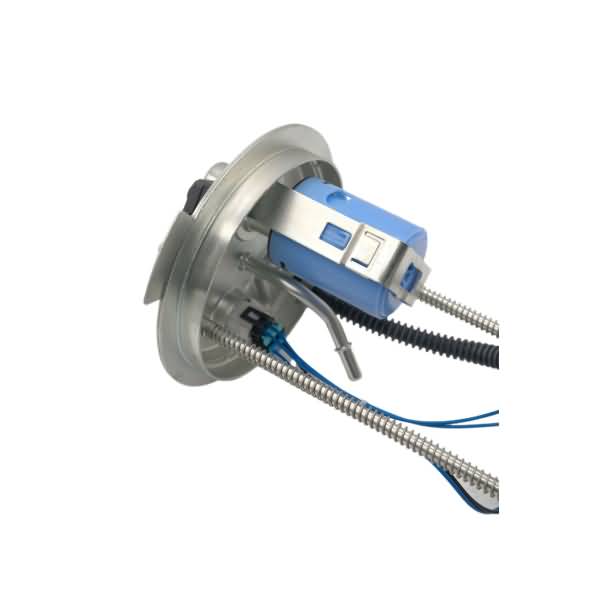

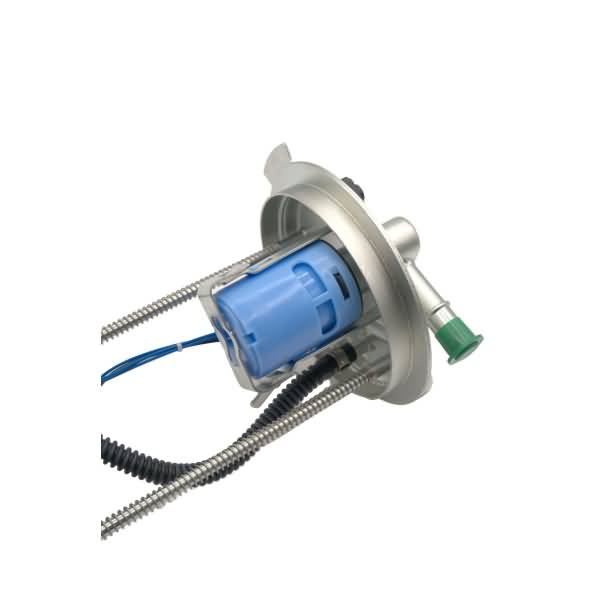

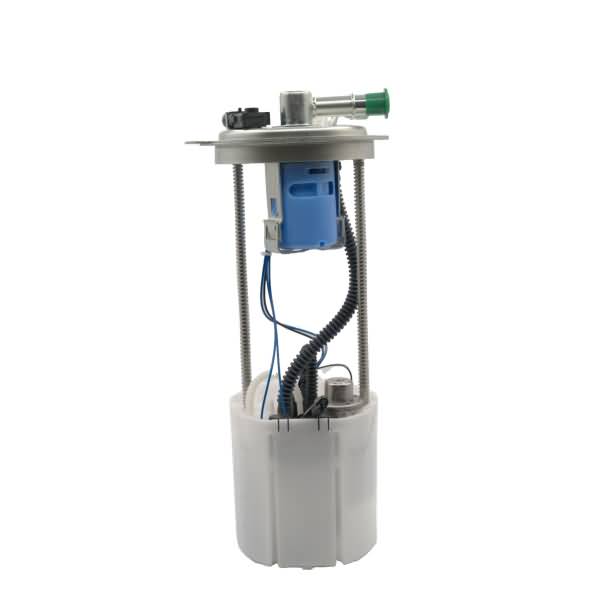

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 7.9 |
Average Flow Rating(GPH) | 23.5 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Grade Type | Performance |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Type | Strainer |
Installation Warnings | No |

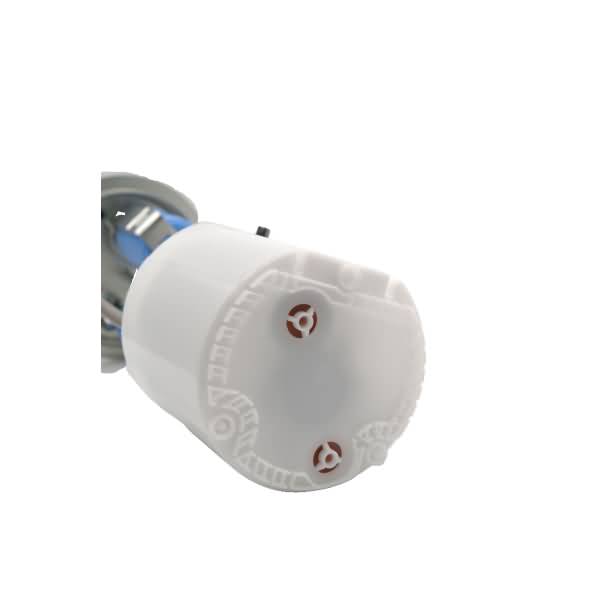

Internal Or External Strainer | Internal |
Length (in.) | 18 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 65 |
Maximum Pump Pressure (PSI) | 60 |
Minimum Free Flow (GPH) | 55 |
Minimum Pump Pressure (PSI) | 55 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | M16*1.5 |
Outlet Type | Female Threded |
Package Contents | Pump & Kit |
Product Height (in) | 5.98 |
Product Length (in) | 11.73 |
Product Width (in) | 10.59 |
Regulator Included | Yes |
Resistance Ohms Empty | 250 |
Resistance Ohms Full | 40 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845127358 |
Voltage | 12V |
Weight (lbs) | 4.32 |
Weight (lbs.) | 4.8 |
Width (in.) | 7 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2006 Hummer H3 | All Trims | 5 Cyl 3.5L |
2007-2008 Hummer H3 | All Trims | 5 Cyl 3.7L |
2008 Hummer H3 | All Trims | 8 Cyl 5.3L |
