Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2708A |

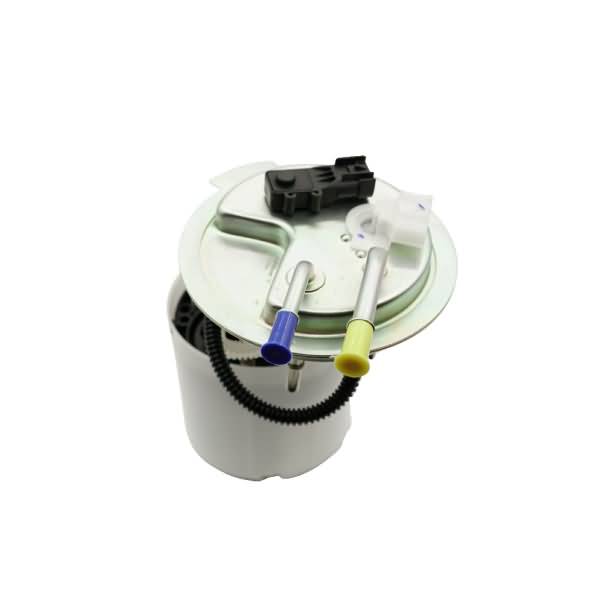

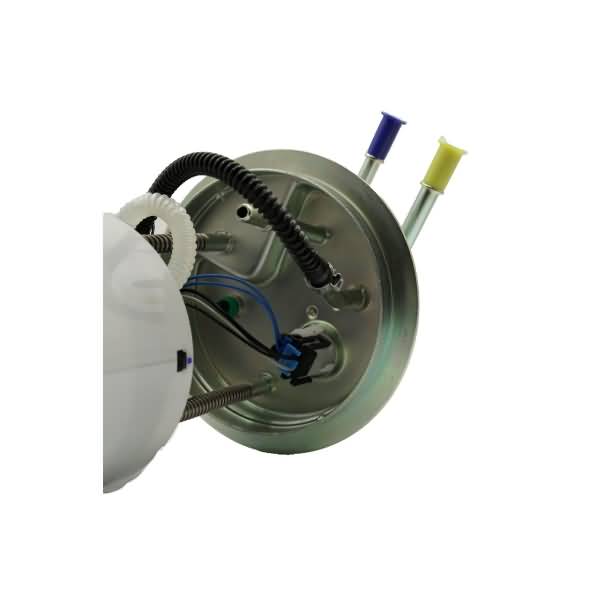

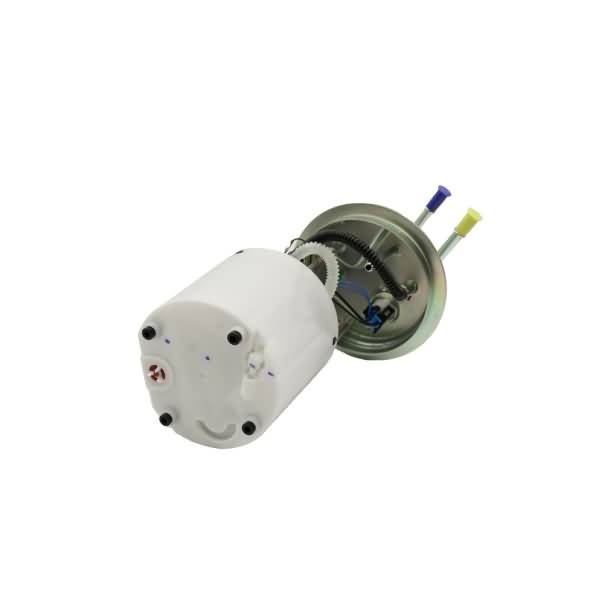

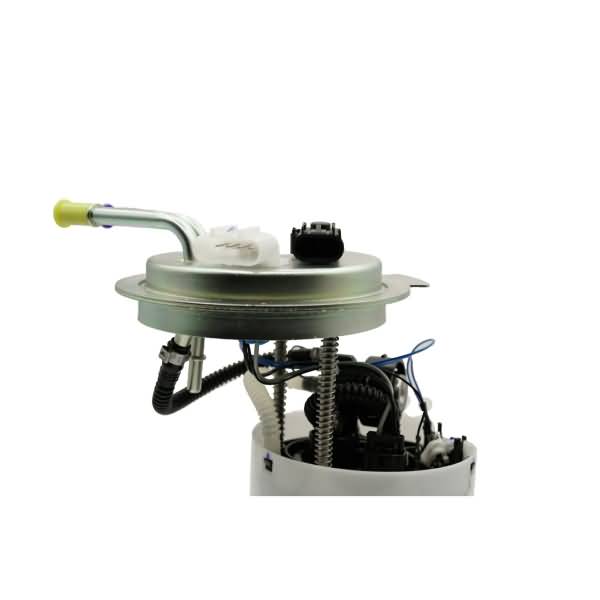

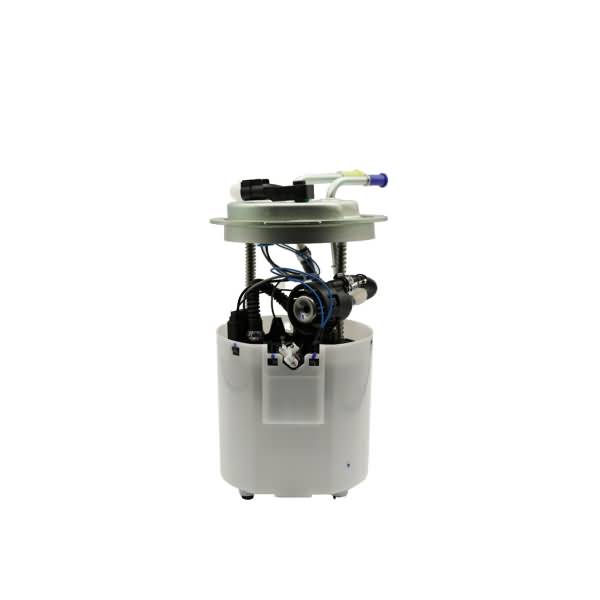

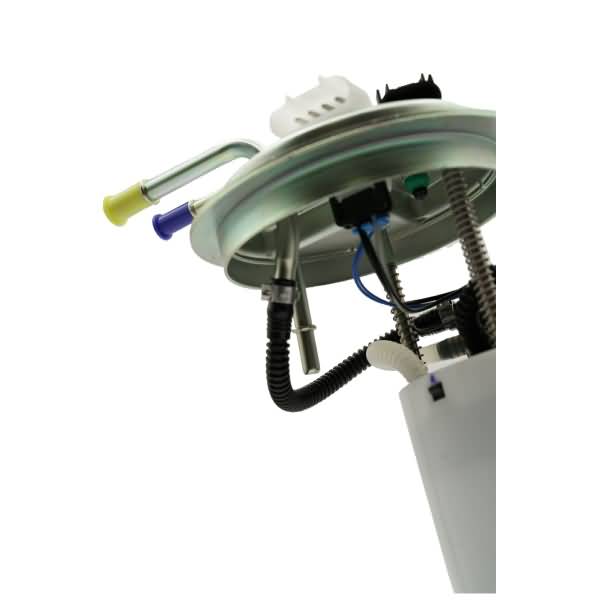

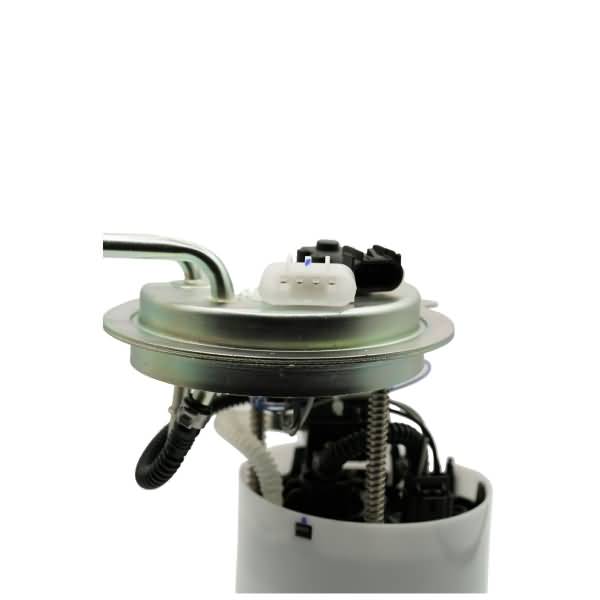

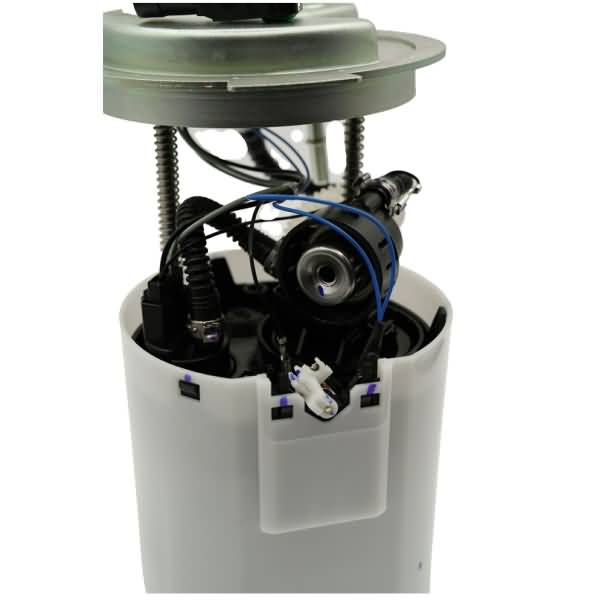

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 13.75 |
Average Flow Rating(GPH) | 33 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |

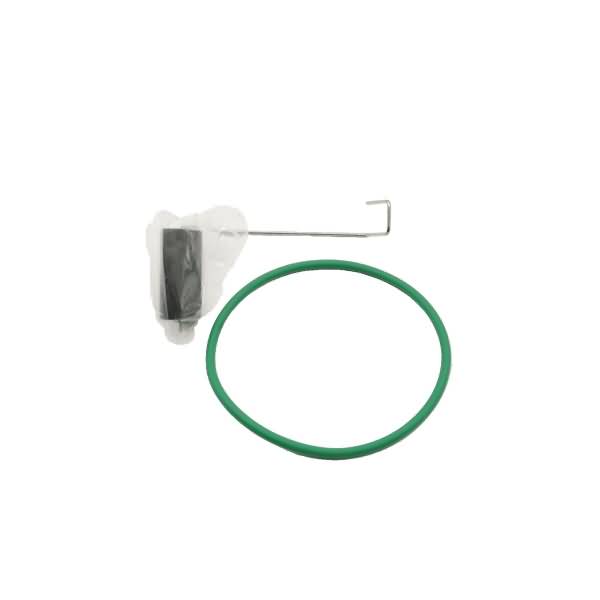

Gasket or Seal Included | Yes |
Grade Type | Performance |
Height (in.) | 6.75 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 5/16 |
Inlet Type | Quick Connect |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 13.25 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Package Contents | Pump & Module |
Product Height (in) | 6.57 |
Product Length (in) | 10.63 |
Product Width (in) | 10.24 |
Regulator Included | Yes |
Resistance Ohms Empty | 250 |
Resistance Ohms Full | 40 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845127082 |
Voltage | 12V |
Weight (lbs) | 3.94 |
Width (in.) | 8.5 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2009-2014 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
2009-2013 Cadillac Escalade EXT | All Trims | 8 Cyl 6.2L |
2008-2013 Chevrolet Avalanche | All Trims | 8 Cyl 5.3L |
2008-2014 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L |
2008-2014 GMC Yukon XL 1500 | All Trims | 8 Cyl 5.3L |
2009-2014 GMC Yukon XL 1500 | All Trims | 8 Cyl 6.2L |
