Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2637A |

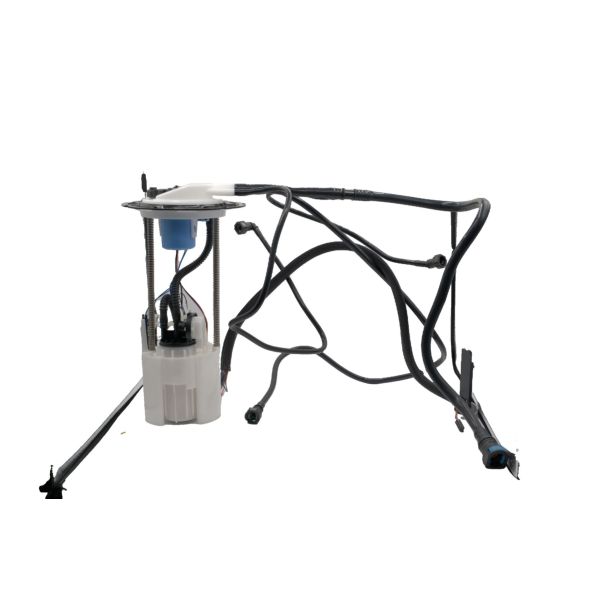

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 7.9 |
Average Flow Rating(GPH) | 20.9 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |

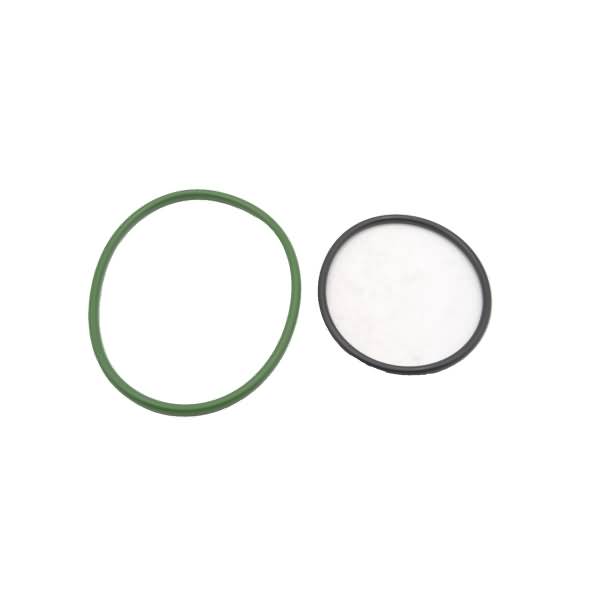

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 5/16 |
Inlet Type | Quick Connect |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 64 |
Minimum Pump Pressure (PSI) | 59 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 9 |
Product Length (in) | 22 |
Product Width (in) | 17 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 33 |
Resistance Ohms Full | 20 |
Strainer Included | No |
Terminal Gender | Male |
Terminal Quantity | 6 |
Terminal Type | PIN |
UPC | 00072845126375 |
Voltage | 12V |
Weight (lbs) | 4.49 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2005-2006 Chevrolet Equinox | All Trims | 6 Cyl 3.4L |
2006 Pontiac Torrent | All Trims | 6 Cyl 3.4L |
2004-2006 Saturn Vue | All Trims | 4 Cyl 2.2L |
2004-2006 Saturn Vue | All Trims | 6 Cyl 3.5L |
