Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2598A |

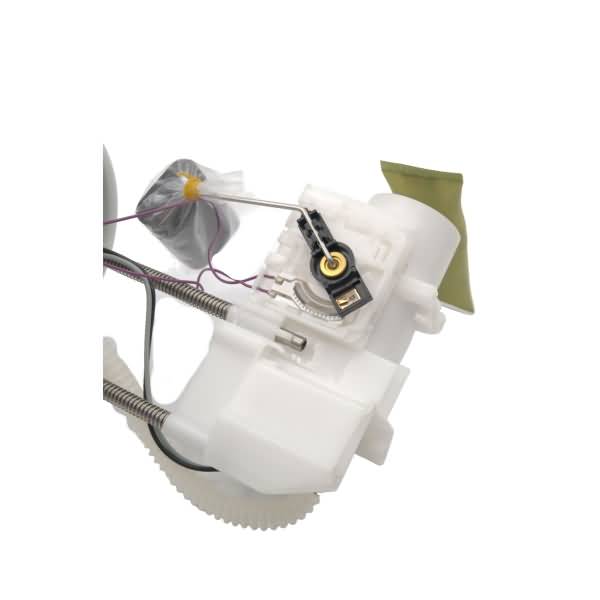

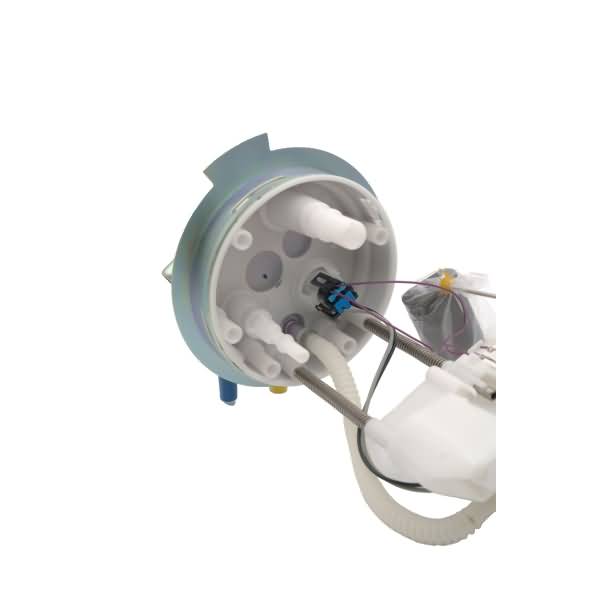

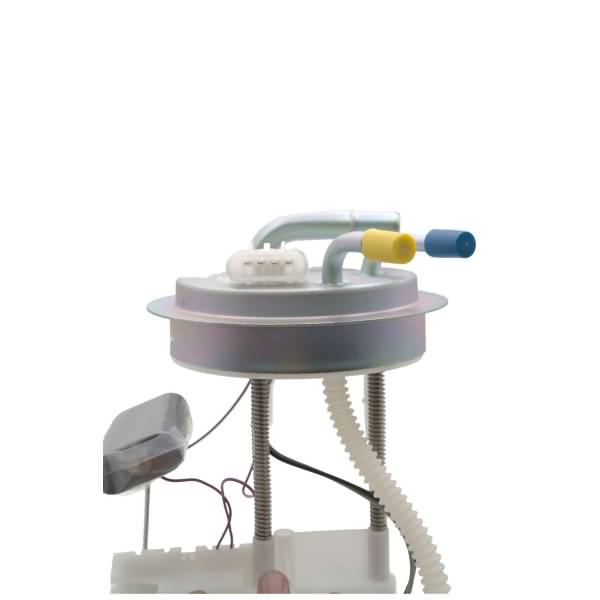

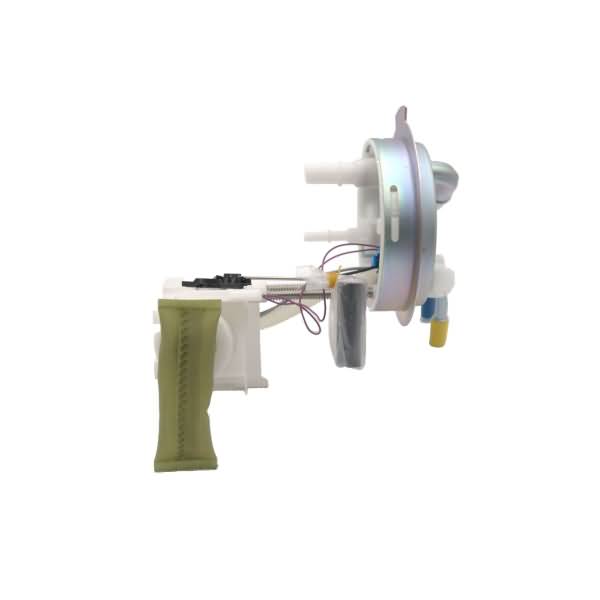

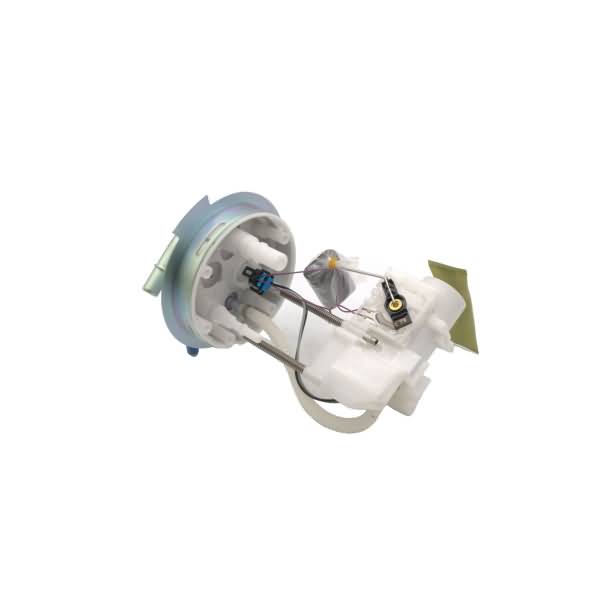

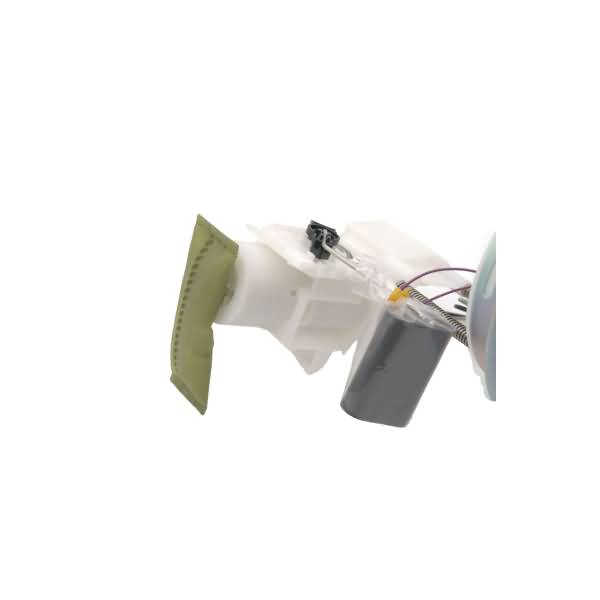

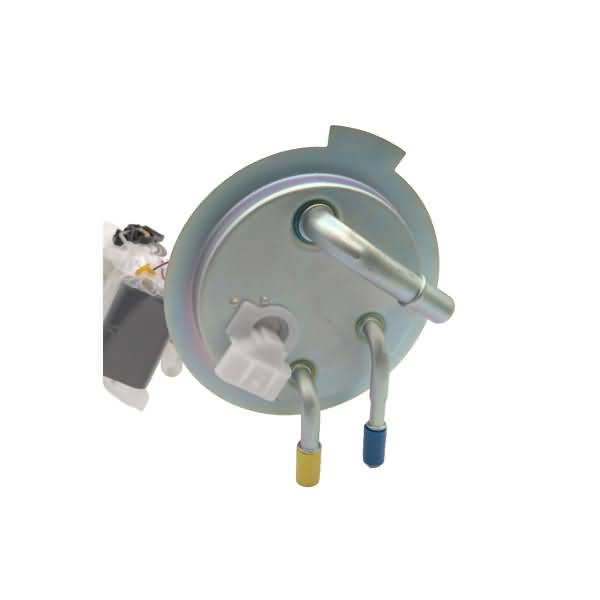

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 4.5 |
Average Flow Rating(GPH) | 31.8 |
Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

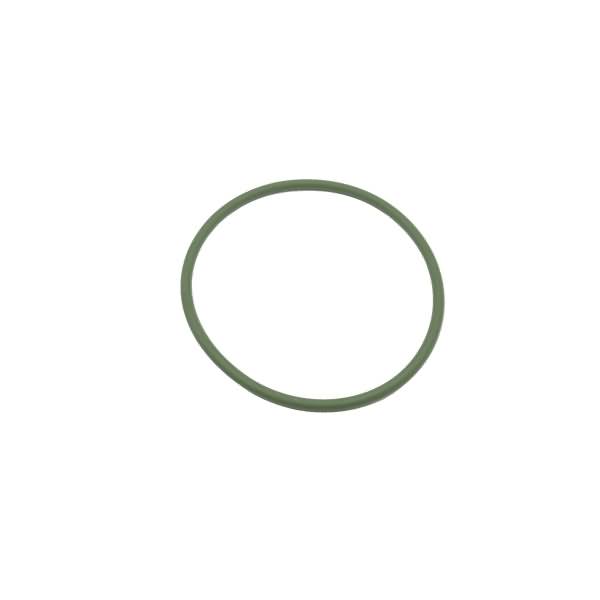

Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.748 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 39 |
Maximum Pump Pressure (PSI) | 18.9 |
Minimum Free Flow (GPH) | 29 |
Minimum Pump Pressure (PSI) | 11.6 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 8.86 |
Product Length (in) | 9.65 |
Product Width (in) | 9.65 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 252 |
Resistance Ohms Full | 40 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845125989 |
Voltage | 12V |
Weight (lbs) | 2.74 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Chevrolet Avalanche 2500 | All Trims | 8 Cyl 8.1L |
2004-2006 Chevrolet Suburban 2500 | All Trims | 8 Cyl 8.1L |
2004-2007 Chevrolet Suburban 2500 | All Trims | 8 Cyl 6.0L |
2004-2006 GMC Yukon XL 2500 | All Trims | 8 Cyl 8.1L |
2004-2007 GMC Yukon XL 2500 | All Trims | 8 Cyl 6.0L |
