Part Number | F2548A |

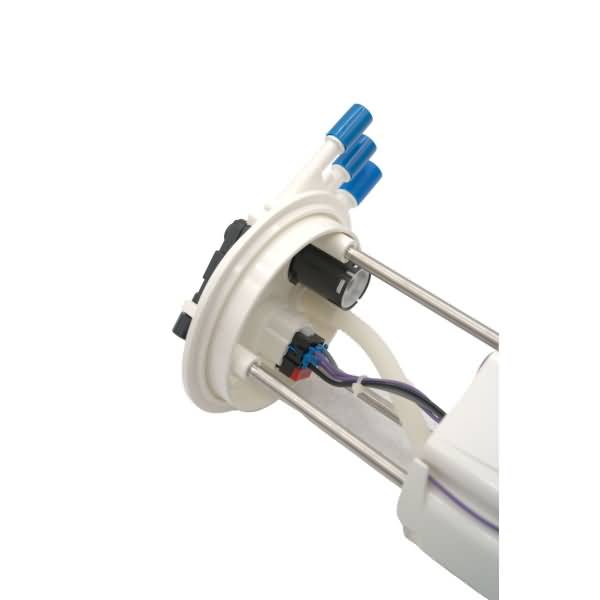

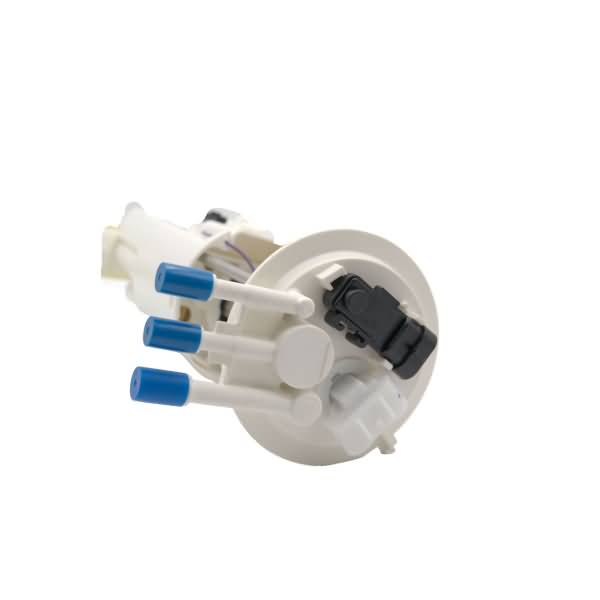

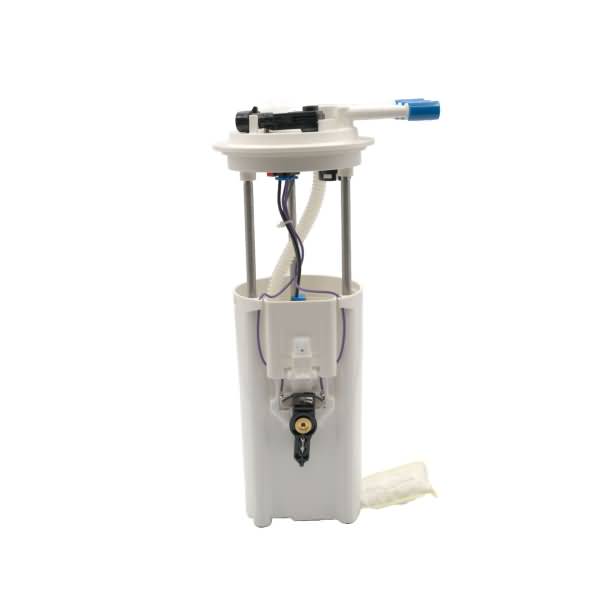

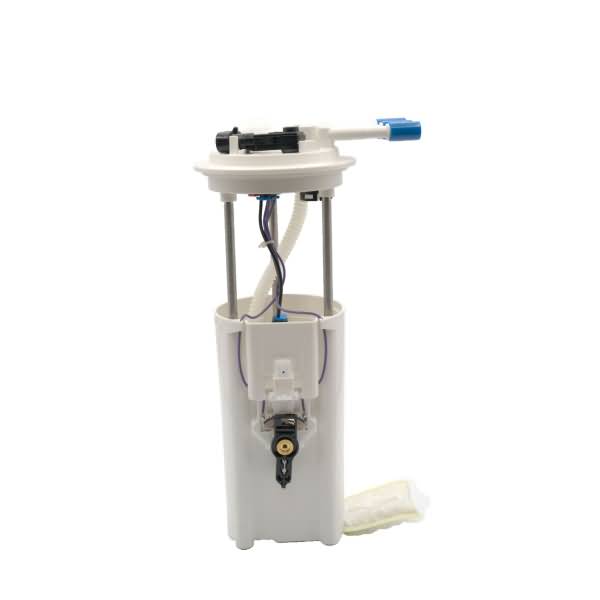

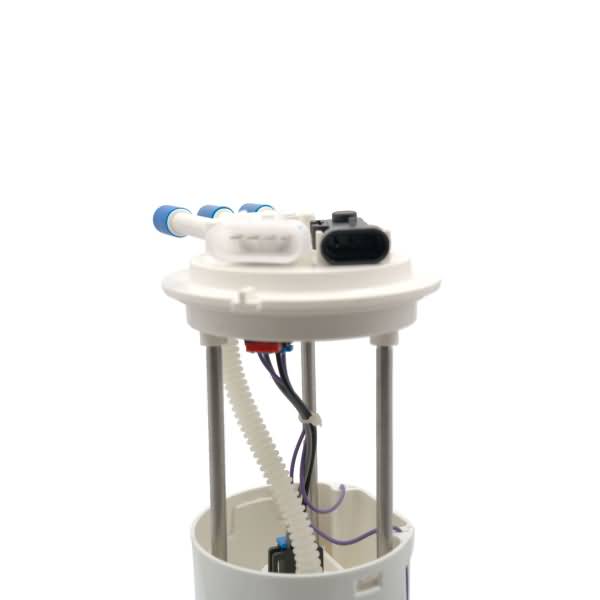

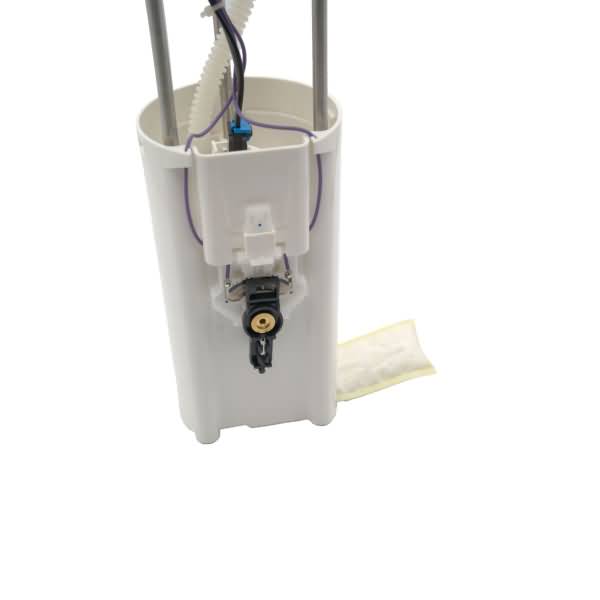

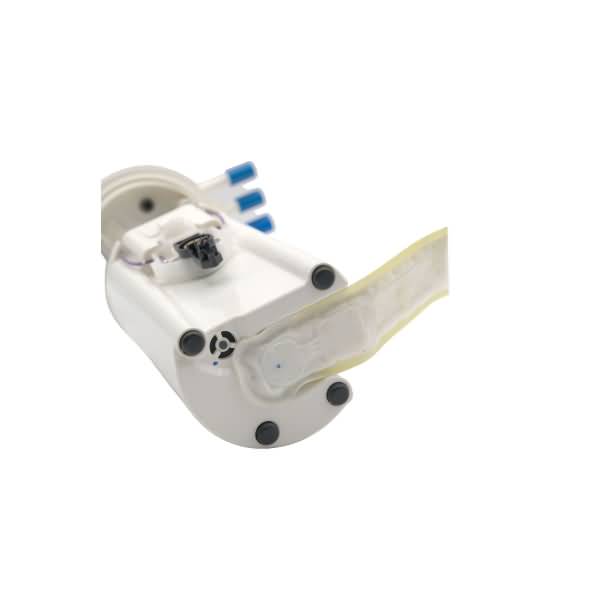

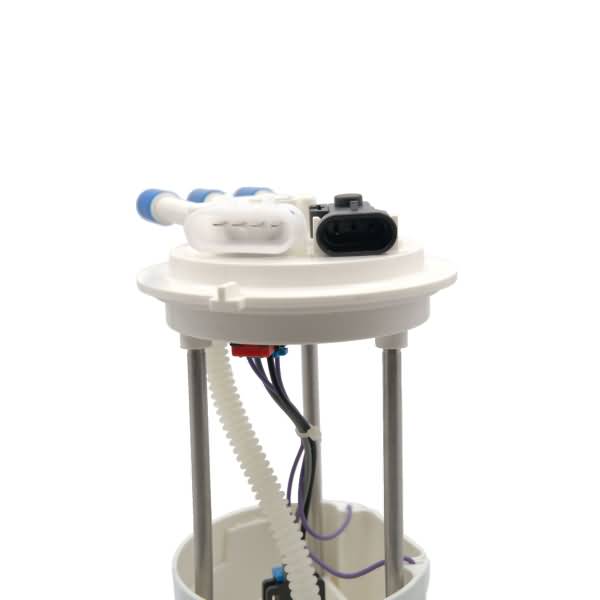

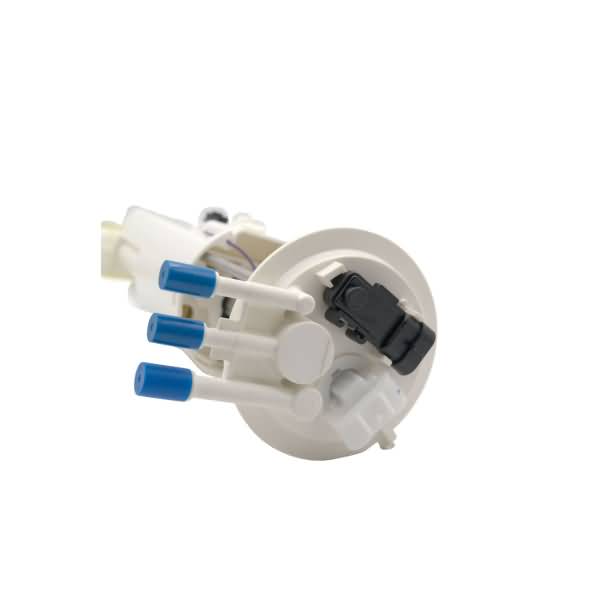

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 33 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 5/16 |
Inlet Type | Quick Connect |
Installation Warnings | No |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 145 |
Minimum Pump Pressure (PSI) | 87 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 6.38 |
Product Length (in) | 12.48 |
Product Width (in) | 6.93 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 40 |
Resistance Ohms Full | 250 |

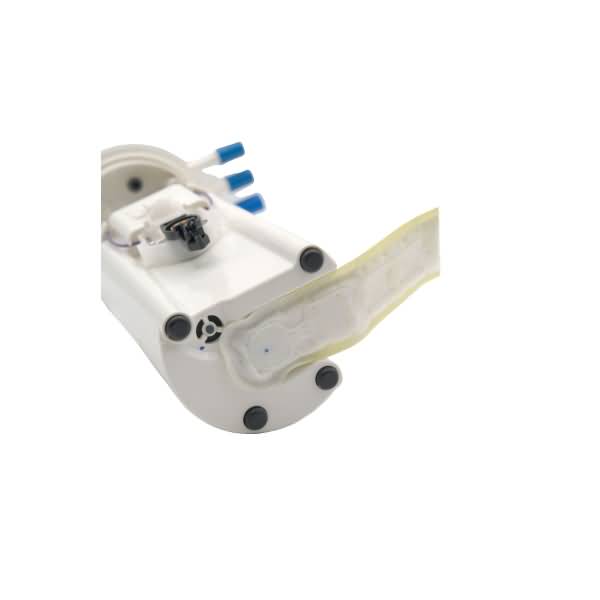

Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845125484 |
Voltage | 12V |
Weight (lbs) | 2.23 |

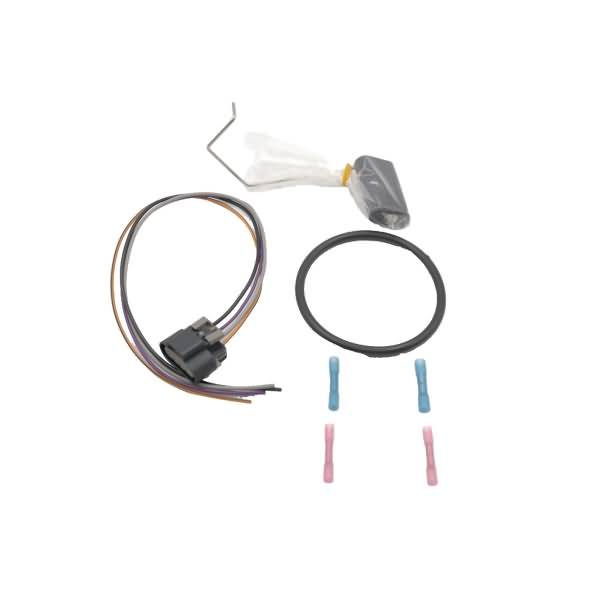

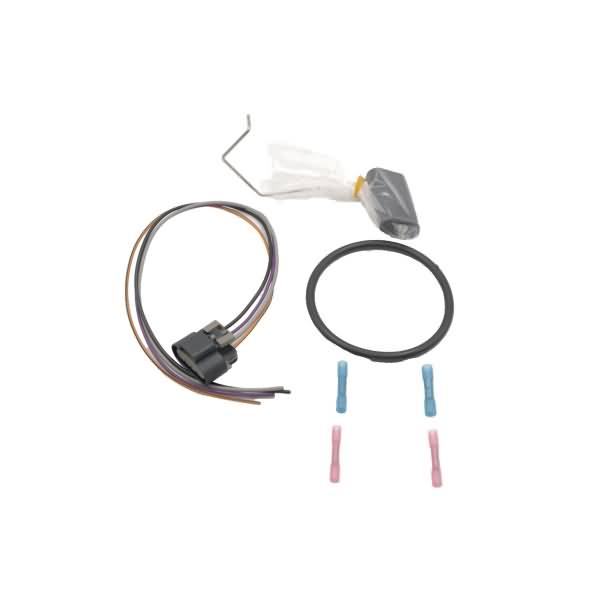

Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1998-1999 Buick Century | All Trims | 6 Cyl 3.1L |
1998-1999 Buick Regal | All Trims | 6 Cyl 3.8L |
1998-1999 Oldsmobile Intrigue | All Trims | 6 Cyl 3.8L |
1999-2000 Oldsmobile Intrigue | All Trims | 6 Cyl 3.5L |
1998-2000 Pontiac Grand Prix | All Trims | 6 Cyl 3.1L |
1998-2000 Pontiac Grand Prix | All Trims | 6 Cyl 3.8L |
