Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2503A |

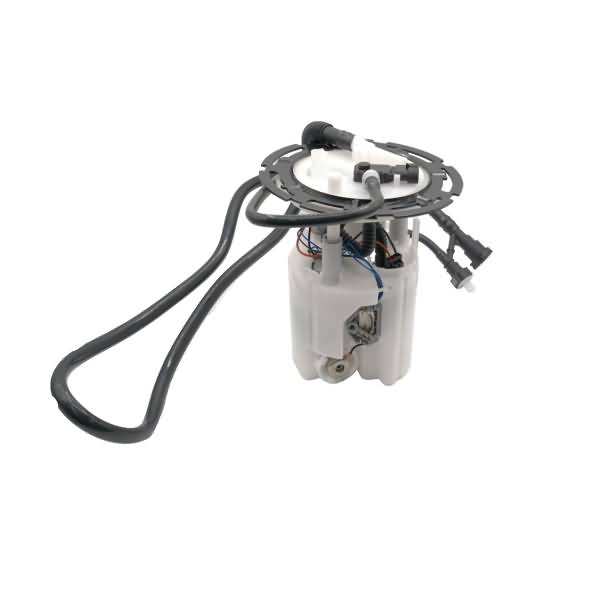

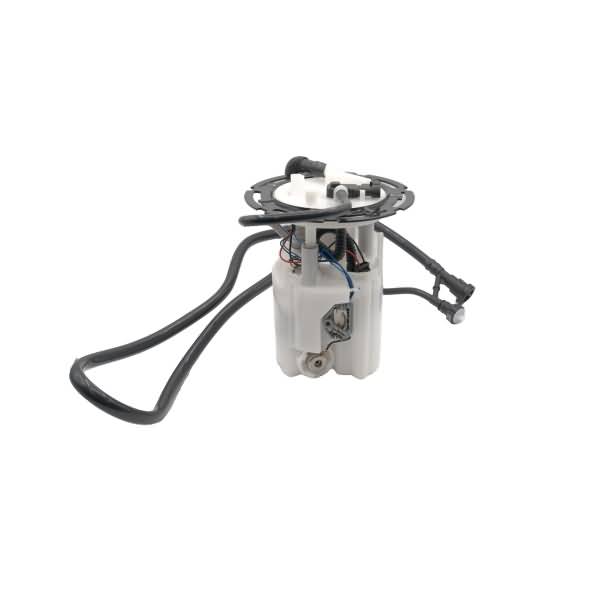

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 9.5 |
Average Flow Rating(GPH) | 53 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Lock Ring Included | Yes |
Maximum Free Flow (GPH) | 70 |
Maximum Pump Pressure (PSI) | 100 |
Minimum Free Flow (GPH) | 60 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 5/16 |
Outlet Type | Quick Connect |
Product Height (in) | 8.66 |
Product Length (in) | 24.41 |
Product Width (in) | 9.45 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 40 |
Resistance Ohms Full | 250 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845123039 |
Voltage | 12V |
Weight (lbs) | 4.07 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Chevrolet Malibu | All Trims | 4 Cyl 2.2L |
2004-2006 Chevrolet Malibu | LS | 6 Cyl 3.5L |
2004-2006 Chevrolet Malibu | LT | 6 Cyl 3.5L |
2004-2006 Chevrolet Malibu | Maxx LS | 6 Cyl 3.5L |
2004-2006 Chevrolet Malibu | Maxx LT | 6 Cyl 3.5L |
2006 Chevrolet Malibu | Base | 6 Cyl 3.5L |
2006 Chevrolet Malibu | LTZ | 6 Cyl 3.5L |
2006 Chevrolet Malibu | Maxx LTZ | 6 Cyl 3.5L |
2006 Chevrolet Malibu | SS | 6 Cyl 3.9L |
