Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1591A |

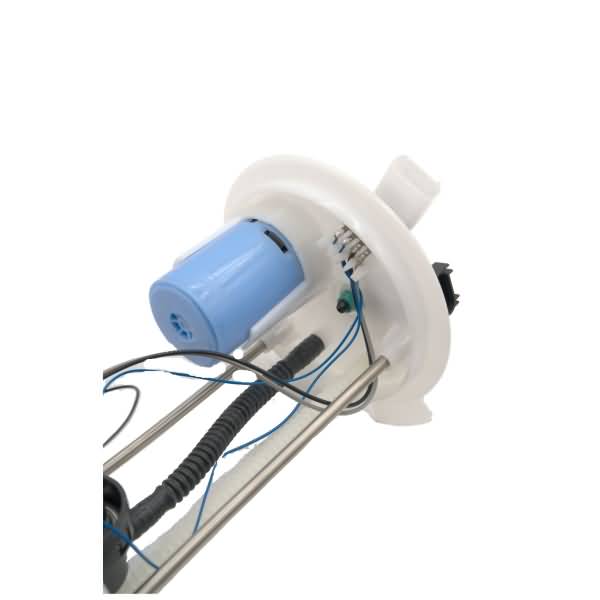

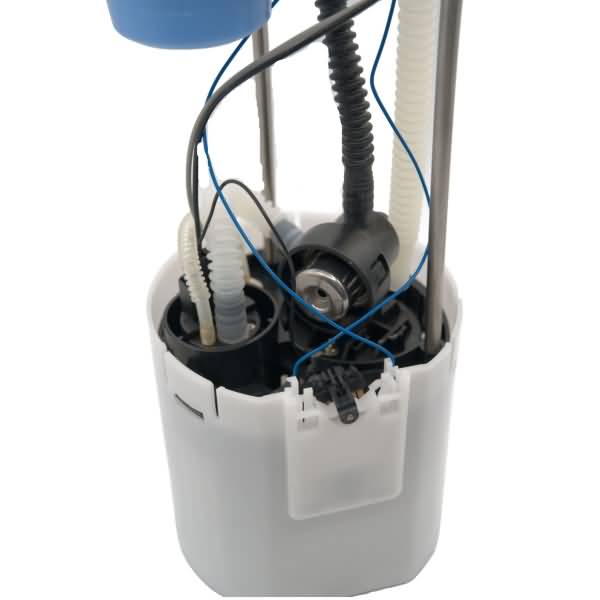

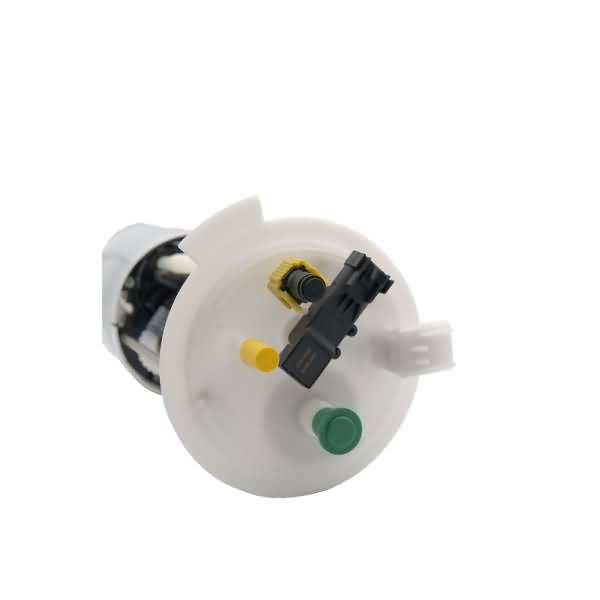

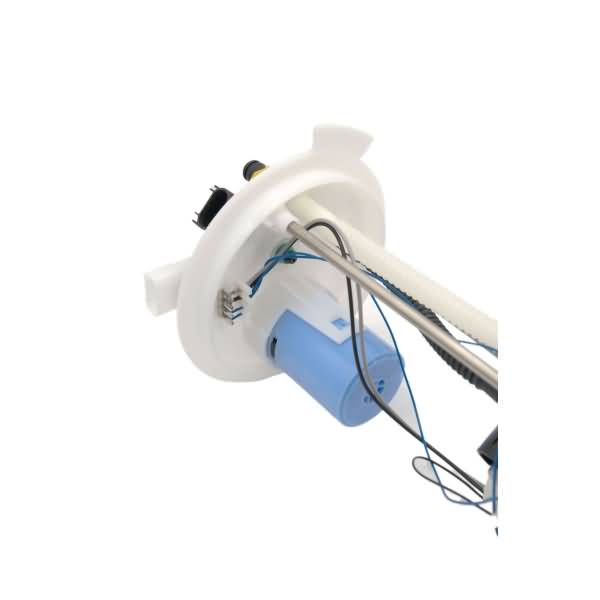

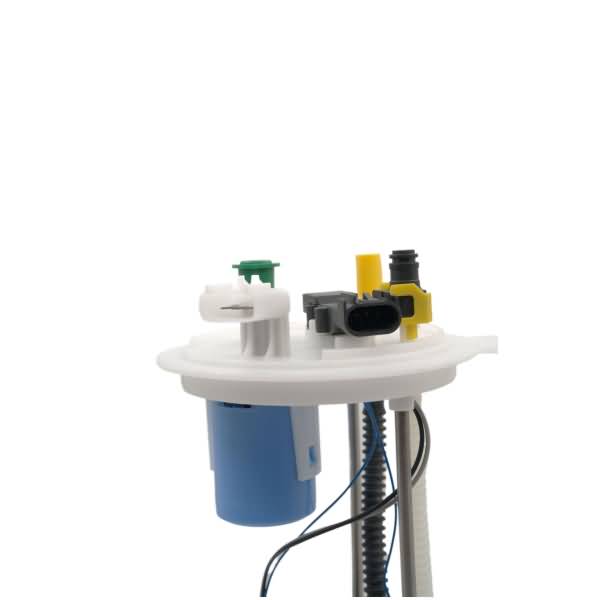

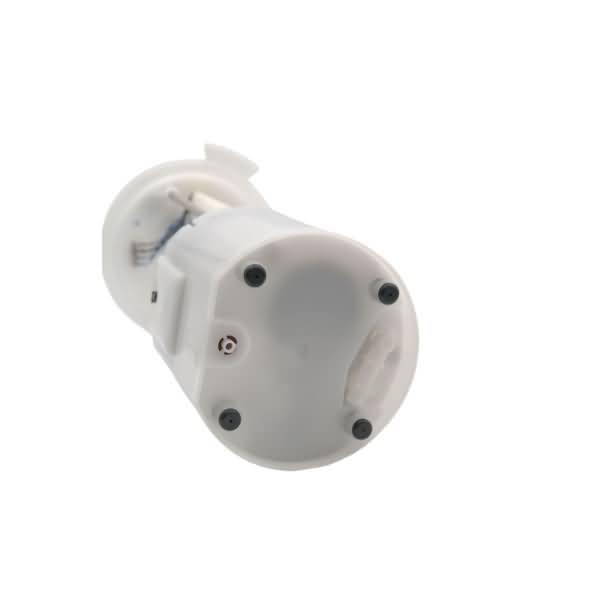

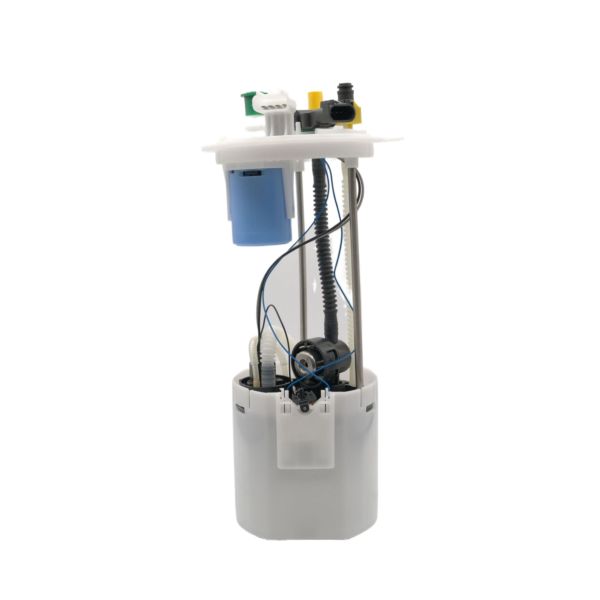

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 13 |
Average Flow Rating(GPH) | 54.2 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 18 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 100 |
Maximum Pump Pressure (PSI) | 60 |
Minimum Free Flow (GPH) | 90 |
Minimum Pump Pressure (PSI) | 50 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Package Contents | Pump & Kit |
Product Height (in) | 7.52 |
Product Length (in) | 14.09 |
Product Width (in) | 8.43 |
Regulator Included | Yes |
Resistance Ohms Empty | 180 |
Resistance Ohms Full | 10 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845115911 |
Voltage | 12V |
Weight (lbs) | 3.16 |
Weight (lbs.) | 3.75 |
Width (in.) | 7 |
Year Make Model | Trim | Engine |
---|---|---|
2011-2014 Ford E-150 | All Trims | 8 Cyl 4.6L |
2011-2014 Ford E-150 | All Trims | 8 Cyl 5.4L |
2011-2014 Ford E-250 | All Trims | 8 Cyl 4.6L |
2011-2014 Ford E-250 | All Trims | 8 Cyl 5.4L |
2011-2016 Ford E-350 Super Duty | All Trims | 8 Cyl 5.4L |
2011-2019 Ford E-350 Super Duty | All Trims | 10 Cyl 6.8L |
