Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1509A |

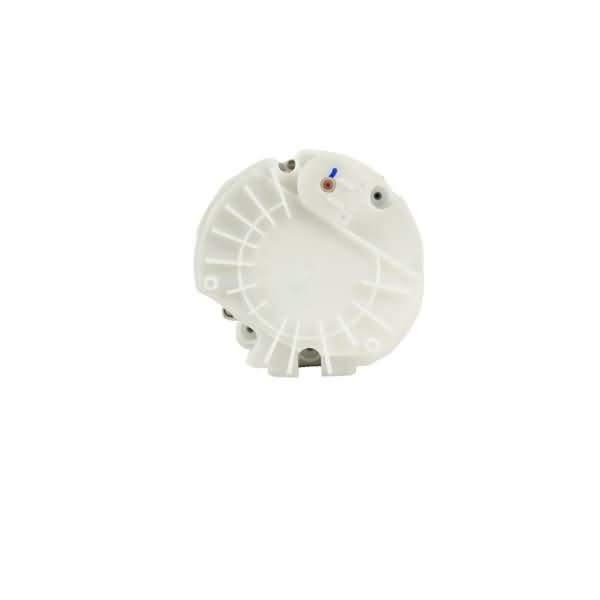

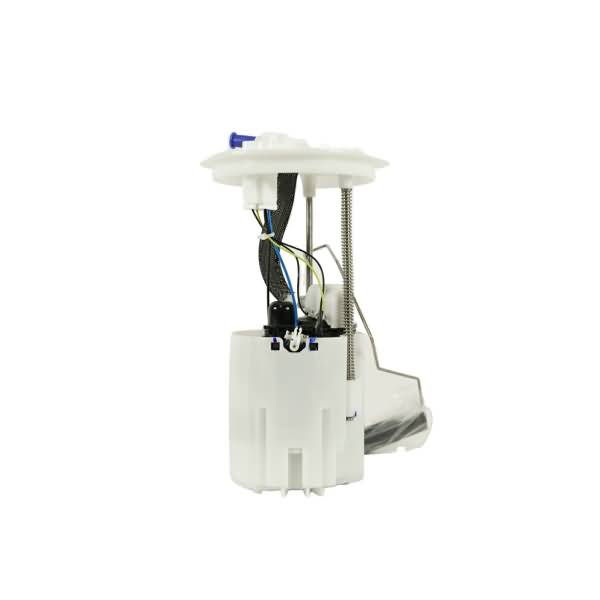

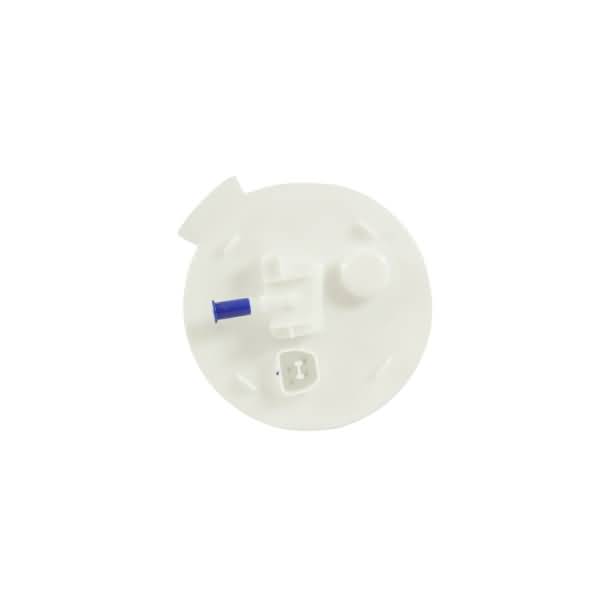

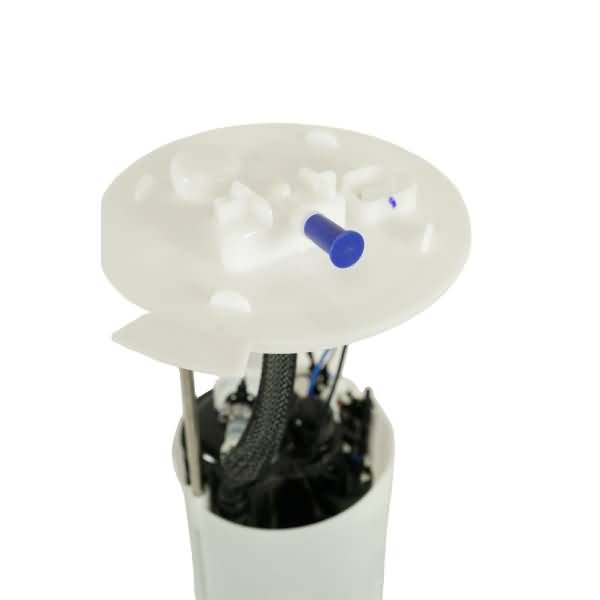

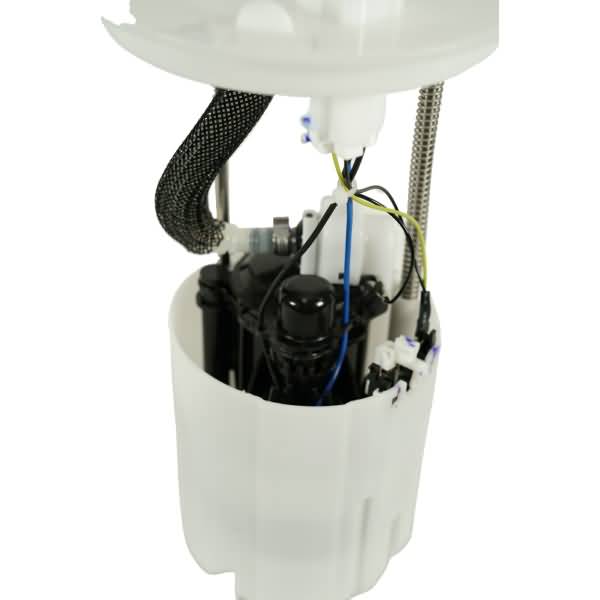

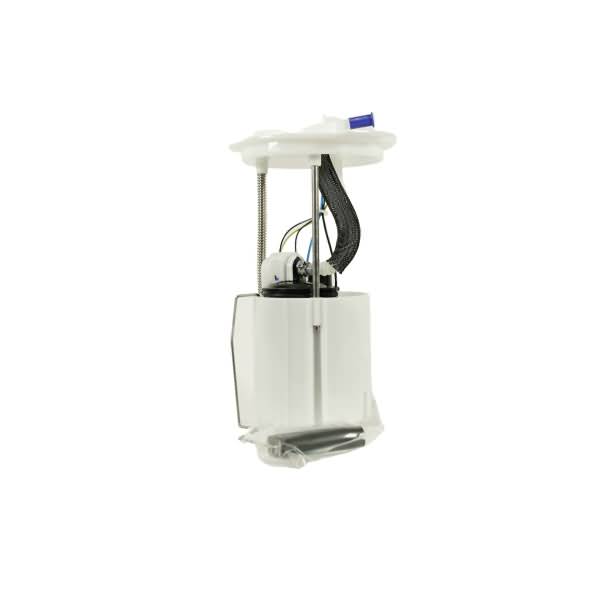

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 11.5 |
Average Flow Rating(GPH) | 48.9 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Trapezoid |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

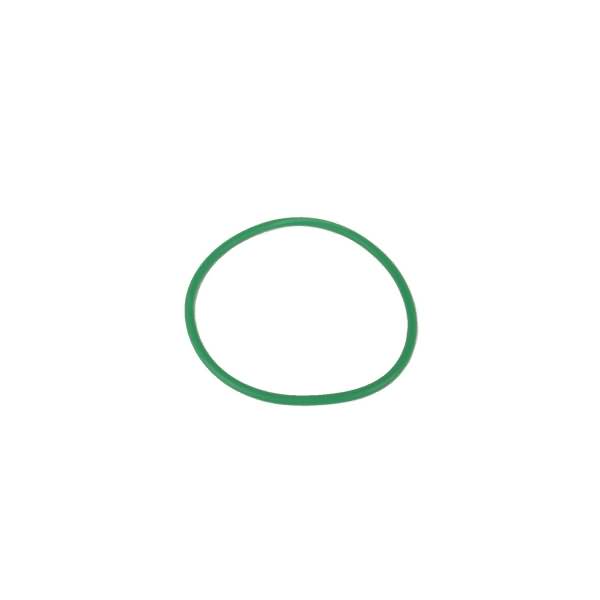

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 12 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 90 |
Maximum Pump Pressure (PSI) | 200 |
Minimum Free Flow (GPH) | 80 |
Minimum Pump Pressure (PSI) | 190 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 5/16 |
Outlet Type | Quick Connect |
Package Contents | Pump & Kit |
Product Height (in) | 6.3 |
Product Length (in) | 10.83 |
Product Width (in) | 10.24 |
Regulator Included | Yes |
Resistance Ohms Empty | 465 |
Resistance Ohms Full | 50 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845115096 |
Voltage | 12V |
Weight (lbs) | 2.44 |
Weight (lbs.) | 2.715 |
Width (in.) | 8.5 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2013 Ford Escape | All Trims | 4 Cyl 1.6L |
2013-2014 Ford Escape | All Trims | 4 Cyl 2.0L |
2014-2016 Ford Escape | SE | 4 Cyl 1.6L |
2014-2016 Ford Escape | Titanium | 4 Cyl 1.6L |
2015-2017 Ford Escape | SE | 4 Cyl 2.0L |
2015-2019 Ford Escape | Titanium | 4 Cyl 2.0L |
2017 Ford Escape | Titanium | 4 Cyl 1.5L |
2017-2019 Ford Escape | SE | 4 Cyl 1.5L |
2018-2019 Ford Escape | SEL | 4 Cyl 1.5L |
2015 Lincoln MKC | Base | 4 Cyl 2.0L |
