Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1487A |

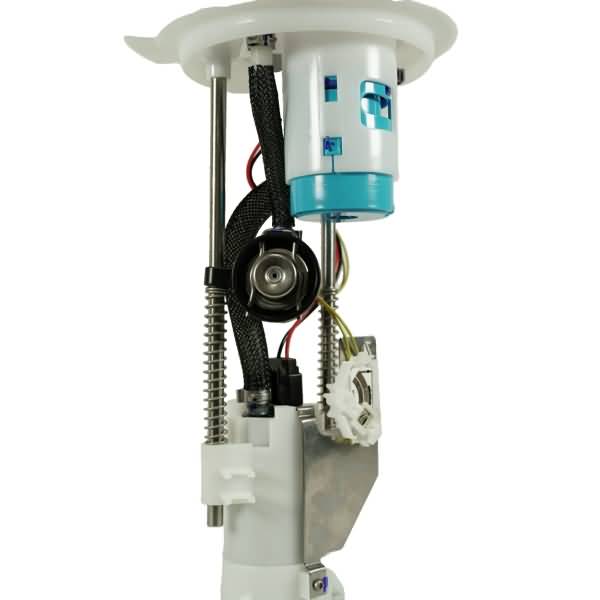

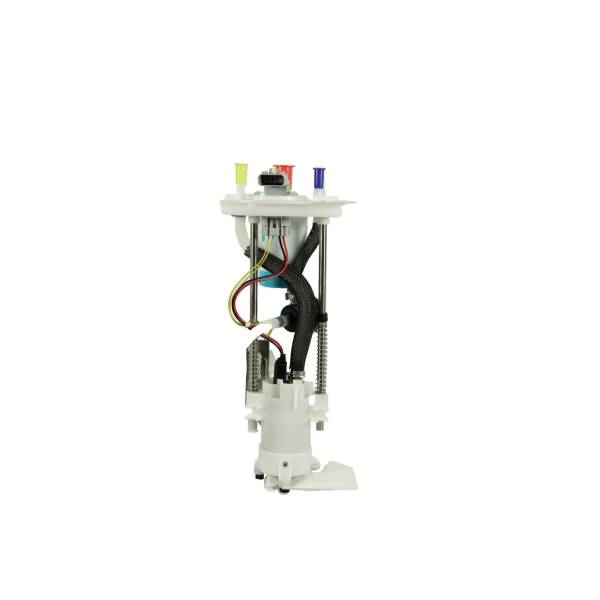

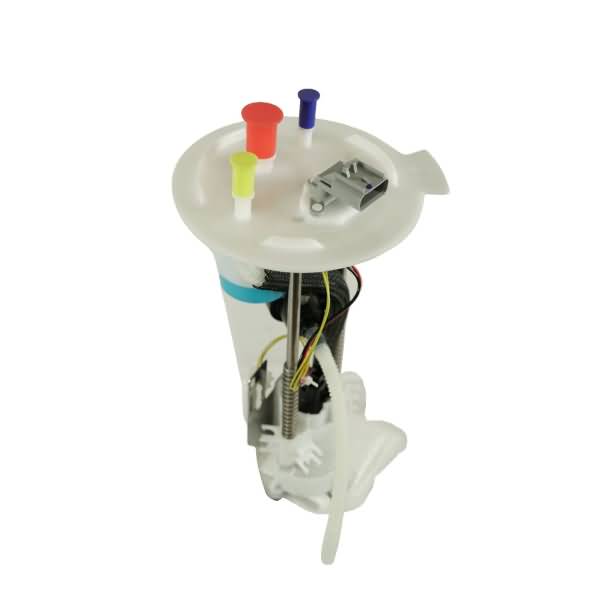

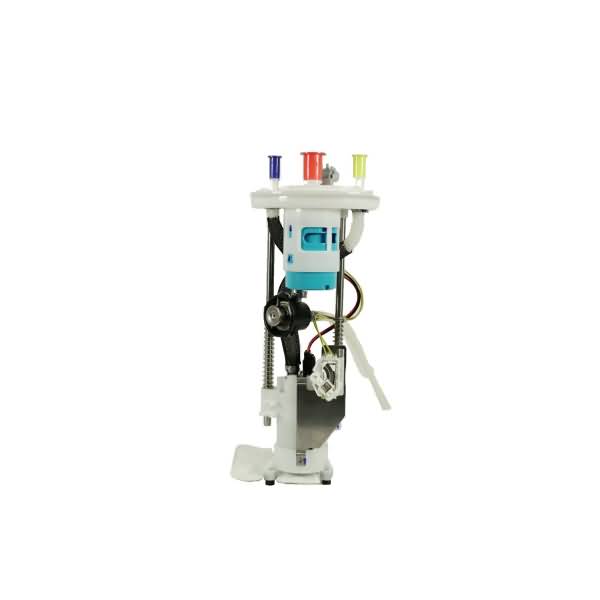

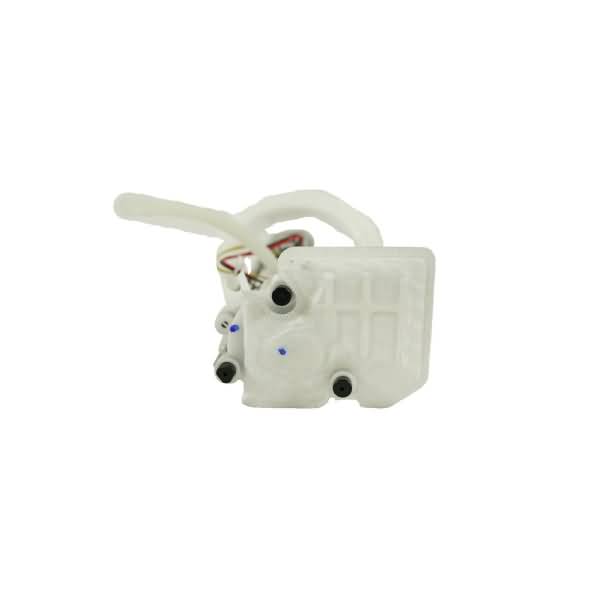

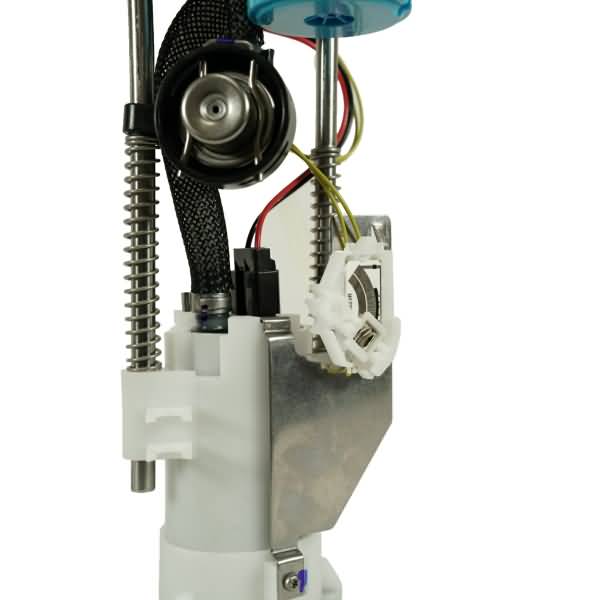

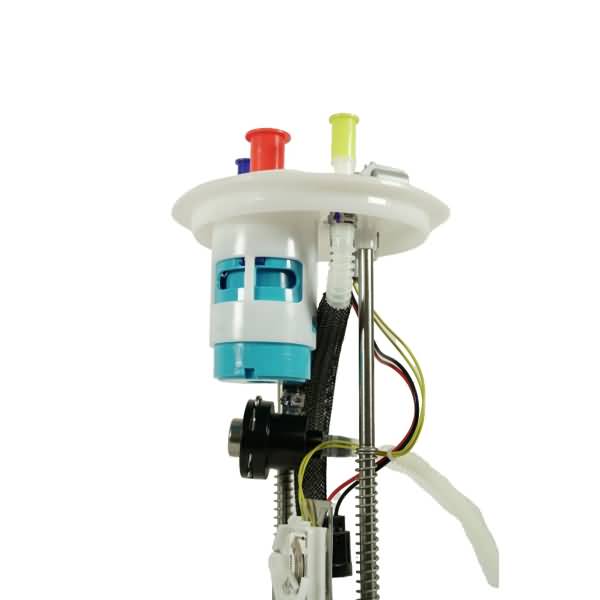

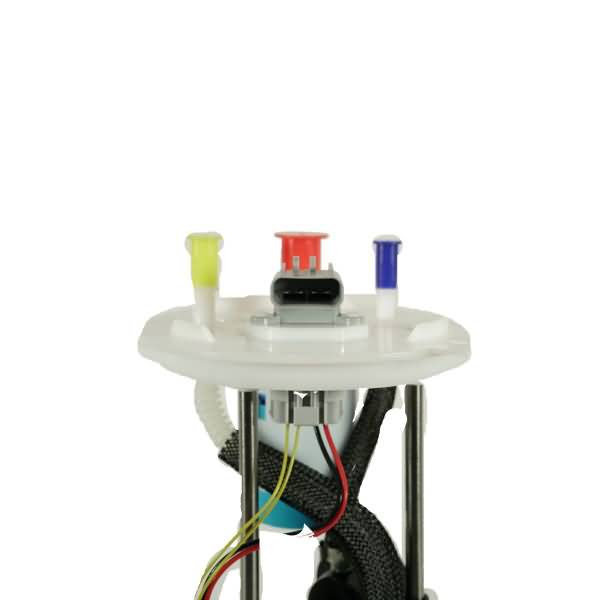

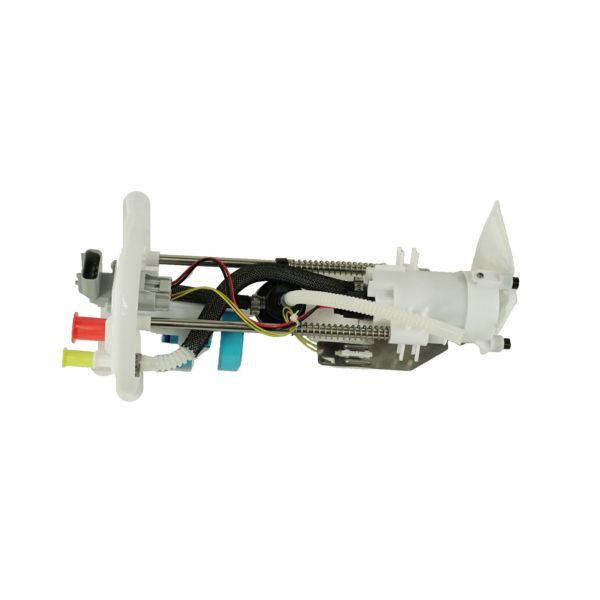

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 9 |
Average Flow Rating(GPH) | 42.3 |
Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |

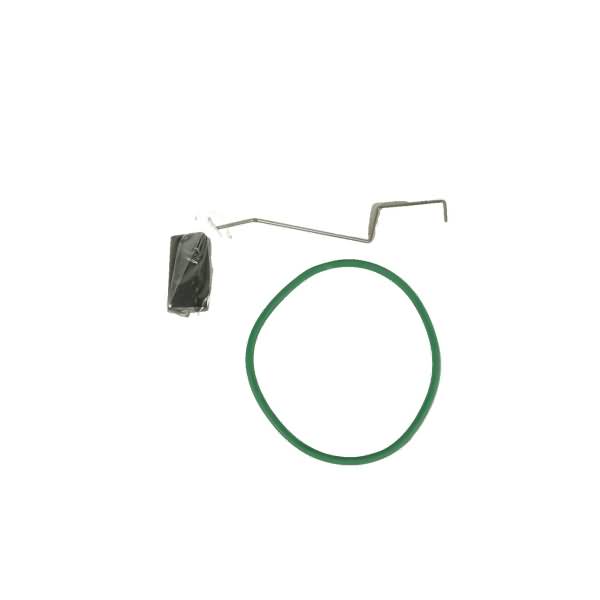

Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 56 |
Minimum Pump Pressure (PSI) | 56 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 6.3 |
Product Length (in) | 12.99 |
Product Width (in) | 11.02 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 180 |
Resistance Ohms Full | 10 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845114877 |
Voltage | 12V |
Weight (lbs) | 3.76 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2007-2008 Ford Expedition | All Trims | 8 Cyl 5.4L |
2007-2008 Lincoln Navigator | All Trims | 8 Cyl 5.4L |
