Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1133A |

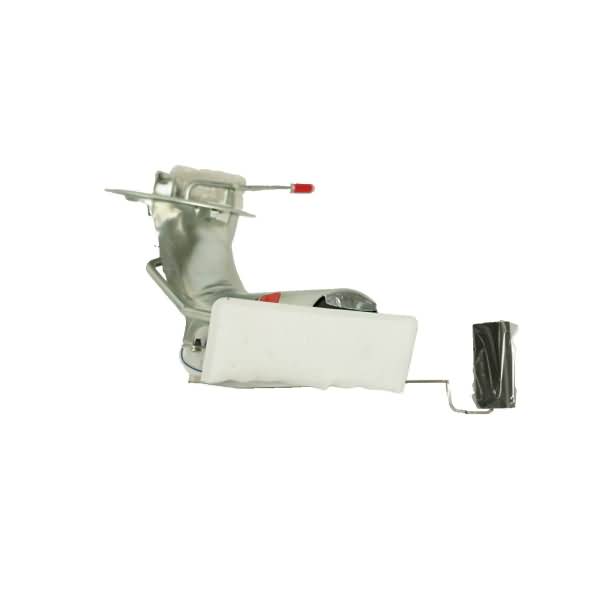

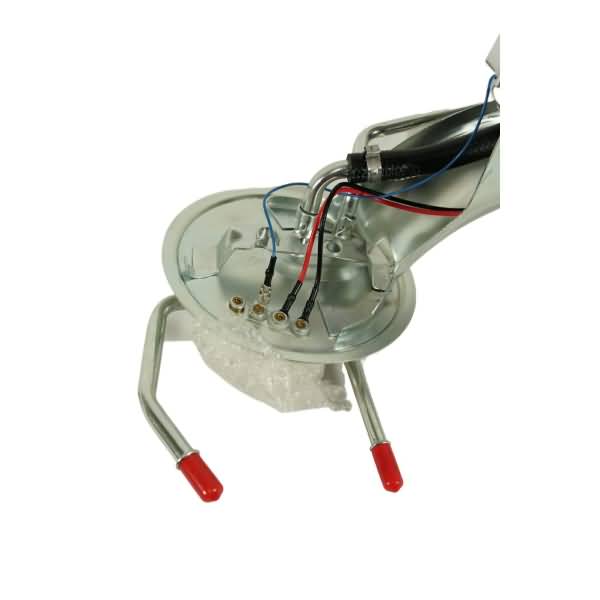

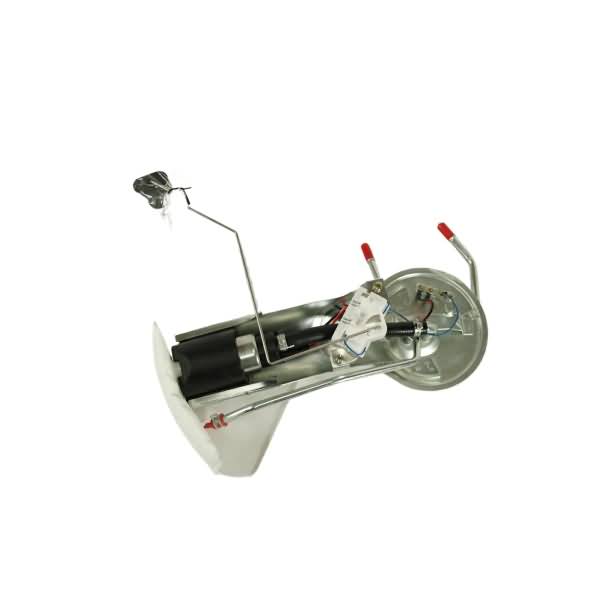

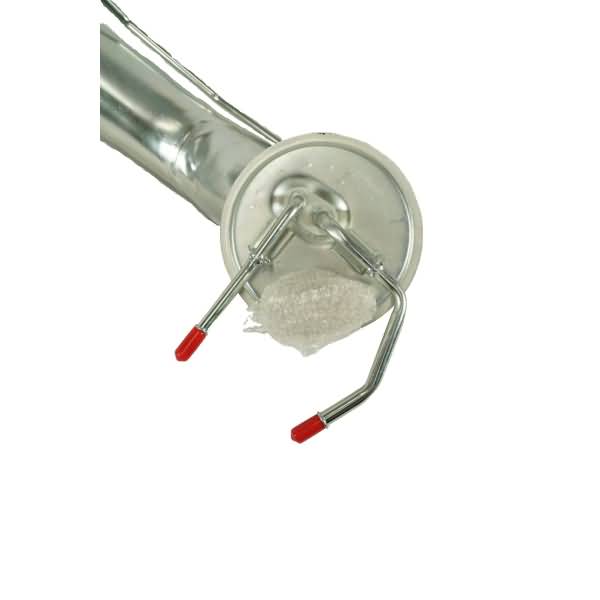

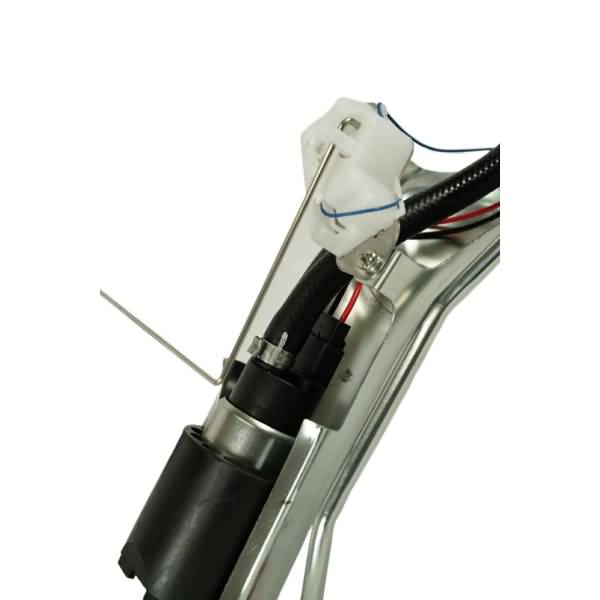

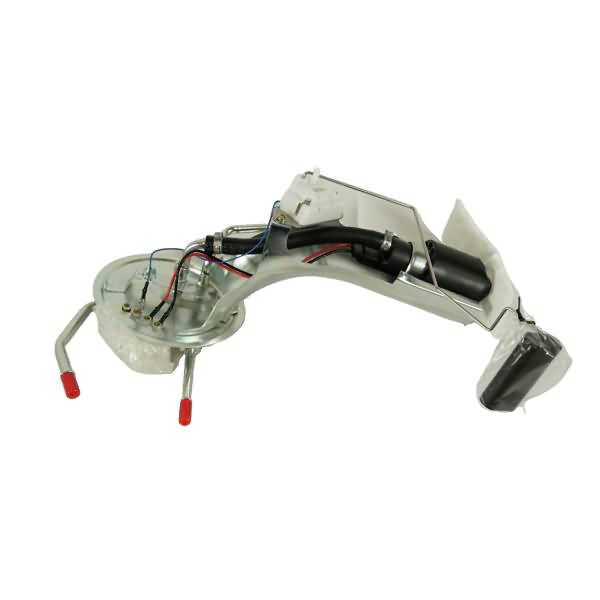

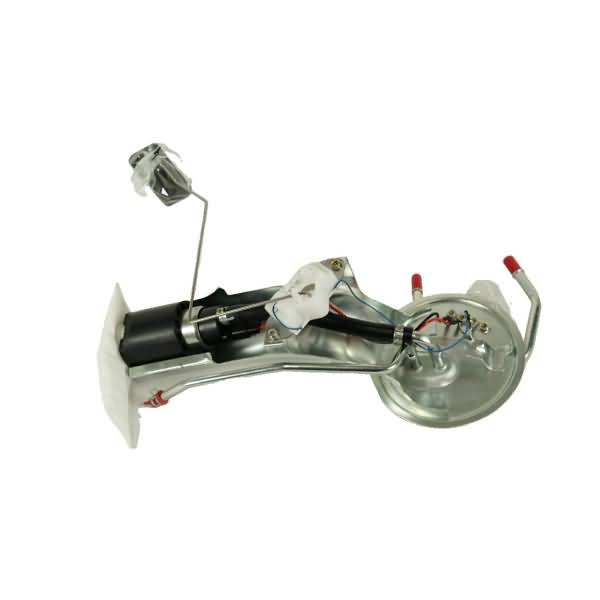

Part Description | Fuel Pump Hanger Assembly |
Average Current Draw(A) | 6 |
Average Flow Rating(GPH) | 22 |
Connector Gender | Female |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Sending Unit Included | No |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

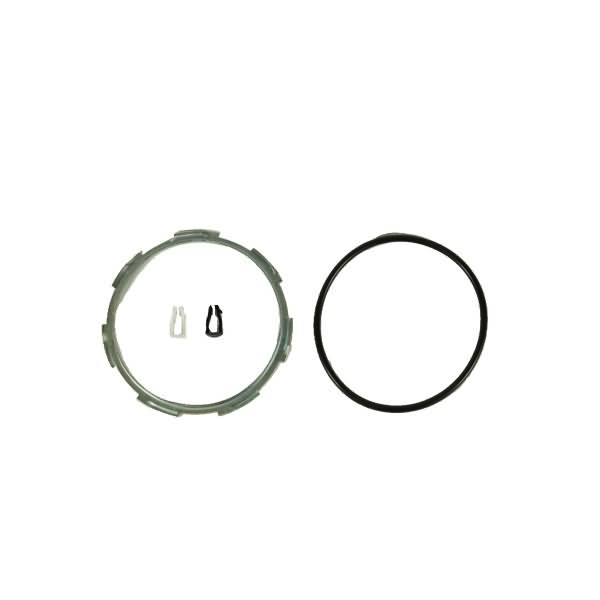

Gasket or Seal Included | Yes |
Gasket Or Seal Material | Nitrile Rubber |
Grade Type | Premium |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Internal or External | Internal |
Internal Or External Strainer | External |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 45 |
Maximum Pump Pressure (PSI) | 100 |
Minimum Free Flow (GPH) | 40 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 2 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 7.87 |
Product Length (in) | 14.96 |
Product Width (in) | 11.02 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 16 |
Resistance Ohms Full | 160 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Pin |
UPC | 00072845111333 |
Voltage | 12 |
Weight (lbs) | 3.15 |
Year Make Model | Trim | Engine |
---|---|---|
1993-1994 Ford Crown Victoria | All Trims | 8 Cyl 4.6L |
1993-1994 Lincoln Town Car | All Trims | 8 Cyl 4.6L |
1993-1994 Mercury Grand Marquis | All Trims | 8 Cyl 4.6L |
