Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1526 |

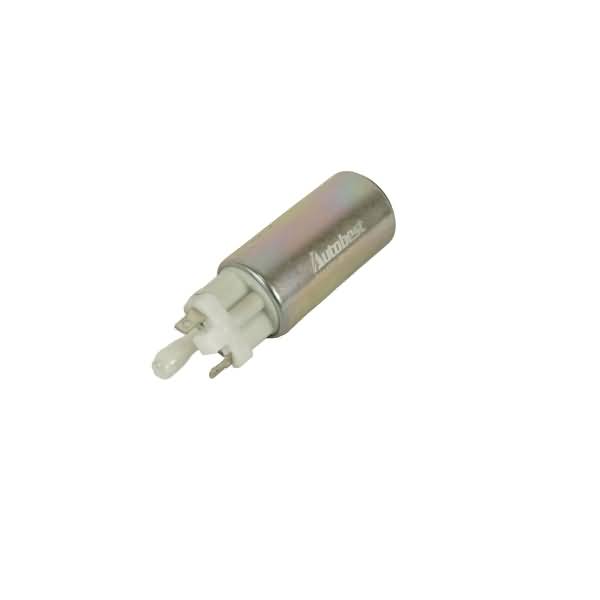

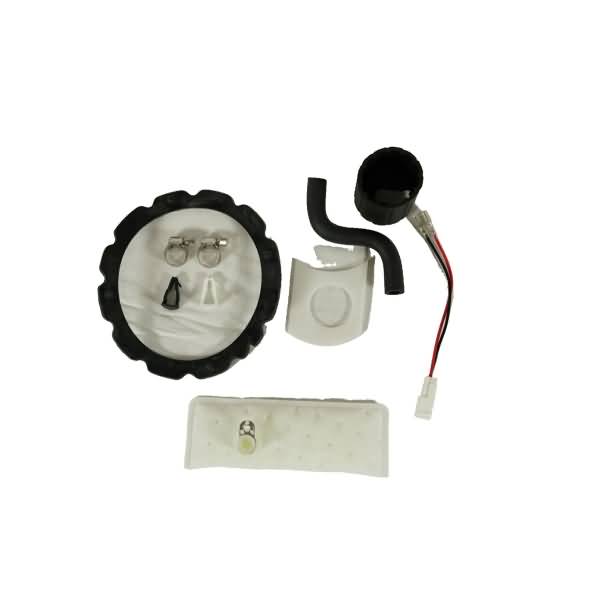

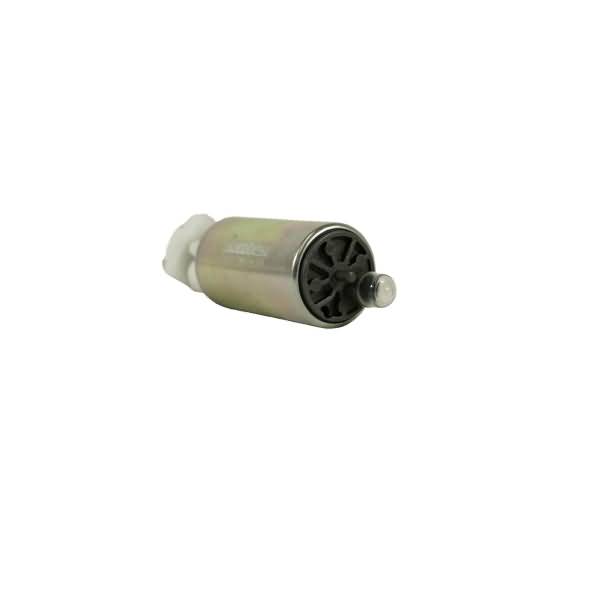

Part Description | Fuel Pump and Strainer Set |
Average Current Draw(A) | 8 |
Average Flow Rating(GPH) | 205 |
Connector Gender | Male |
Connector Quantity | 2 |
Connector Shape | PIN |
Country of Orign | China |
Gasket or Seal Included | No |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Filter |
Installation Warnings | No |
Internal Or External Strainer | External |
Maximum Pump Pressure (PSI) | 123.25 |
Minimum Pump Pressure (PSI) | 79.8 |
Outlet Quantity | 1 |
Outlet Size | 0.36 |
Outlet Type | Male tube / 1 barb |
Product Height (in) | 1.44 |
Product Length (in) | 4.7 |
Product Width (in) | 1.44 |
Pump Type | Turbine |
Regulator Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Inserts |
UPC | 00072845115263 |
Voltage | 13.5V |
Weight (lbs) | 0.75 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2008 Ford E-150 | All Trims | 8 Cyl 4.6L |
2004-2008 Ford E-150 | All Trims | 8 Cyl 5.4L |
2004-2005 Ford E-150 Club Wagon | All Trims | 8 Cyl 4.6L |
2004-2005 Ford E-150 Club Wagon | All Trims | 8 Cyl 5.4L |
2004-2008 Ford E-250 | All Trims | 8 Cyl 4.6L |
2004-2008 Ford E-250 | All Trims | 8 Cyl 5.4L |
2004-2005 Ford E-350 Club Wagon | All Trims | 8 Cyl 5.4L |
2005 Ford E-350 Club Wagon | All Trims | 10 Cyl 6.8L |
2004-2008 Ford E-350 Super Duty | All Trims | 10 Cyl 6.8L |
2004-2008 Ford E-350 Super Duty | All Trims | 8 Cyl 5.4L |
