Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1347A |

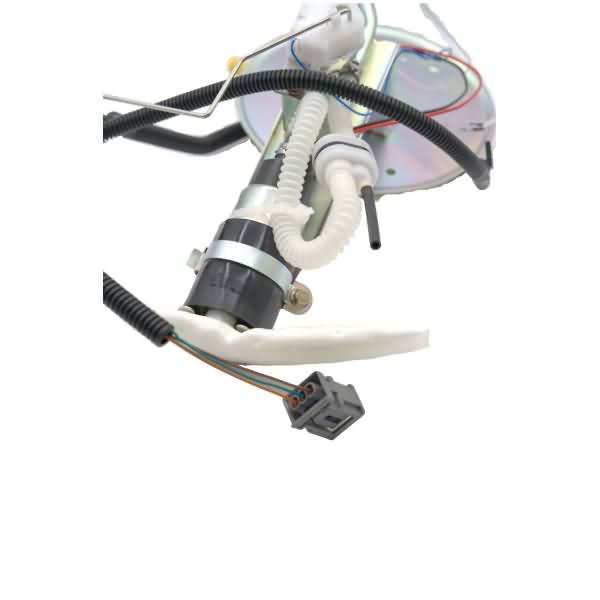

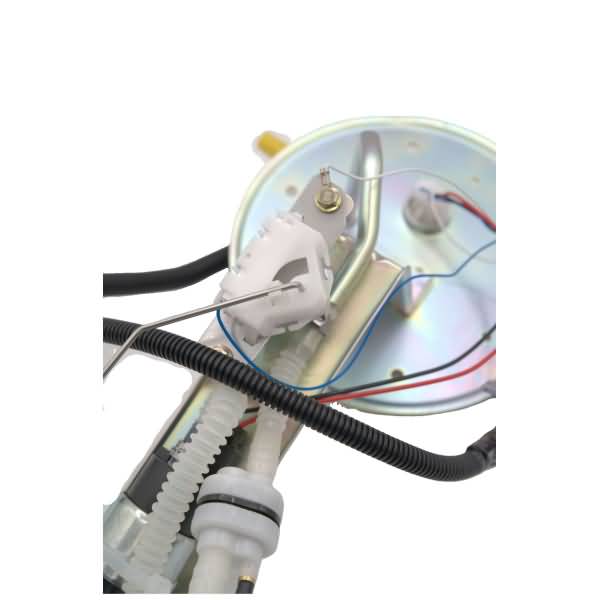

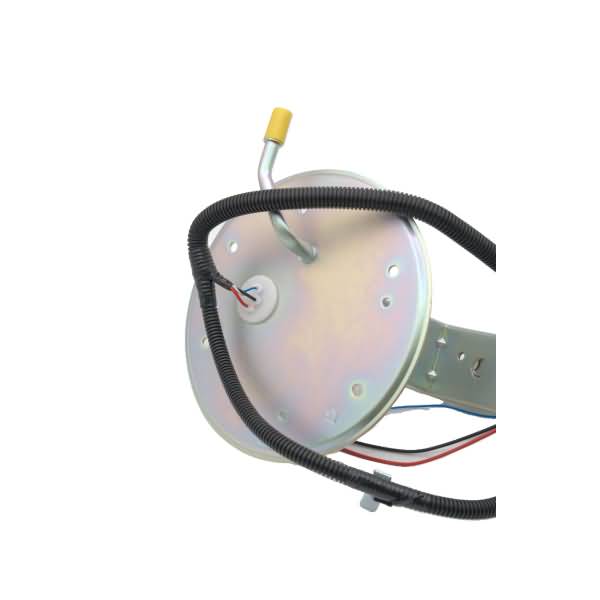

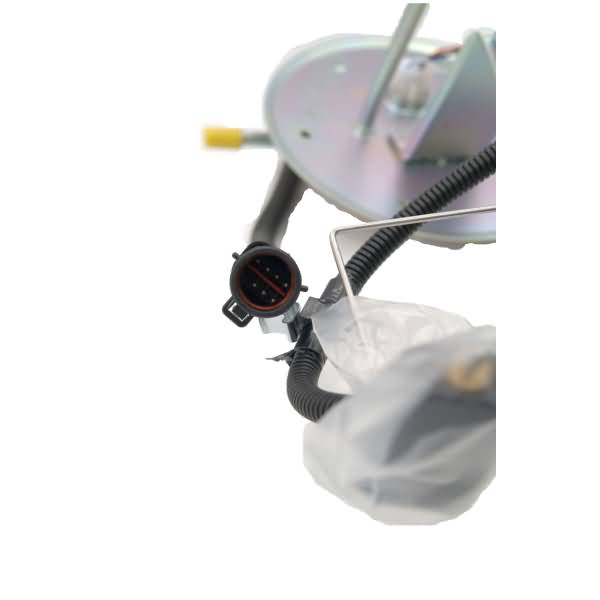

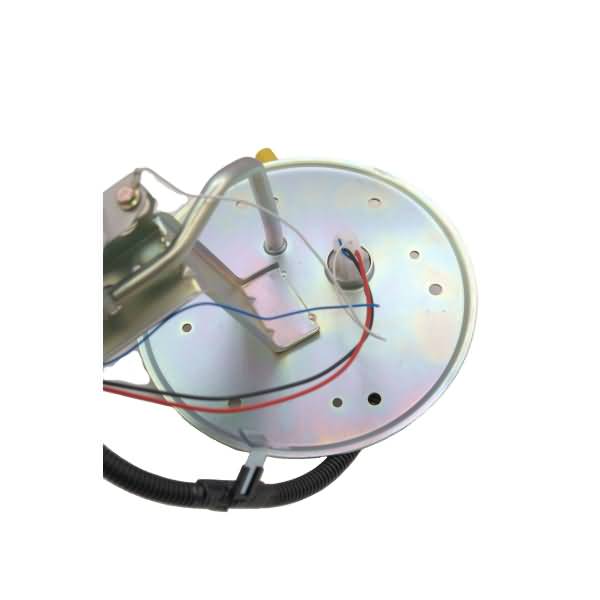

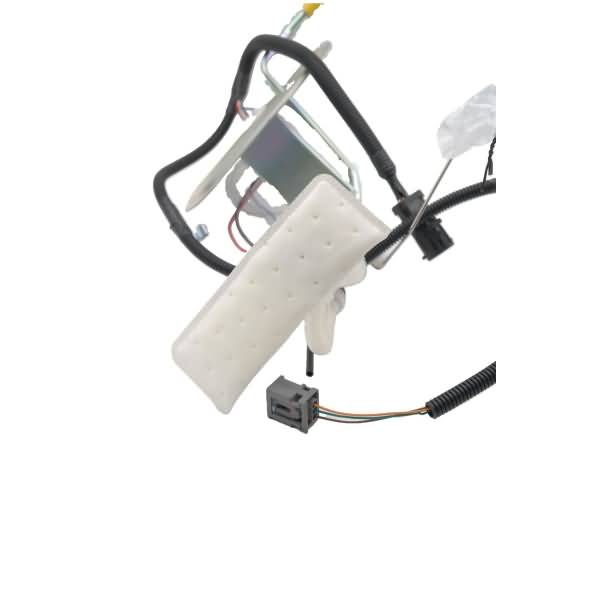

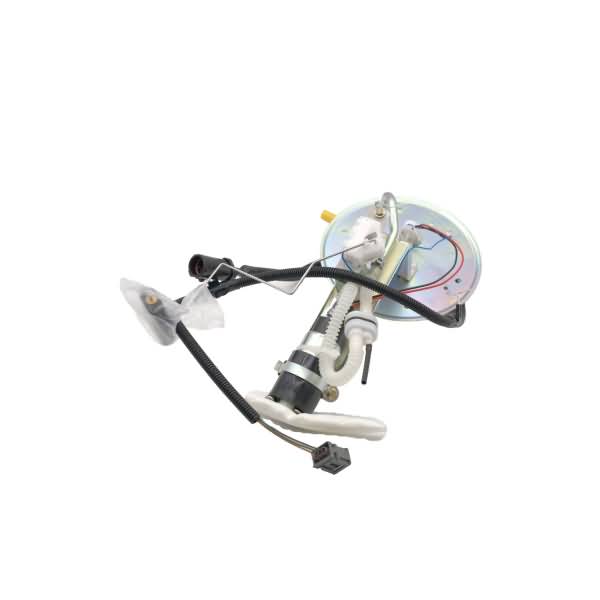

Part Description | Fuel Pump and Sender Assembly |
Average Current Draw(A) | 9 |
Average Flow Rating(GPH) | 38.3 |
Connector Gender | Female |
Connector Quantity | 2 |
Connector Shape | Rectangle+Round |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |

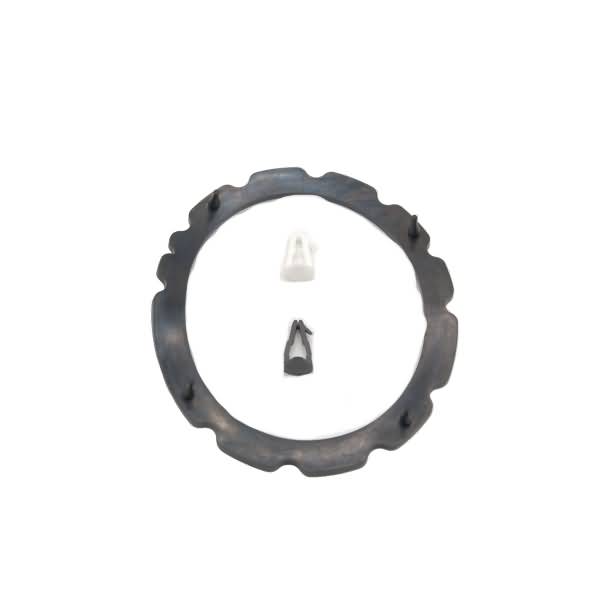

Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 108.8 |
Minimum Pump Pressure (PSI) | 79.8 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 8.15 |
Product Length (in) | 13.78 |
Product Width (in) | 10.94 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 15 |
Resistance Ohms Full | 160 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 9 |
Terminal Type | PIN |
UPC | 00072845113474 |
Voltage | 12V |
Weight (lbs) | 3.48 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2003-2004 Ford Crown Victoria | All Trims | 8 Cyl 4.6L |
2003-2004 Lincoln Town Car | All Trims | 8 Cyl 4.6L |
2003-2004 Mercury Grand Marquis | All Trims | 8 Cyl 4.6L |
2003-2004 Mercury Marauder | All Trims | 8 Cyl 4.6L |
