Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1114A |

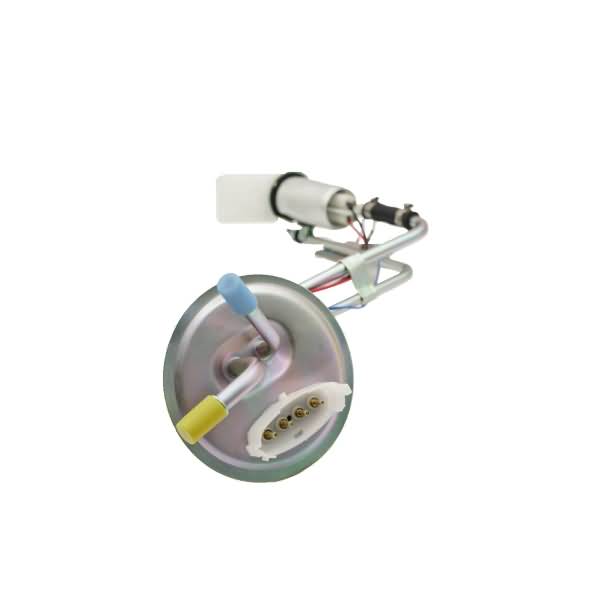

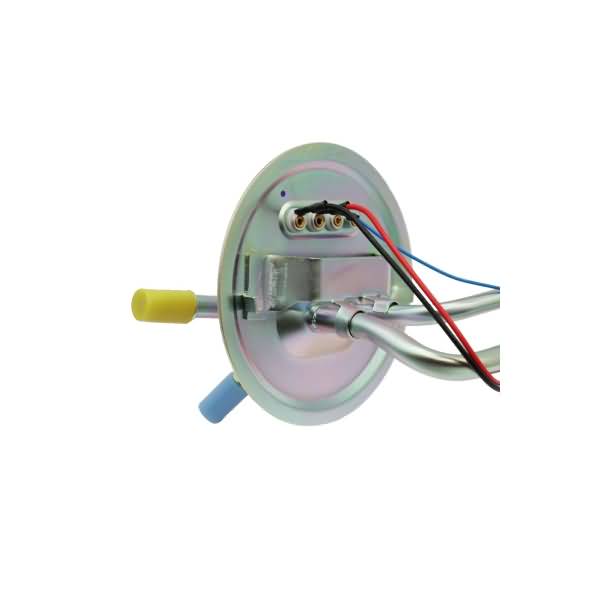

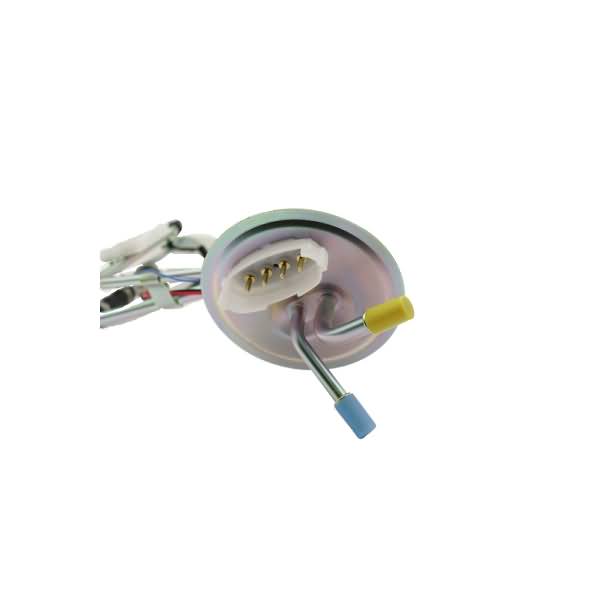

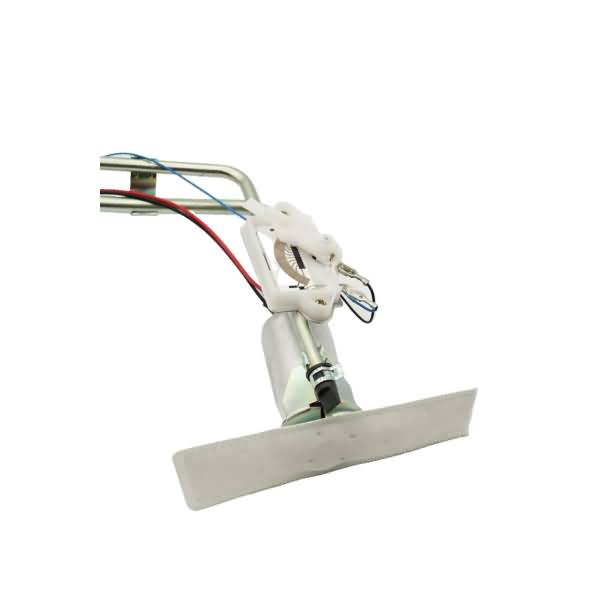

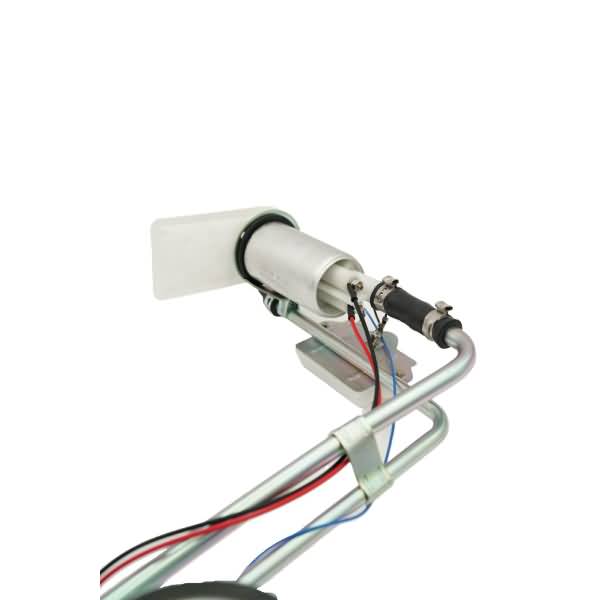

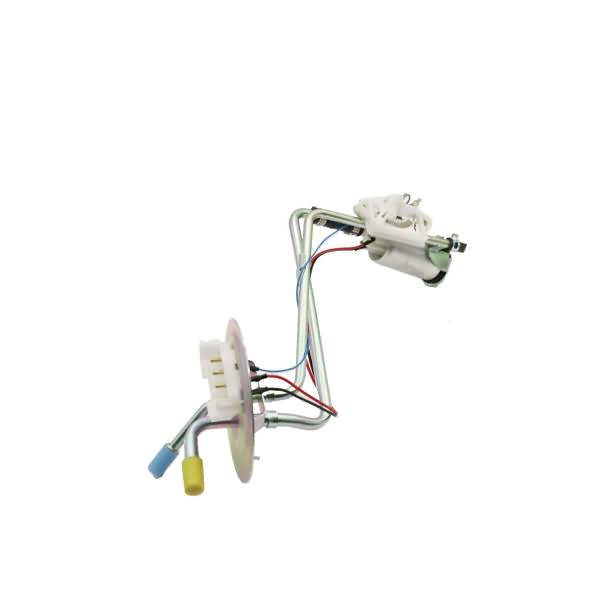

Part Description | Fuel Pump And Sender Assembly |
Average Current Draw(A) | 2.5 |
Average Flow Rating(GPH) | 46 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Elliptic |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

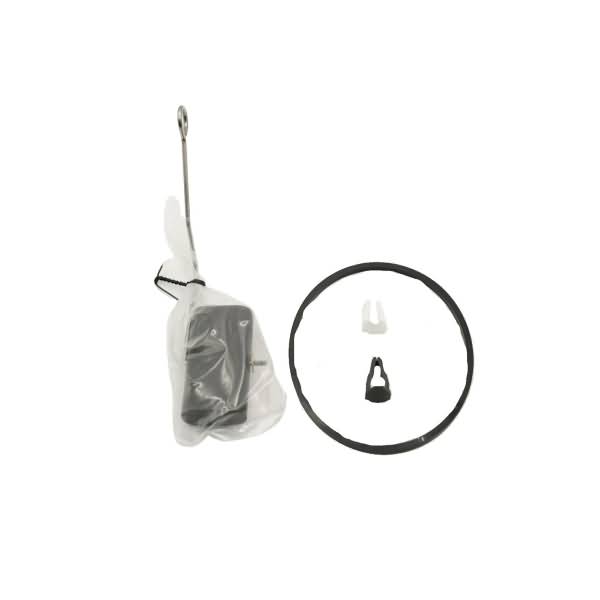

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.748 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | External |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 45 |
Maximum Pump Pressure (PSI) | 10 |
Minimum Free Flow (GPH) | 35 |
Minimum Pump Pressure (PSI) | 2 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 4.72 |
Product Length (in) | 12.2 |
Product Width (in) | 11.22 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 13 |
Resistance Ohms Full | 162 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845111142 |
Voltage | 12V |
Weight (lbs) | 1.69 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1987-1989 Ford F-150 | All Trims | 6 Cyl 4.9L |
1987-1989 Ford F-150 | All Trims | 8 Cyl 5.0L |
1988-1989 Ford F-150 | All Trims | 8 Cyl 5.8L |
1987-1989 Ford F-250 | All Trims | 6 Cyl 4.9L |
1987-1989 Ford F-250 | All Trims | 8 Cyl 5.0L |
1987-1989 Ford F-250 | All Trims | 8 Cyl 7.5L |
1988-1989 Ford F-250 | All Trims | 8 Cyl 5.8L |
1987-1989 Ford F-350 | All Trims | 6 Cyl 4.9L |
1988-1989 Ford F-350 | All Trims | 8 Cyl 5.8L |
