Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1089A |

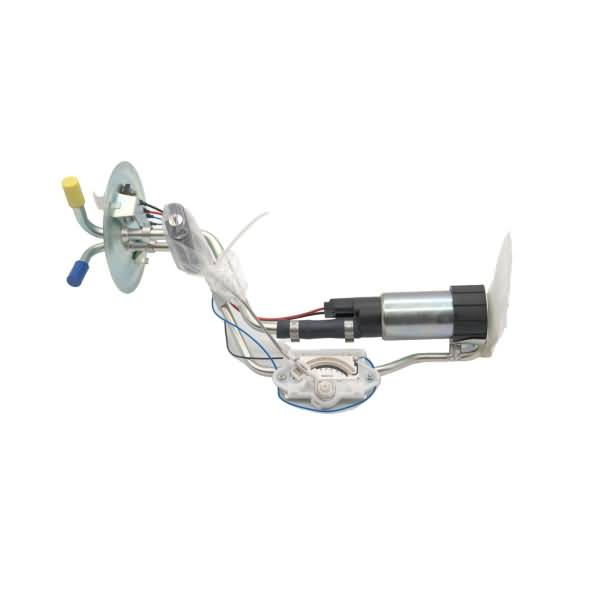

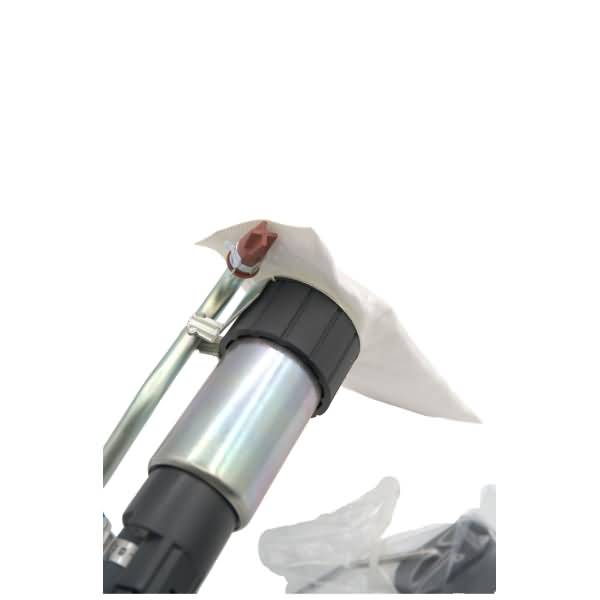

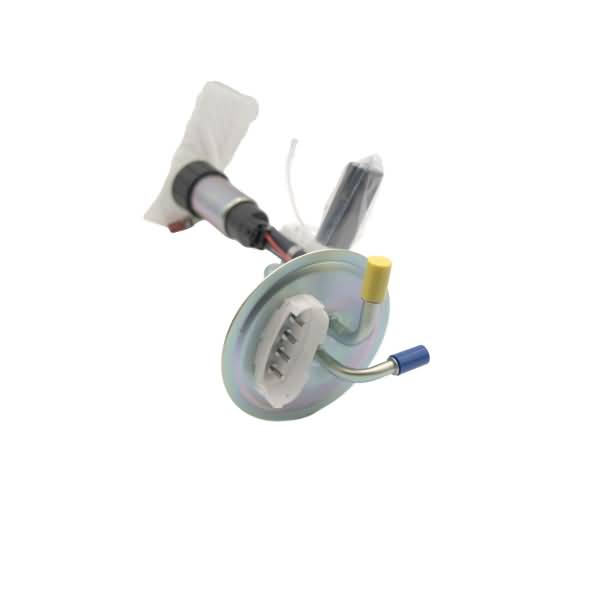

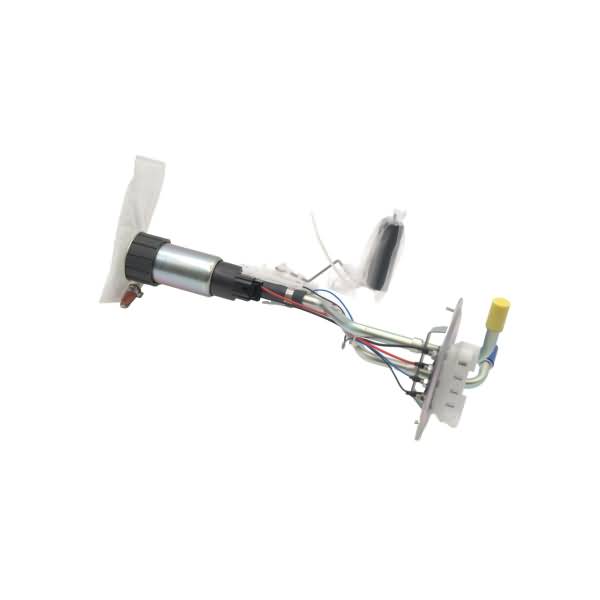

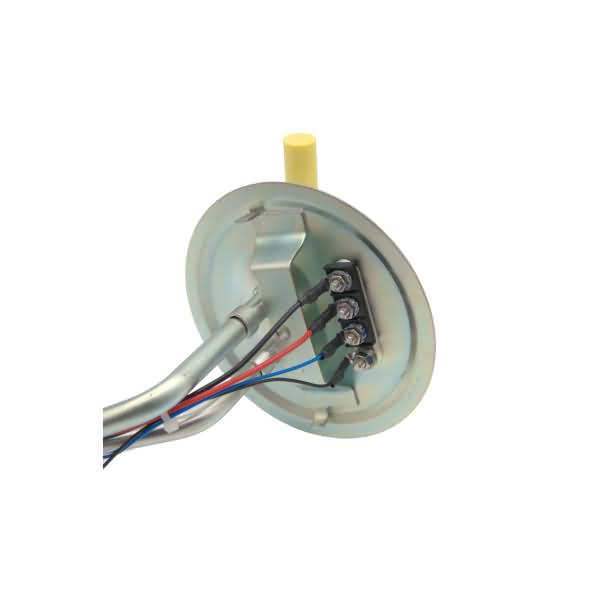

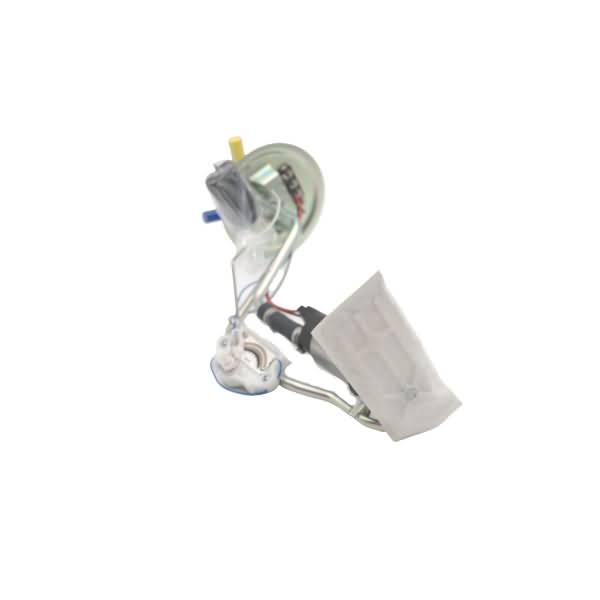

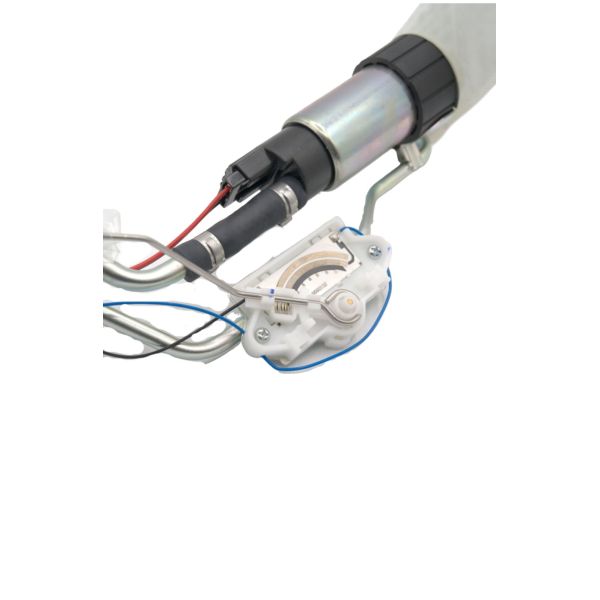

Part Description | Fuel Pump and Sender Assembly |
Average Current Draw(A) | 6.5 |
Average Flow Rating(GPH) | 32 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Elliptic |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

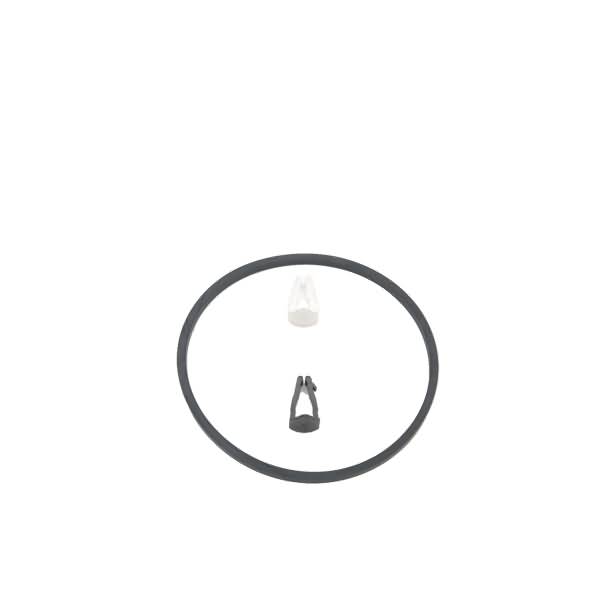

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.889 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | External |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 45 |
Maximum Pump Pressure (PSI) | 100 |
Minimum Free Flow (GPH) | 35 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 5.12 |
Product Length (in) | 13.78 |
Product Width (in) | 6.69 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 13 |
Resistance Ohms Full | 162 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845110893 |
Voltage | 12V |
Weight (lbs) | 1.86 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1989-1992 Ford Ranger | All Trims | 6 Cyl 2.9L |
1989-1997 Ford Ranger | All Trims | 4 Cyl 2.3L |
1990-1997 Ford Ranger | All Trims | 6 Cyl 4.0L |
1991-1997 Ford Ranger | All Trims | 6 Cyl 3.0L |
1994-1997 Mazda B2300 | All Trims | 4 Cyl 2.3L |
1994-1995 Mazda B3000 | All Trims | 6 Cyl 3.0L |
1997 Mazda B3000 | All Trims | 6 Cyl 3.0L |
1994-1997 Mazda B4000 | All Trims | 6 Cyl 4.0L |
