Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4297 |

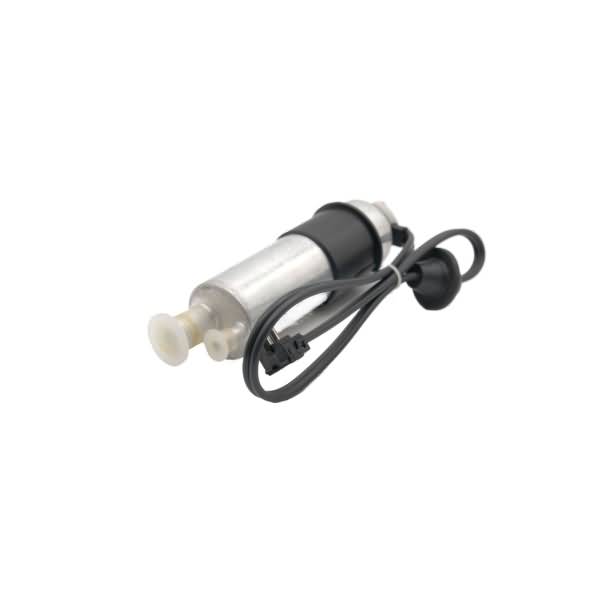

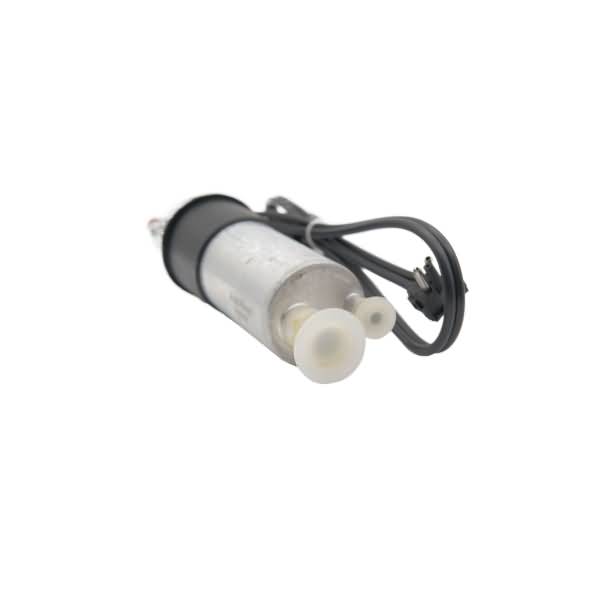

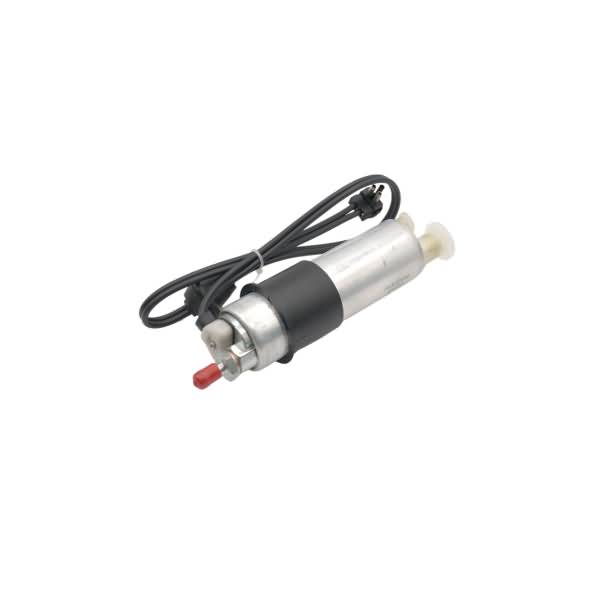

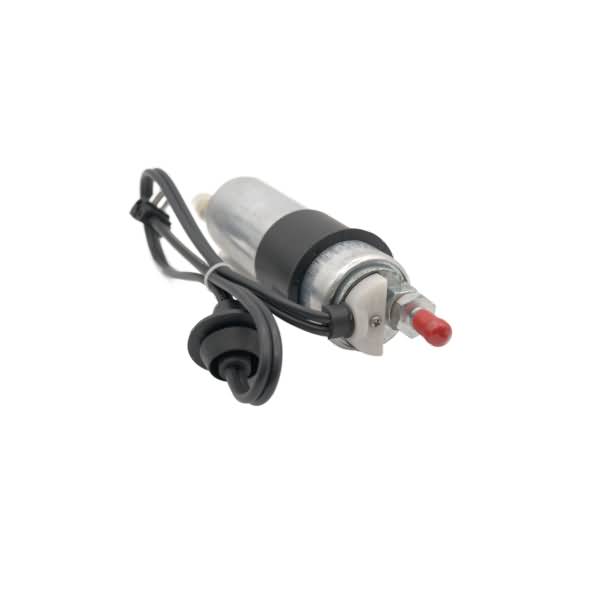

Part Description | Externally Mounted Electric Fuel Pump |
Average Current Draw(A) | 8 |
Average Flow Rating(GPH) | 115 |
Connector Gender | Male |
Connector Quantity | 1 |
Country of Orign | China |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
In Tank or External | External |
Inlet Size | 0.591 |
Inlet Type | Hose |
Installation Warnings | No |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 137.8 |
Minimum Pump Pressure (PSI) | 94.3 |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 5/16 |
Outlet Type | Hose |
Product Height (in) | 2.09 |
Product Length (in) | 7.58 |
Product Width (in) | 2.09 |
Pump Type | Rollervane |
Regulator Included | No |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | PIN |
UPC | 00072845142979 |
Voltage | 12V |
Weight (lbs) | 1.6 |
Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1997-2000 Mercedes-Benz C230 | All Trims | 4 Cyl 2.3L |
1995-2000 Mercedes-Benz C280 | All Trims | 6 Cyl 2.8L |
1995 Mercedes-Benz C36 AMG | All Trims | 6 Cyl 3.6L |
1998-2003 Mercedes-Benz CLK320 | All Trims | 6 Cyl 3.2L |
2000-2001 Mercedes-Benz CLK430 | All Trims | 8 Cyl 4.3L |
