Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4170 |

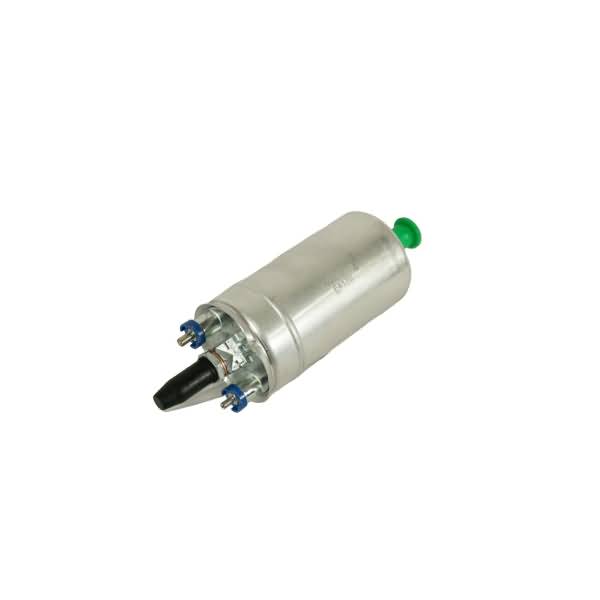

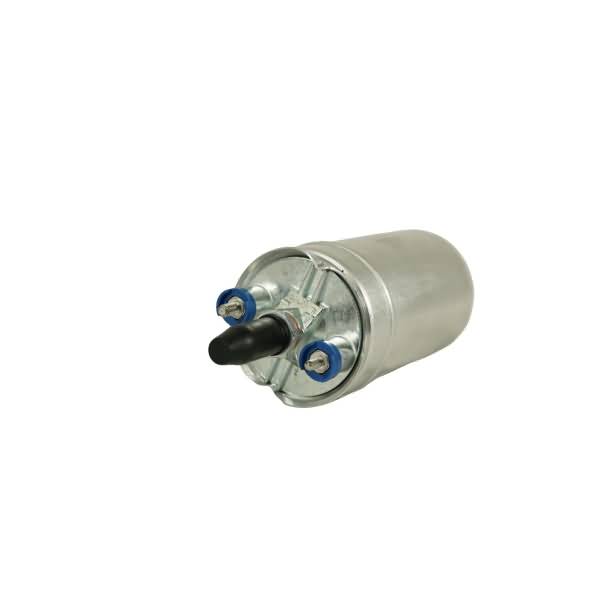

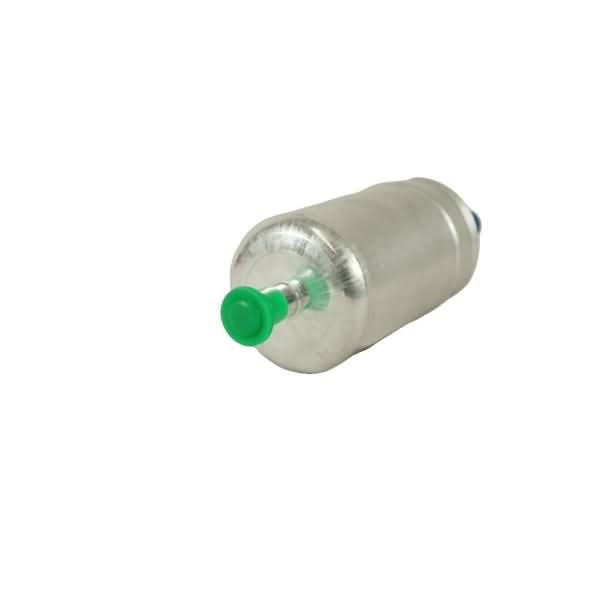

Part Description | Externally Mounted Electric Fuel Pump |
Average Current Draw(A) | 9.5 |
Average Flow Rating(GPH) | 135 |
Connector Quantity | 2 |
Connector Shape | Screw |
Country of Orign | China |
Gasket or Seal Included | No |
Grade Type | Performance |
In Tank or External | External |
Inlet Size | 0.524 |
Inlet Type | Barb |
Installation Warnings | No |
Internal Or External Strainer | External |
Maximum Pump Pressure (PSI) | 145 |
Minimum Pump Pressure (PSI) | 123.25 |
Outlet Quantity | 1 |
Outlet Size | M12 x 1.5 |
Outlet Type | Male threaded |
Product Height (in) | 2.56 |
Product Length (in) | 7.24 |
Product Width (in) | 2.56 |
Pump Type | Rollervane |
Regulator Included | No |
Terminal Quantity | 2 |
Terminal Type | Thread |
UPC | 00072845141705 |
Voltage | 12V |
Weight (lbs) | 2.26 |
Year Make Model | Trim | Engine |
---|---|---|
1977 Porsche 911 | All Trims | 6 Cyl 2.7L |
1978-1983 Porsche 911 | All Trims | 6 Cyl 3.0L |
1986-1989 Porsche 911 | All Trims | 6 Cyl 3.3L |
1991-1992 Porsche 911 | All Trims | 6 Cyl 3.3L |
1993-1994 Porsche 911 | All Trims | 6 Cyl 3.6L |
1977-1982 Porsche 924 | All Trims | 4 Cyl 2.0L |
1978-1979 Porsche 928 | All Trims | 8 Cyl 4.5L |
