Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4023 |

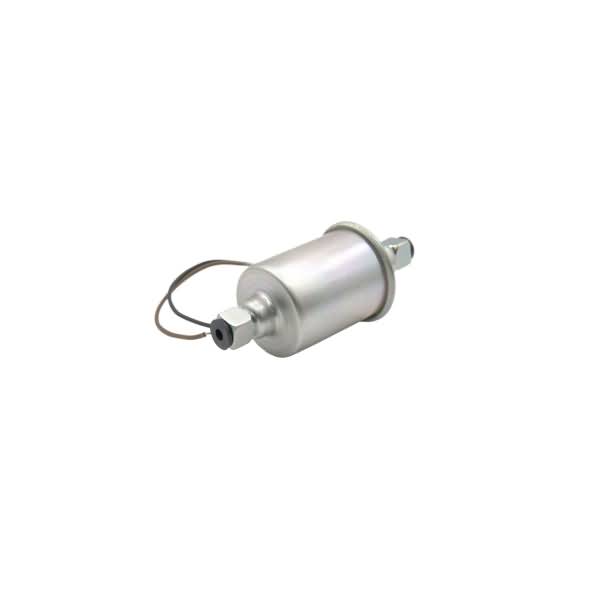

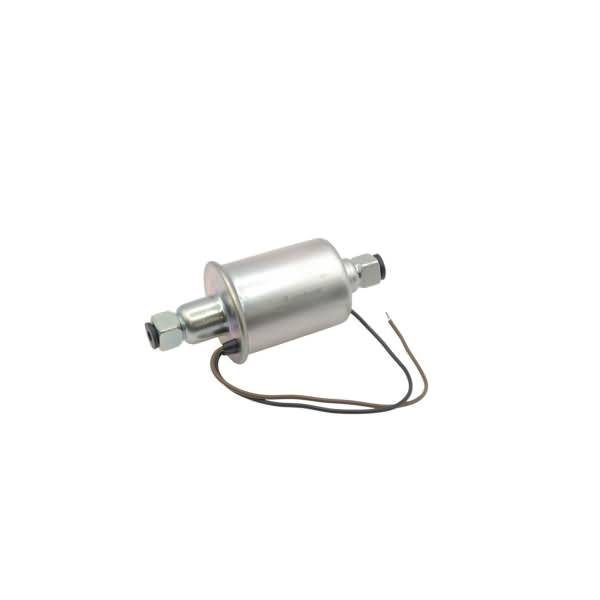

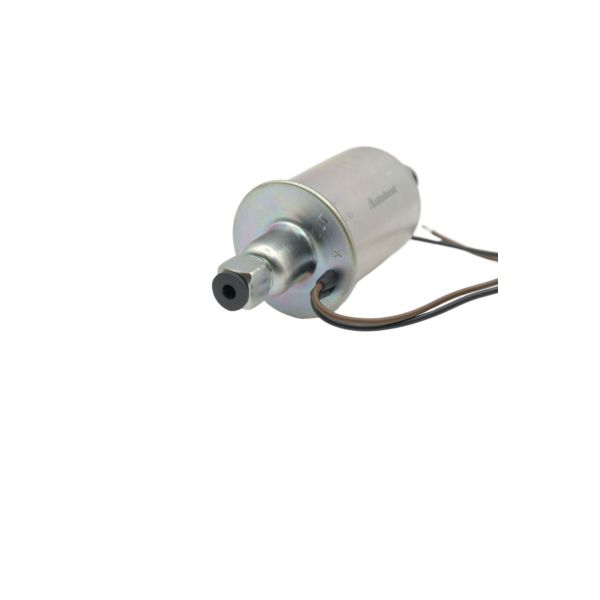

Part Description | Externally Mounted Electric Fuel Pump |
Average Current Draw(A) | 1.1 |
Average Flow Rating(GPH) | 115 |
Connector Quantity | 2 |
Connector Shape | Wire |
Country of Orign | China |
Gasket or Seal Included | No |
Grade Type | Performance |
In Tank or External | External |
Inlet Size | NPT 1/8-27 |
Inlet Type | Female threaded |
Installation Warnings | No |
Internal Or External Strainer | External |
Maximum Pump Pressure (PSI) | 9 |
Minimum Pump Pressure (PSI) | 5 |
Outlet Quantity | 1 |
Outlet Size | 0.38 |
Outlet Type | Barb |
Product Height (in) | 1.5 |
Product Length (in) | 4.57 |
Product Width (in) | 1.5 |
Pump Type | SoleNoid |
Regulator Included | No |
Terminal Quantity | 2 |
Terminal Type | Wire |
UPC | 00072845140234 |
Voltage | 12V |
Weight (lbs) | 0.69 |
Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1986-1987 Chevrolet Camaro | All Trims | 8 Cyl 5.0L |
