Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F3164 |

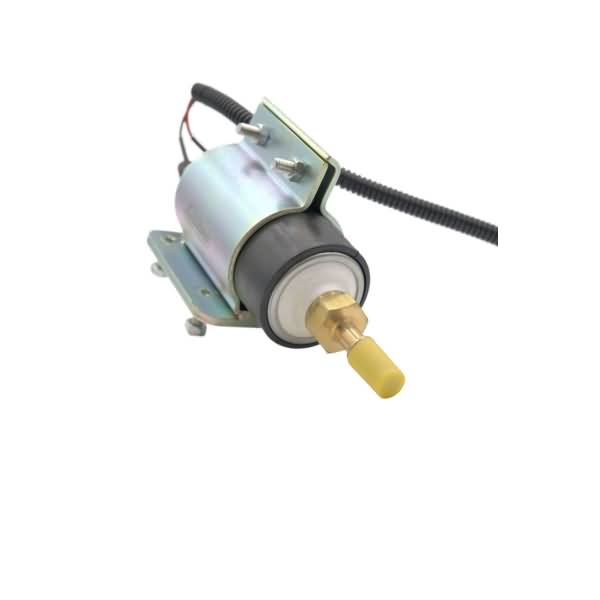

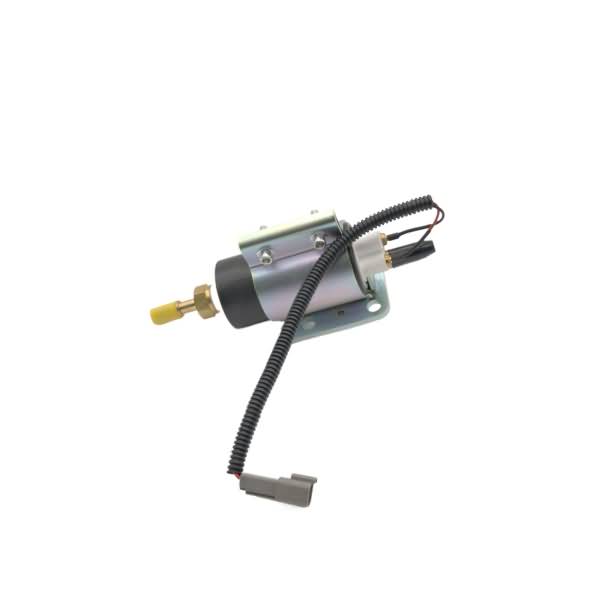

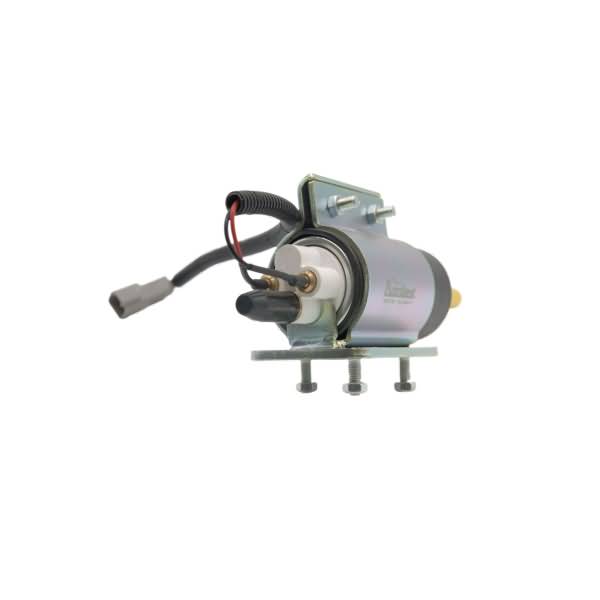

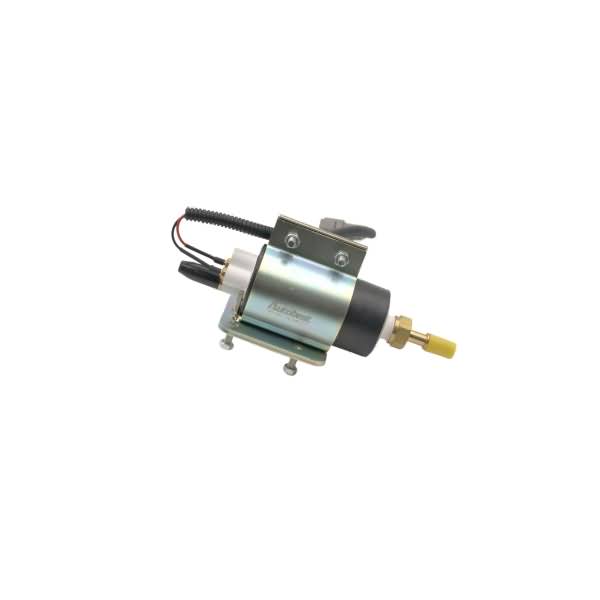

Part Description | Externally Mounted Electric Fuel Pump |
Average Current Draw(A) | 3.5 |
Average Flow Rating(GPH) | 145 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Gasket or Seal Included | No |
Grade Type | Performance |
In Tank or External | External |
Inlet Size | 3/4-16 UNF-2A |
Inlet Type | Male threaded |
Installation Warnings | No |
Internal Or External Strainer | External |
Maximum Pump Pressure (PSI) | 29 |
Minimum Pump Pressure (PSI) | 11.6 |
Outlet Quantity | 1 |
Outlet Size | M12 x 1.5 |
Outlet Type | Male threaded |
Product Height (in) | 2.36 |
Product Length (in) | 5.31 |
Product Width (in) | 4.06 |
Pump Type | Rollervane |
Regulator Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Inserts |
UPC | 00072845131645 |
Voltage | 12V |
Weight (lbs) | 3.02 |
Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
1998-2002 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
1998-2002 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
