Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1247 |

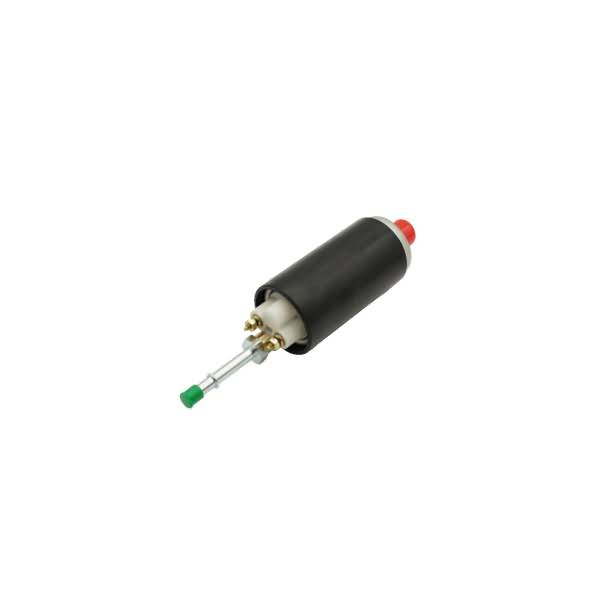

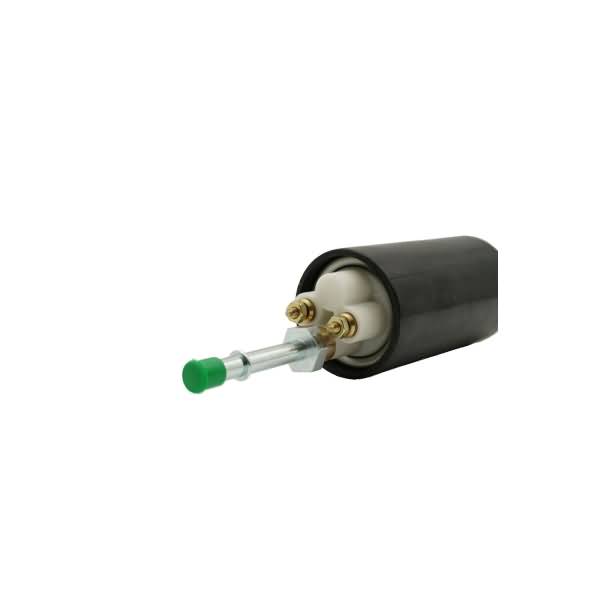

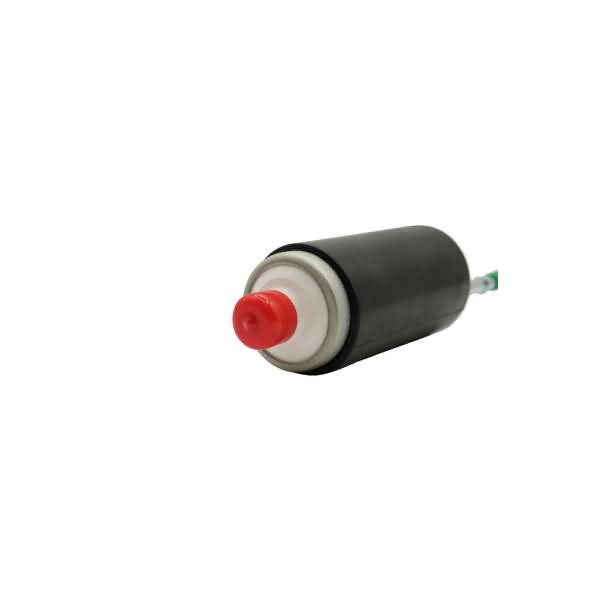

Part Description | Externally Mounted Electric Fuel Pump |
Average Current Draw(A) | 7.5 |
Average Flow Rating(GPH) | 130 |
Country of Orign | China |

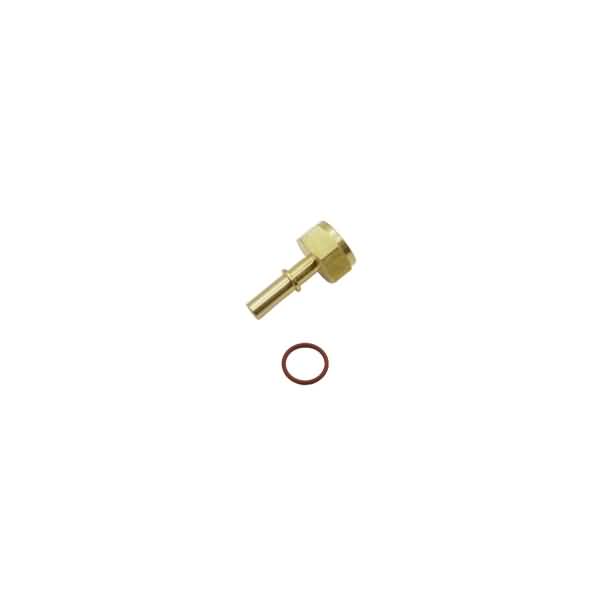

Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
In Tank or External | External |
Inlet Size | 3/4-16 UNF-2A |
Inlet Type | Threaded Male |
Installation Warnings | No |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 123 |
Minimum Pump Pressure (PSI) | 80 |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 0.311 |
Outlet Type | Quick Connect |
Product Height (in) | 1.83 |
Product Length (in) | 8.23 |
Product Width (in) | 1.83 |
Pump Type | Rollervane |
Regulator Included | No |
Strainer Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Thread |
UPC | 00072845112477 |
Voltage | 12V |
Weight (lbs) | 1.44 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1998 Ford E-350 Econoline | All Trims | 8 Cyl 7.3L |
1998-2002 Ford E-350 Econoline Club Wagon | All Trims | 8 Cyl 7.3L |
1999-2003 Ford E-350 Super Duty | All Trims | 8 Cyl 7.3L |
2000-2003 Ford Excursion | All Trims | 8 Cyl 7.3L |
1999-2003 Ford F-250 Super Duty | All Trims | 8 Cyl 7.3L |
1999-2003 Ford F-350 Super Duty | All Trims | 8 Cyl 7.3L |
