Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4653A |

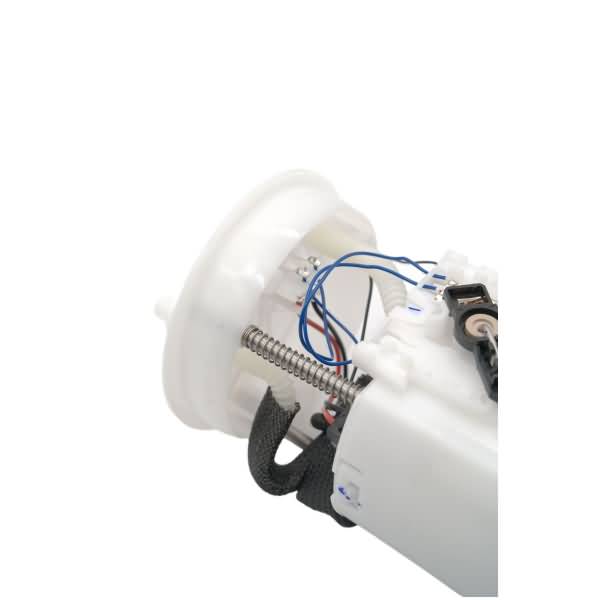

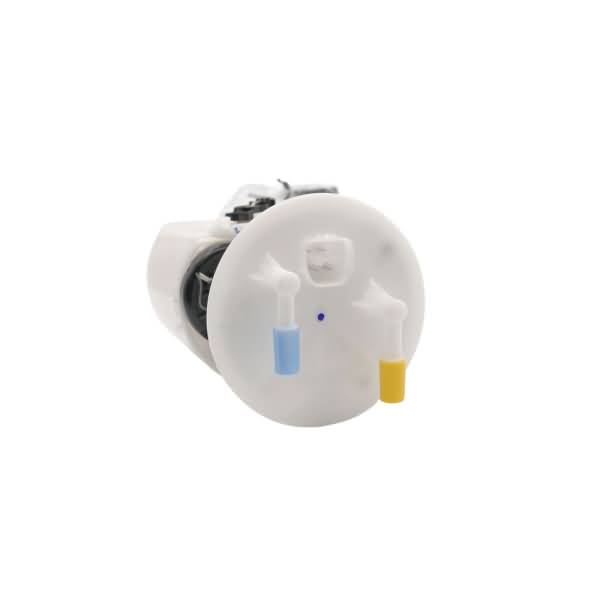

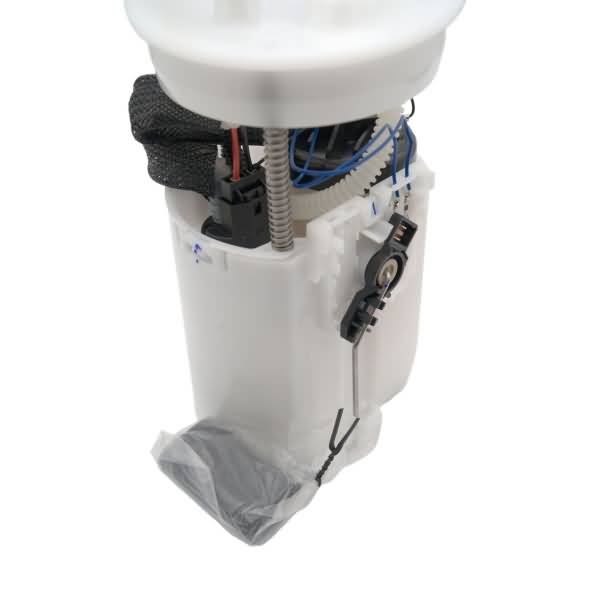

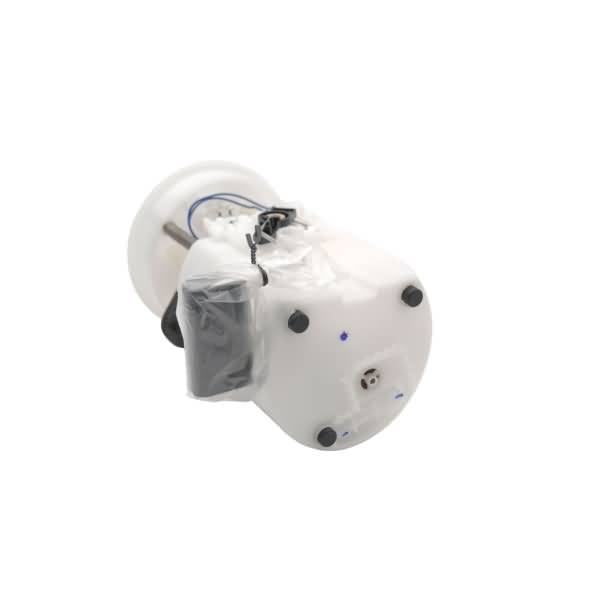

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 10 |
Average Flow Rating(GPH) | 38.3 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Trapezoid |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

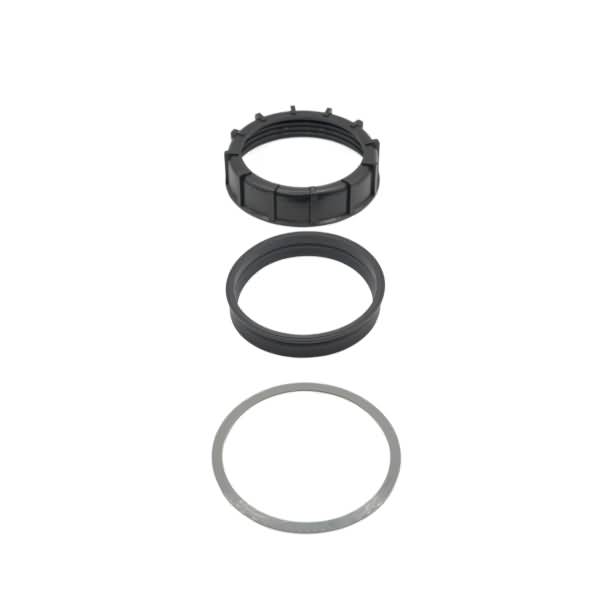

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Regular |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Length (in.) | 12 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 65 |
Maximum Pump Pressure (PSI) | 95 |
Minimum Free Flow (GPH) | 55 |
Minimum Pump Pressure (PSI) | 85 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Package Contents | Pump & Kit |
Product Height (in) | 4.92 |
Product Length (in) | 9.25 |
Product Width (in) | 5.71 |
Regulator Included | No |
Resistance Ohms Empty | 132 |
Resistance Ohms Full | 12 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845146533 |
Voltage | 12V |
Weight (lbs) | 2.27 |
Weight (lbs.) | 3.2 |
Width (in.) | 7 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1999-2004 Honda Odyssey | All Trims | 6 Cyl 3.5L |
