Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4612A |

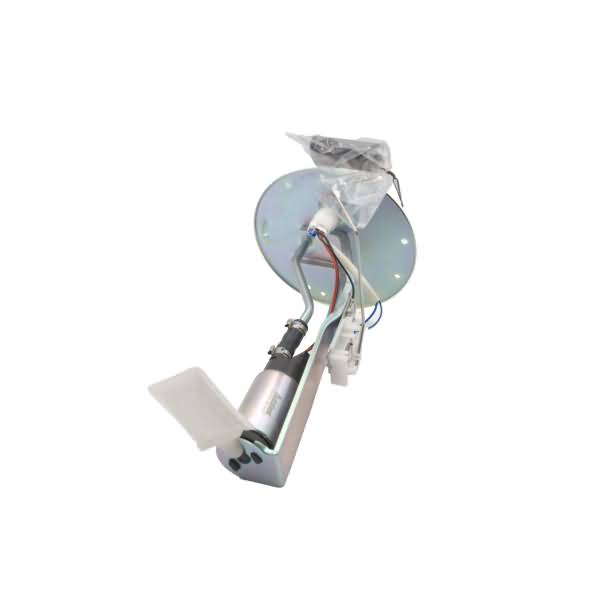

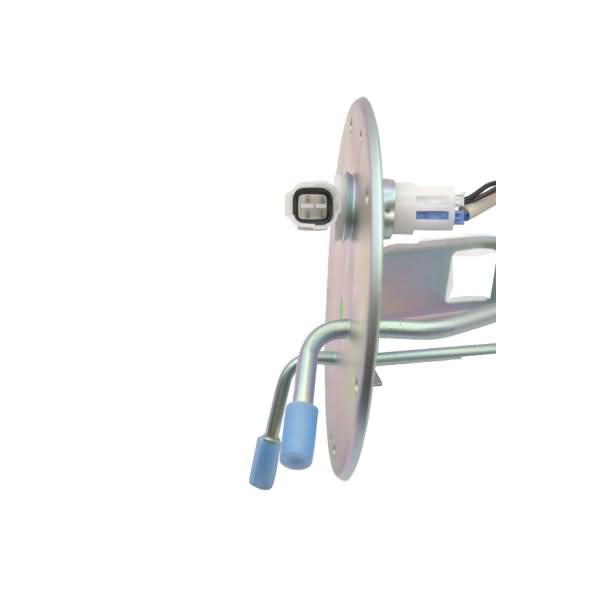

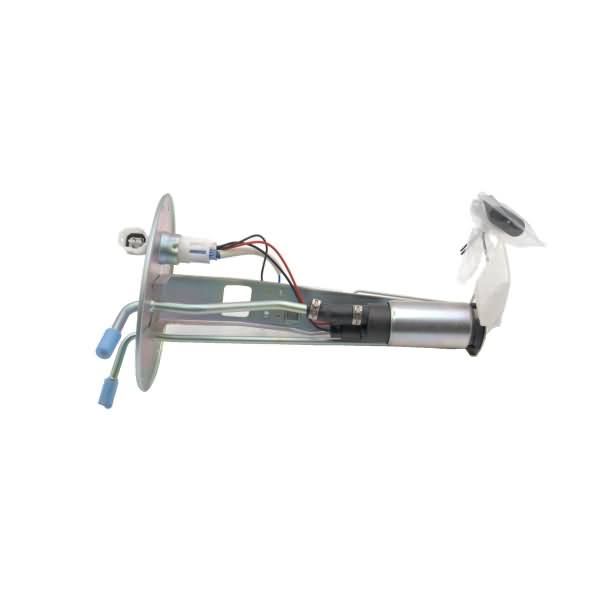

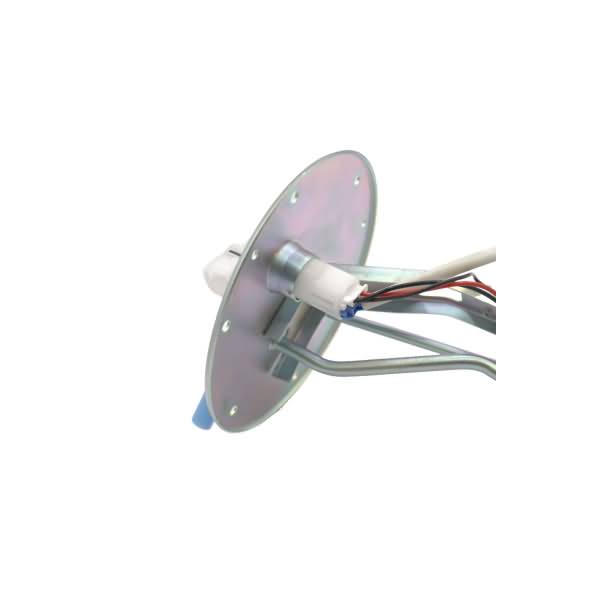

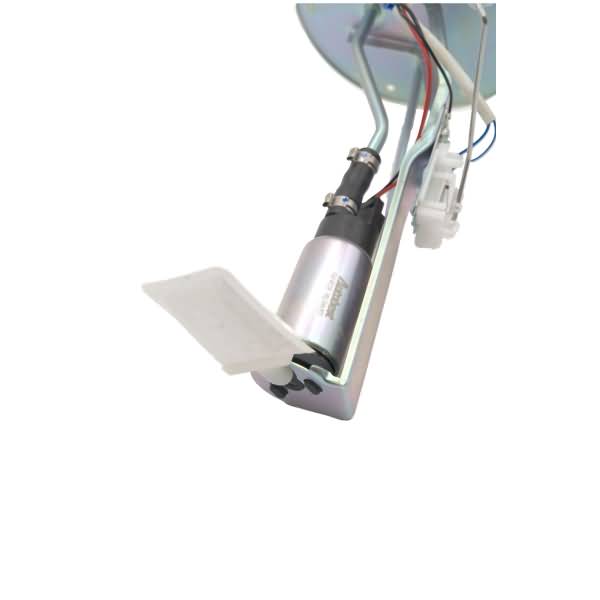

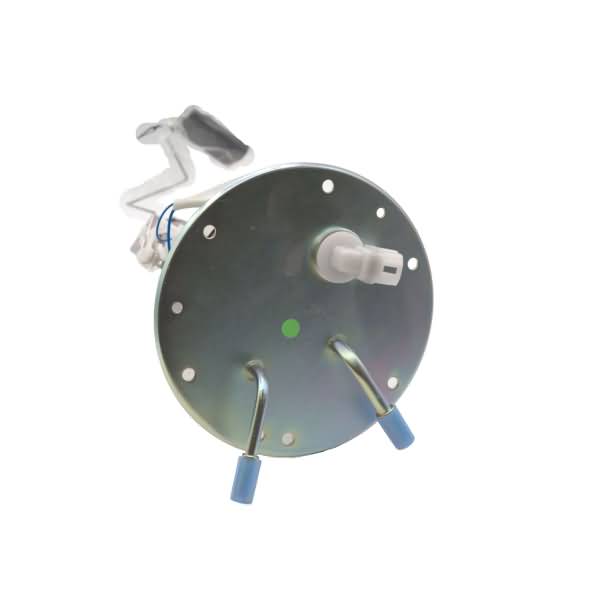

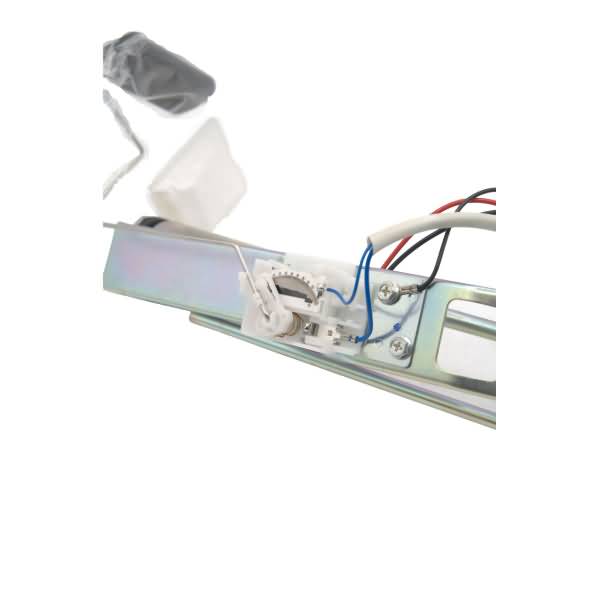

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 7.5 |
Average Flow Rating(GPH) | 33 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |

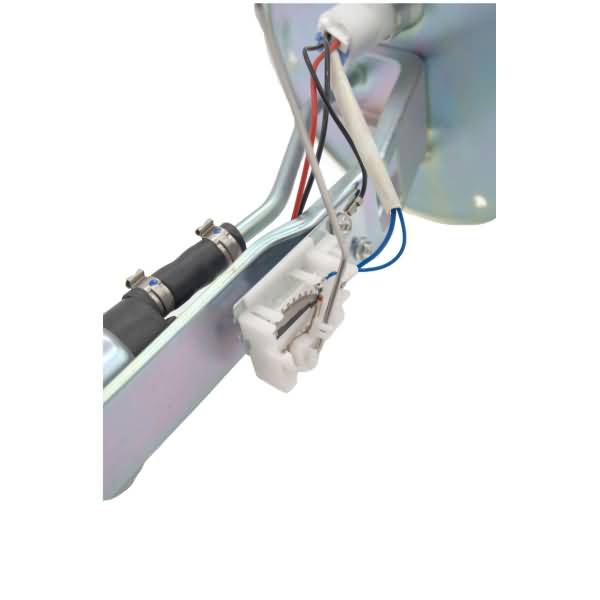

Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Gasket or Seal Included | No |

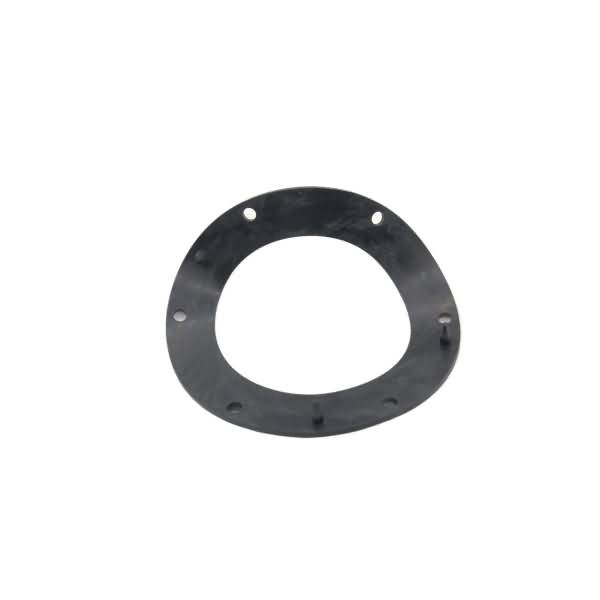

Gasket Or Seal Material | NBR |
Grade Type | Regular |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 80 |
Minimum Pump Pressure (PSI) | 70 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 5/16 |
Outlet Type | Quick Connect |
Product Height (in) | 6.3 |
Product Length (in) | 12.01 |
Product Width (in) | 7.28 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 120 |
Resistance Ohms Full | 10 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845146120 |
Voltage | 12V |
Weight (lbs) | 2.44 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Suzuki XL-7 | All Trims | 6 Cyl 2.7L |
