Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F3162A |

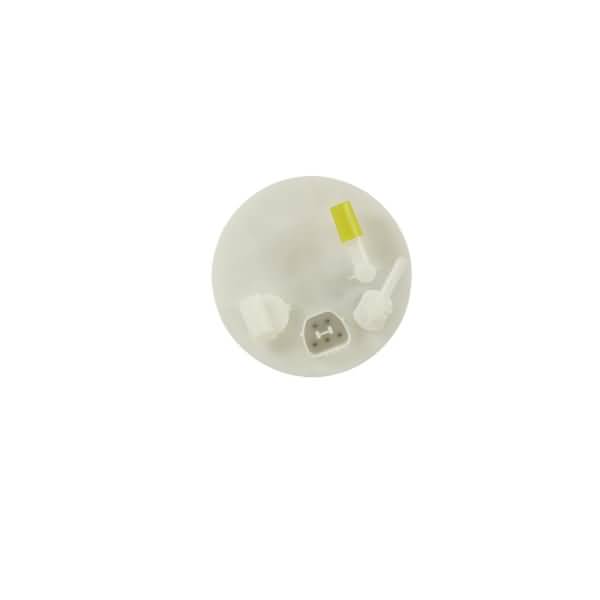

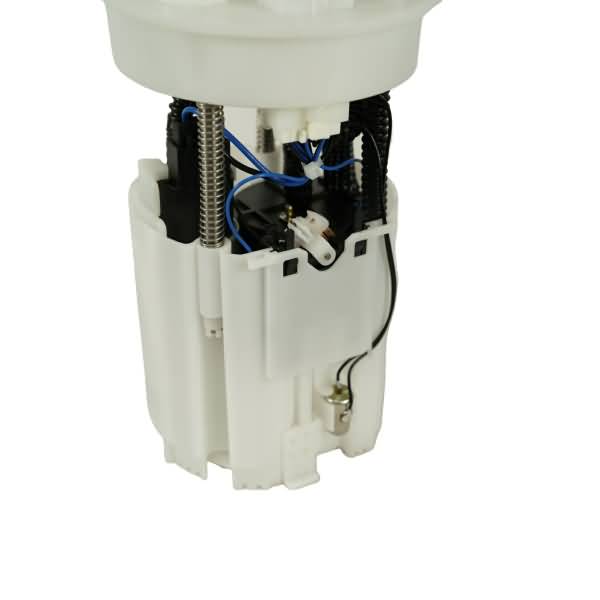

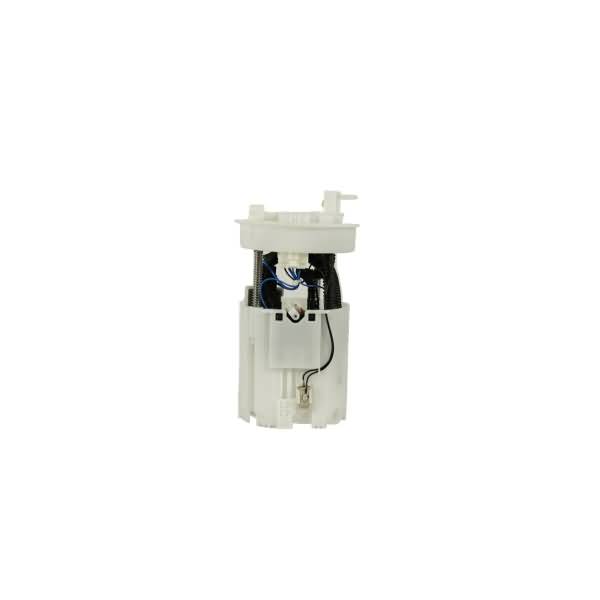

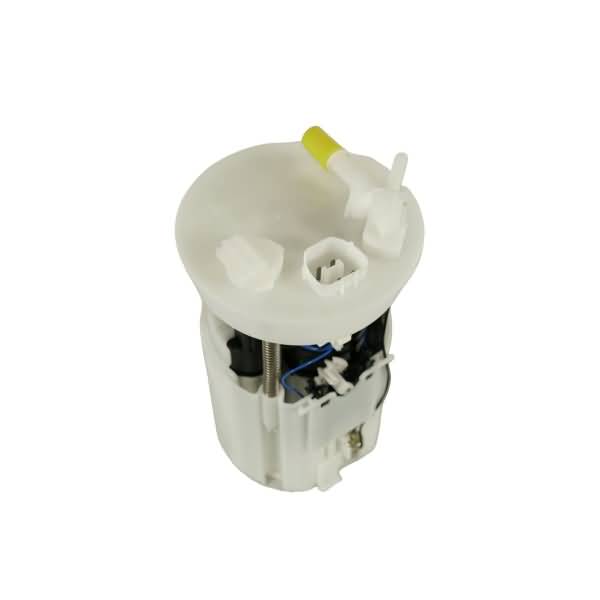

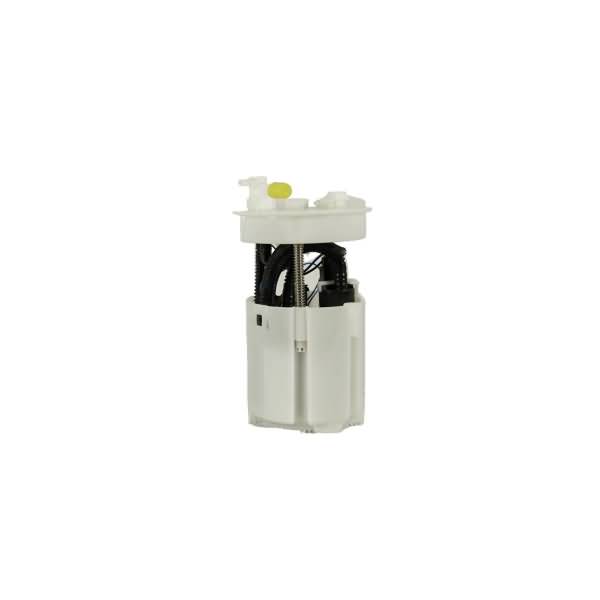

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 6.3 |
Average Flow Rating(GPH) | 33.02 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Trapezoid |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |

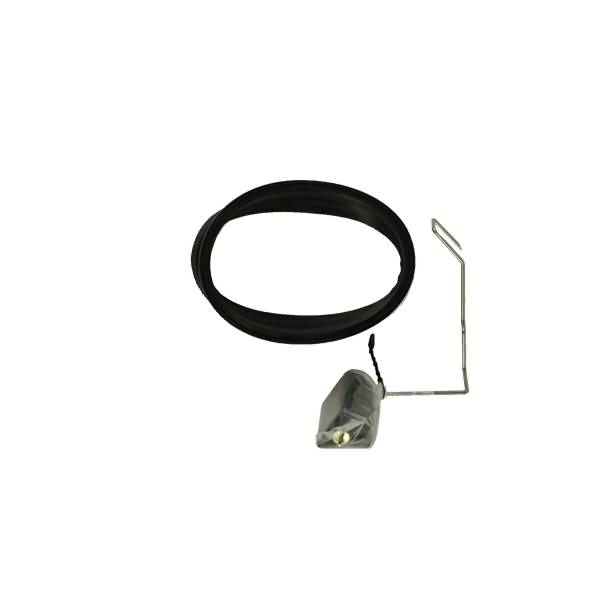

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |

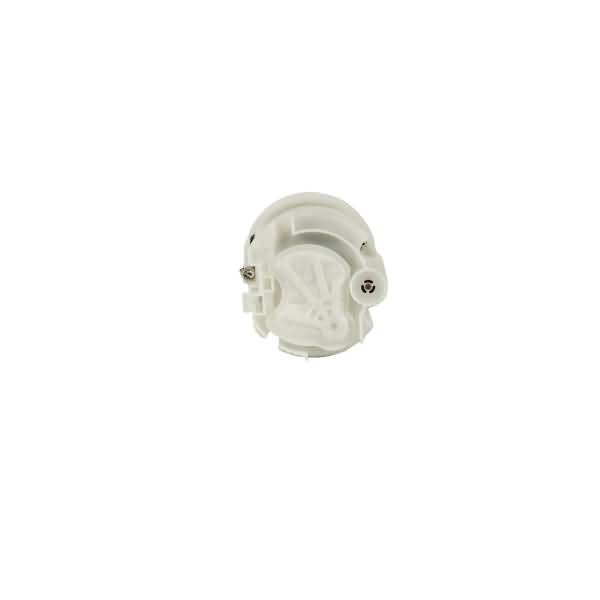

Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 90 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 5.63 |
Product Length (in) | 8.54 |
Product Width (in) | 8.35 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 111 |
Resistance Ohms Full | 4 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | PIN |
UPC | 00072845131621 |
Voltage | 12V |
Weight (lbs) | 2.17 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2001 Chrysler Sebring | All Trims | 4 Cyl 2.4L |
2001 Chrysler Sebring | All Trims | 6 Cyl 3.0L |
2001 Dodge Stratus | All Trims | 4 Cyl 2.4L |
2001 Dodge Stratus | All Trims | 6 Cyl 3.0L |
2000-2001 Mitsubishi Eclipse | All Trims | 4 Cyl 2.4L |
2000-2001 Mitsubishi Eclipse | All Trims | 6 Cyl 3.0L |
1999-2000 Mitsubishi Galant | All Trims | 6 Cyl 3.0L |
1999-2001 Mitsubishi Galant | All Trims | 4 Cyl 2.4L |
