Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F3050A |

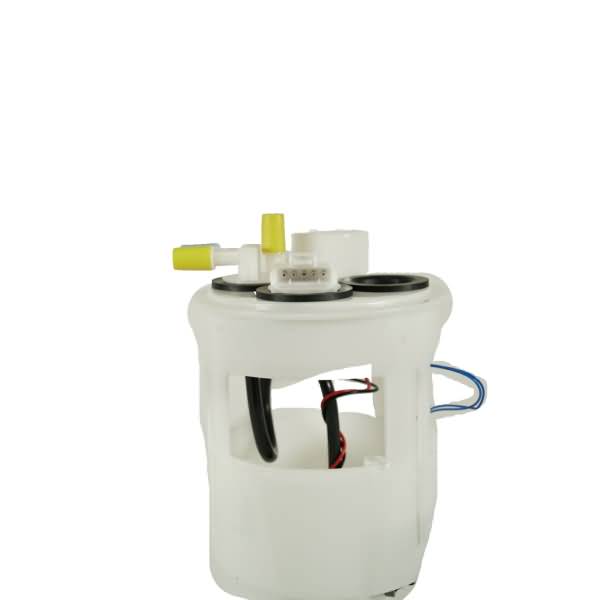

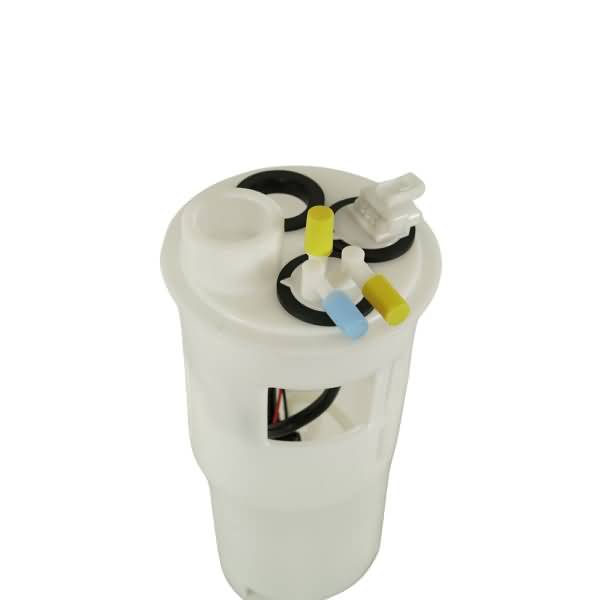

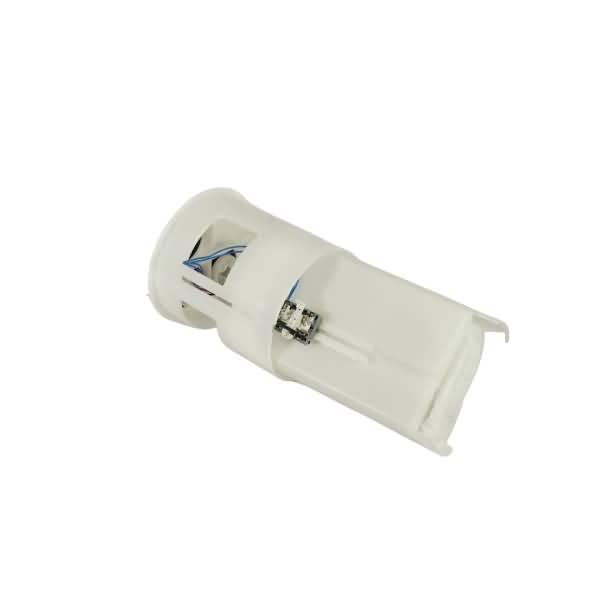

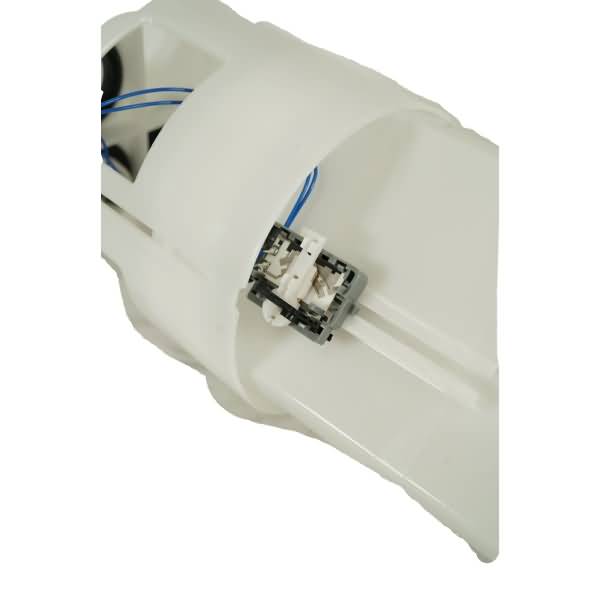

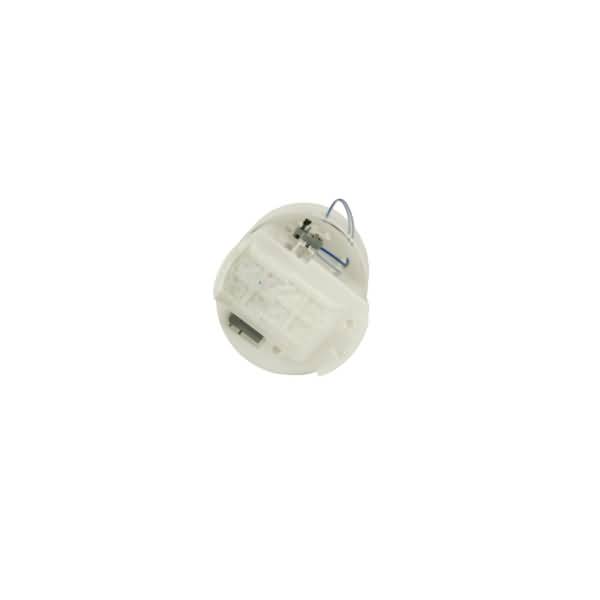

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 8 |
Average Flow Rating(GPH) | 30.4 |
Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |

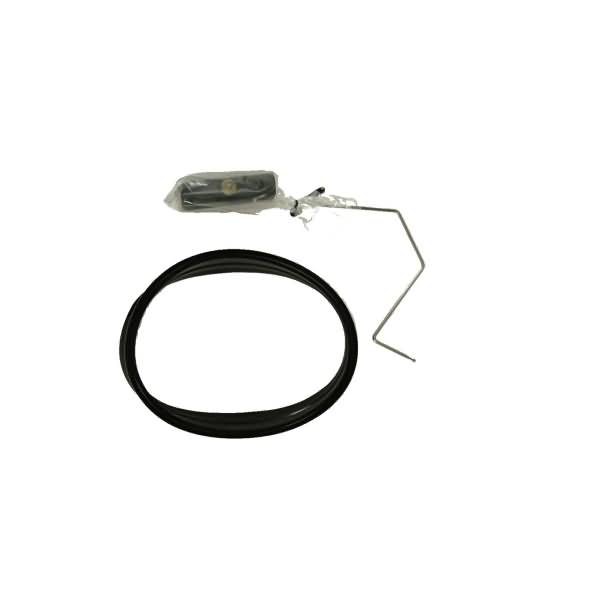

Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.4333 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 80 |
Minimum Pump Pressure (PSI) | 70 |
Mounting Hardware Included | No |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 6.69 |
Product Length (in) | 14.17 |
Product Width (in) | 8.07 |
Pump Type | Turbine |
Regulator Included | Yes |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845130501 |
Voltage | 12V |
Weight (lbs) | 2.76 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1991-1994 Dodge B150 | All Trims | 6 Cyl 3.9L |
1991-1994 Dodge B150 | All Trims | 8 Cyl 5.2L |
1991-1994 Dodge B250 | All Trims | 6 Cyl 3.9L |
1991-1994 Dodge B250 | All Trims | 8 Cyl 5.2L |
1991-1994 Dodge B250 | All Trims | 8 Cyl 5.9L |
1991-1994 Dodge B350 | All Trims | 8 Cyl 5.2L |
1991-1994 Dodge B350 | All Trims | 8 Cyl 5.9L |
