Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2714A |

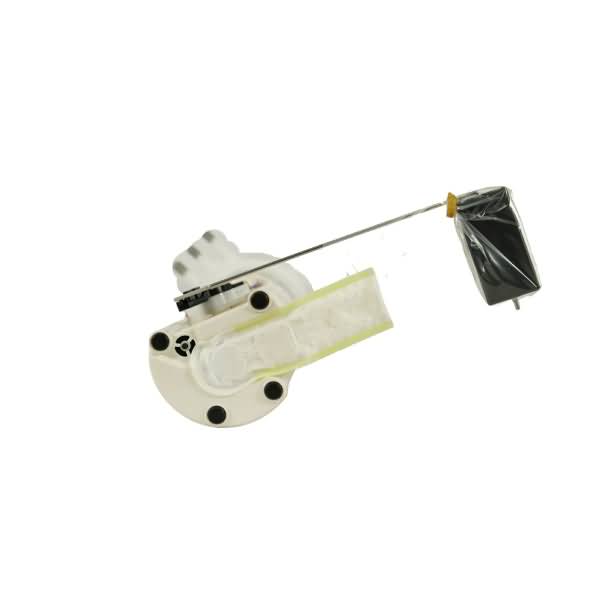

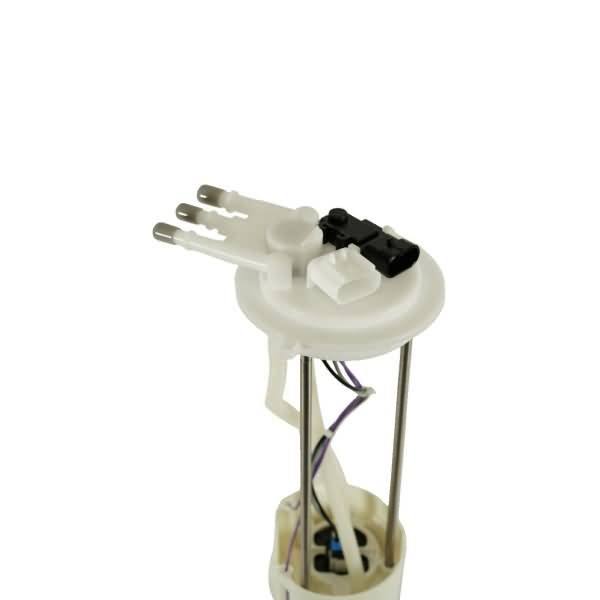

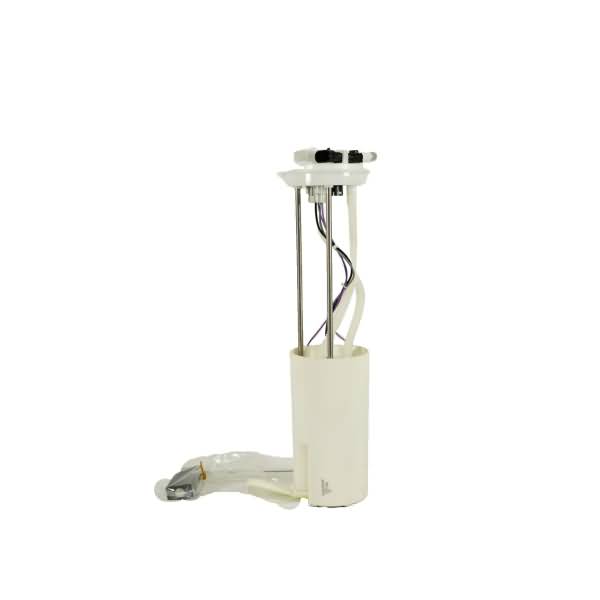

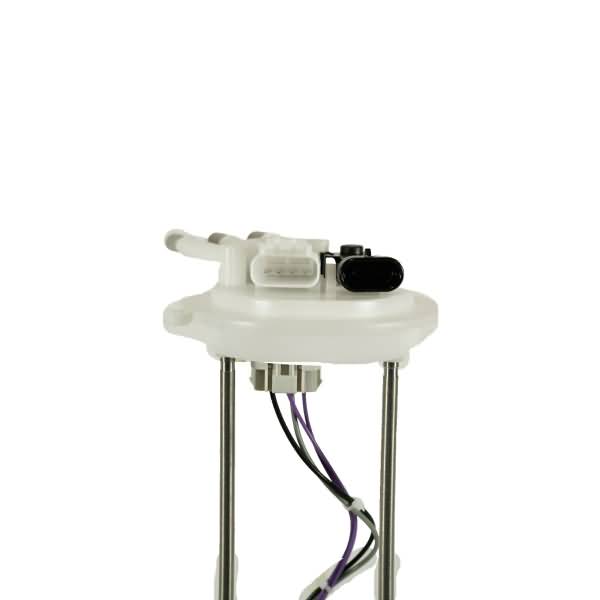

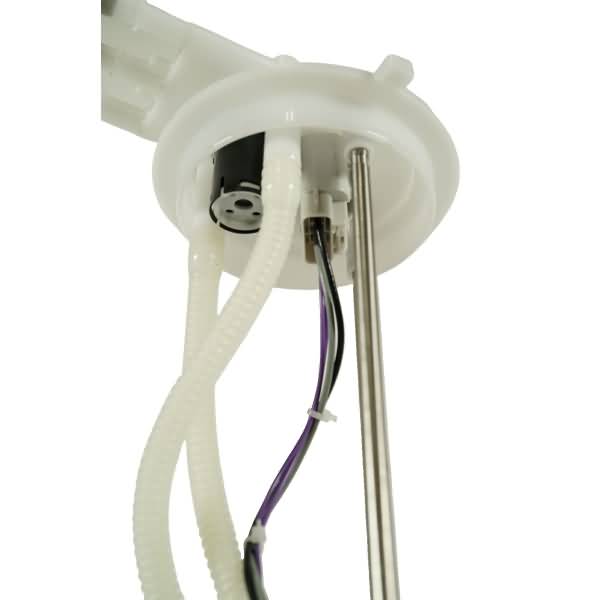

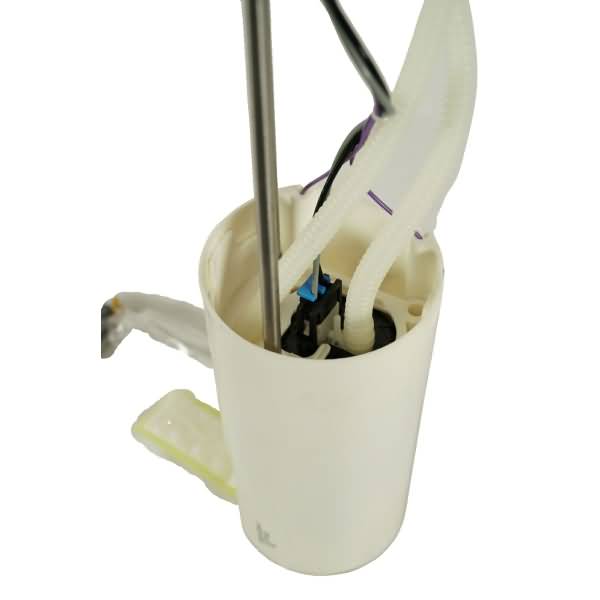

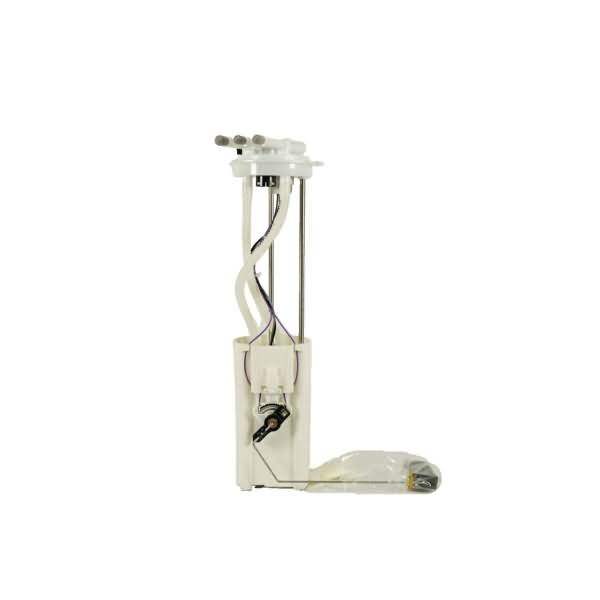

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 8.5 |
Average Flow Rating(GPH) | 48 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |

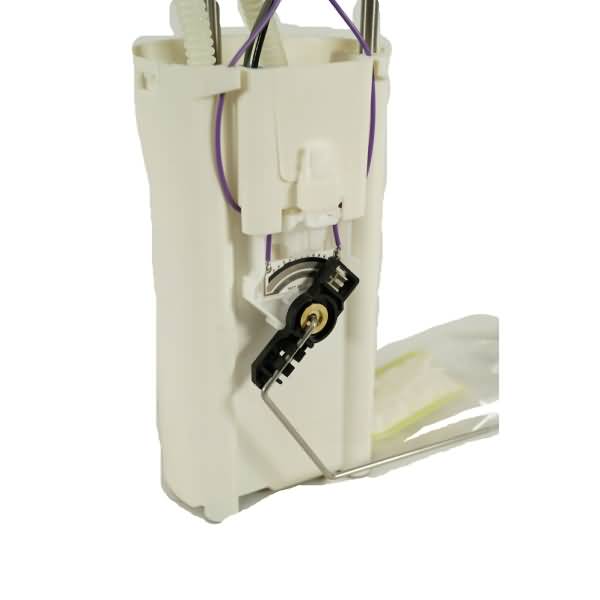

Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |

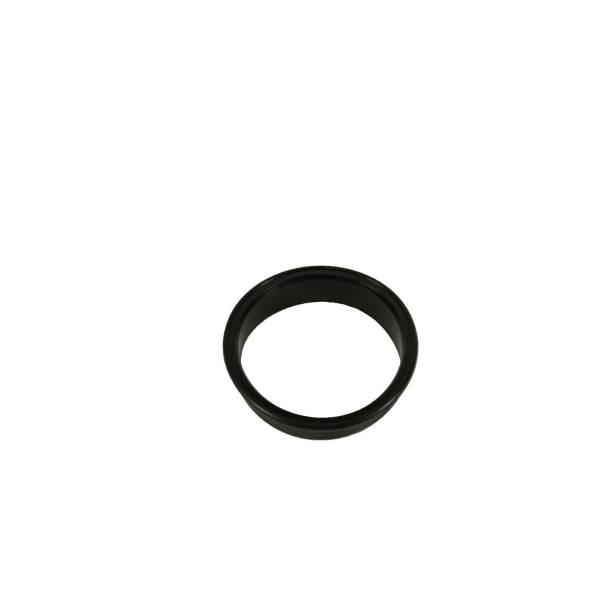

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | External and Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 80 |
Minimum Pump Pressure (PSI) | 60 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 6.1 |
Product Length (in) | 17.91 |
Product Width (in) | 10.04 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 40 |
Resistance Ohms Full | 250 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845127143 |
Voltage | 12V |
Weight (lbs) | 2.31 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2003 Chevrolet S10 | All Trims | 4 Cyl 2.2L |
2003 GMC Sonoma | All Trims | 4 Cyl 2.2L |
