Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2692A |

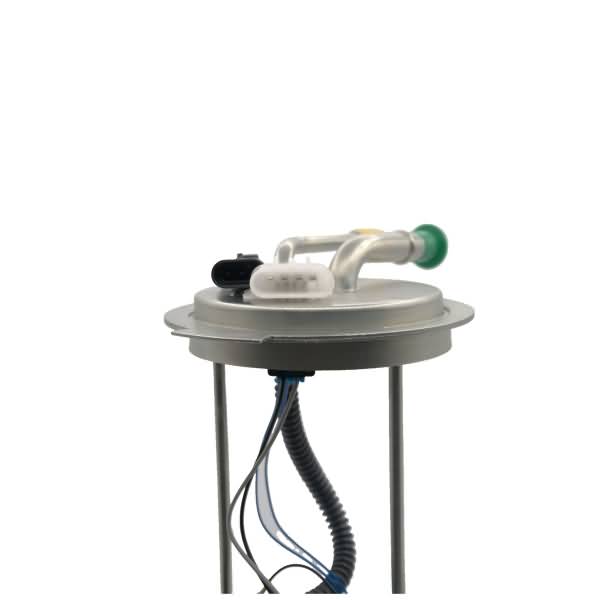

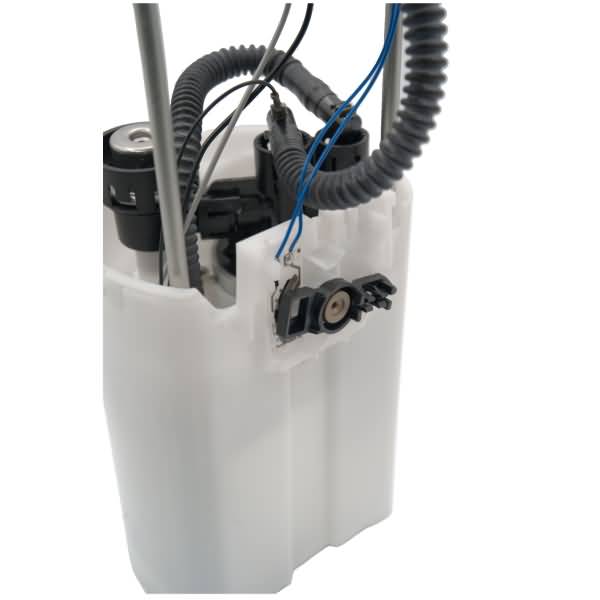

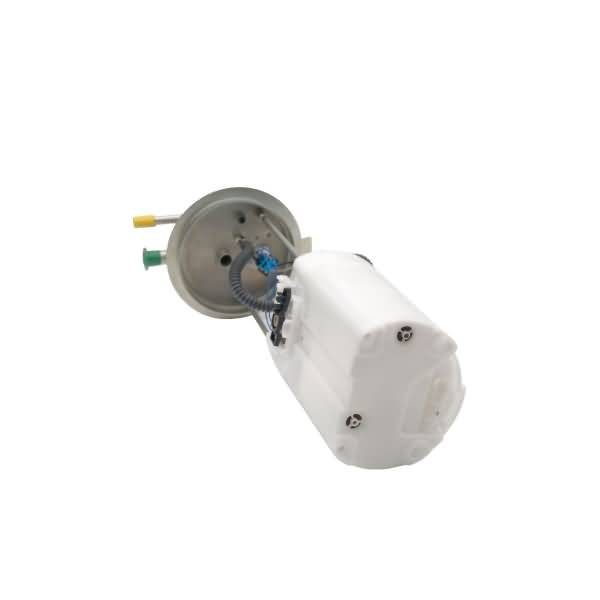

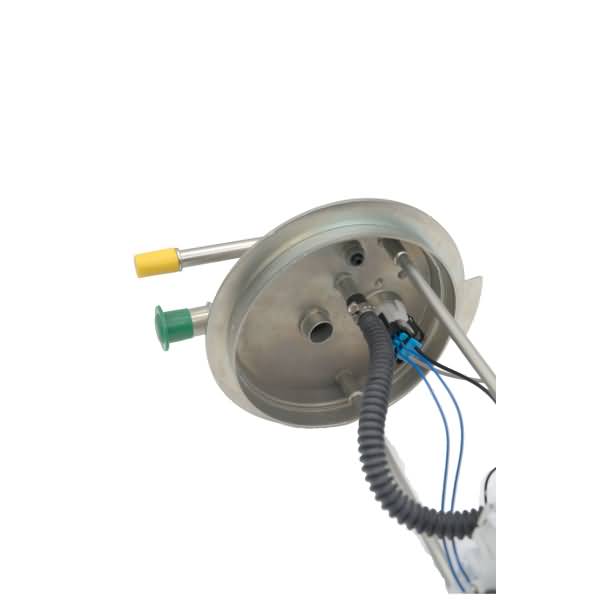

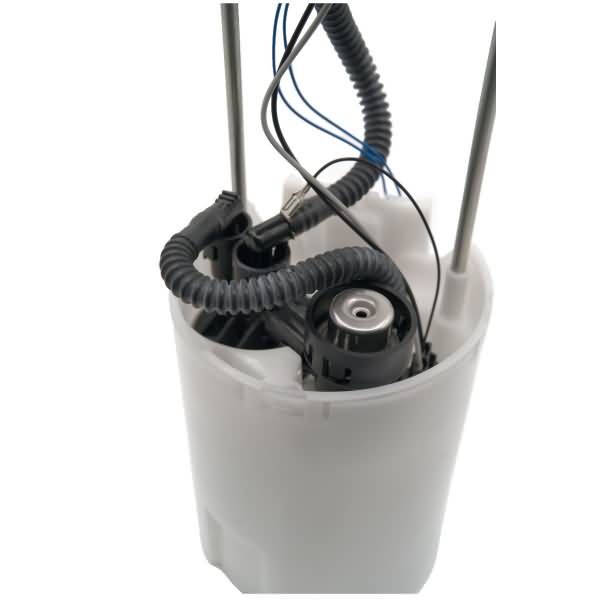

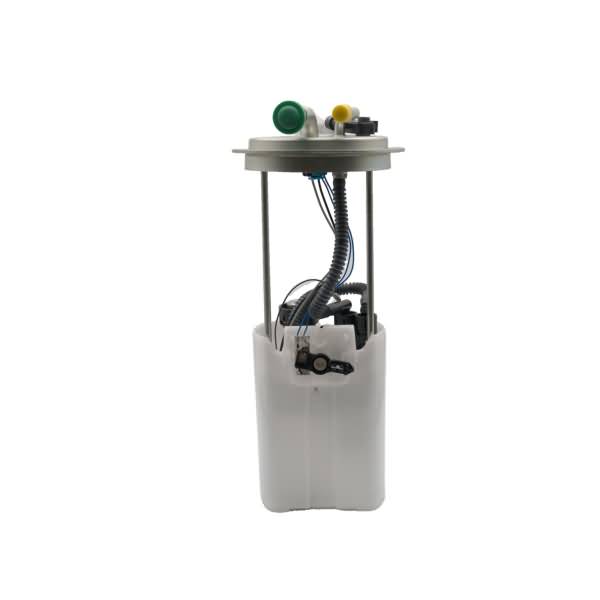

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 7.5 |
Average Flow Rating(GPH) | 37.9 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Gasket or Seal Included | No |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.314 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | Yes |
Maximum Pump Pressure (PSI) | 110 |
Minimum Pump Pressure (PSI) | 90 |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 8.31 |
Product Length (in) | 15.39 |
Product Width (in) | 8.66 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 42 |
Resistance Ohms Full | 254 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845126924 |
Voltage | 12V |
Weight (lbs) | 4.2 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2004-2008 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L |
2005-2008 Chevrolet Express 3500 | All Trims | 8 Cyl 4.8L |
2004-2008 GMC Savana 3500 | All Trims | 8 Cyl 6.0L |
2005-2008 GMC Savana 3500 | All Trims | 8 Cyl 4.8L |
