Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2661A |

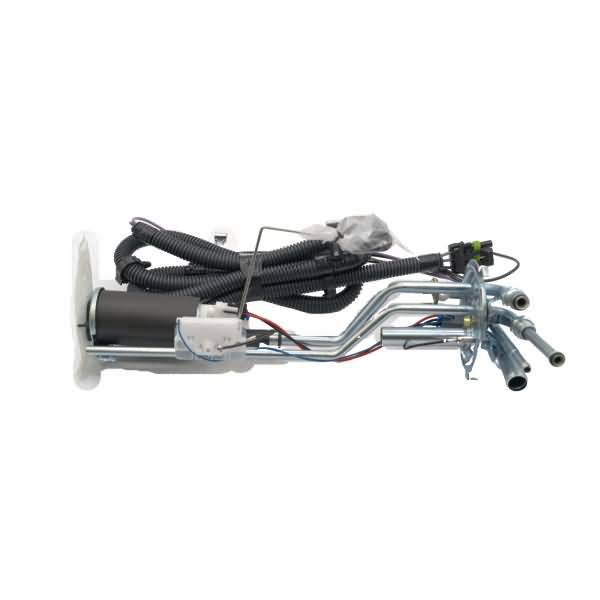

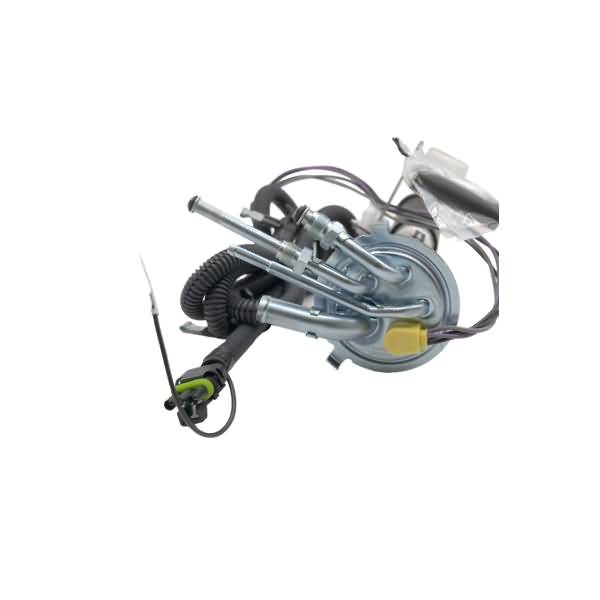

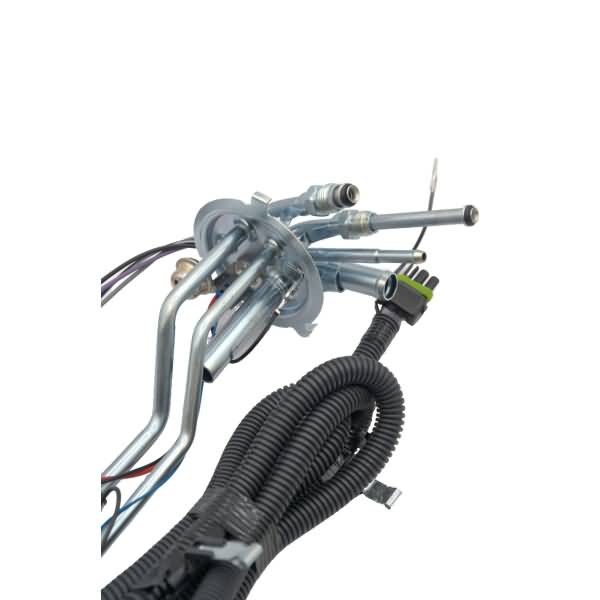

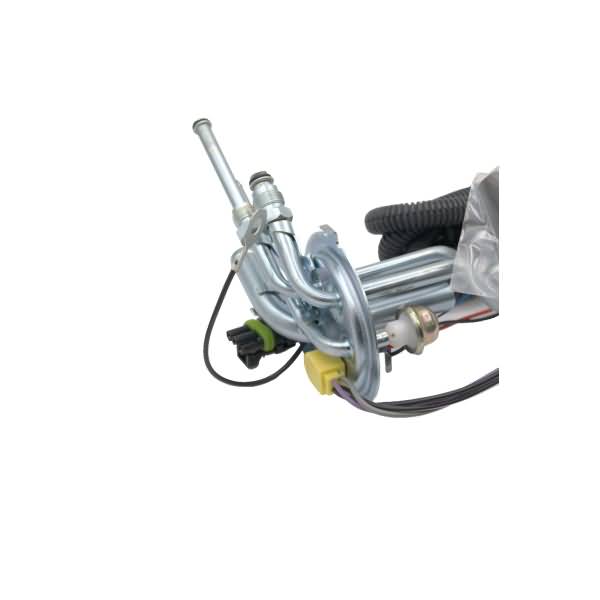

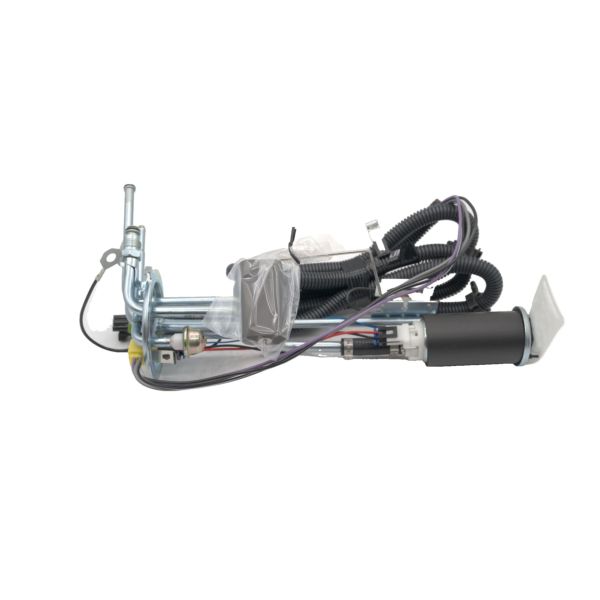

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 40 |
Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |

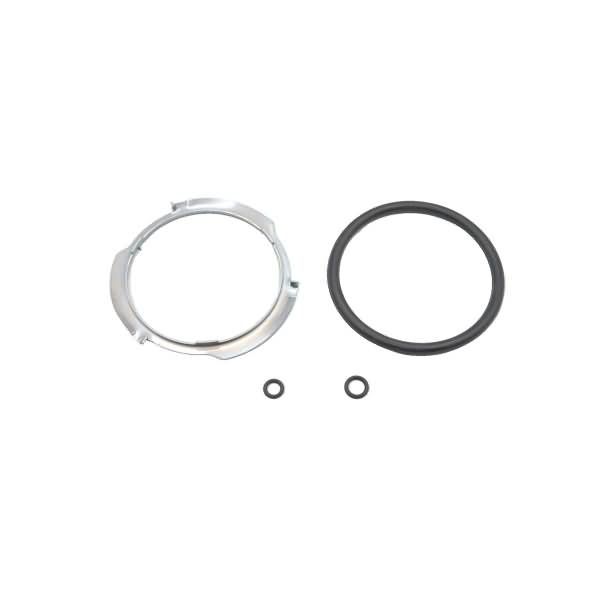

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | External |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 90 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | M16 x 10.5 |
Outlet Type | Threaded |
Product Height (in) | 5.12 |
Product Length (in) | 14.17 |
Product Width (in) | 7.09 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 2 |
Resistance Ohms Full | 94 |

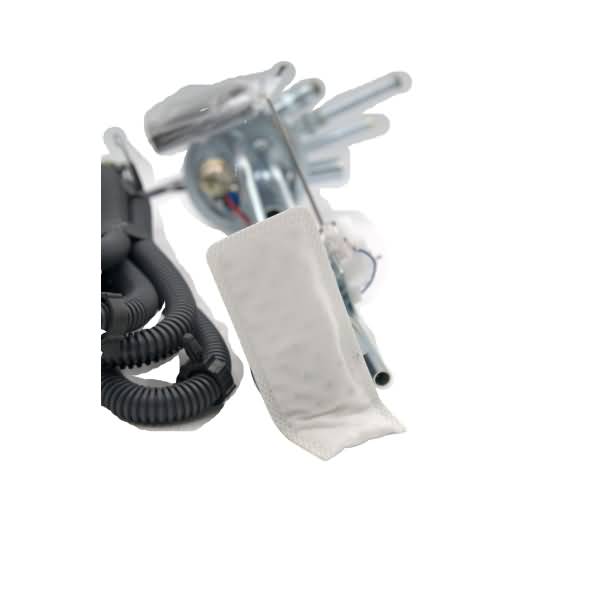

Strainer Included | Yes |
Terminal Gender | Female |
Terminal Quantity | 3 |
Terminal Type | PIN |
UPC | 00072845126610 |
Voltage | 12V |
Weight (lbs) | 2.53 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1992-1995 Chevrolet Astro | All Trims | 6 Cyl 4.3L |
1992-1995 GMC Safari | All Trims | 6 Cyl 4.3L |
