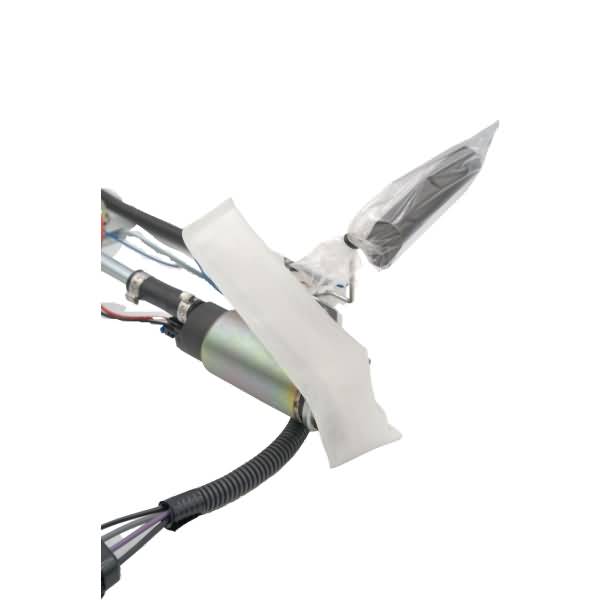

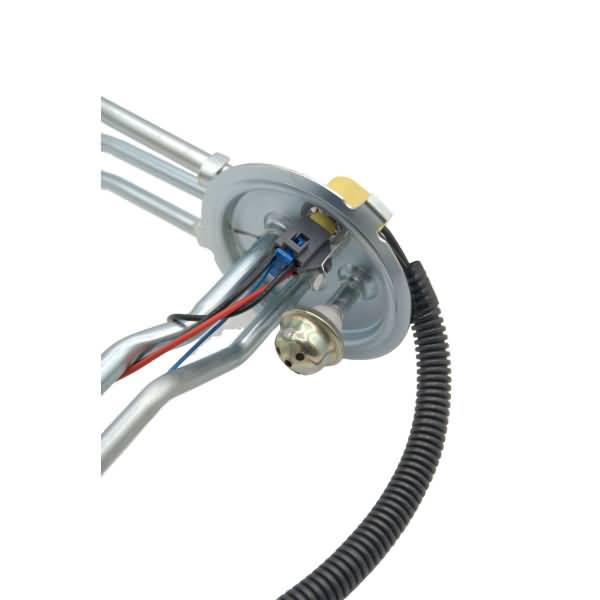

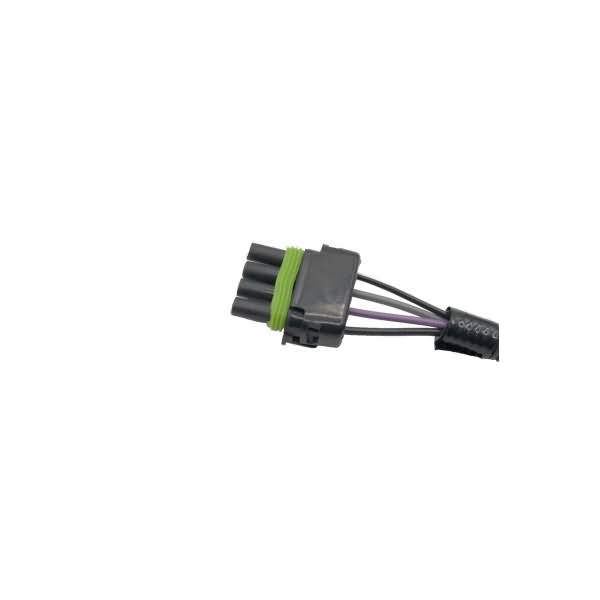

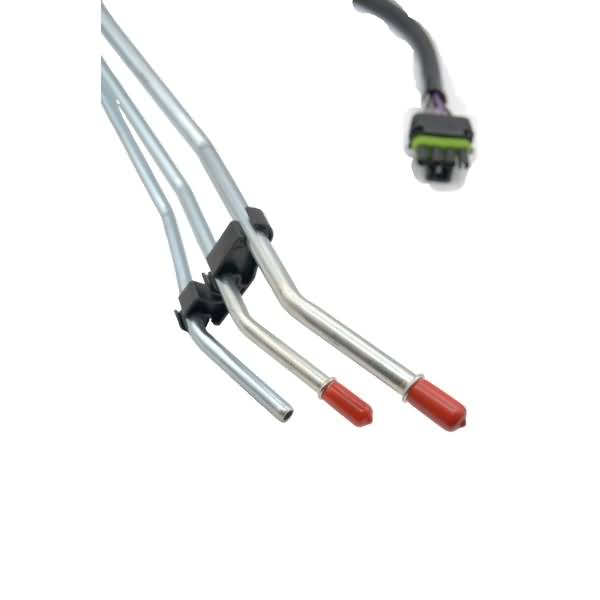

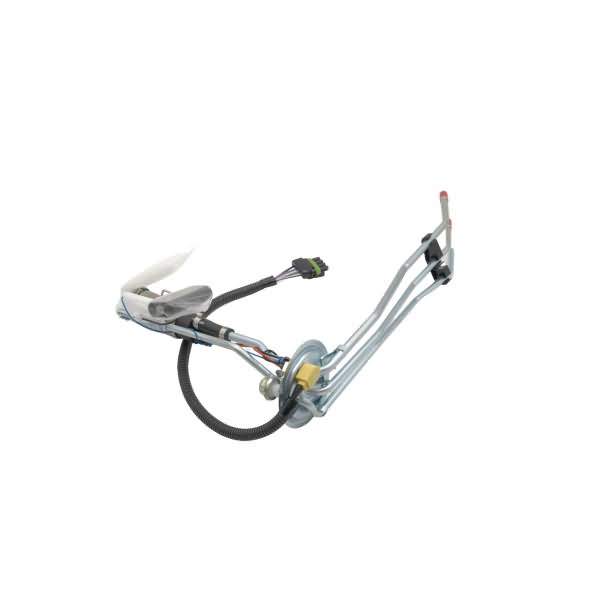

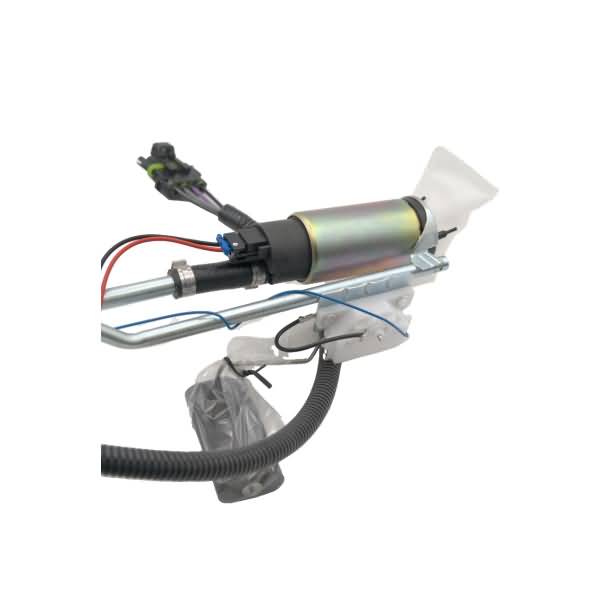

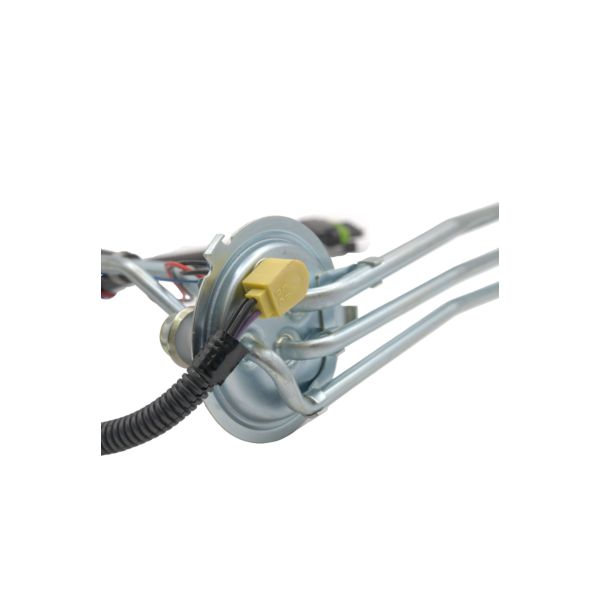

Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2630A |
Part Description | Electric Fuel Pump |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 34 |
Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Height (in.) | 11.75 |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | External |
Length (in.) | 22 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 45 |
Maximum Pump Pressure (PSI) | 100 |
Minimum Free Flow (GPH) | 45 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Assembly |
Product Height (in) | 5.91 |
Product Length (in) | 18.31 |
Product Width (in) | 11.54 |
Regulator Included | No |
Resistance Ohms Empty | 2 |
Resistance Ohms Full | 94 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Female |
Terminal Quantity | 3 |
Terminal Type | PIN |
UPC | 00072845126306 |
Voltage | 12V |
Weight (lbs) | 2.57 |
Weight (lbs.) | 3.18 |
Width (in.) | 7.5 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
1993-1994 Buick LeSabre | All Trims | 6 Cyl 3.8L |
1993-1994 Buick Park Avenue | All Trims | 6 Cyl 3.8L |
1993-1994 Oldsmobile 88 | All Trims | 6 Cyl 3.8L |
1993-1994 Oldsmobile 98 | All Trims | 6 Cyl 3.8L |
1993-1994 Pontiac Bonneville | All Trims | 6 Cyl 3.8L |
