Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |

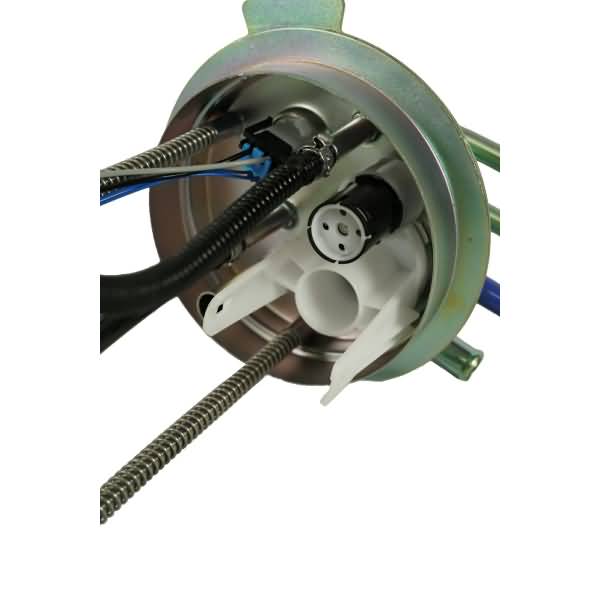

Part Number | F2627A |

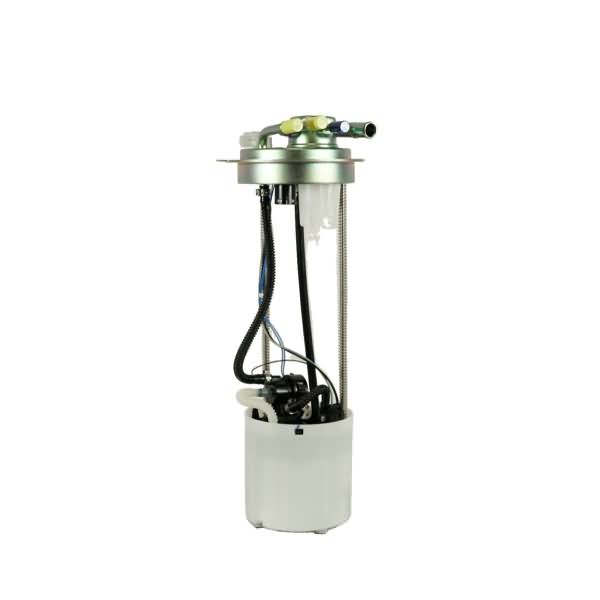

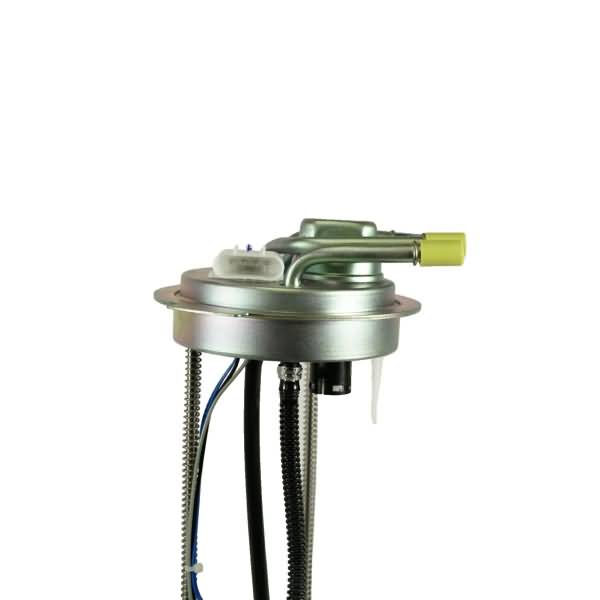

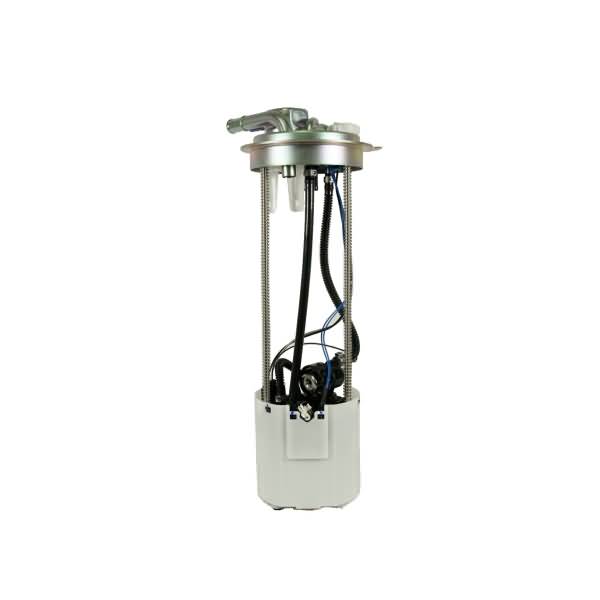

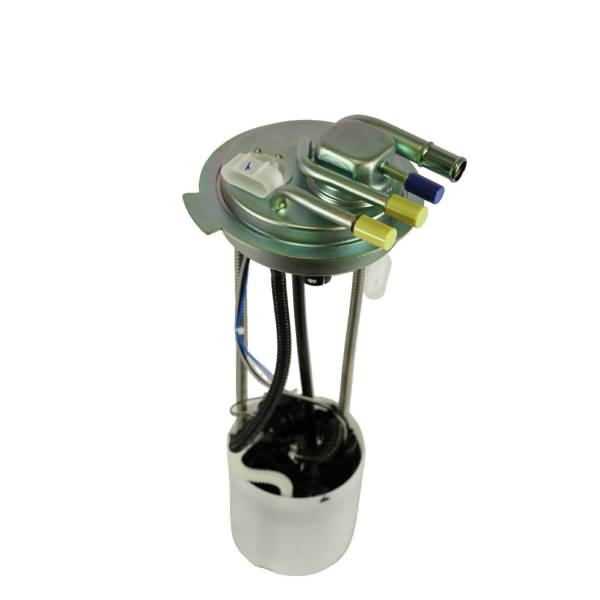

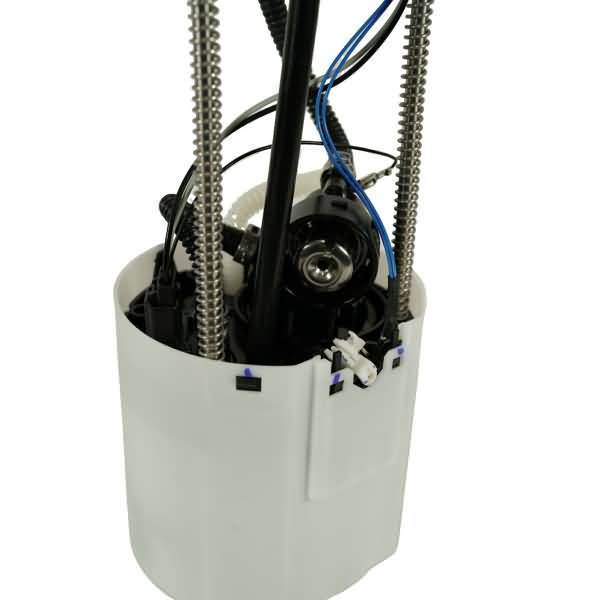

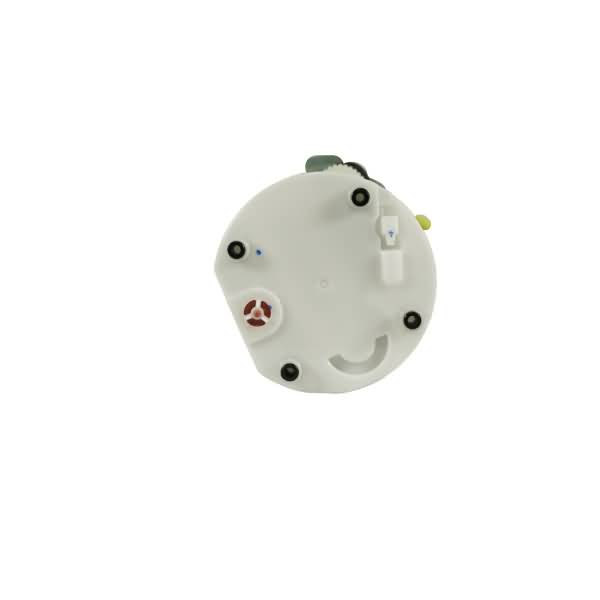

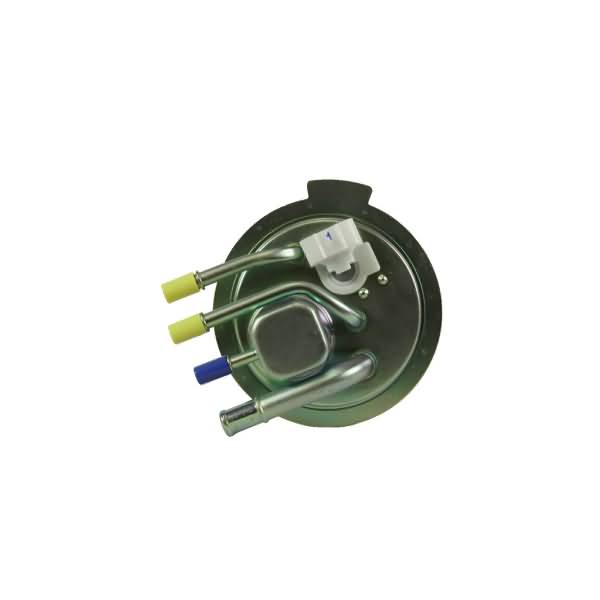

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 10.5 |
Average Flow Rating(GPH) | 34 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |

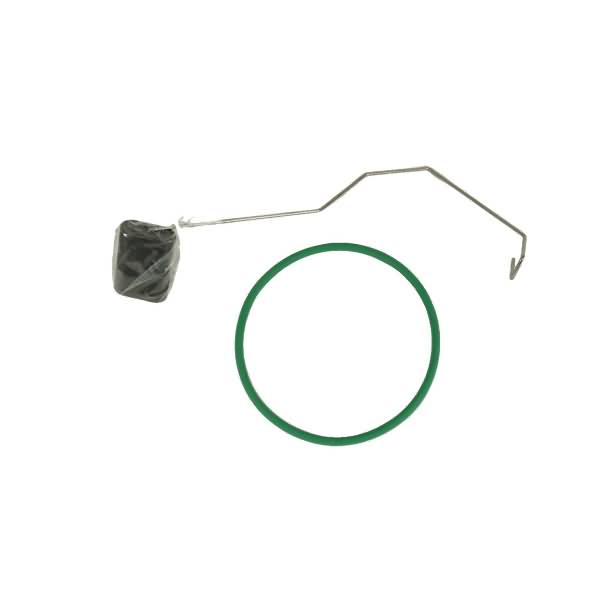

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.314 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 19 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | Yes |
Maximum Pump Pressure (PSI) | 70 |
Minimum Pump Pressure (PSI) | 55 |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly |
Product Height (in) | 6.42 |
Product Length (in) | 17.87 |
Product Width (in) | 7.09 |
Regulator Included | Yes |
Resistance Ohms Empty | 42 |
Resistance Ohms Full | 254 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845126276 |
Voltage | 12V |
Weight (lbs) | 4.45 |
Weight (lbs.) | 5.48 |
Width (in.) | 9 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.0L |
2004-2006 Chevrolet Silverado 3500 | All Trims | 8 Cyl 8.1L |
2004-2006 GMC Sierra 3500 | All Trims | 8 Cyl 6.0L |
2004-2006 GMC Sierra 3500 | All Trims | 8 Cyl 8.1L |
2007 GMC Sierra 3500 Classic | All Trims | 8 Cyl 6.0L |
2007 GMC Sierra 3500 Classic | All Trims | 8 Cyl 8.1L |
