Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2603A |

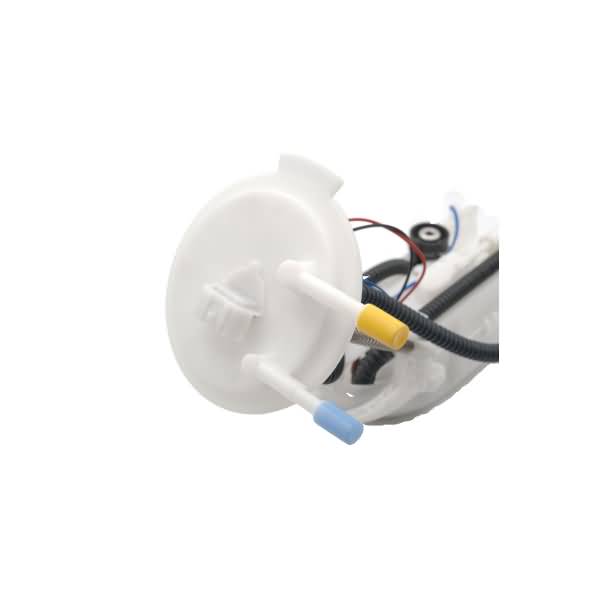

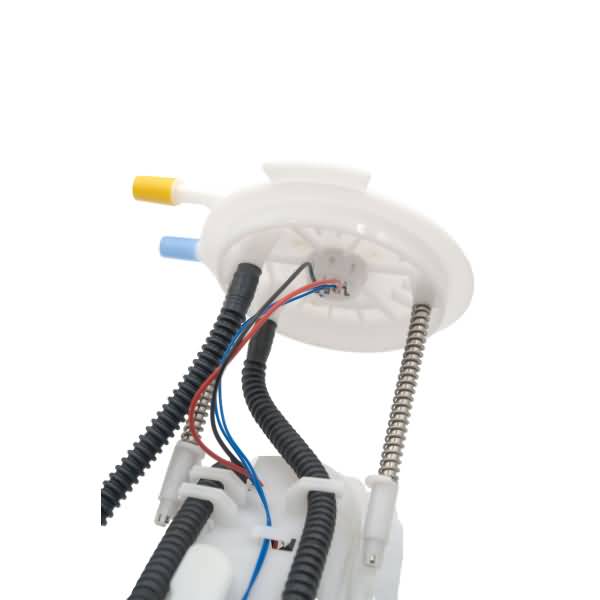

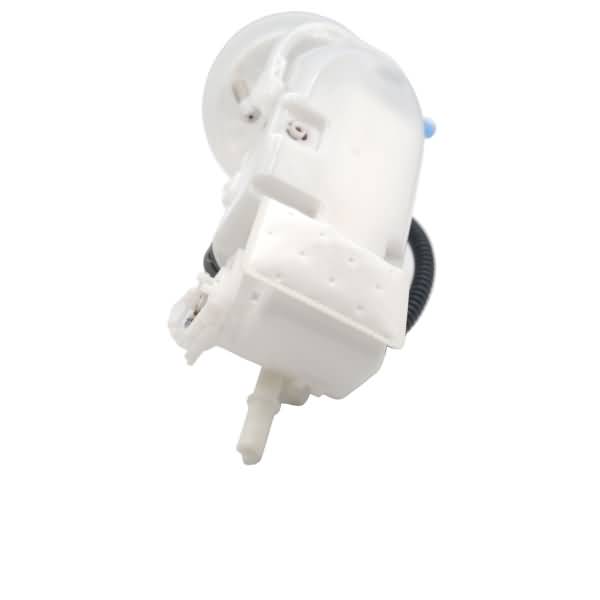

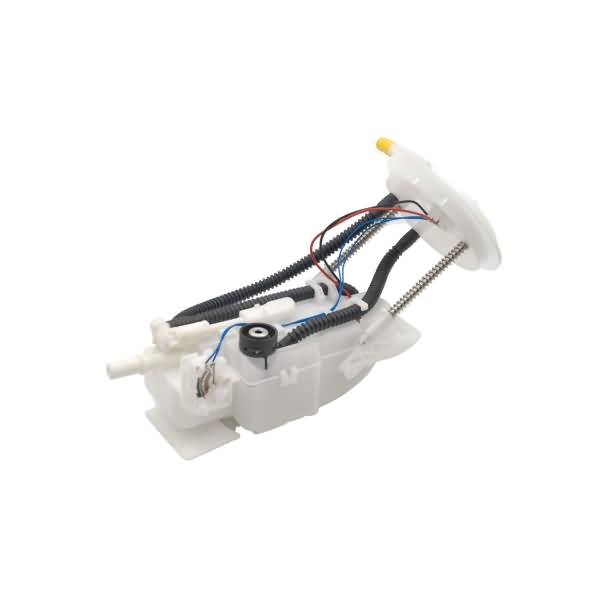

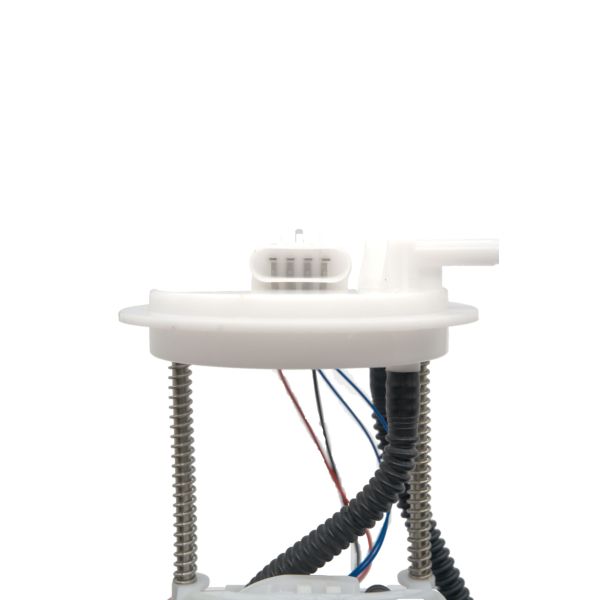

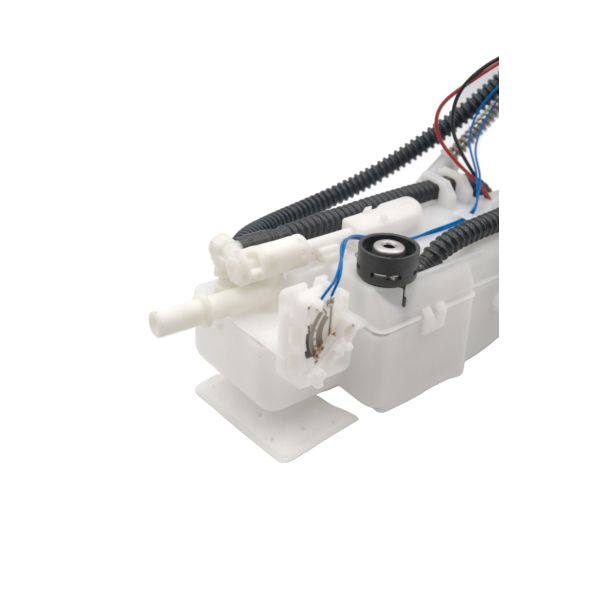

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 10.5 |
Average Flow Rating(GPH) | 36.6 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.275 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | Yes |
Maximum Pump Pressure (PSI) | 115 |
Minimum Pump Pressure (PSI) | 105 |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 7.32 |
Product Length (in) | 12.24 |
Product Width (in) | 8.78 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 41 |
Resistance Ohms Full | 250 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845126030 |
Voltage | 12V |
Weight (lbs) | 2.57 |

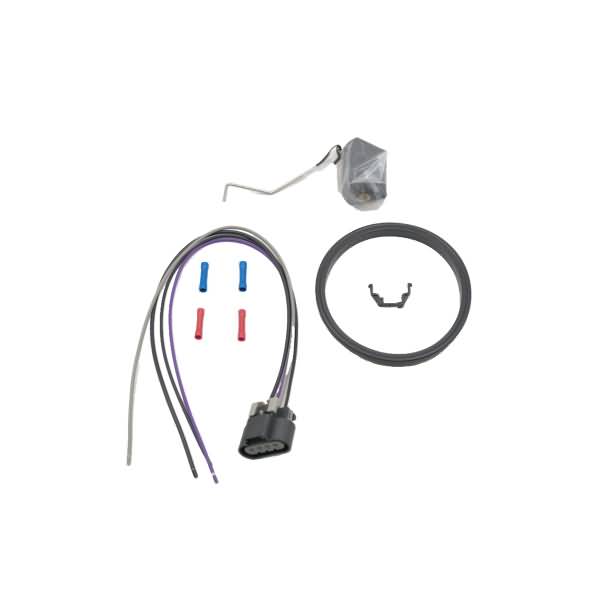

Wire Harness Included | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Cadillac CTS | V | 8 Cyl 5.7L |
2006-2007 Cadillac CTS | V | 8 Cyl 6.0L |
