Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F2580A |

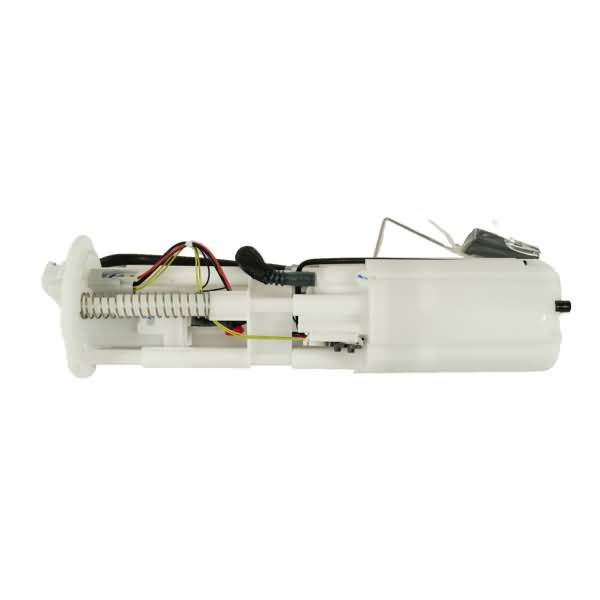

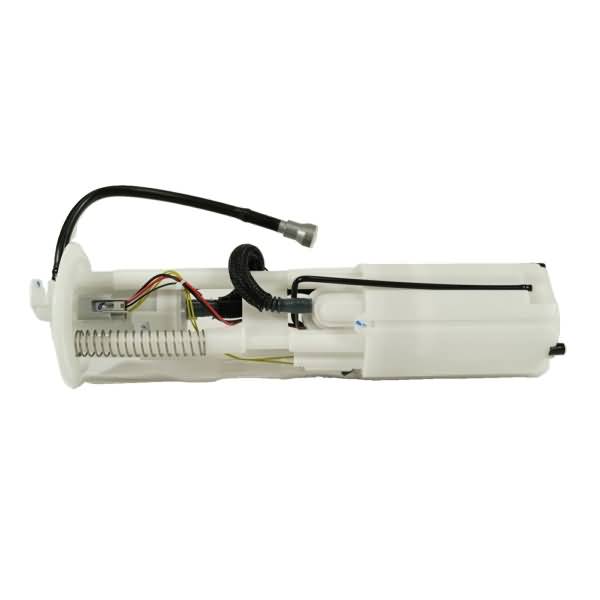

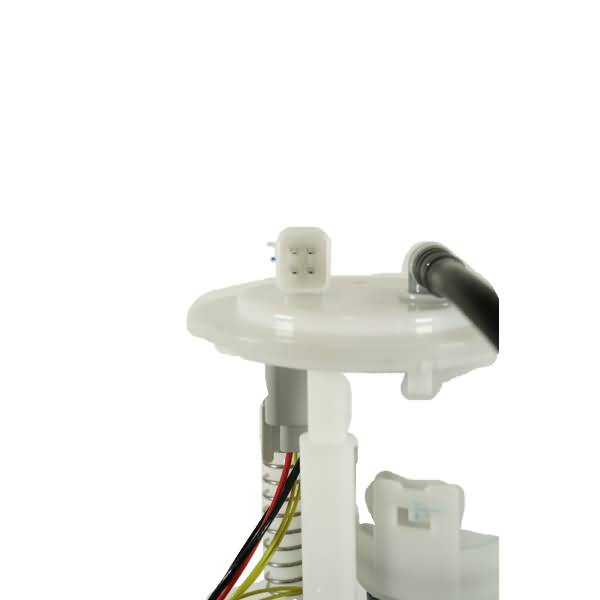

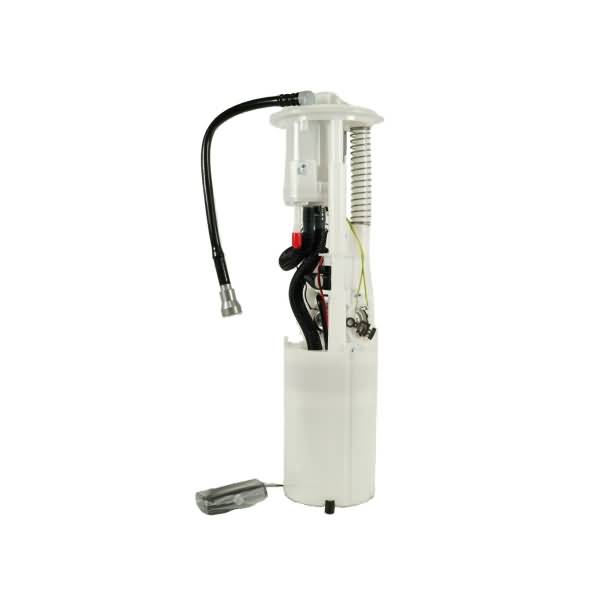

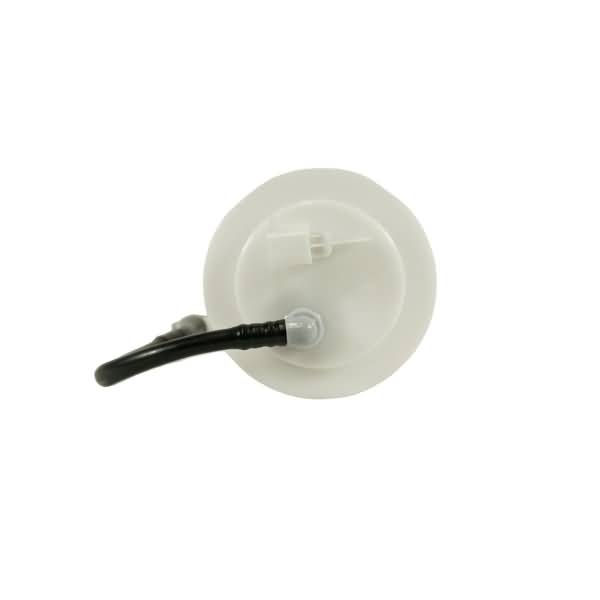

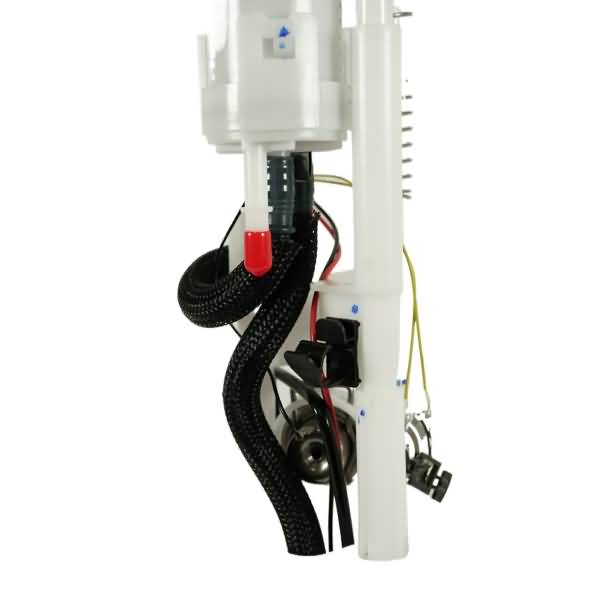

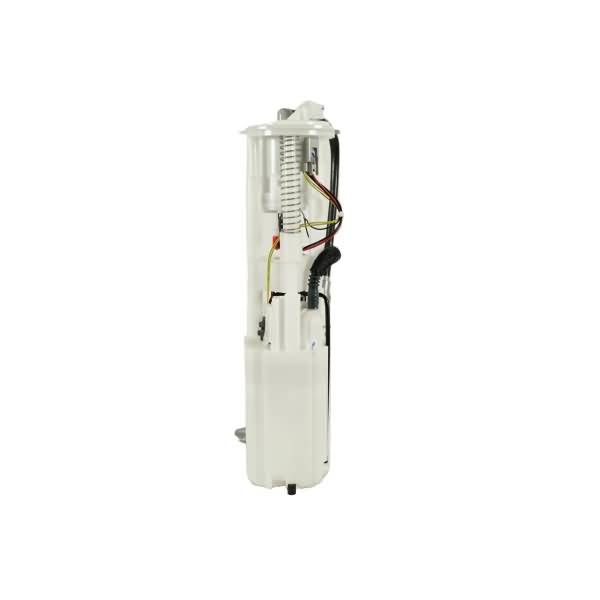

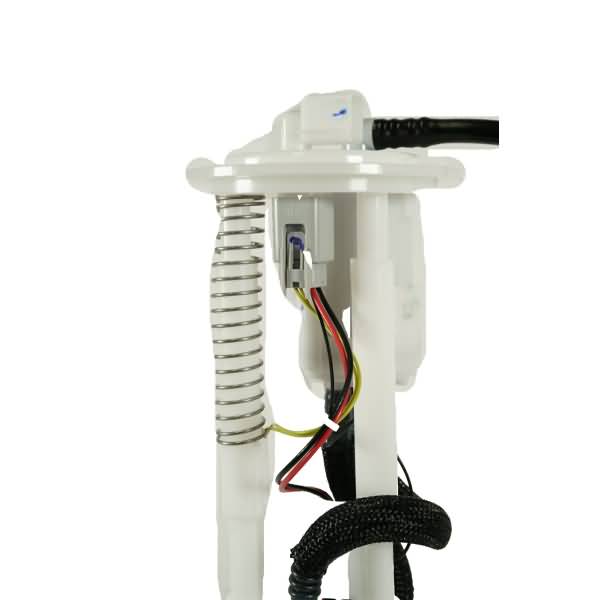

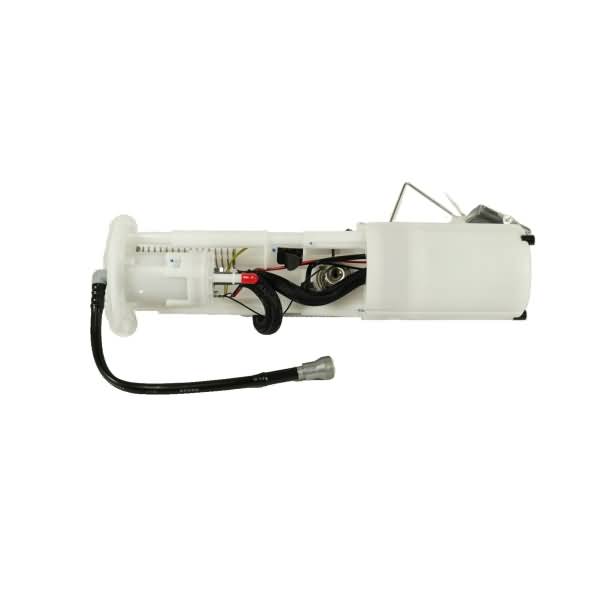

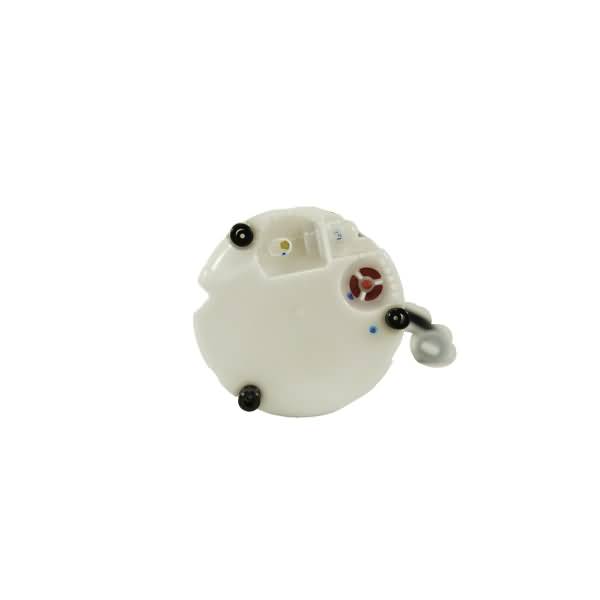

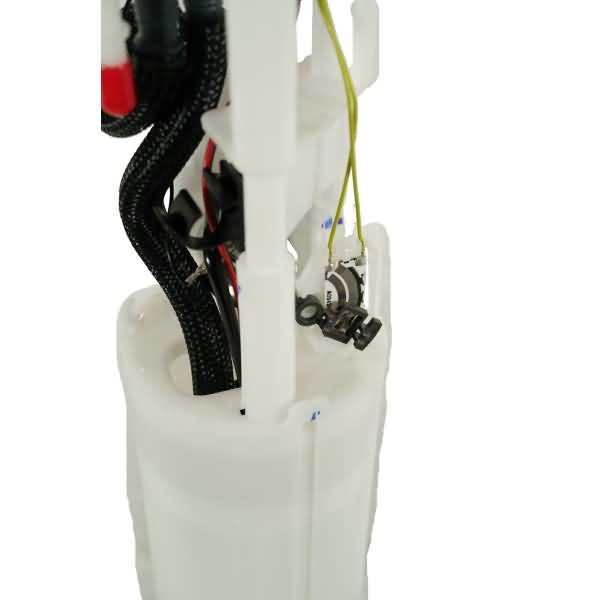

Part Description | Electric Fuel Pump |
Average Current Draw(A) | 12.9 |
Average Flow Rating(GPH) | 47.3 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Turbine |

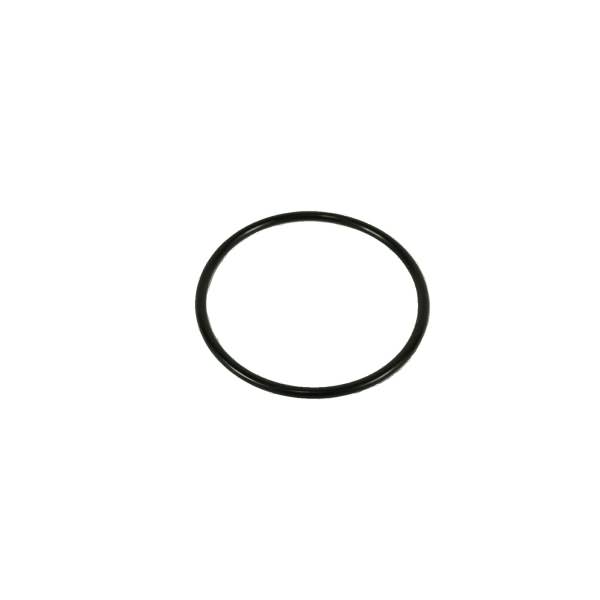

Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Height (in.) | 7 |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Length (in.) | 20.5 |
Life Cycle Status Code | Available to Order |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 110 |
Minimum Pump Pressure (PSI) | 80 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |

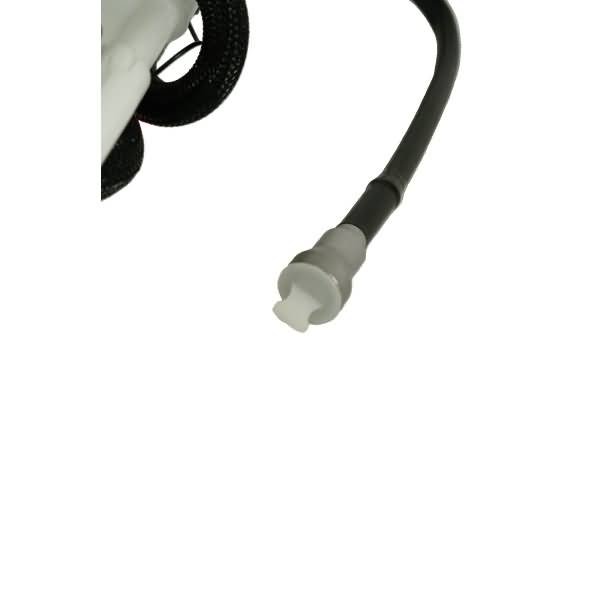

Outlet Type | Quick Connect |
Package Contents | Fuel Pump Module Assembly |
Product Height (in) | 4.57 |
Product Length (in) | 16.34 |
Product Width (in) | 9.49 |
Regulator Included | Yes |
Resistance Ohms Empty | 40 |
Resistance Ohms Full | 250 |
Short Description | Electric Fuel Pump |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845125804 |
Voltage | 12V |
Weight (lbs) | 2.75 |
Weight (lbs.) | 3.34 |
Width (in.) | 10.5 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Cadillac XLR | All Trims | 8 Cyl 4.6L |
2006 Cadillac XLR | All Trims | 8 Cyl 4.4L |
2003-2004 Chevrolet Corvette | All Trims | 8 Cyl 5.7L |
2006 Chevrolet Corvette | All Trims | 8 Cyl 6.0L |
2006 Chevrolet Corvette | All Trims | 8 Cyl 7.0L |
